WM-106 electronic whiteness measurement white instrument

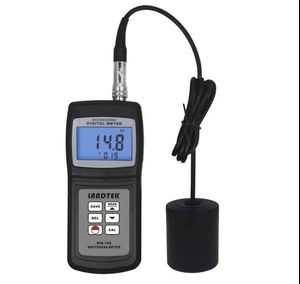

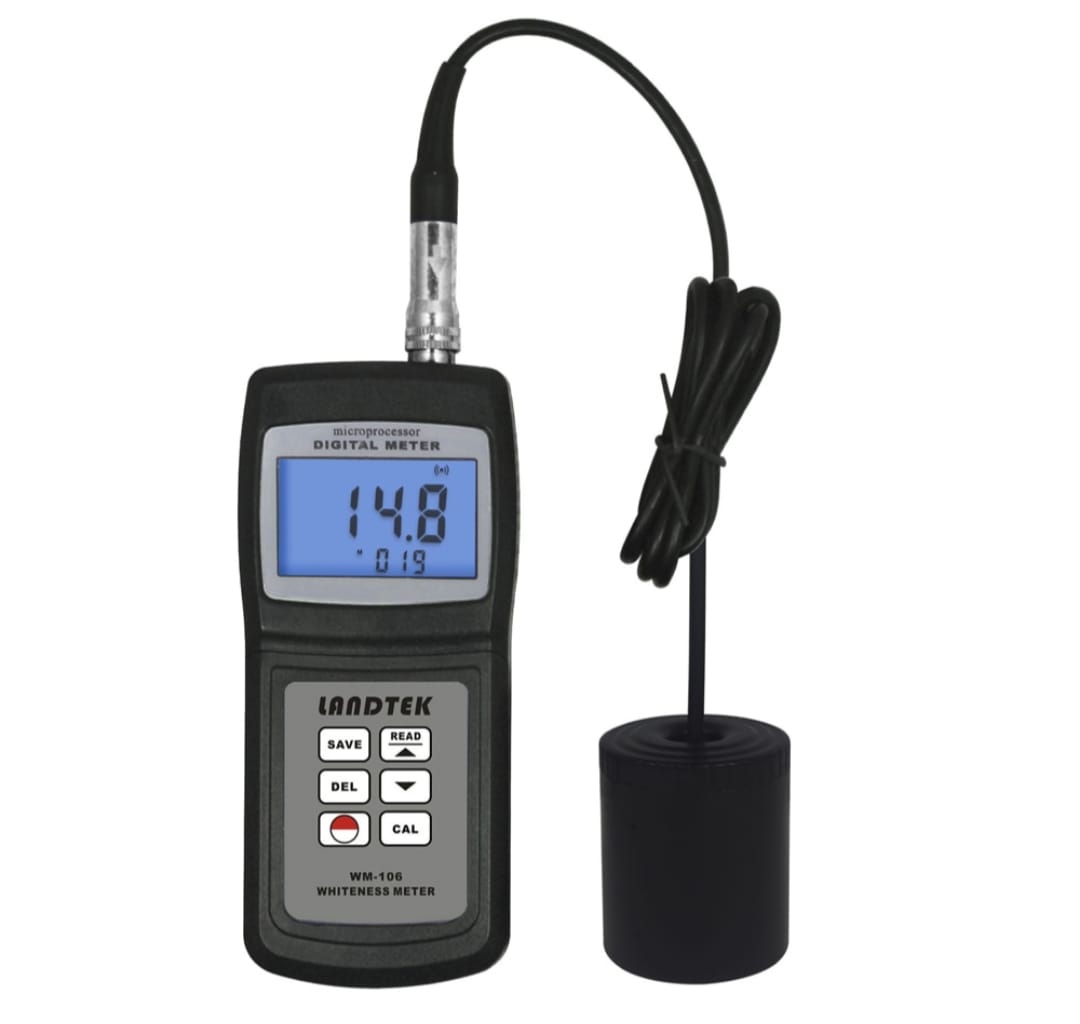

Whiteness meter WM-106
app:
Whiteness meter is mainly used to directly measure the whiteness value of objects or powders with flat surfaces.
Can be widely used for white measurement:
*Textile printing and dyeing, paint, chemical building materials
* Cardboard, plastic products, white cement, ceramics, enamel
*Talc, starch, flour, salt, detergents, cosmetics and other substances.
feature:
*It consists of light source, optical system, detection system, data process and display system. The whiteness calculation formula of the instrument is blue light whiteness R457.
*Use high-quality imported components with good reliability.
*The optical path design is reasonable and simple. Using a calibration filtration system, white can be quantitatively reflected.
*No preheating after startup, measurements can be performed after simple calibration after easy operation.
*Through strict inspection and testing, the instrument complies with JJG 512-2002 whiteness verification regulations. Alsoconforms to GB3978, GB3979, GB7973, GB7974, ISO2470, GB8904.2, QB1840, GB2913, GB13025.2, GB13025.2, GB1543, GB1543, GB1543, ISO2471, ISO 2471, GB10339, GB1039, GB1129, GB129, GB129, GB129, GB129, GB129, GB129, GB129, GB129, GB129, GB129, GB129, GB129.
*Able to remember 254 sets of measurement data.
* Connect to PC using USB data output and RS-232 data.
*Provides Bluetooth data to select.
detail:
|
Model |
WM-106 |
|
scope |
0%~120% |
|
solve |
0.10% |
|
Lighting conditions |
45°/0° |
|
Light |
LED 457nm |
|
Whiteness formula |
Blue light whiteness WB = R457 |
|
Measure the aperture |
<< 15 mm |
|
Zero drift |
<< 0.1% |
|
Display stability |
<< 0.5% |
|
Repeatability of measurements |
<< 0.1% |
|
Working conditions |
Temperature: 0ºC ~ 40ºC |
|
power supply |
4x1.5V AAA (UM-4) battery |
|
size |
Main Force: 156 x67 x28 mm |
|
weight |
200g (battery not included) |
|

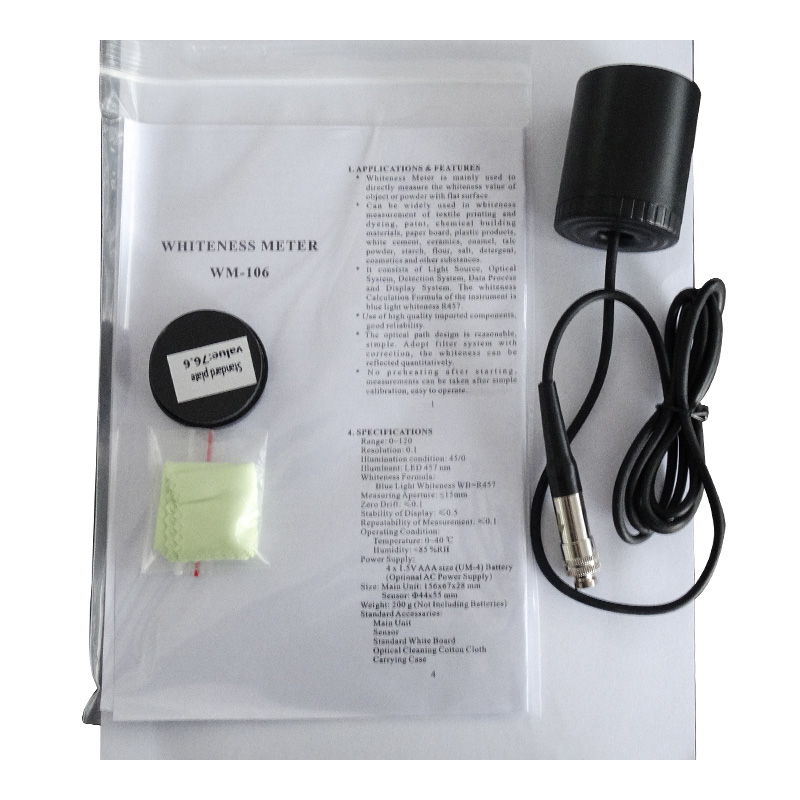

Standard accessories
|
Main Force |
|
External probe |
|
|
Standard whiteboard |
|
|
Optical cleaning cotton cloth |
|
|

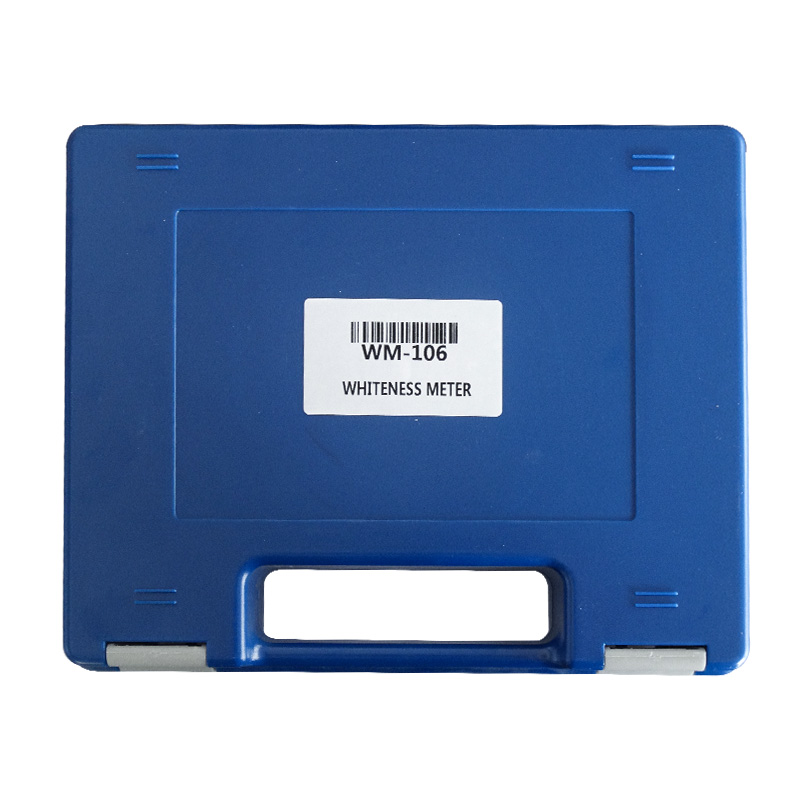

Carrying cases |
|
|
Operating manual |
|
|
Optional accessories
|
Constant pressure powder forming equipment |
|
RS-232C data cable with software |
|
|
Bluetooth data adapter with software |
1 unit, the gross weight is 1.0 kg. Carton size: 27*23*8 cm, volume and weight are 1.0kg.
10%, gross weight is 8.0kg. Carton size: 45*28*33 cm, volume and weight are 9.0kg.
20%, gross weight is 15.0kg. Carton size: 45*28*58 cm, volume and weight are 16.0kg.
DHL, FedEx, UPS, Air, Sea, etc. Delivery
