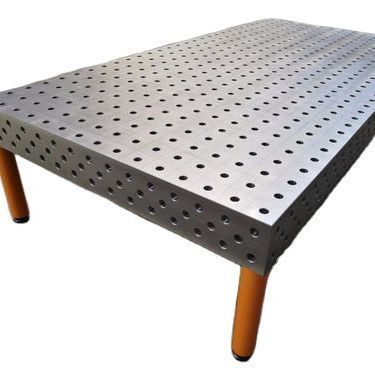

Top 3D Soldering Station Manufacturer with Fixture Fixtures
- $600.00 /piece
- 1 piece
- Botou Kaicheng Mechanical Equipment Co., Ltd.
- Hebei, China
- Mr
PRODUCT DETAIL
product name: | 3D welded plate | usage: | ±0.1mm |
Whether it is a standard part: | Yes | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
place of origin; place of origin: | Hebei china | Structure: | Box steel plate |
port: | Tianjin Qingdao | Material: | cast iron/steel |
standard: | JB/T7974-99 | brand: | open-hearted |
size: | OEM | Supply capacity: | 10000 pieces/year |
model: | KC-b1 | application: | industrial |
Product Specifications
Machined by CNC machining center. According to the hole system, it is divided into two series: Φ28 and Φ16. According to the structure, it is divided into two-dimensional flexible combined tooling and three-dimensional flexible combined tooling. The tooling platform is divided into steel platform, cast iron platform and plate platform according to the material. The grid is engraved with corresponding grid lines. According to customer requirements, millimeter scales can be drawn on both sides of the right side of the platform.
Schedule:
3d welding station | Aperture | Gridlines | Hole spacing |
D28 series | 28mm | 100mmx100mm | 100mm |
D16 series | 16mm | 50mmx50mm | 50mm |
origin | Hebei china |
Card | open and honest |
model | custom |
use | Welding Reference Sheet |
Material | cast iron/steel |
structure | Box steel plate |
is a standard part | Yes |

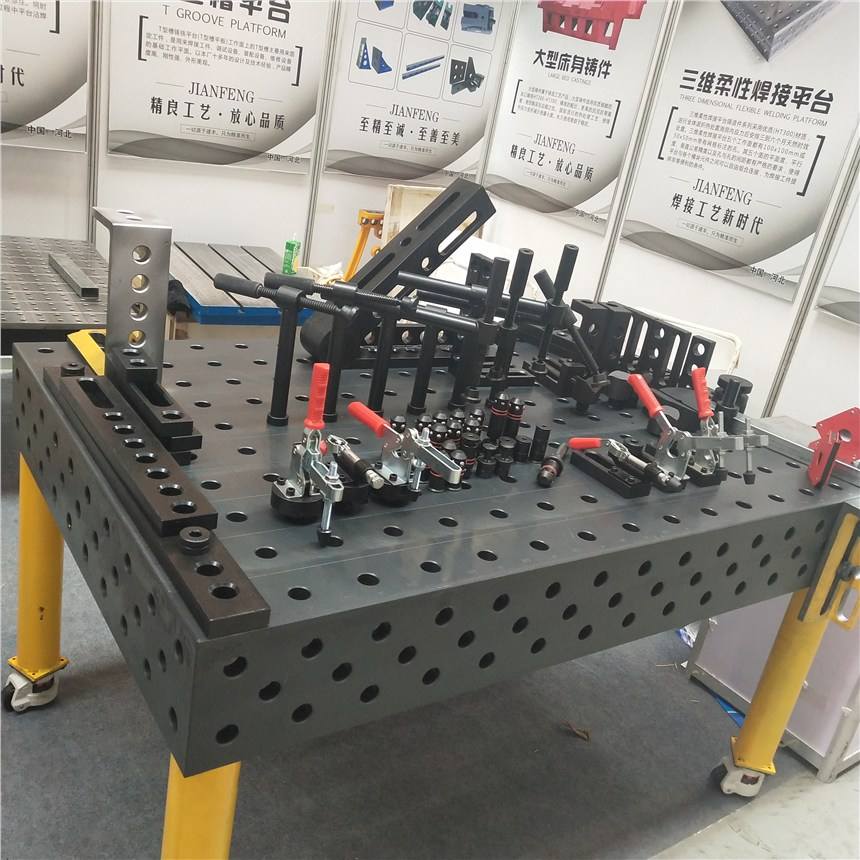

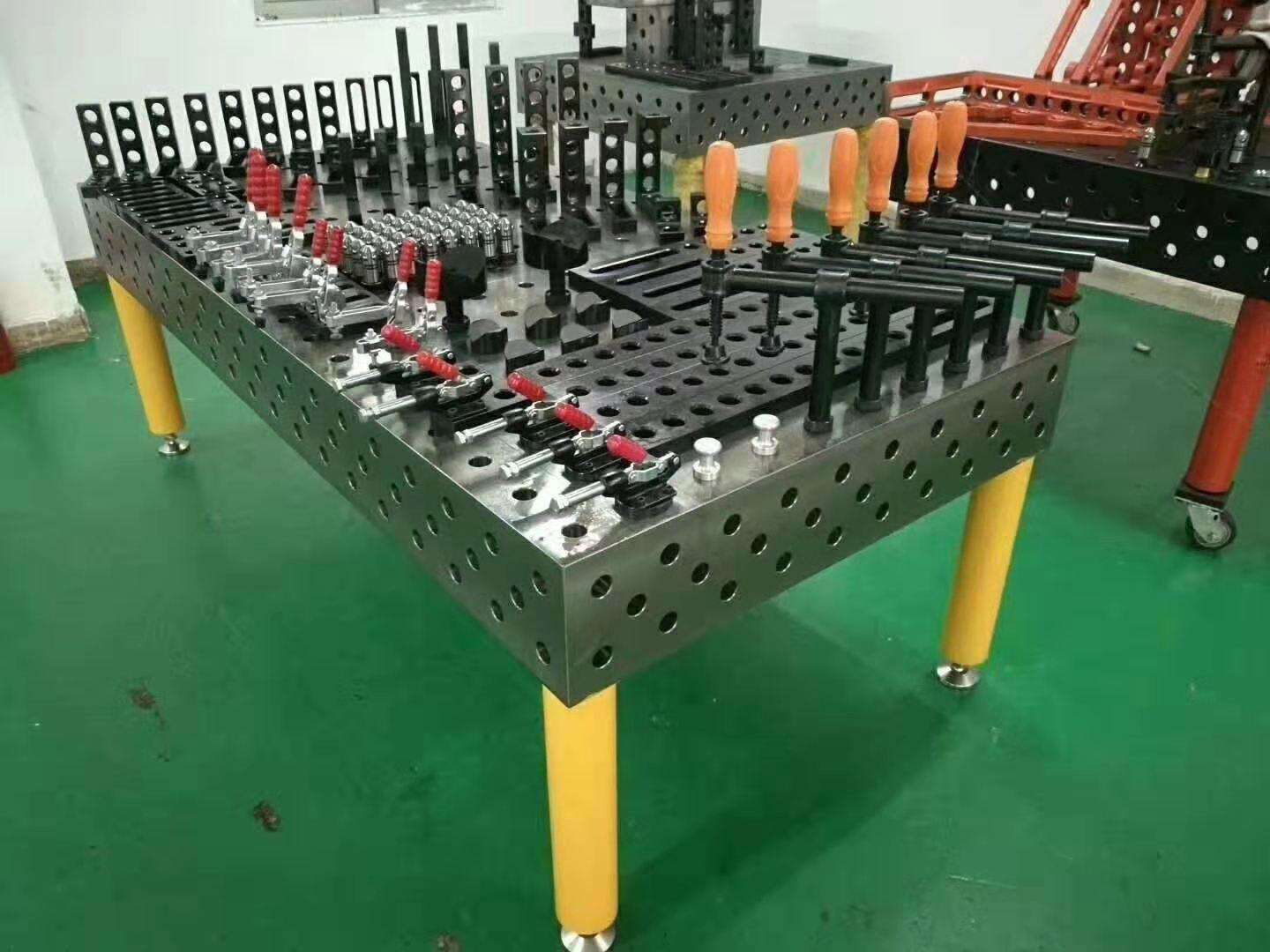

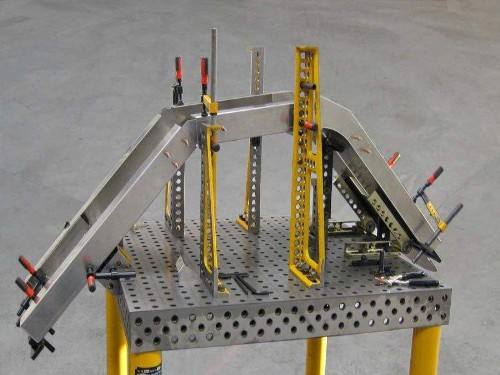

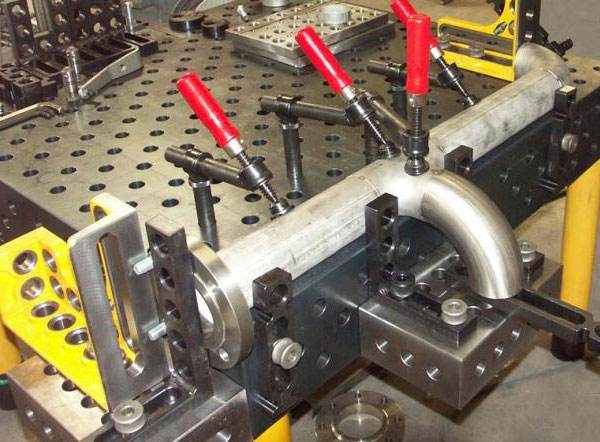

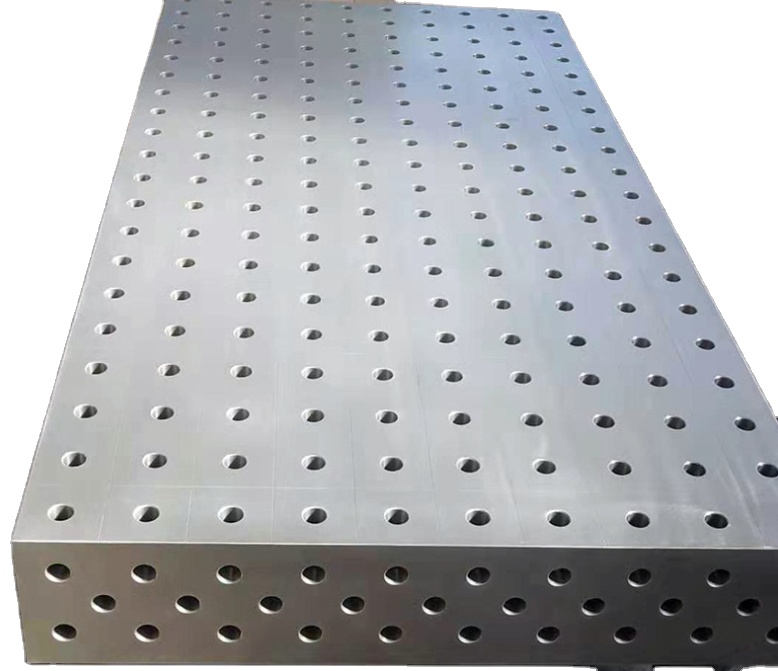

Product display
Product advantages
1. Quickly locate the fixture without tape.
2. The five sides can be realized through modular expansion and expansion.
3. Different products and standards can be reused.
3. Different products and standards can be reused.
4. The reinforcing ribs at the bottom of the steel plate ensure the stability and
The product is not deformed.
5. Customers can take reasonable support methods according to the actual situation.
The product is not deformed.
5. Customers can take reasonable support methods according to the actual situation.
The title is here.

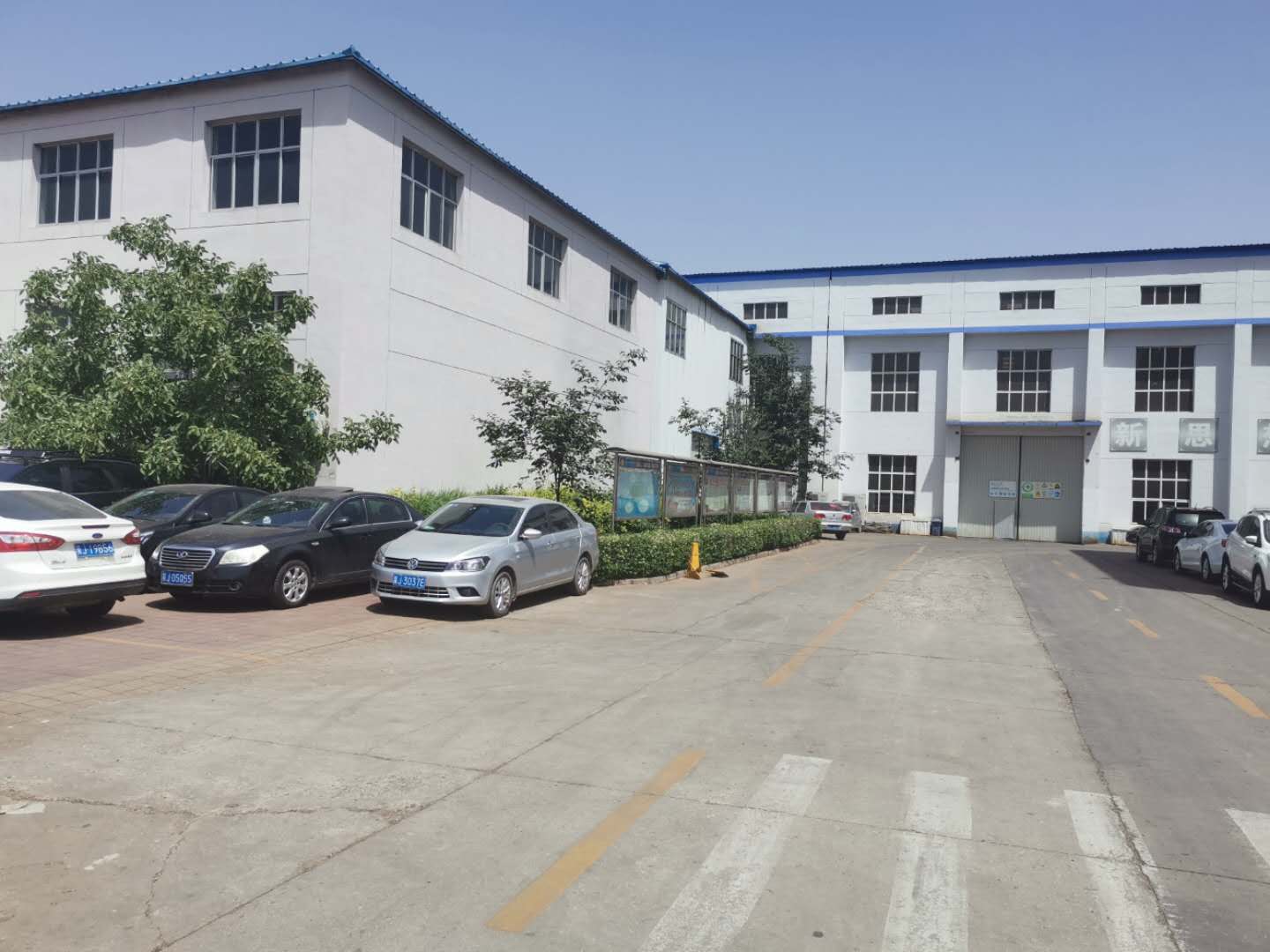

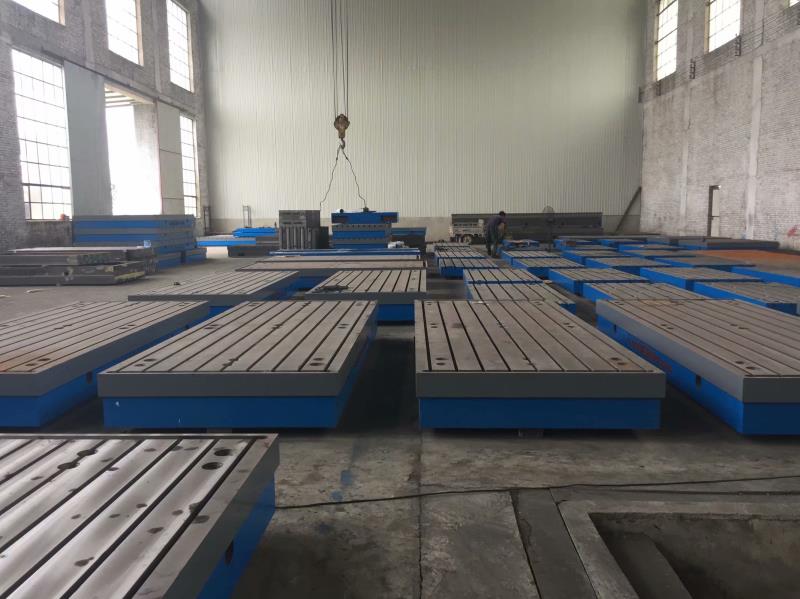

Botou Kaicheng Machinery Equipment Co., Ltd. is a professional manufacturer of measuring tools, foundry machine tools, large, medium and small machine tool castings and machine tool accessories. Our company is located in Botou City, Hebei Province, the famous "casting town" in China.
