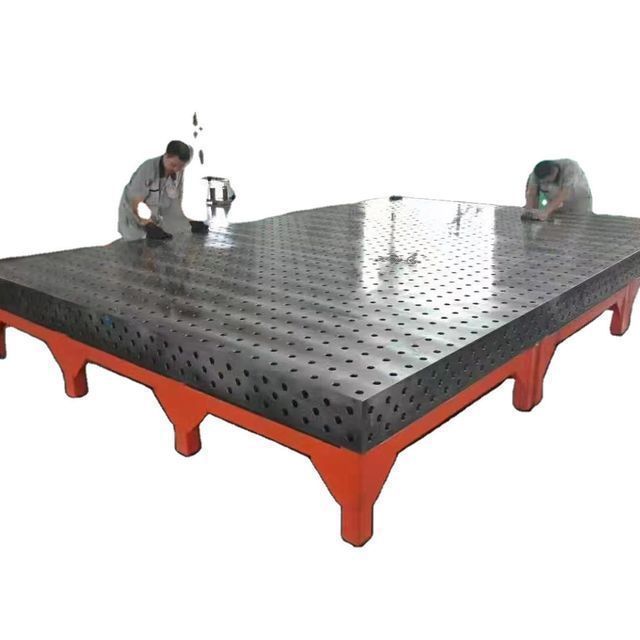

sale welding table clamping system steel 28 series working platform 3d flexible welding table with welding fixture
- $500.00 /unit
- 1 unit
- Botou Xintian Environmental Protection Equipment Co., Ltd.
- Hebei, China
- Ms ADA CHEN
PRODUCT DETAIL
brand: | Nitta | MOQ: | 1 set |
place of origin; place of origin: | Hebei, Hebei | size: | accept customization |
weight: | 500-3200kg | Customization support: | OEM production |
pack: | export package | Types of: | hand measuring tool |
product name: | 3D welding benches and welding bench systems | Packaging Details: | Export pallet or customer request |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Warranty: | 3 years |
Material: | cast iron | port: | Tianjin |
application: | welding system | model: | XT3D-01 |
Package preview: | Supply capacity: | 1000 pieces per month | |
usage: | an examination |
Product overview
sale welding table clamping system steel 28 series working platform 3d flexible welding table with welding fixture
It is processed by CNC machining center. According to the hole system, it is divided into two series of Φ28 and Φ16. According to the structure, it is divided into two-dimensional flexible combined tooling and three-dimensional flexible combined tooling. The tooling platform is divided into steel sheet platform, cast iron platform and plate platform according to the material. Corresponding grid lines are engraved on the grid. According to customer requirements, millimeter scales can be drawn on both sides of the right side of the platform.
3D Welding Station——D16 Series
made of cast iron
5 precision machined work surfaces
Aperture: 16mm
Grid line: 50mm*50mm
Hole distance: 50mm
Material thickness: about 14mm
Side height: 100mm
Reinforcement on the underside by ribs.
made of cast iron
5 precision machined work surfaces
Aperture: 16mm
Grid line: 50mm*50mm
Hole distance: 50mm
Material thickness: about 14mm
Side height: 100mm
Reinforcement on the underside by ribs.
3D Welding Station——D28 Series
made of cast iron
5 precision machined work surfaces
Aperture: 28mm
Grid line: 100mm*100mm
Hole distance: 100mm
Material thickness: about 23mm
Side height: 200mm
Reinforced at the bottom by ribs
made of cast iron
5 precision machined work surfaces
Aperture: 28mm
Grid line: 100mm*100mm
Hole distance: 100mm
Material thickness: about 23mm
Side height: 200mm
Reinforced at the bottom by ribs
right level
left elevation
Front view
