Wireless Ball Bar Double Ball Bar for CNC Machine Tool Measurement Calibration
- $1000.00 /set
- 1 set
- Chotest Technology Inc.
- Guangdong, China
- Mr Crane Chen
PRODUCT DETAIL
| Origin: | Guangdong, China; | Measuring range: | ±1.0mm; |
| payment terms: | L/C, D/P, T/T, MoneyGram; | Packaging Details: | Wooden box + aluminum box + foam; |
| product name: | club; | port: | Shenzhen, Hong Kong; |
| model: | MT21,MT21; | Sensor range: | ±2.0mm; |
| Sampling Rate: | 1000 Hz; | aspect: | 150*26*21mm; |
| working environment: | (0~40)℃, RH<95%; | Resolution: | 0.1 micron; |
| brand: | Court; | Supply capacity: | 60 sets per month; |
| Warranty: | 3 years; | application: | CNC machine tool diagnosis; |
product description

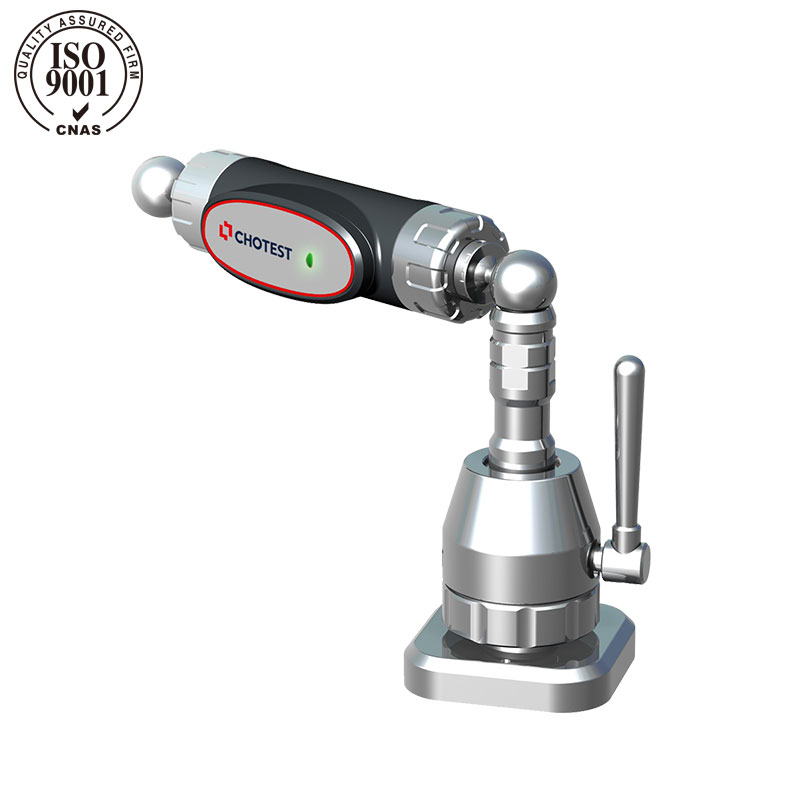

MT21 Wireless Ballbar
Designed to quickly inspect machine tools and improve machining quality, the MT21 wireless ballbar provides a fast and cost-effective solution for machine tool inspection at low cost.
Function list
Product Features
1. Simple and fast
Measurement software with guided operation can automatically generate machine operating programs.with simpleThe circular orbit test of three orthogonal planes can be completed in 10 to 15 minutes.
2. Powerful analysis function
Comprehensive diagnostic reports provide a comprehensive and professional assessment of machine performance.Taking the 360 degree measurement of the XY plane as an example, it can be analyzed: Backlash X, Backlash Y, Retrograde X, Retrograde Y, Lateral Clearance X, Lateral Clearance Y, Period Error X, Period Error Y, Servo Mismatch, Verticality , Straightness X, Straightness Y, Scale Mismatch, Scale Error X, Scale Error Y, Pitch X, Pitch Y, Feed Rate, Center Offset X, Center Offset Y, Position Tolerance, Best Fit Radius, Circle Spend.
3. Wireless operation
Data is transferred to the laptop via wireless bluetooth.
Measurement software with guided operation can automatically generate machine operating programs.with simpleThe circular orbit test of three orthogonal planes can be completed in 10 to 15 minutes.
2. Powerful analysis function
Comprehensive diagnostic reports provide a comprehensive and professional assessment of machine performance.Taking the 360 degree measurement of the XY plane as an example, it can be analyzed: Backlash X, Backlash Y, Retrograde X, Retrograde Y, Lateral Clearance X, Lateral Clearance Y, Period Error X, Period Error Y, Servo Mismatch, Verticality , Straightness X, Straightness Y, Scale Mismatch, Scale Error X, Scale Error Y, Pitch X, Pitch Y, Feed Rate, Center Offset X, Center Offset Y, Position Tolerance, Best Fit Radius, Circle Spend.
3. Wireless operation
Data is transferred to the laptop via wireless bluetooth.
Product Specifications
parameter | ||
communicate | Bluetooth (10m typical) | |
power supply | lithium battery | |
Resolution | 0.1 micron | |
measurement accuracy | ±(0.7+0.3%L)μm | |
Measuring range | ±1.0mm | |
Sensor range | ±2.0mm | |
Sampling Rate | 1000 Hz | |
Operating temperature | (0~40)℃ | |
size | 150mm×26mm×21mm | |
Applications

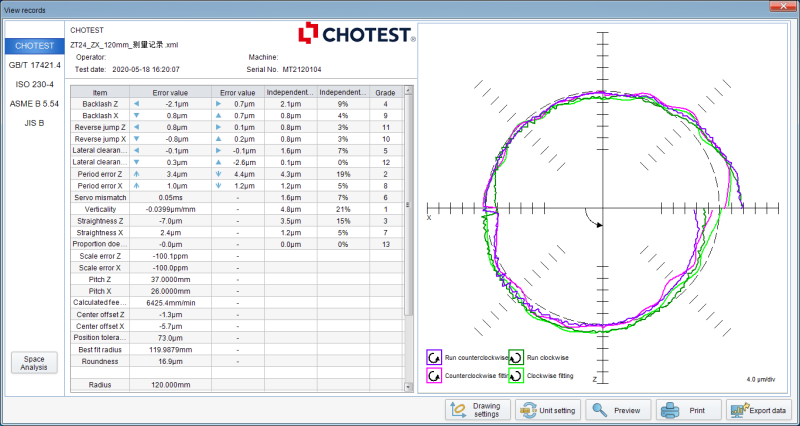

The MT21 software has wizard operation, which can quickly and easily realize the circular orbit test of three orthogonal planes.Automatically generate analysis reports in graphic format conforming to GB17421-4, ISO230-4, ASMEB5.54 or JISB standards, and calculate the overall measurement value of position accuracy (roundness, roundness deviation).MT21 realizes true spatial diagnosis of machine tools.
Product packaging

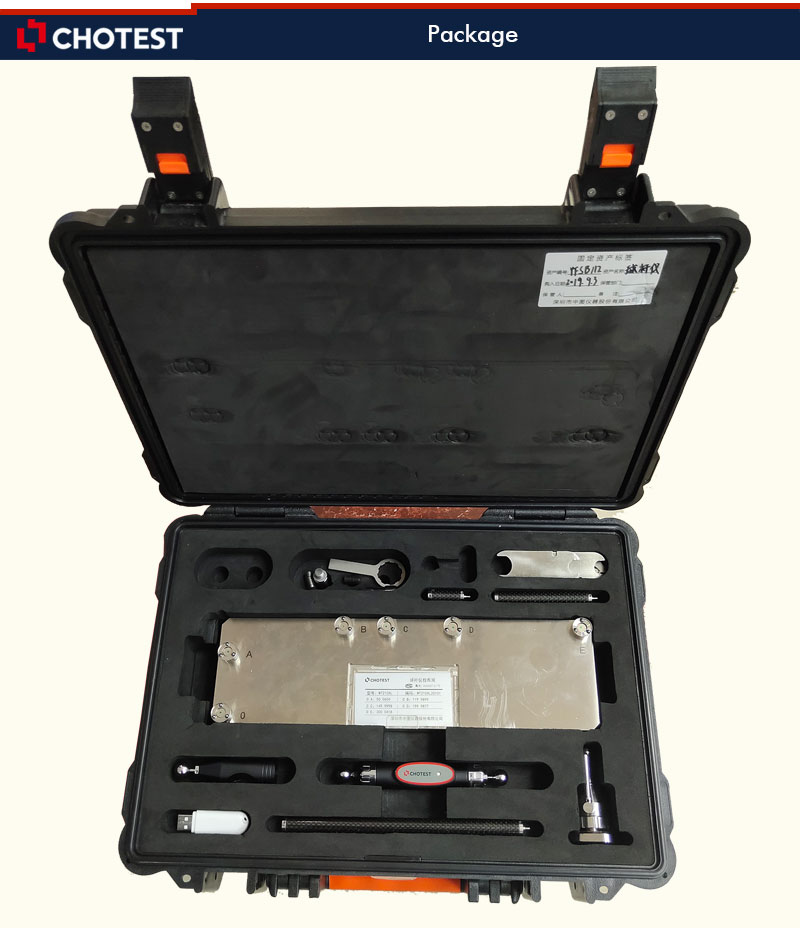

1. MT21 Wireless Ballbar
2. Main Rules
3. Offset the set ball
4. Center bracket
5. Tool Cup
6. Extension rod 50mm, 100mm, 150mm
7. Software
8. Suitcase
9. User Manual
10. Product certificate and warranty card
2. Main Rules
3. Offset the set ball
4. Center bracket
5. Tool Cup
6. Extension rod 50mm, 100mm, 150mm
7. Software
8. Suitcase
9. User Manual
10. Product certificate and warranty card
