Vacuum herbal fruit concentrate small concentration extraction unit pharmaceutical evaporation equipment
- $1000.00 /set
- 1 set
- Wenzhou Chinz Machinery Co., Ltd.
- Zhejiang, China
- Mr Chunsui Ye
PRODUCT DETAIL
| Warranty: | 2 years; | Package Preview: | ; |
| Condition: | New; | Brand Name: | CHINZ; |
| Compressed air (MPa): | 0.5~0.6: Evaporation temperature(°C):50~90; | Capacity: | 50-10000L; |
| After-sales Service Provided: | Engineers available to service machinery overseas,Field installation, commissioning and training; | Key words: | small concentration extraction unit; |
| Showroom Location: | United States,Thailand,South Korea; | Warranty of core components: | 2 years; |
| Process: | customized; | Place of Origin: | Zhejiang, China; |
| Function: | evaporation extracting concentrate; | Applicable Industries: | Food & Beverage Factory,Farms,Food & Beverage Shops; |
| Weight: | 630 KG; | Application: | liquid; |
| Certification: | CE/ ISO9001; | Packaging Detail: | Packed in waterproof cloth first, then packed in wooden cases ( Packed in waterproof cloth first, then packed in wooden cases ); |
| Name: | fruit concentrate small concentration extraction unit pharmaceutical; | Video outgoing-inspection: | Provided; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,trade assurance; | Core Components: | Engine,Motor,Pump; |
| Material: | Stainless Steel 304/316L; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
| Processing Types: | food / Chinese herb and other botanical; | Port: | Ningbo or Shanghai; |
| System vacuum (MPa): | -0.085: Pressure of jacket(MPa): 0.09~0.3; | Supply Ability: | 100 Sets per Month herbal extraction liquid pharmaceutical concentration equipment; |
| Machinery Test Report: | Provided; | Power: | 3.9-11kw; |
| Processing: | Concentrator; | Local Service Location: | United States,Thailand,South Africa; |
| Voltage: | 440V / 380V; | Marketing Type: | New Product 2020; |
| Dimension(L*W*H): | Depends; |
Products Description

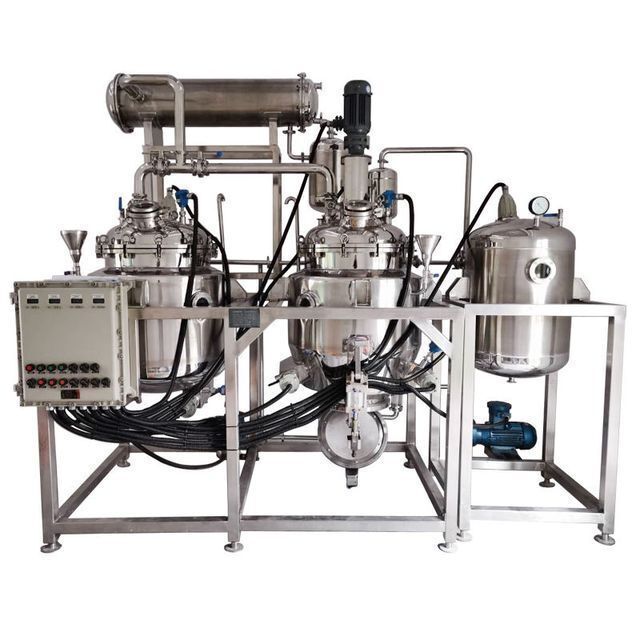

Vacuum herbal fruit concentrate small concentration extraction unit pharmaceutical evaporation equipment
The multifunctional herbs ultrasonic Extraction and Concentration Equipment is suitable for herbs, health care products, bio-pharmaceuticals, cosmetics, food and other industries, normal temperature and pressure extraction, ultrasonic extraction, ultrasonic recycling extraction and ultrasonic countercurrent extraction and other processes. This device can be ultrasonic dynamic continuous countercurrent recycling extraction, suitable for pharmaceutical, biological products business, enterprises, laboratories and pharmaceutical factory R & D department of many varieties, production use.
Product Paramenters
Model | CTN-50 | CTN-100 | CTN-200 | CTN-300 | |||
Volume L | 50 | 100 | 200 | 300 | |||
Evaporation capacity kg/h | 20 | 50 | 80 | 100 | |||
Motor power kw | 0.55 | 0.75 | 0.75 | 1.1 | |||
steam consumption kg/h | 25 | 60 | 90 | 120 | |||
System vacuum Mpa | -0.06 to -0.08 | ||||||
Jacket pressure Mpa | 0.09~0.03 | 0.09~0.03 | 0.09~0.03 | 0.09~0.03 | |||
Compressed air Mpa | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | 0.5~0.6 | |||
Steam temperature ℃ | 100~125 | ||||||
Features:
1. Combined with extracting and concentrating, so as to make it easy to operate. It's polished in both internal and external side, which is in accordance with GMP requirements.

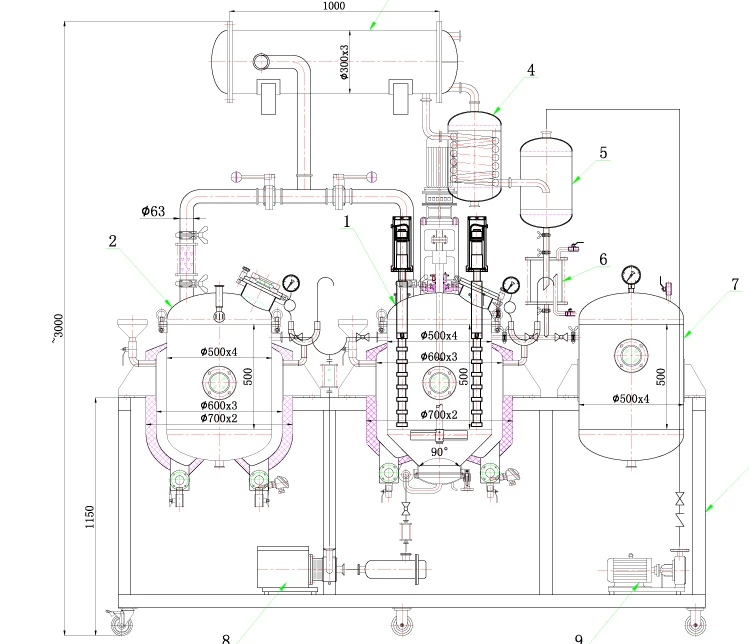

2. It's mainly made up of extracting tank, condenser, cooler, oil-water separator, filter, concentrator and liquid-recycling tank etc.
3. This ultrasonic Extraction and Concentration Equipment is manufactured with our technicians’ many years research and development, which can complete several kinds of experiments. and there're many ways to operate it. Its pipeline is specially installed.
4. It is manufactured on the seal condition in the whole process. Complete the extracting and concentrating in one time with less solvent consumption and less extracting and concentration time.
5. The optional stirrer device can be installed accordingly, as request by clients, we can provide manual, semi-auto and fully-auto types. There are electric heating and steam heating you can choose.
Company Profile
Wenzhou Chinz Machinery Co., Ltd. is a specialized high technology enterprise integrating the design, manufacture and service of biochemical pharmaceutical equipment, dairy food and beverage equipment, chemical equipment and sanitary fluid equipment. Our company is devoted to technology investment and culture construction. We have modern workshops and complete manufacturing facilities. We absorb and train various talented people. We have one batch of capable, specialized and talented persons of design, manufacture and installment. Our company establishes a machinery R&D center, a fluid equipment machining and inspecting center and a machinery manufacturing center. After more than ten years of continuous development, our company has formed a troop of scientific and innovative team. Many of our products have obtained national invention patents.
Product packaging
FAQ
1. Q : How can customer know the processes of order?
A : We will take photo or video during manufacturing every two weeks to make
customer clear about the order. When goods is finished,we will take more detailed photos or video for inspect. You can also come to our factory to inspect by yourself.
2. Q : Do you supply installation equipment in oversea? A : Yes, if need, we can also send
our installation engineer to your factory to help you do installation and testing. And you need to provides round-trip ticket and accommodation for our engineer. The extra salary of one installation engineer is 200USD/day.
3. Q : How to control quality?
A : All material we use has material certification. Before any piece of equipment leaves CHINZ. It goes through a complete quality and assurance control inspection. This inspection assures your equipment meets all specifications and is in proper working order before it leaves our facility and arrives at your door.
4. Q : What is the shipment schedule?
A : We will send you photographs of your order being loaded into the shipping container at the factory. The shipping container will generally leave port 3-4 days
after loading. We will send you a bill of lading and final statement of account within one week of that time. The bill of lading will include the shipping container numbers. You can track your shipping container. Approximately 10 days prior to delivery, we will send you an ETA (Estimated Time of Arrival) notice from the shipping time. Please remember that the listed delivery date is only an estimate, and is subject to port unloading schedules, customs processing, and the dictates of the local delivery truck company. You will be directly contacted by the shipping company's local truck delivery services approximately 48 hours prior to the date of delivery to schedule a delivery time. If you need to delay the final delivery, there will be a "pull" fee of approximately $100, and a storage fee of approximately $150 per shipping container per day.
