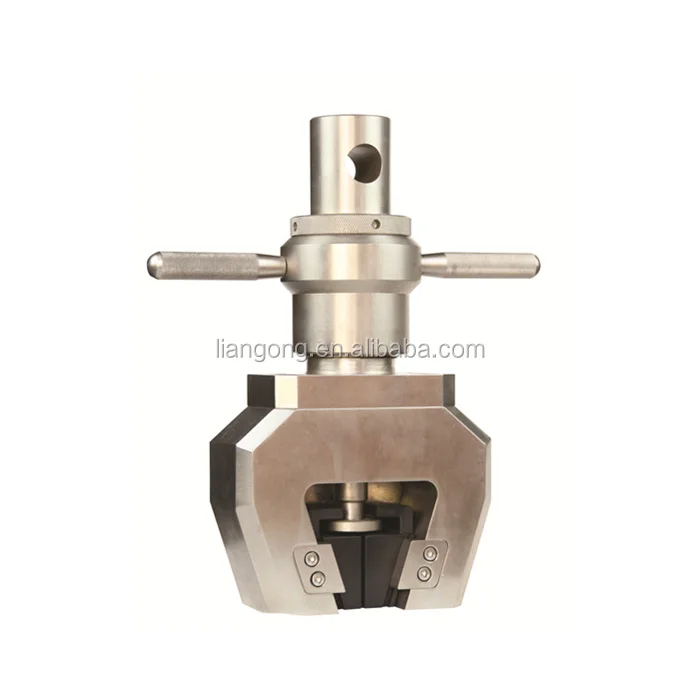

wedge grips for tensile testing/tensile testing grips/tensile tester grips

PRODUCT DETAIL
Payment Terms:L/C,T/T;Model Number:CMT Series;
Brand Name:Liangong;Packaging Detail:Standard Export Package;
Port:Qingdao;Type:wedge grips;
Place of Origin:Shandong China;Supply Ability:500 Set/Sets per Month;

wedge grips for tensile testing/tensile testing grips/tensile tester grips

Product Description

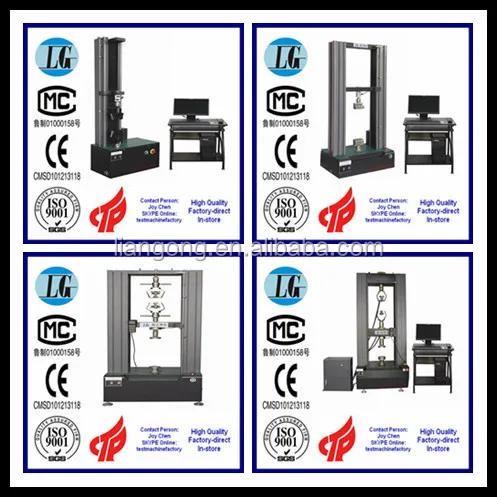

Electronic  Tensile Tester/Tensile Strength Testing Machine/Universal Tester/Tensile Test Machine-50N to 600KN



CMT series electronic universal testing machine is used for metal and nonmetal(including composite materials) for the normal and high,low temperature tensile,compression,bending,shear,striping,tear,load,relaxation,reciprocating and other static mechanical property test and analitycal investigation,which can calculate the test parameters automatically like ReH,ReL,Rp0.2,Fm,Rt0.5,Rt0.6,Rt0.65,Rt0.7,Rm,E and so on,and can test and provide data according to GB,ISO,DIN,ASTM,JIS and other international standard.

Main Technical Parameters

Type

CMT-01L,02L,05L,1L,2L,5L

CMT-10,20,30,50

CMT-100,200,300

measurement parameters

Max.test force(kN)

0.1,0.2,0.5,1,2,5

10,20,30,50

100,200,300

(Accuracy Class)

0.5class

Test force measurement range

0.2%~100%FS



Test force and relative error value

Better ±0.5% than indicating value



Resolution of test force

±1/300000 of Max.test force(not marking graduation within full range,and same resolution all the way)

Deformation measurement range

0.2%~100%FS

Deformation and the relative error value

±0.5% of indicating value

=Deformation resolution

1/300000 of max. deflection

Large deformation measurement range(mm)

10~800

large deformation relative error of indicating value

Within ±1% of indicating value

Large deformation resolution(mm)

0.008

displacement relative error of indicating value

 Within ±0.5% of indicating value

Displacement resolution(μm)

0.025

controls parameters

Force control speed regulating range

0.005~5%FS/s

Force control speed control accuracy

rate <0.05%FS, for the date within ±2%

When speed rate <0.05%FS, within range ±2% of set point



rate ≥0.05%FS, for the date within ±0.5%

When speed rate ≥0.05%FS, within range ±0.5% of set point

deformation rate regulating range

0.2%~100%FS

Deformation speed rate control accuracy

rate <0.05%FS/s, for the date within ±2%

When speed rate <0.05%FS/s, within range ±2% of set point



rate ≥0.05%FS/s, for the date within ±0.5%

When speed rate ≥0.05%FS/s, within range ±0.5% of set point

Beam displacement rate regulating range

0.001~500mm/min

Beam displacement speed rate control accuracy

rate <0.5mm/min, for the date within ±1%

When speed rate<0.5mm/min, within range ±1% of set point



rate ≥0.5mm/min, for the date within ±0.2%

When speed rate≥0.5mm/min, within range ±0.2% of set point

Constant force, constant strain (deformation), Constant displacement control range

0.2%~100%Fs





+

Effective tensile stroke(customizable)



700mm

700mm

800

600

Effective compression stroke(customizable)

700mm

700mm

800

600

Effective width space(customizable)



400mm

550

Power

 220V,50Hz,0.5~0.75kW

220V,50Hz,0.75~1kW

380V,50Hz,2~5kW

work environment

Room temperature-35°C, Relative humidity less than 80%



Size of host (Dimension)(L×W×H)mm

650×330×1730

760×460×1900

1050×750×2100

1050×900×2400

Weight

About 150kg

About 350kg

1000kg

1500kg



Remark

1. Equipped Fixture can be based on user’s needs or customer made

2. Alternative transducer is available to  extend the measuring range

3. The tensile space can be heighten on user’s requirements



Packaging & Shipping



Standard Export Package;

Shipping by sea or by air or as client requirements





Our Services



After-sales service commitment

Warranty

The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).

Training

1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.

2. We can arrange engineer to train the operation of equipment to customer’s company when you need.

Maintenance services

Consultation services. We answer your question timely via the telephone or email.

Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.





Company Information



Jinan Liangong Testing Technology Co., Ltd, a well-known enterprise in testing machines industry as well as a state-level high-tech enterprise in Private Technological Industrial Park, which specialized in R & D, production and sales of testing equipments for metal and nonmetal materials. Our company has a well experienced, strong and large-scale R & D team and is based on high-quality technical personnel. By means of advanced science and technology, strong production capacity and financial support, and we cooperate with many domestic and foreign well-known educational institutions and research institutions closely to make our company be in domestic leading position in research and development of new products.



Licence for manufacturing



 Business Licence



Certificate of export and export



Some of our patents

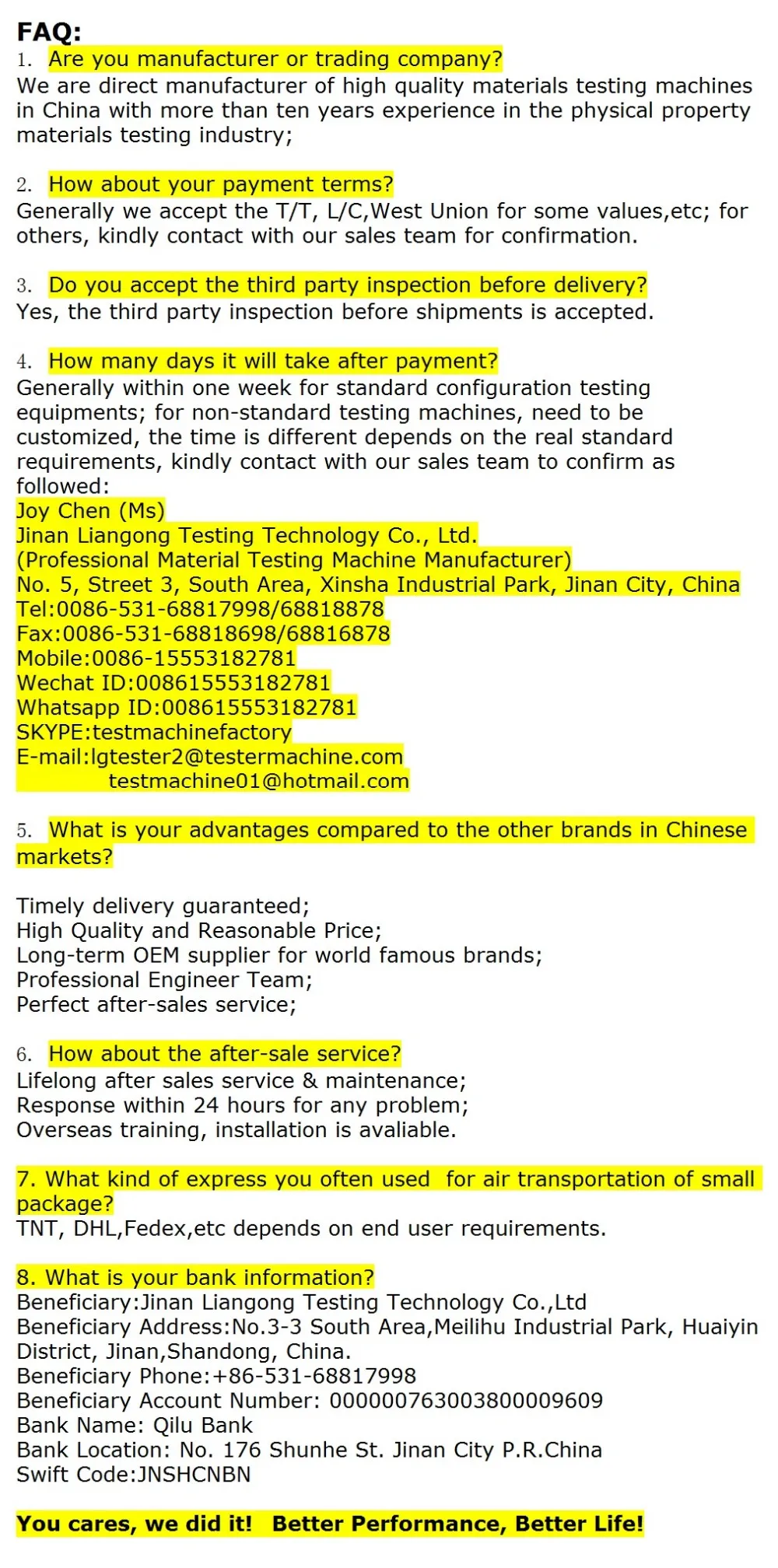

FAQ





Other Materials Testing Machine you may interest:

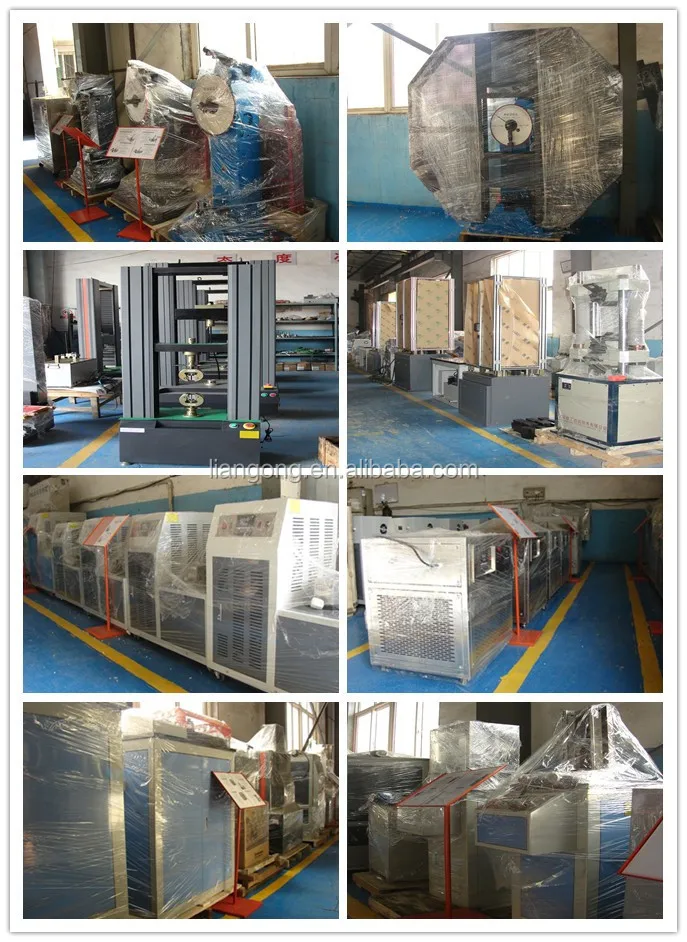

Production Warehouse
