18650 battery power PCB OEM service PCBA board assembly
- $1.00 / 2 - 999 pieces
$0.50 / 1000 - 9999 pieces
$0.15 / >=10000 pieces - 2 pieces
- Shenzhen City Yueda Technology Co., Ltd.
- Guangdong, China
- Ms Christine Qiu
PRODUCT DETAIL
| Material: | FR4/CEM-1/CEM-3/FR1/Aluminum | PCB standard: | IPC-A-610D/IPC-III standard |
| Plate thickness: | 1.6mm | pack: | vacuum packaging |
| minute. Line spacing: | 3 million | PCBA service: | Turnkey Assembly PCBA Service |
| minute. Hole size: | 6mil, 4mil-laser drill | Copper thickness: | 0.5 oz - 6.0 oz |
| product name: | Industrial PCBA | MOQ: | 1 |
| model: | YD-K040 | application: | Large, medium and small projects |
| Origin: | Guangdong, China | minute. line width: | 3 million |
| Surface treatment: | tin, nickel | Layers: | 1-32 liters |
| Substrate: | FR-4 glass epoxy | payment terms: | L/C, T/T |
| color: | green black blue | Supply capacity: | 500000 pieces per month |
| port: | Shenzhen | type: | Electronic board, HDI PCB |
| brand: | power circuit board | Packaging Details: | Bubble bag inside, international standard carton outside |

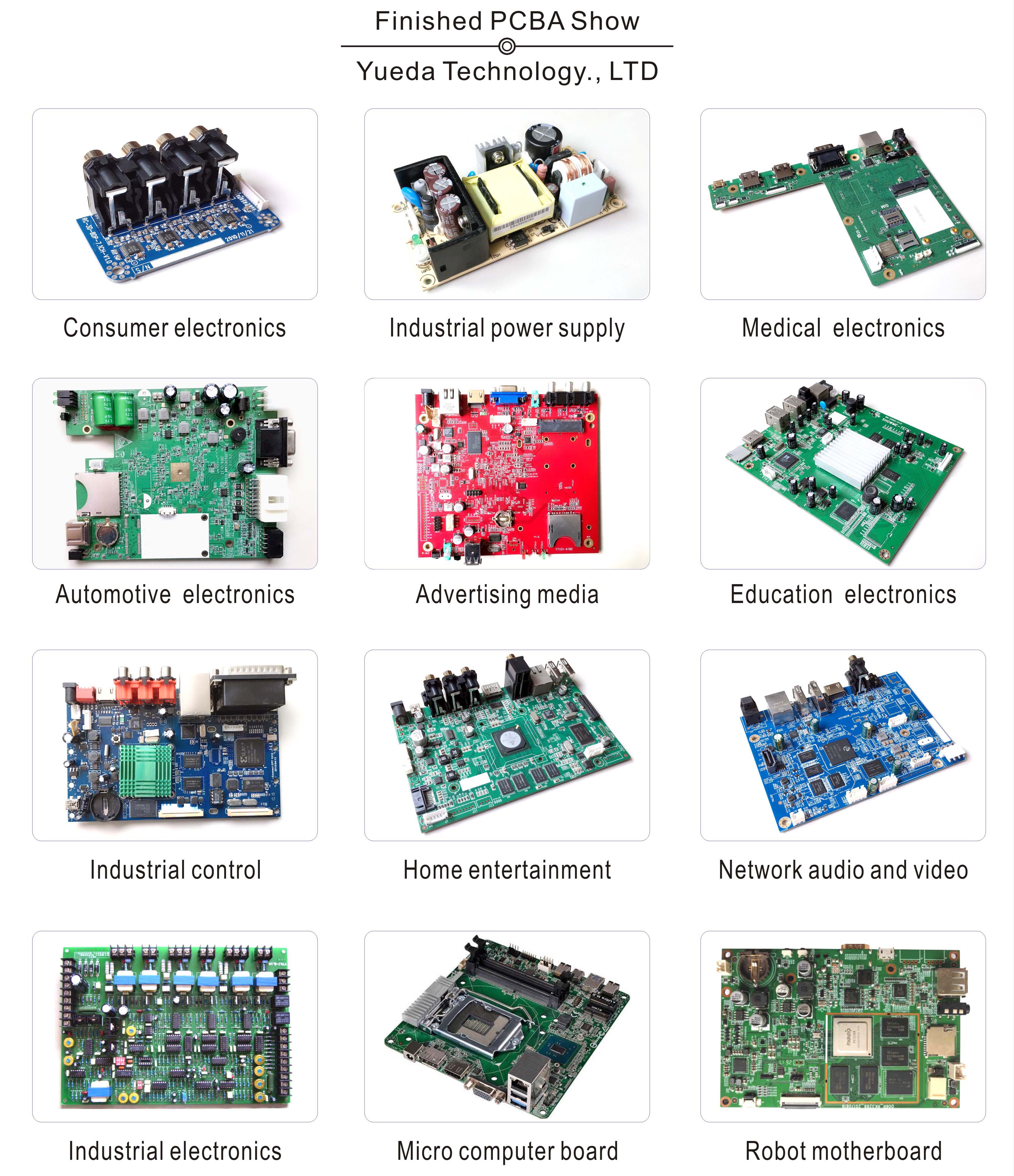

PCBA finished product display

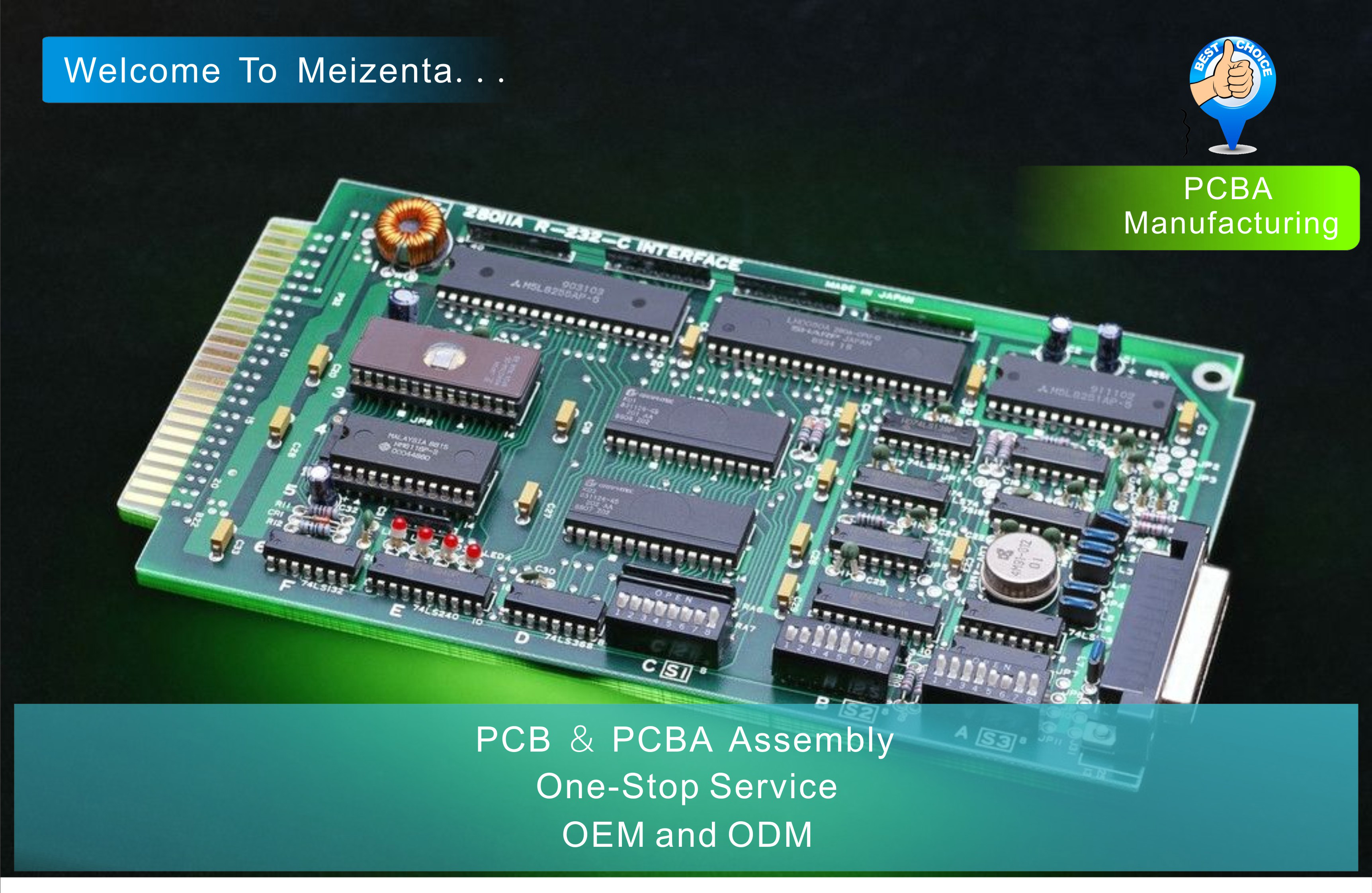

Printed Circuit Board Manufacturing
| No. | thing | Specification |
| PCB Manufacturing Capability | ||
| 1 | PCB layers | 1 to 32 floors |
| 2 | PCB board material type | FR4, high TG FR4, CEM-1, ALU, CEM-3, Rogers, HDI, etc. |
| 3 | biggest size | 600×1200 mm |
| 4 | Minimum Line Width | 0.1 mm |
| 5 | Minimum spacing | 0.1mm |
| 6 | Dimensional tolerance | ±0.1mm |
| 7 | minimum aperture | 0.2mm |
| 8 | PCB board thickness coverage | 0.2 to 6.0 mm |
| 9 | Minimum copper thickness in the hole | 0.02 mm |
| 10 | DK thickness | 0.08 to 6.0 mm |
| 11 | NPTH Dimensional Tolerance | ±0.025mm |
| 12 | Plated Through Hole Dimensional Tolerance | ±0.025mm |
| 13 | Dimensional tolerance | ±0.1mm |
| 14 | Hole tolerance | 0.075 mm |
| 15 | Laser drilling size | 0.1mm |
| 16 | Minimal Sun Mask | 0.01 mm |
| number 17 | Minimum Dimensions of Solder Mask Spacer Ring | 0.05 mm |
| 18 | Maximum plate twist and wrap | ≤1% |
| No. 19 | Finished aperture | 0.2 to 6.0 mm |
| 20 | flame retardant | 94V-0 |
| twenty one | Impedance Control Tolerance | ±5% |
| number 22 | Outer copper thickness | 8.75 to 175 microns |
| twenty three | Inner layer copper thickness | 17.5 to 175 microns |
| twenty four | Solder mask type | blue, green, black, yellow, red, white |
| 25 | surface finish | HASL, OSP, ENIG, gold plating, immersion tin, etc. |
market application
