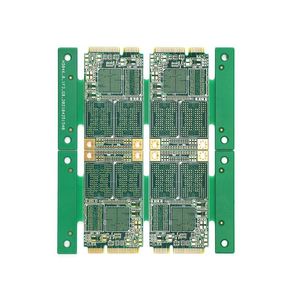

Personalized Logo China Personalized Electronic Circuit Board Supplier Ems Oem Pcb Inverter Charger Other Pcb & Pcba Amp
- $3.00 / 10 - 999 pieces
$2.00 / 1000 - 4999 pieces
$1.20 / >=5000 pieces - 10 pieces
- Croll Technology (Shenzhen) Co., Ltd.
- Guangdong, China
- Mr Ian Siu
PRODUCT DETAIL
| minute. Line spacing: | 0.05mm | Substrate: | FR4,CEM1,PI,PET,Ceramic,SUS,Glass... |
| brand: | cathode ray tube | payment terms: | Western Union, wire transfer |
| Certificate: | RoHS/ISO9001/ISO14001 | Layers: | 2~24L any layer |
| Special technique 2: | 6.heatsink 7.Countersink 8.Hybrid Stackup 9.Anylayer | Packaging Details: | Bubble bag |
| place of origin; place of origin: | Guangdong, China | port: | Shenzhen |
| Board size: | 5mm~500mm | type: | high density circuit board |
| minute. Hole size: | 0.1 | Serve: | OEM/DFM |
| application: | Automotive, Industrial, Medical, Datacom, Consumer | Supply capacity: | 1,000,000 pieces per month |
| minute. Line width: | 0.05mm | model: | high density circuit board |
| Copper Thickness: | 0.33oz~2oz | Special technique 1: | 1. Impedance 2. Via Fill 3. PFH, Backdrill 4. Mix Finish 5. Cave |
| Surface treatment: | ENIG, ENEPIG, OSP, HASL, Tin, Silver | Plate thickness: | 0.4mm~3.0mm |
Product parameters
Application scenarios
Automotive, Industrial, Medical, Consumer, Network, Communication

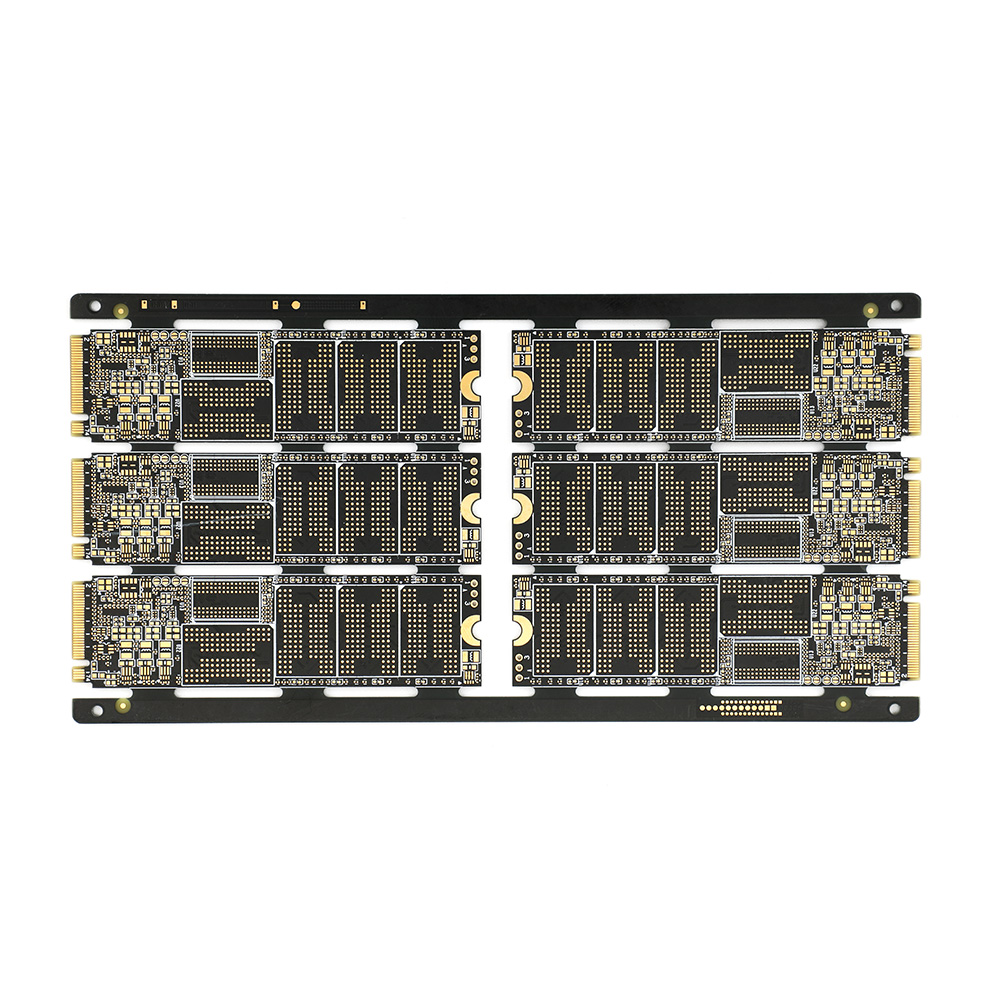

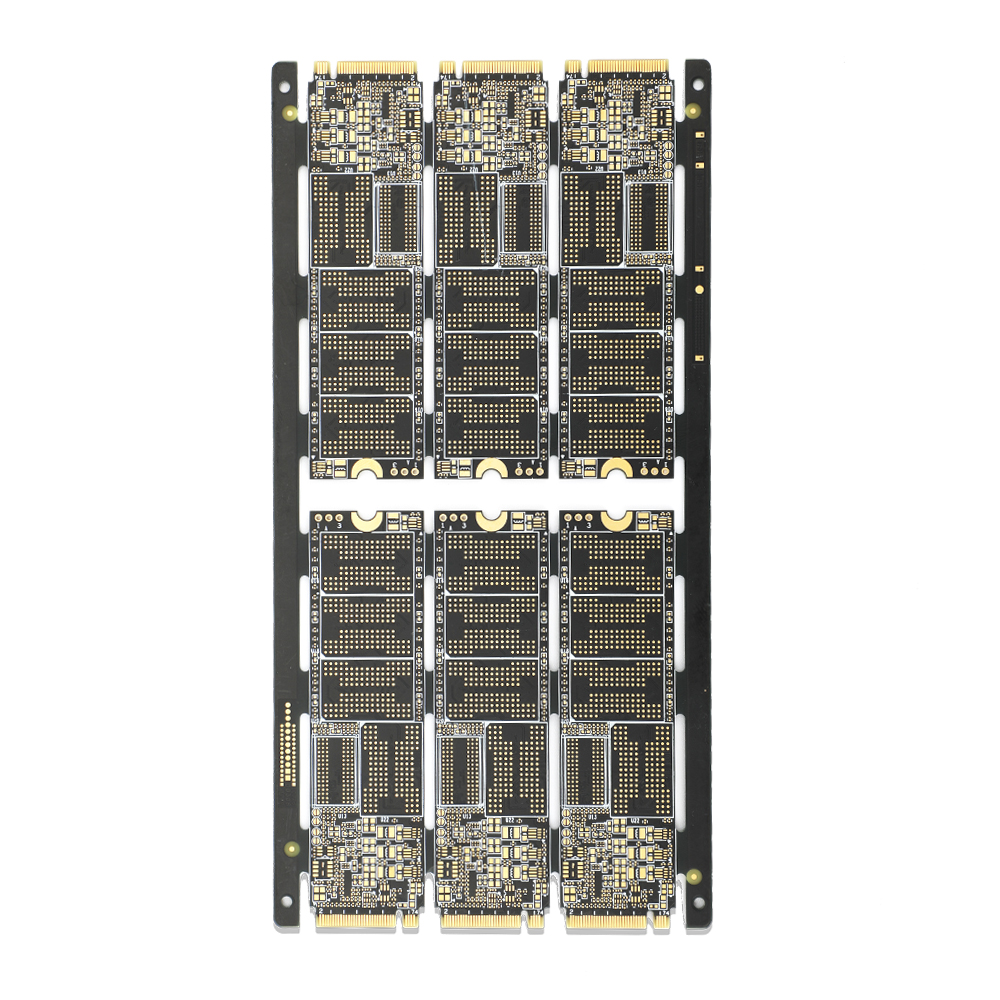

Do not:CRT_SSD_V01
*Blind via structure*Plated vias*Impedance controlApplication field: Automotive, Industrial, Medical, Consumer

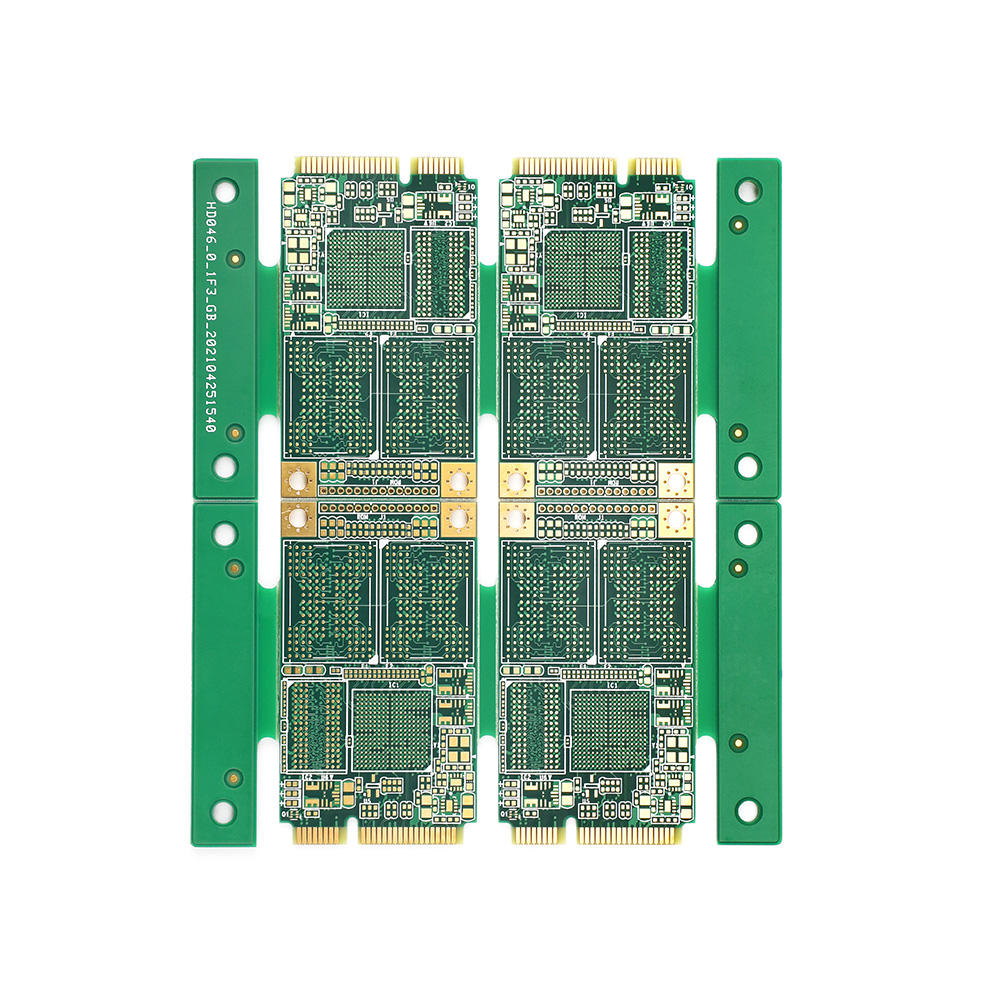

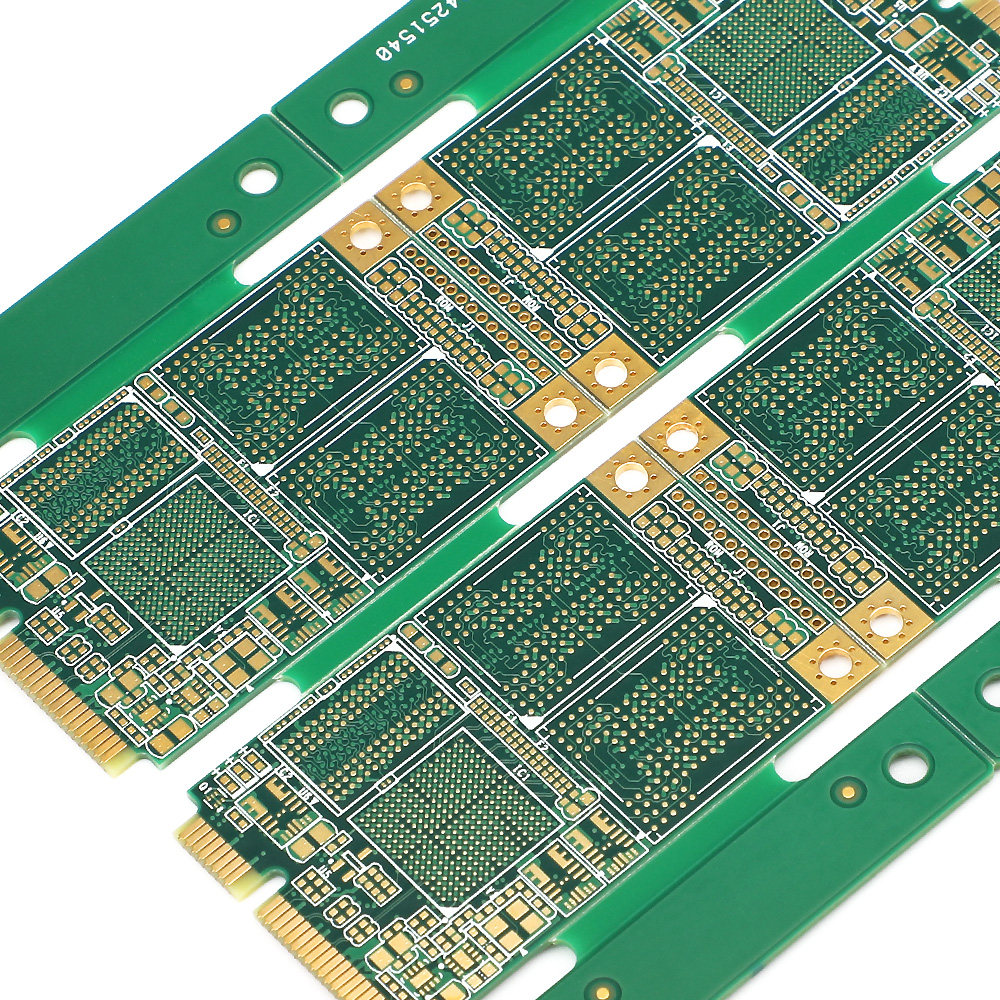

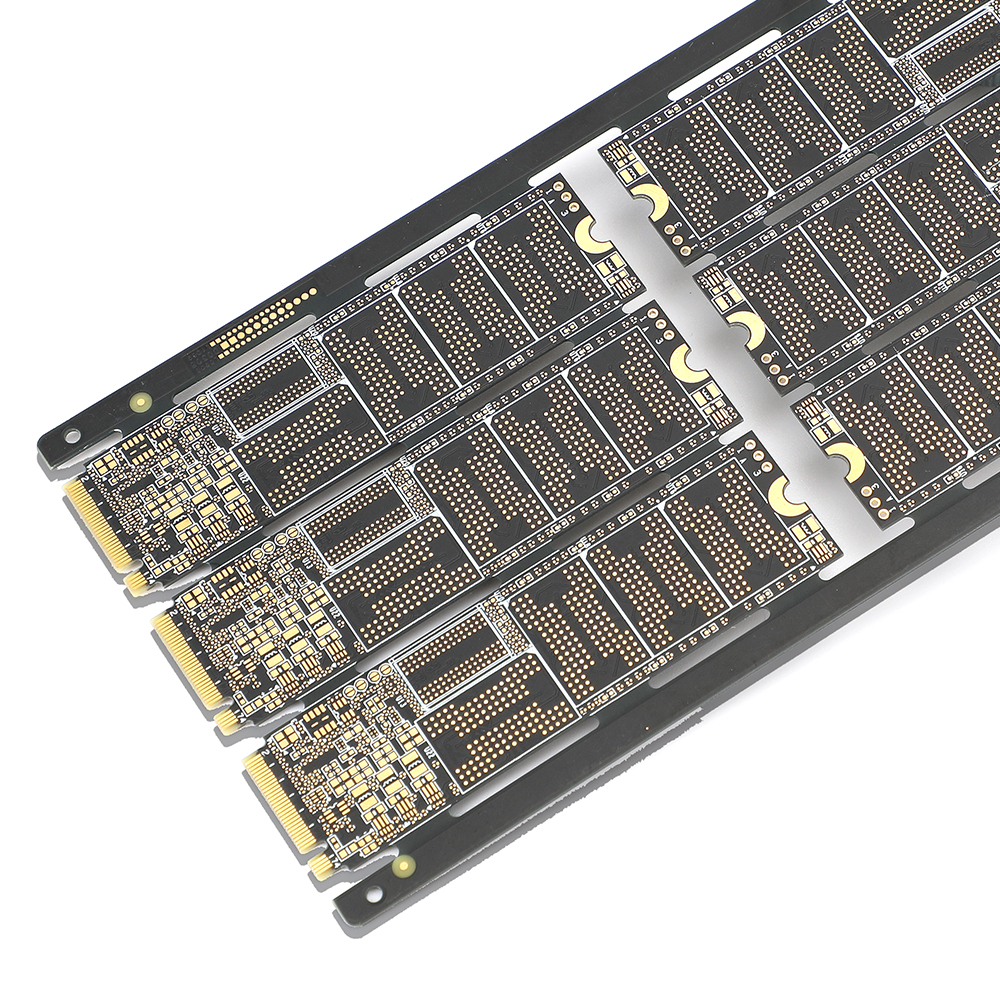

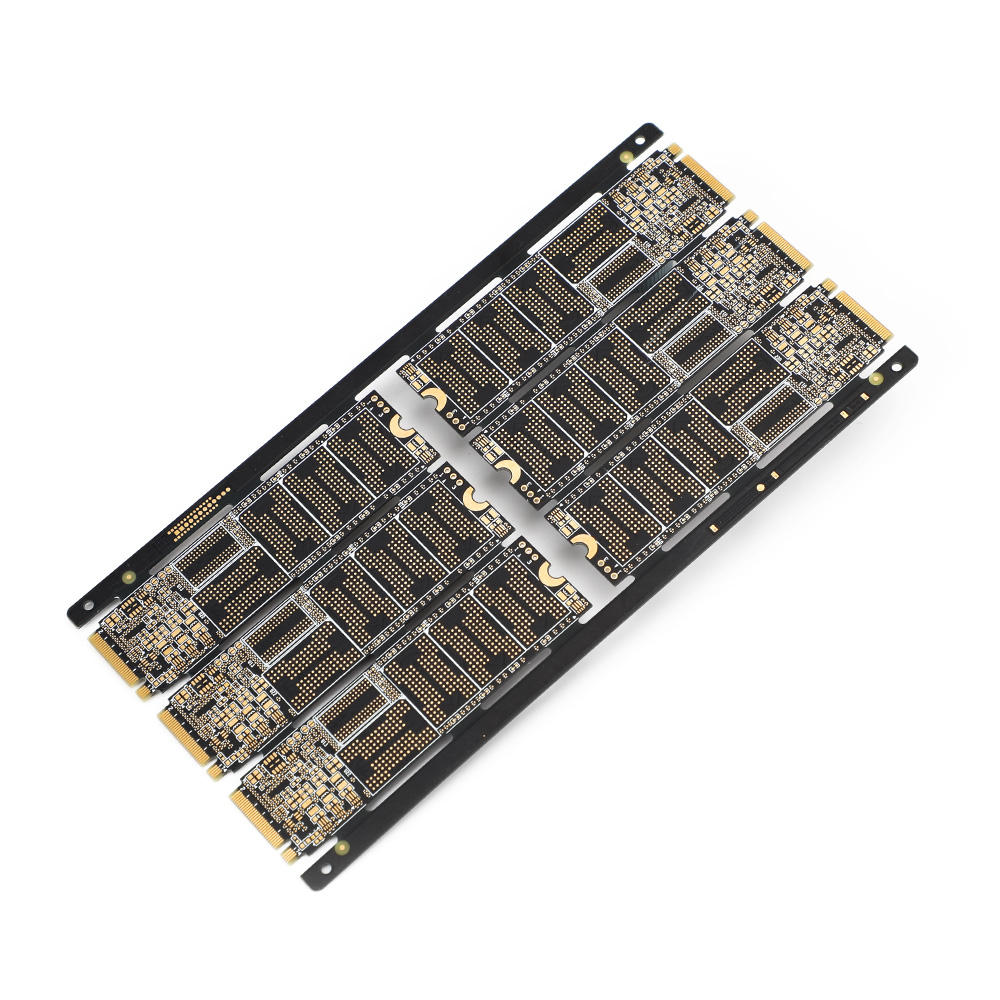

No: CRT_SSD_V02
substrate: FR4 Tg170
plate thickness: 0.8mm
copper thickness: 35 microns
surface treatment:
ENIG (≥0.05um) + Gold Finger (≥0.25um)
ENIG (≥0.05um) + Gold Finger (≥0.25um)
single size: 22*80mm
Panel size: 123*80mm
Featured Crafts:
**Blind hole structure
* Electroplated overfilled vias
* Electroplated overfilled vias
* Impedance control
* Fill through-hole resin plugs with electroplating
Application field:
Automotive, Industrial, Medical, Consumer
Automotive, Industrial, Medical, Consumer
high density circuit board | special technology. | ||
place of origin; place of origin: | China | 1. Impedance 2. By filling 3.PFH, back drill 4. Mixed finishes 5. Cave 6. Radiator 7. Countersink 8. Hybrid stacking 9. ENEPIG | |
brand: | cathode ray tube | ||
Application areas: | Automotive, Industrial, Medical, Datacom, Consumer | ||
Layers: | 2~24L any layer | ||
Material: | FR4 (Tg150~Tg170) | ||
Plate thickness (mm): | 0.4mm~3.0mm | ||
Copper Thickness (oz): | 0.33oz~2oz | ||
Dimensions (mm): | 5mm~500mm | ||
minute. LW/L (mm): | 0.05/0.05 | ||
minute. Hole (mm): | 0.1 | ||
solder mask; | Green, yellow, blue, black, white... | ||
Surface treatment: | ENIG,OSP,HASL,Imm Tin,Imm Silver... | ||
Certificate: | RoHS/ISO9001/ISO14001 | ||
Serve: | OEM/DFM | ||
Prices are for reference only. Please provide PCB data or Gerber file for accurate quotation
Application scenarios

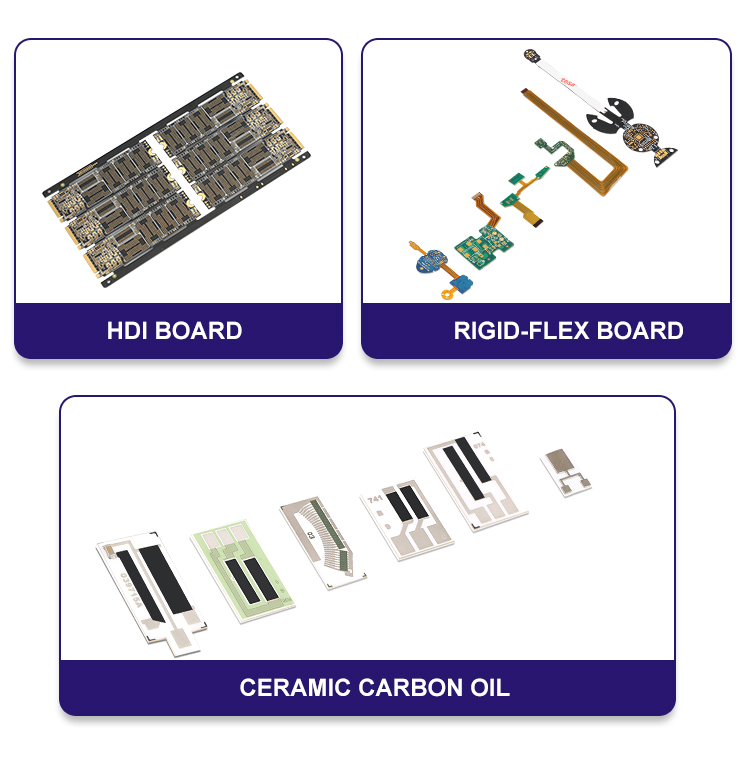

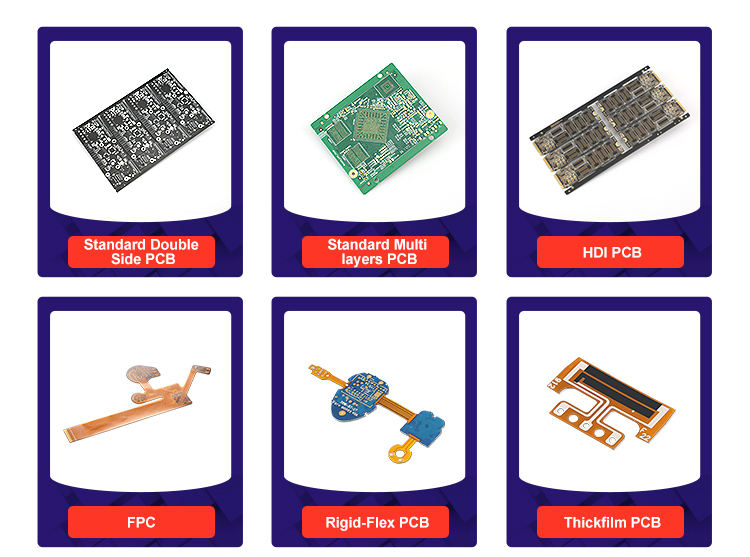

main products

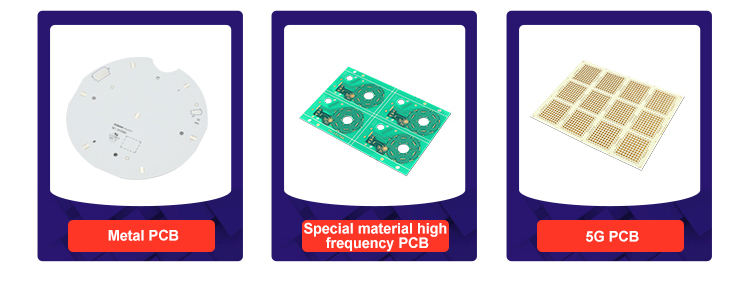

product category
