Electronic And Communication Accessories Manufacturing Process Of Electronic Products PP Bag Filters For Chemicals And HDI Circu
- $18.00 /piece
- 1 piece
- Hangzhou Darlly Filtration Equipment Co., Ltd.
- Zhejiang, China
- Ms Theresa Zhang
PRODUCT DETAIL
| Min. Line Spacing: | None; | Removing Rating: | 0.5/1/3/5/10/20/40/50/70/100/120um; |
| Max.Operating DP: | 3.4 bar@ 60℃; | Supply Ability: | 100000 Piece/Pieces per Day; |
| Application1: | Chemicals And HDI Circu; | Packaging Detail: | 4pcs/carton,package size:44*44*72cm,8kgs/carton; |
| Length: | 16''/32''; | Board Size: | None; |
| Max.Operating temperature: | 80℃; | Min. Hole Size: | None; |
| Feature: | broad chemical compatibility; | Keyword: | Electronic And Communication Accessories; |
| Model Number: | ABC; | Type: | hdi pcb; |
| Package Preview: | ; | Place of Origin: | Zhejiang China; |
| Surface Finishing: | None; | Base Material: | None; |
| Brand Name: | Blueflo; | Material: | PP; |
| Board Thickness: | None; | Copper Thickness: | None; |
| Payment Terms: | L/C,Western Union,T/T,MoneyGram,Paypal; | Port: | Shanghai/Ningno; |
| Application2: | Manufacturing Process Of Electronic Products; | Min. Line Width: | None; |
| Diameter: | OD:152mm; |
Kindly follow us first (then if new products coming will be informed) and click"Send Inquiry" or" Contact Supplier".
Then we can check best shipping rate and recommend you more matched products accordingly.
Products Description

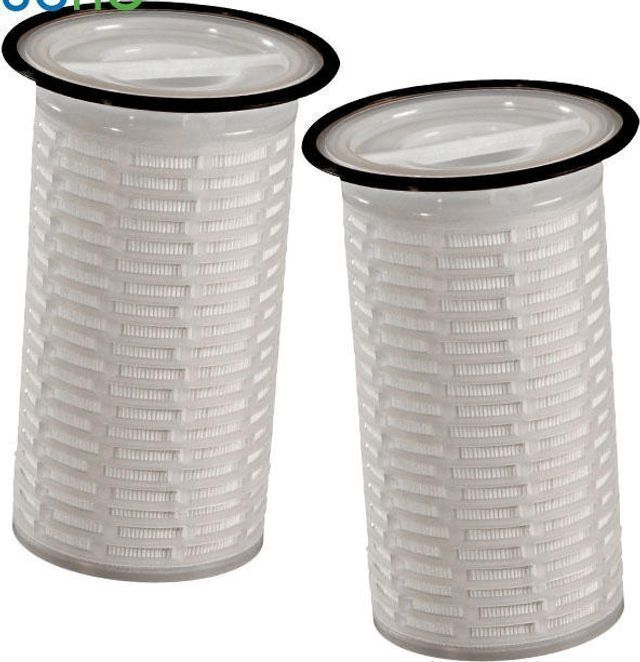

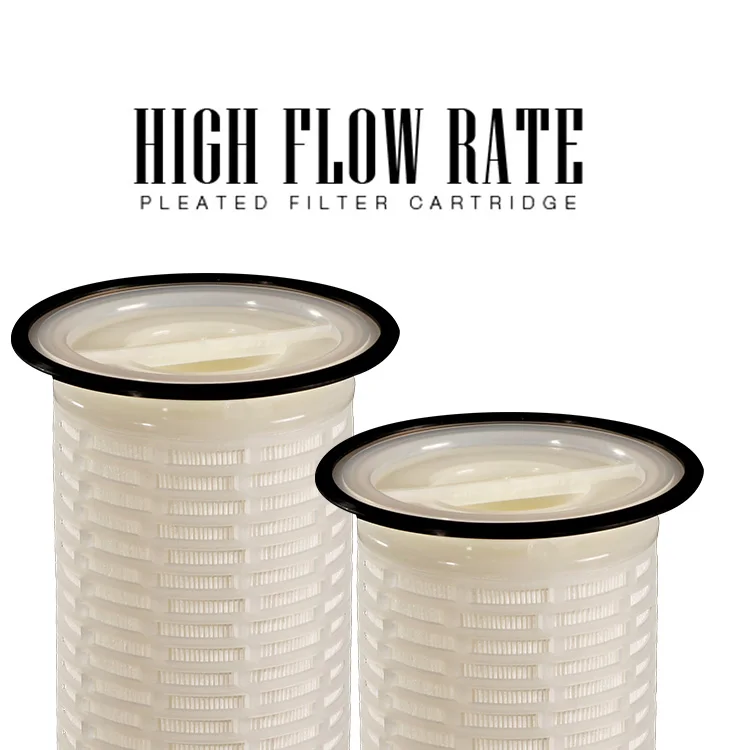

High Flow Pleated Filter Cartridge
The large 6inch(152mm) diameter BC series filter cartridge easily retrofits into existing size 1 and size 2 bag housing. It combines the performance advantages of cartridge filters with the easy use of bag filter systems.Filtration customers no longer have to choose between cartridge and bag technologies. This filter cartridge delivers lower operating costs than conventional cartridges for critical applications. The high surface area resulting long service life translates into fewer cartridge change outs and lower disposal cost. And the large diameter configuration is more economical than the equivalent number of standard 10'' filters, thus delivering additional savings on filter purchases.
————— Specifications —————
Material of Constructions | ||
Media | PP | |
Support | PP | |
End Cap | PP | |
Adjustable Flange | PP | |
Sealing | EPDM , FKM , NBR | |
Dimension | ||
Outer Diameter | 6”( 152mm ) | |
Length | 16 ”( 370mm ) for size 1 bag | |
32 ”( 634mm ) for size 2 bag | ||
Performance | ||
Max. Operating temperature | 80℃ | |
Max. Operating DP | 3.4 bar@ 60℃ | |
Recommended Change out Differential Pressure | 2.4Bar, 20°C | |
————— Feature —————
————— Application —————
• Food & Beverage
• RO Pre-Filtration
• Process Water
• RO Pre-Filtration
• Process Water
• Sea water desalination
• Drinking water
• Machinery&Equipment
• Drinking water
• Machinery&Equipment
————— Quality —————
————— Food Contact Compliance —————
Company Profile
Factory Profile
Who We Are
Mr Leping He founded our company in 1996 on the belief that filtration products will come necessities for both daily life and industrial manufacturing. What started with a molded plastic filter parts in a tiny village workshop has paved the way for today’s wide range of filtration technologies.
What We Do
We are an industry leader of total filtration solutions for residential, commercial and industrial manufacturing applications. The industries we are serving worldwide are Biopharm, Microelectronics，Food & Beverage, Medical, Printing, Painting, Mining, Oil & Gas, drinking water, desalination, Pool & Spa and all kinds of water treatment.
What We Believe
Customer First
* Customer success
* Customer is always our partner
* Deliver exceptional value
* Create amazing experience
* Customer is always our partner
* Deliver exceptional value
* Create amazing experience
Integrity in Action
* Do the right thing,always
* Take charge
* Meet commitment
Continuous Improvement & Innovation
Team to Win
* Build simple & authentic connections
* Openly share information
* No Politics
* Have fun
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of all kinds of filter cartridges, housings and filtration systems. We provide you the total filtration solutions with our 25 years experience in the industry. As you can see, Darlly is the hottest searching word in Alibaba.com. Thanks for finding us here.
2. Q: May I have samples?
A: Sure, of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes, of course if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What’s your MOQ?
A: Normally, 500 PCS/item. Any trial order which is less than MOQ is warmly welcomed. If you have a trial order, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal. We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 5-7working days for off-the-shelf samples and 20-25 days for bulk production.
8. Q: How should I pay you?
A: We strongly recommend Trade Assurance service on the Alibaba platform. T/T, L/C, Western Union, MoneyGram,etc are acceptable.
9. Q: What certificate do you have?
A: Our factory is ISO9001/ISO14000/OHSAS18000 certified. We have NSF, CE, Halal etc certificate for the products we are manufacturing.
10:Q: How should I place an order?
A: Please kindly click” send inquiry” or “contact supplier”, Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
11:Q: Since you are famous, can I be your agent?
A: Welcome to join us, we are happy to have a further discussion with you. Let’s work together to make the world cleaner, safer and more productive.
