2023 PCB Design Service Shenzhen Circuit Board Assembly Industrial Internet Control Custom PCBA
- $10.00 / 10 - 999 pieces
$1.50 / 1000 - 9999 pieces
$0.90 / >=10000 pieces - 10 pieces
- Shenzhen Benqiang Circuit Co., Ltd.
- Guangdong, China
- Mr Raymond Ray
PRODUCT DETAIL
| type: | HD PCB | minute. Hole size: | Laser hole: 0.1mm; Mechanical hole: 0.2mm |
| Origin: | Guangdong, China | product name: | Industrial control level 5 HDI circuit board |
| Substrate: | S1000-2M | minute. line width: | 127 microns |
| model: | A printed circuit board | Plate thickness: | 1.8±0.18 mm |
| Packaging Details: | Vacuum packing/Three corrugated carton packing | payment terms: | wire transfer |
| Supply capacity: | 200,000 square meters per year | Surface treatment: | Immersion gold thickness: 0.05um |
| application: | Industrial Internet Control | minute. Line spacing: | 127 microns |
| brand: | Ben Qiang | port: | Shenzhen |
| Copper thickness: | 1 oz |
product information
product name | Industrial control level 5 HDI circuit board |
Application field | Industrial Internet Control |
Material | S1000-2M |
layer | 12 liters |
Coating thickness | 1.8±0.18mm |
minimum aperture | Laser hole: 0.1mm; Mechanical hole: 0.2mm |
Minimum Line Width/Space | 127/127 microns |
Surface Technology | 0.05 micron immersion gold |

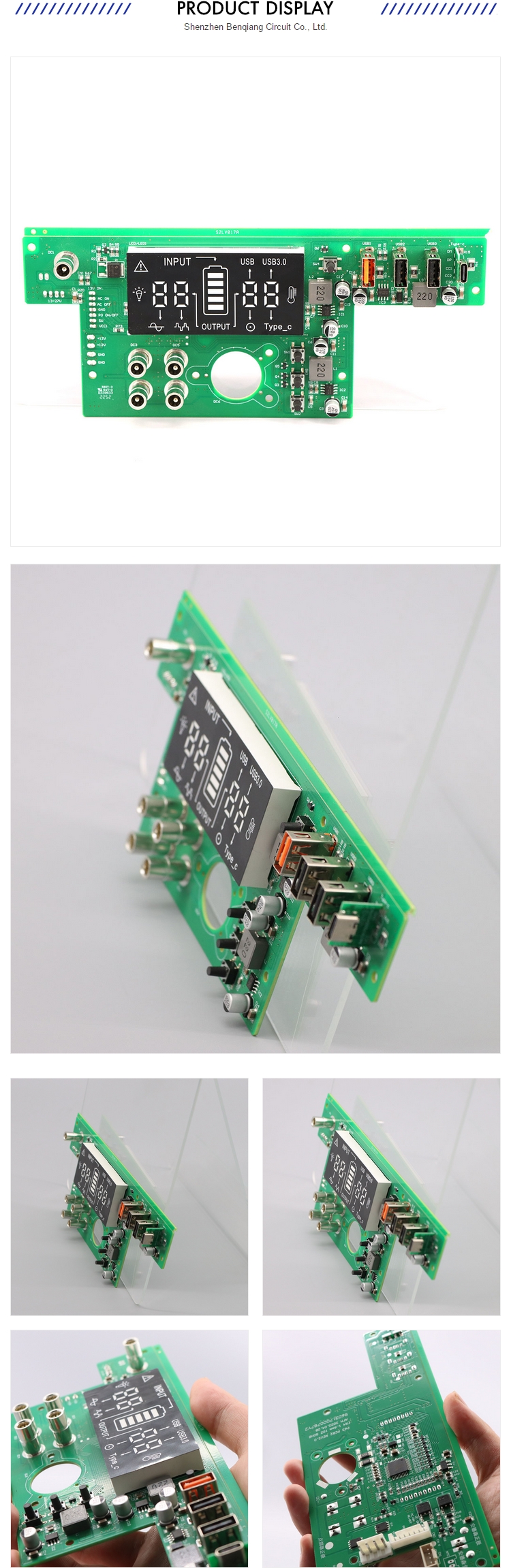

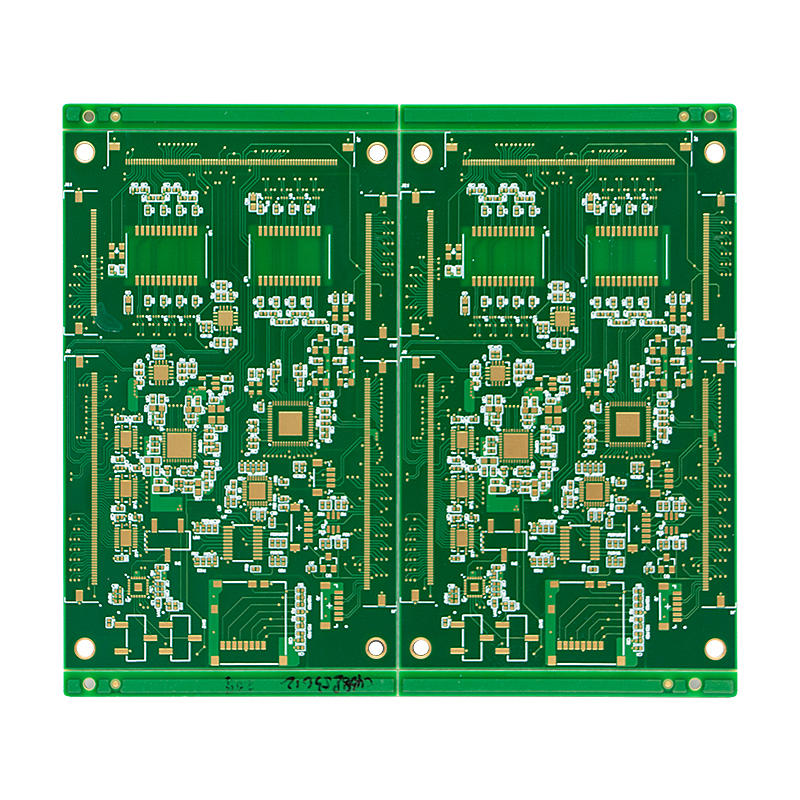

product display

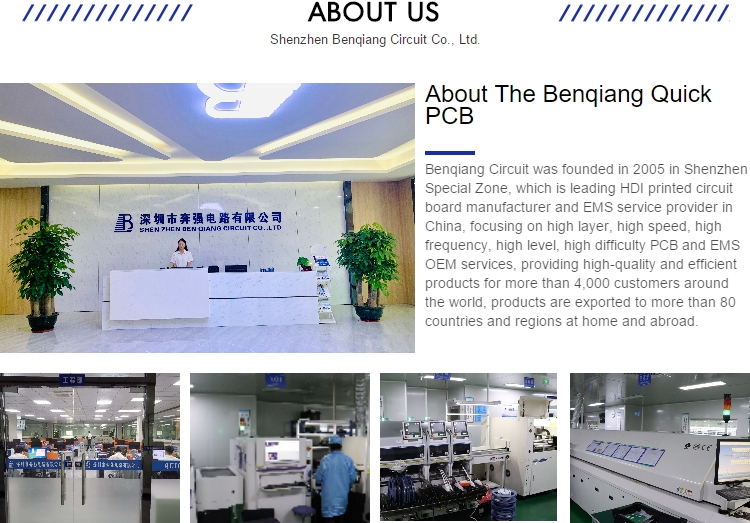

Company Profile
Our advantage:
●More than 18 years of one-stop PCB manufacturer focusing on high-multilayer, high-frequency high-speed, high-order complex boards.
● Our special high-level and high-level board capabilities can meet the most difficult PCB manufacturing requirements.● By meeting international standards and customer needs, our reliable quality can be guaranteed,
● High-quality materials, such as international famous brands (Rogers, Panasonic, Arlon, etc.)
● Stocks of commonly used materials are available to ensure delivery on time.
● In the case of the same quality, our price is 10%-20% lower than other factories.
● MES and flexible manufacturing technology.
● Adopt intelligent production scheduling system and similar panel operation mode to improve manufacturing efficiency.
● EMS factory lean production management.
● AOI adopts three-point polishing process after PCBA reflow soldering
● Customized by the original factory, delivery on time.
● The products are manufactured in strict accordance with IPC6012/6013 II/III standards.
● 10 years of reliable original factory and agent component supplier channels.
Our main products:
Our main products are PCB customization and OEM, among which PCB customization products are divided into multi-field PCB, HDI PCB, high-frequency high-speed PCB, special PCB.OEM products are divided into multi-field PCBA OEM and component OEM.
① On the multi-field PCB, it can be divided into 5G communication PCB, communication backplane PCB, server PCB, consumer electronics PCB, automotive electronics PCB and medical equipment PCB;
② HDI PCB, including 1/2/3/4/5/6/7 step PCB and Any-layer PCB;
③ Regarding high-frequency and high-speed PCBs, it can be divided into high-frequency PCBs and high-speed PCBs;
④ For special PCBs, it can be divided into high-thick copper PCBs, optical module PCBs, and semiconductor test PCBs;
⑤ Regarding PCBA products in various fields, they can be divided into intelligent security PCBA, automotive electronics PCBA, new energy PCBA, and computer motherboard PCBA;
⑥ Component replacement products can be divided into passive components such as resistors and capacitors, active components such as crystal oscillators and sockets, and ICs.

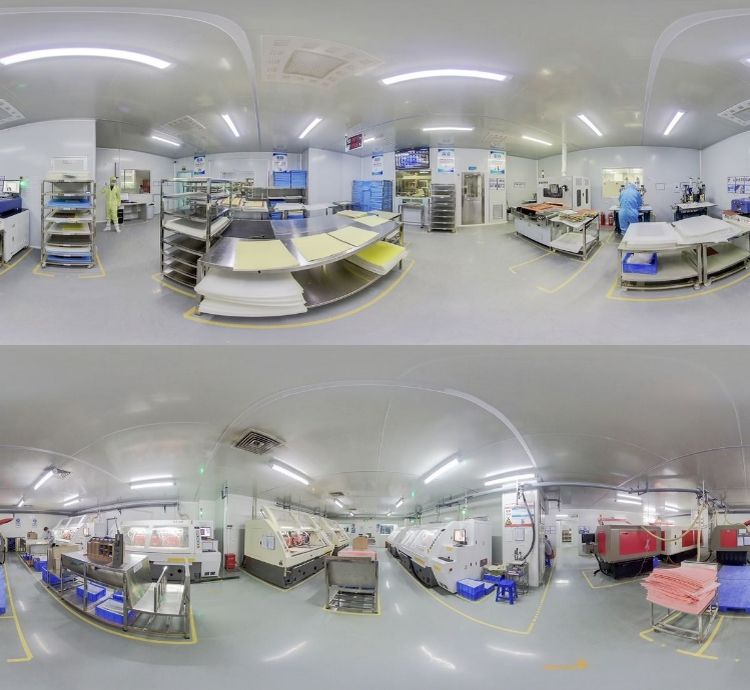

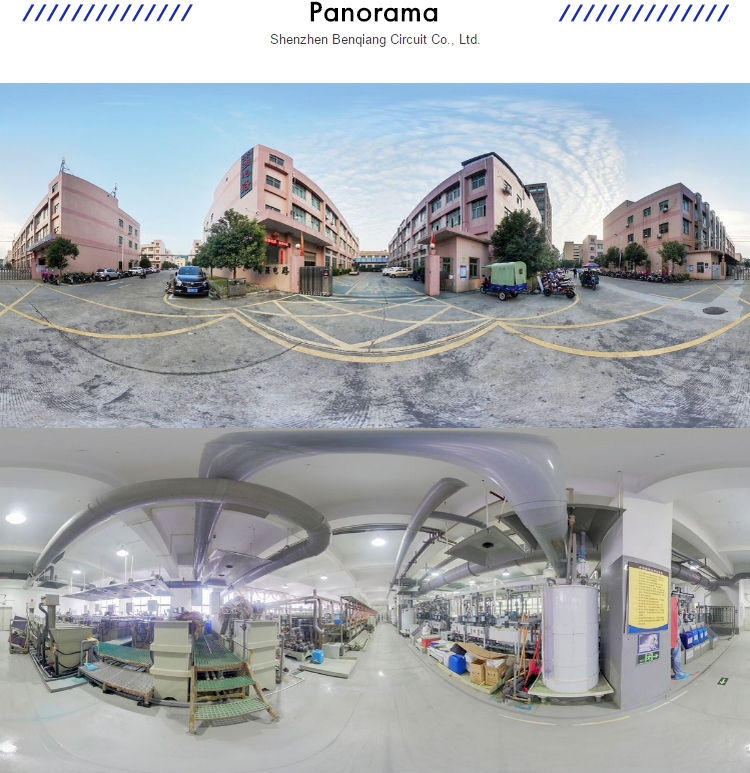

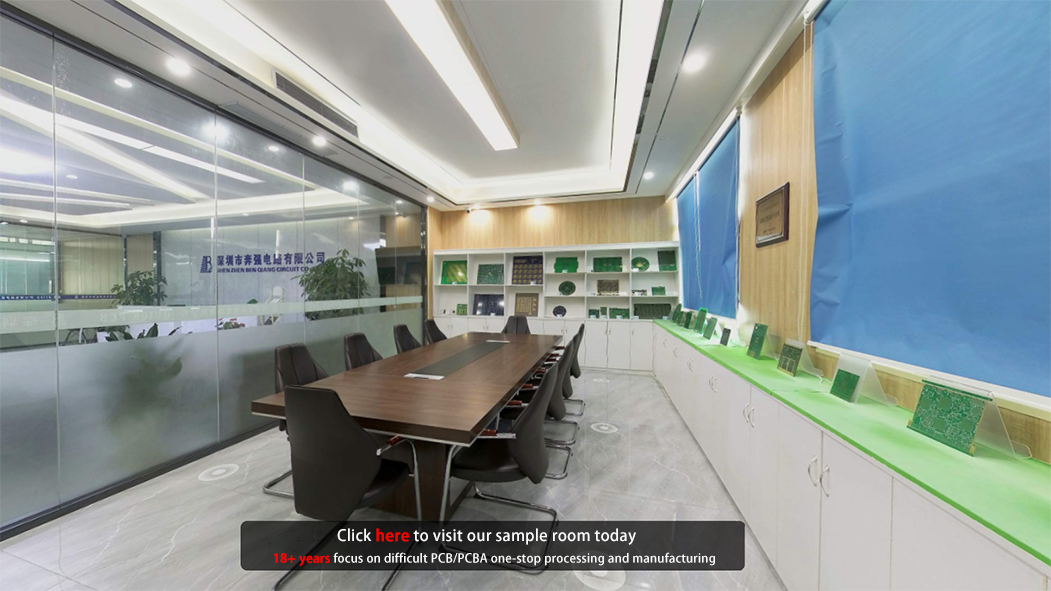

3D VR panorama
Click any picture below to immediately enter the 3D-VR panorama of our model room
Virtual Reality
Enter the full 3D-VR panorama of our company and immerse yourself in every detail of our factory floor, offices and corporate gates!

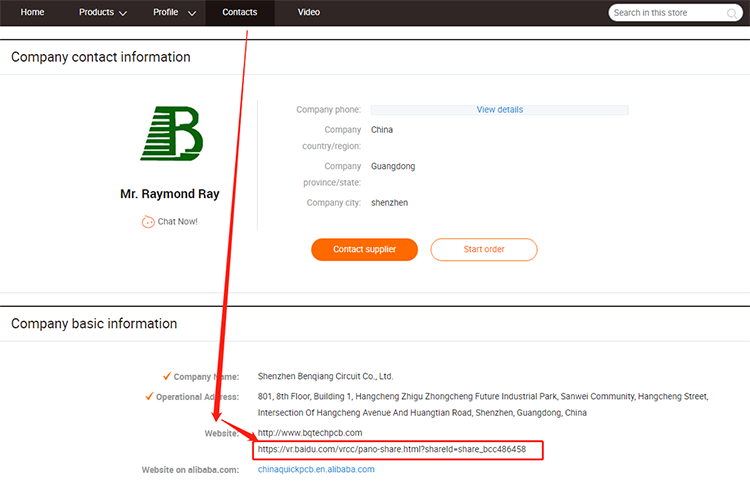

Click any of the following pictures to immediately enter the "Contact Us" interface
Look for"website" copy and paste on this pagesecond linkAccess to the company's full 3D-VR panorama

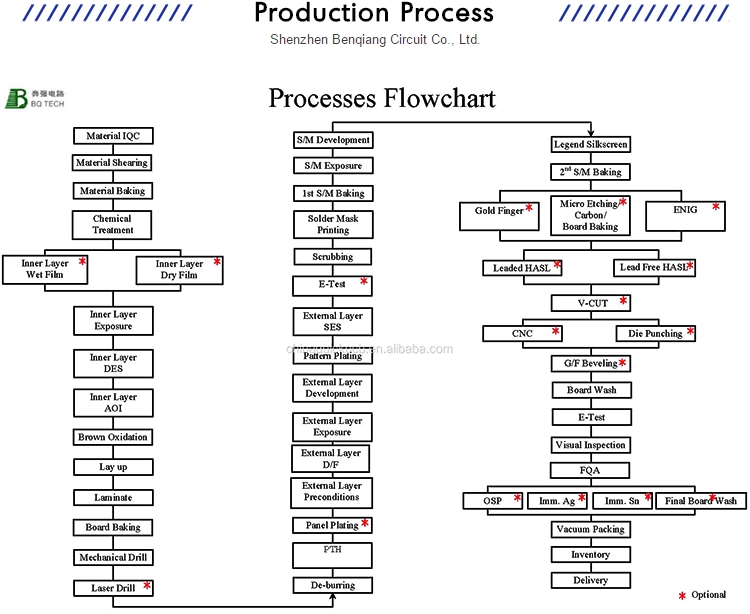

Production Process
