2020 new TZBOT High Precision Efficiency Brushless 24V controller for DC motor
- $273.00 / 1 - 19 pieces
$260.00 / >=20 pieces - 1 piece
- Zhejiang Tongzhu Technology Co., Ltd.
- Zhejiang, China
- Ms Ivy Li
PRODUCT DETAIL
| Place of Origin: | Zhejiang, China; | Single gross weight: | 2.000 KG; |
| Efficiency: | IE3; | Selling Units: | Single item; |
| Input Voltage: | 24V DC; | Model Number: | TZMD-BLD-2L-NC,TZMD-BLD-2L-NC; |
| Frequency: | 50~60HZ; | Packaging Detail: | 1.standard export package 2.customized packing way of 36v dc motor controller.; |
| Brand Name: | TZBOT,TZBOT; | Warranty: | 1 year; |
| Item: | DC Motor Controller; | Power: | 20w-200w; |
| Speed Control: | 100r/min-3000r/min; | Single package size: | 20X15X5 cm; |
| Application: | engraving machine packag industry; |
Recommend Products
Product Overview

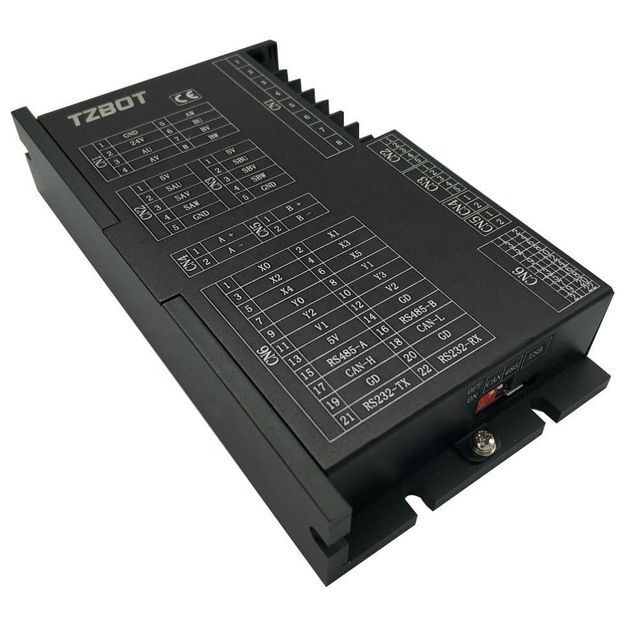

TZMD-BLD-2L-NC Dual Channel DC Motor Controller
LS-series low-voltage servo driver is a new-generation high-performance and highly reliable product developed as required by the market. With low-voltage DC power supply, LS drivers feature a small size and ability to easily compose a network, they support CAN and Modbus buses, pulse control and analog control modes, making them widely applicable to medical apparatus, automobile equipment, logistics, defense industry, AGVs, carving machines, surface mount systems, spray painting machines, textile machines, and other types of machines that are very demanding in terms of voltage and size.
Driver model | TZMD-BLD-2L-NC |
Number of axes | 2 |
Device interface and protocol | RS485-XS protocol, CAN bus-XS protocol, RS232-XS protocol, IOAnalog control, RS485-Modbus protocol |
Overload capacity | 200% at most for a short time |
Motor Power | 20-200W |
Undervoltage protection voltage lower limit | (120-220)0.1V |
Navigation deviation adjustment ratio | 0 ~ 200 |
Motor pole pair | 2P ~ 10P |

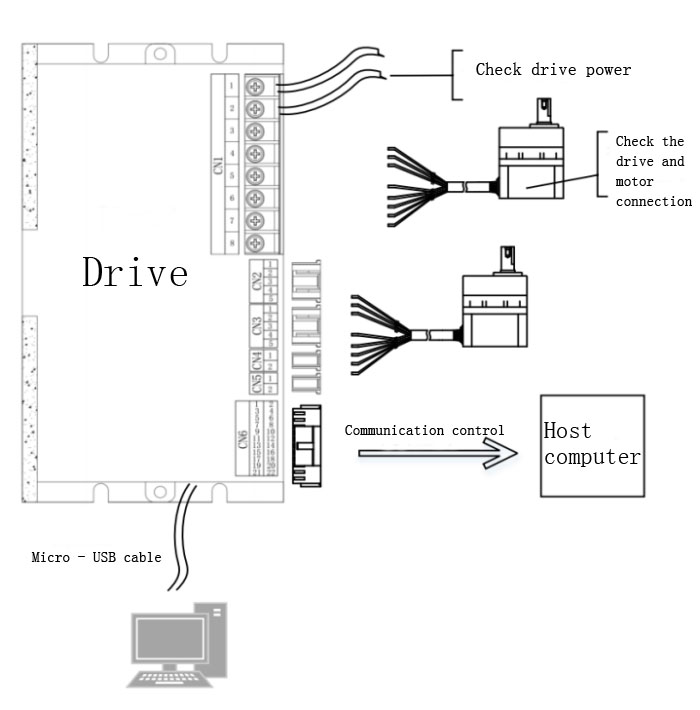

Structure Diagram
Advantages
Dual channel controller
This motor controller can control two motors at same time.
Built-in magnetic navigation algorithm
Helpful for developing magnetic navigation AGV.

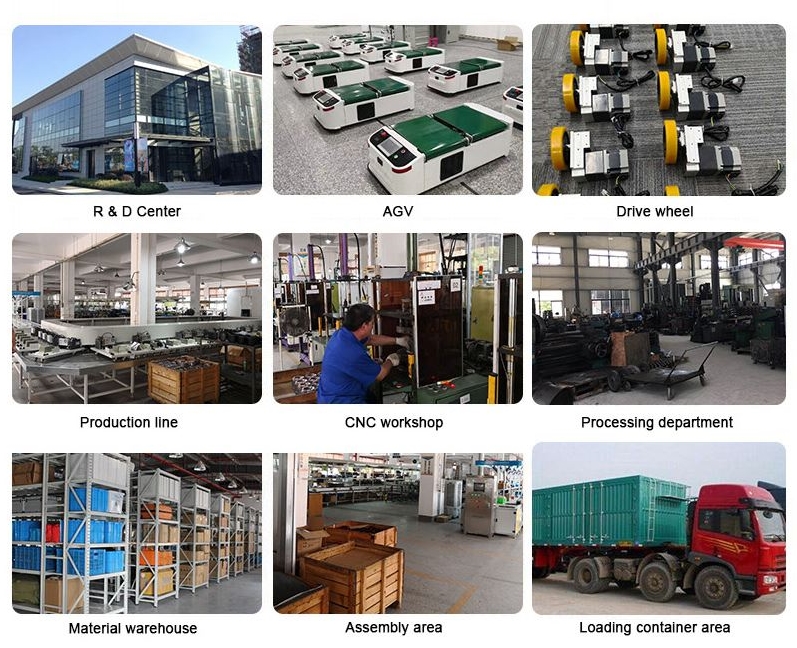

Company Profile
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The factory, is 1000 sq. feet, and employs 50 people. The company is certified to ISO9001:2015.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
Certifications
FAQ
Q: Payment
A: Our payment is T/T, Paypal, West Union, Trade Assurance(Ali pay or E-check), L/C and D/P
Q: MOQ
A: Almost items on our website are in stock. The MOQ is $100-$500 per price list.
The MOQ is different base on different items.
Q: Delivery Time
A: The usual delivery time of our stock item is 2-5 working days. If your order include over 10 different series lists, or in busy season, we need more time, and will confirm with you before make invoice. The delivery time of OEM/ODM order is 15-40 days. It based on different items and artworks.
Q: Transport/Shipment Time
A: The shipment is 3-7 days by express, 3-4 days by air, 15-35 days by sea. Feel free to let us know your delivery destination for learning the exact transport time.
