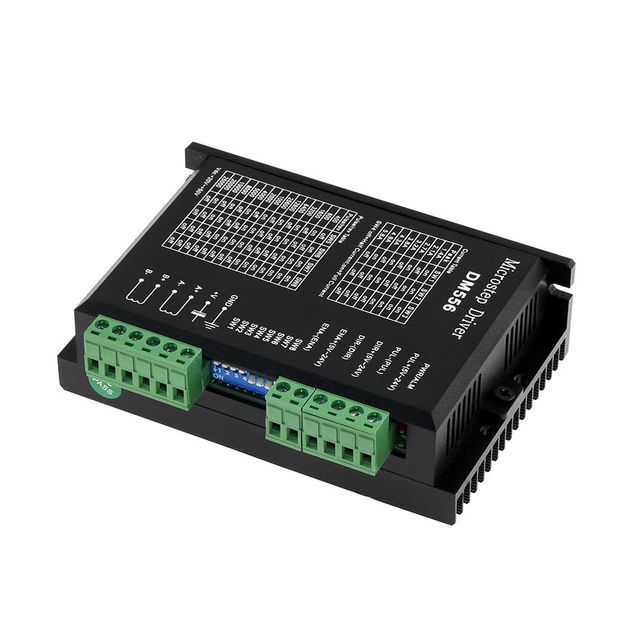

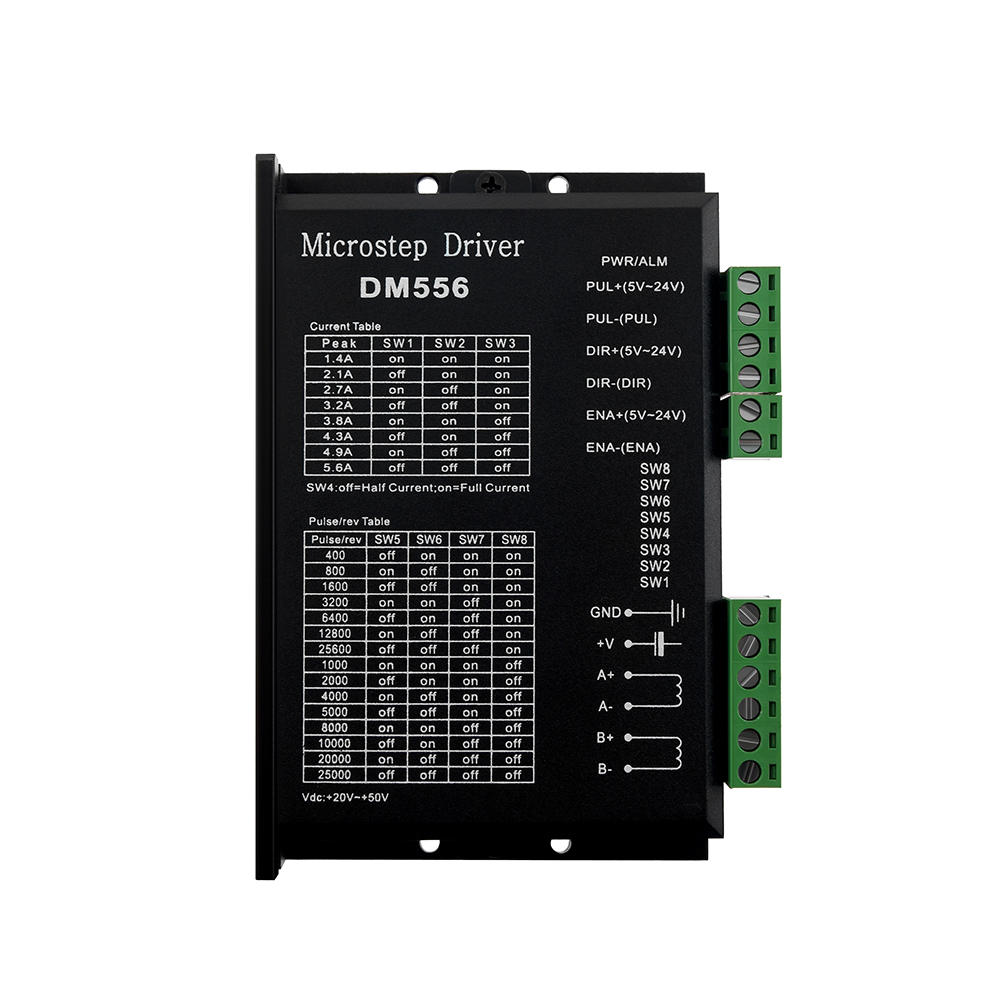

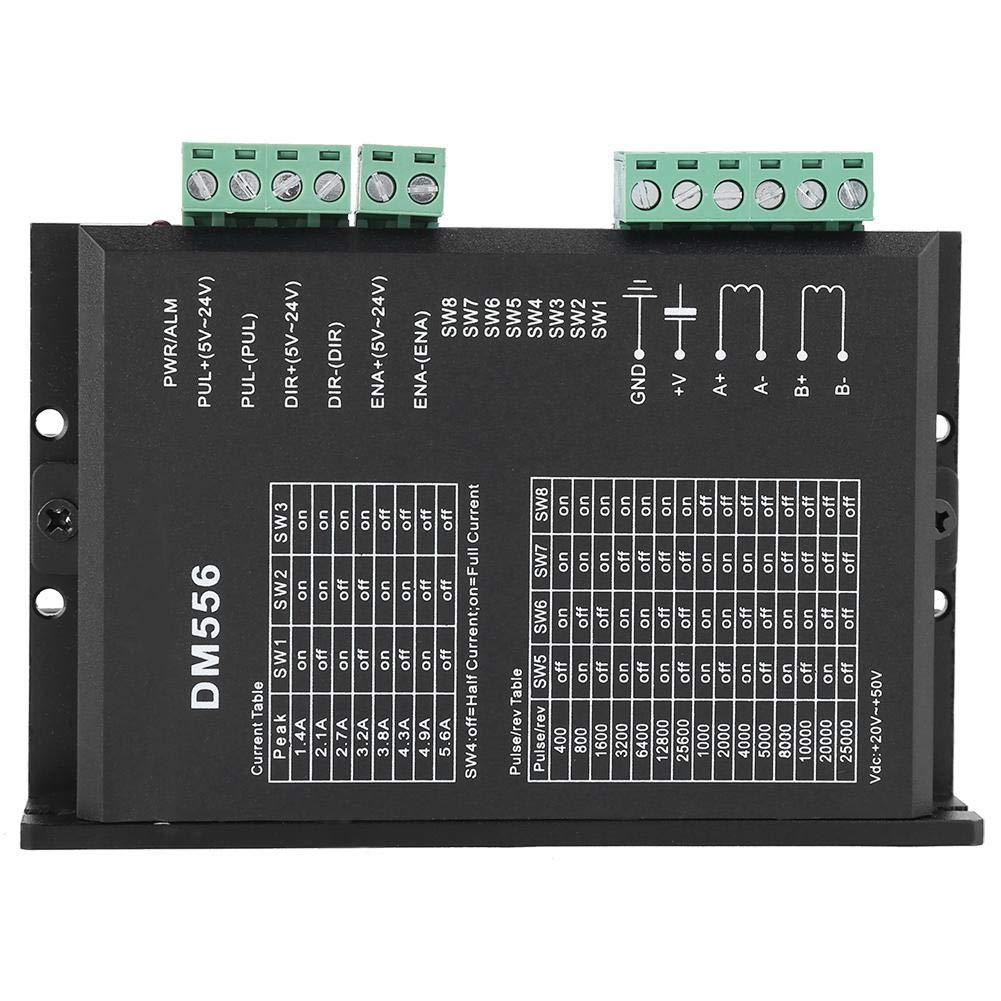

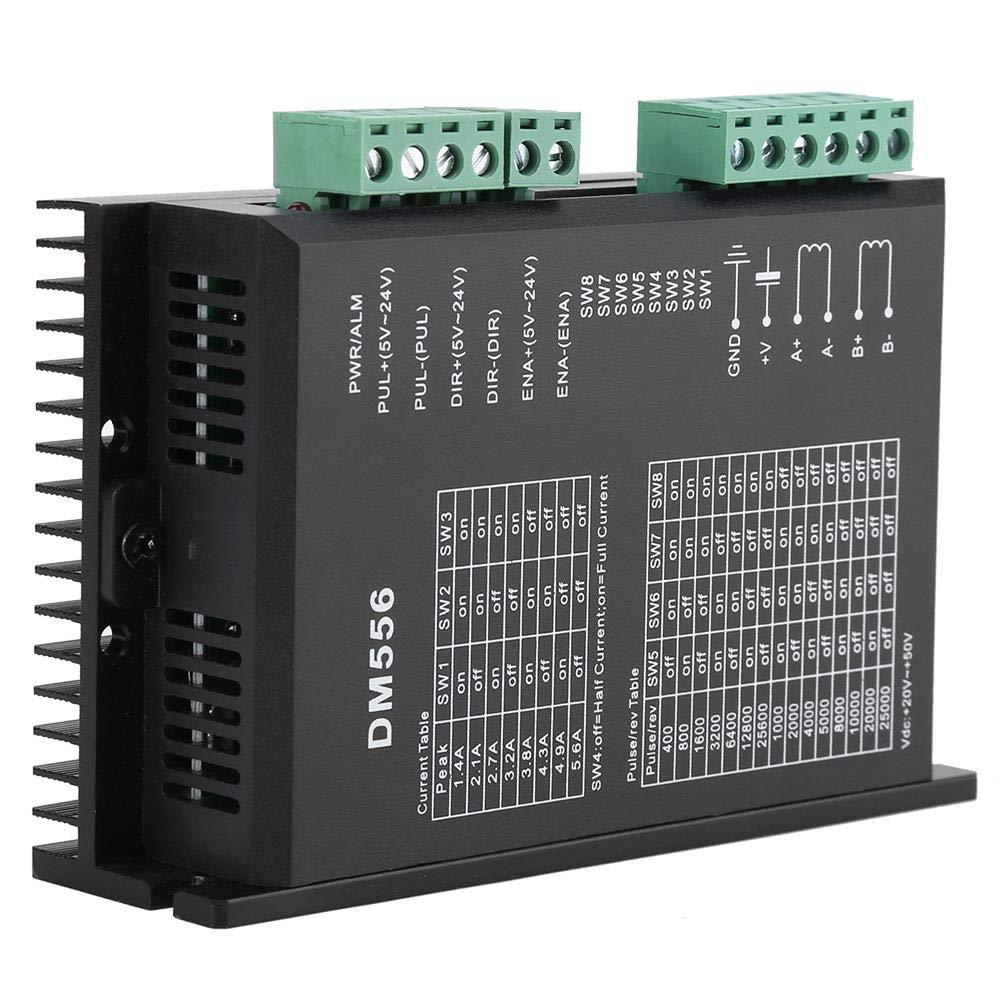

Doubletree DM556 1.8-5.6A 20-50VDC 2 Phase Low Speed Smooth Microstep CNC Digital Stepper Motor Driver
- $8.89 / 1 - 199 pieces
$7.80 / 200 - 999 pieces
$6.90 / >=1000 pieces - 1 piece
- Shenzhen TwoTrees Technology Co., Ltd.
- Guangdong, China
- Mr Twotrees Ouyang
PRODUCT DETAIL
| Origin: | Guangdong, China | model: | DM556 5.6A driver |
| Supply capacity: | 3000 pieces per month | brand: | double tree |
| product name: | DM556 5.6A stepper motor driver | port: | Shenzhen, Guangdong |
| Warranty: | 3 months | payment terms: | L/C, Western Union, D/A, T/T, MoneyGram, PayPal |
Product Description
| 20V-50V DC power supply; H-bridge constant-phase bipolar current drive; | DC 20-50 (V) | |
Eight output currents are available, up to 5.6A. | 4.2A | |
Fifteen subdivision modes are optional, which can be subdivided to 128 levels. | 1.5A-4.2A | |
Input signal high-speed photoelectric isolation; | This drive is an upgraded version | |
Standard single push interface; | NEMA(17,23) Type 42, 57 2 phase 4 phase (4 / 6 / 8 wire) | |
| Built-in temperature protection and over-current protection. Provide energy-saving semi-automatic current locking function; | 1 x TB6600 stepper motor driver 5 x TB6600 stepper motor drivers 3 x TB6600 stepper motor drivers | |
1 x Complete DM556T Driver Manual |
Input voltage 20-50VDC |
16 microstep resolution selectable from 400-25,600 via DIP switch |
8 output current settings selectable via DIP switch (1.8A to 5.6A) |
Output peak current: 1.8~5.6A (4.0 RMS) |
