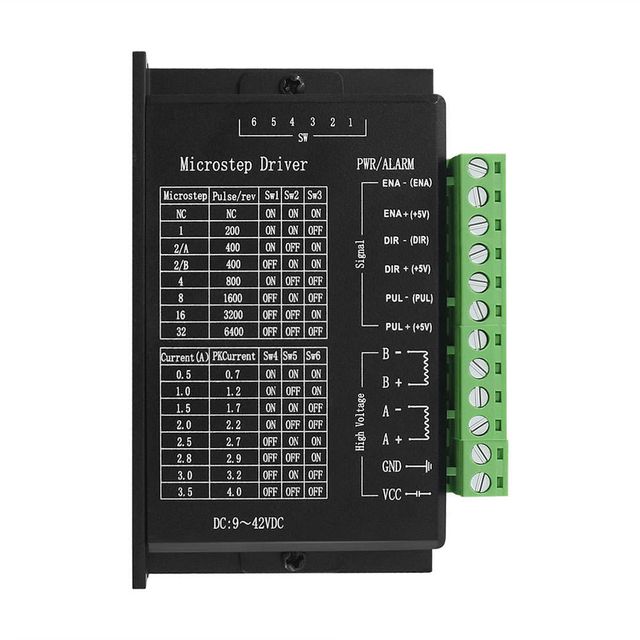

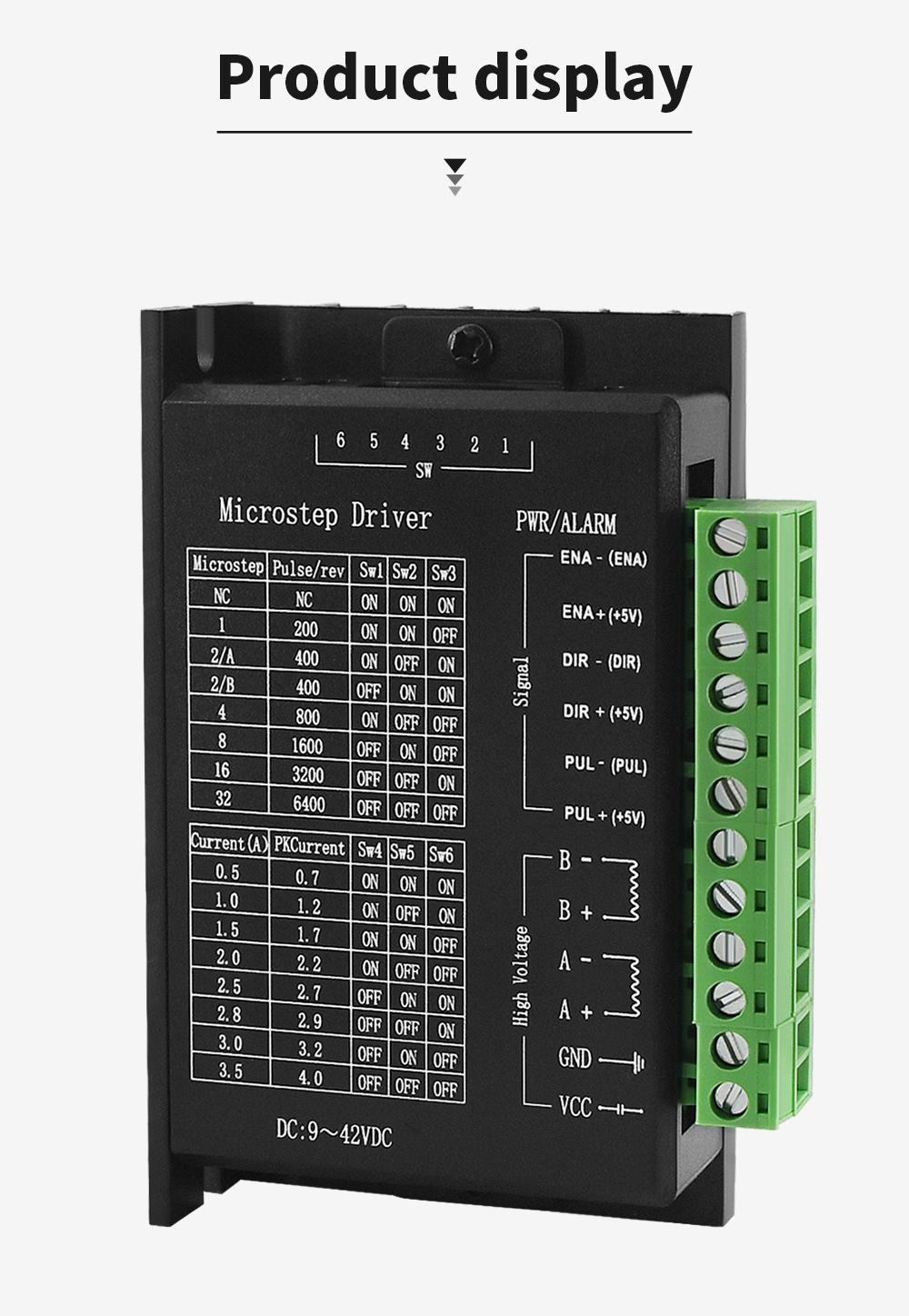

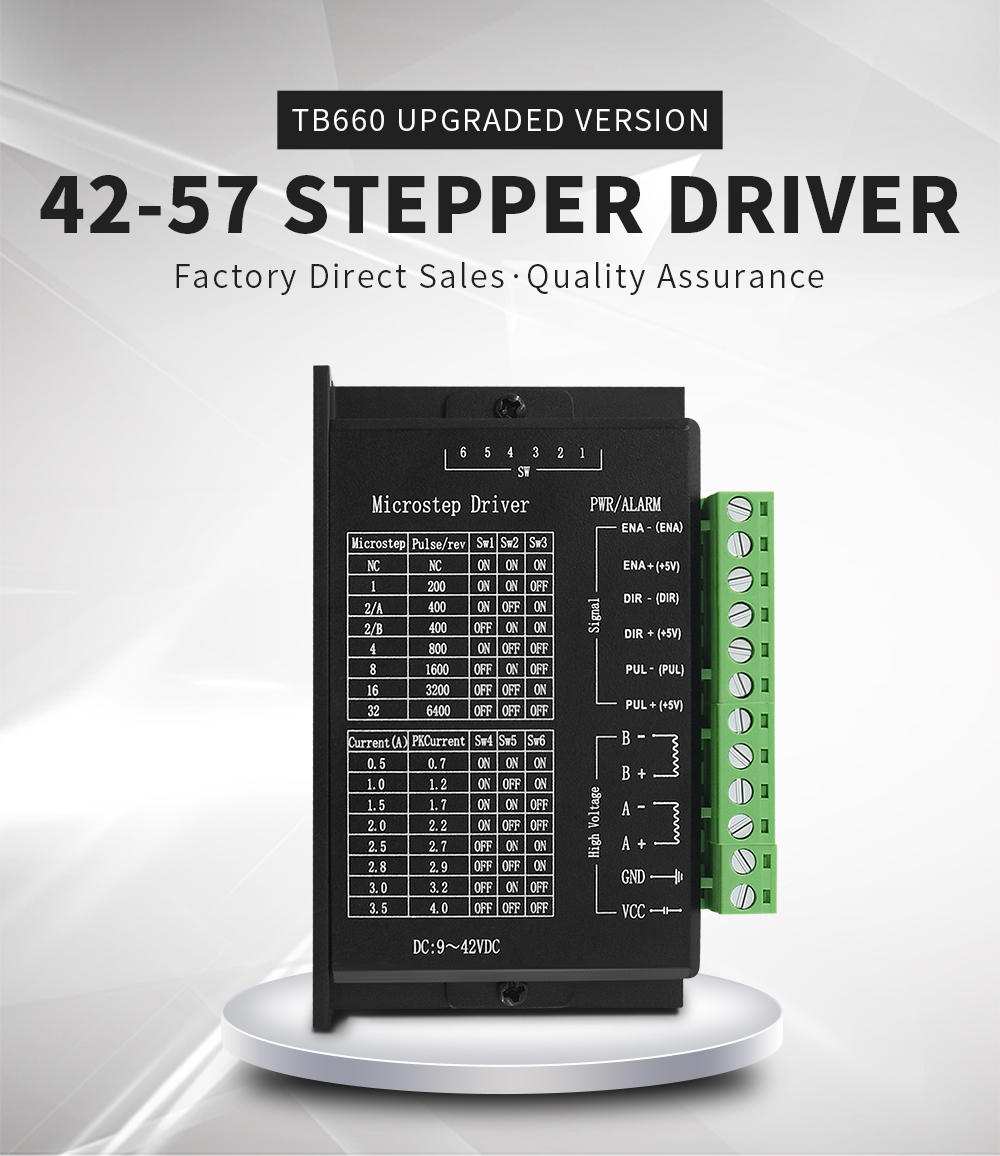

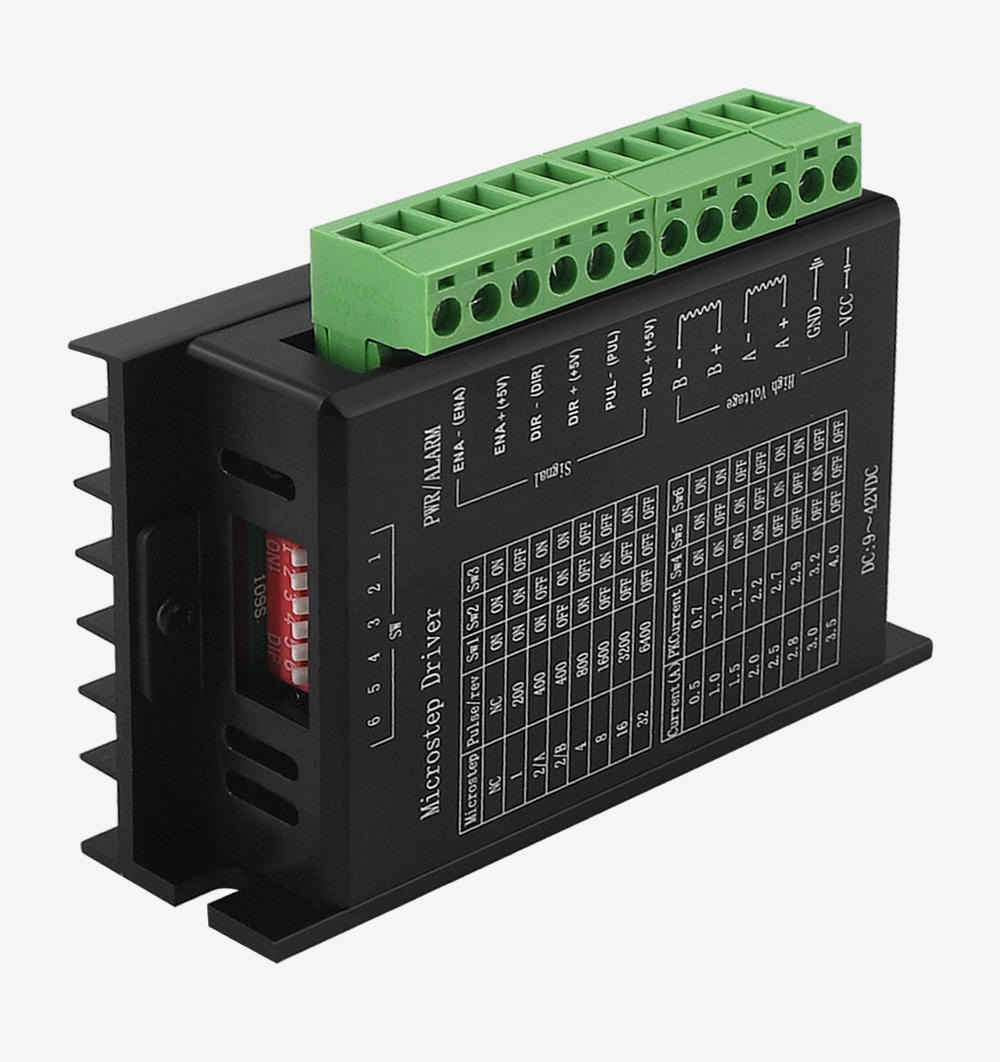

Twotrees CNC Controller Single Axis Hybrid TB6600 4A 9-42V Nema 17 CNC/42 57 86 Stepper Motor Driver for Stepper Motors
- $6.94 / 1 - 199 units
$5.51 / 200 - 399 units
$4.50 / >=400 units - 1 unit
- Shenzhen Twotrees Technology Co., Ltd.
- Guangdong, China
- Mr Twotrees Ouyang
PRODUCT DETAIL
place of origin; place of origin: | Guangdong, China | Supply capacity: | 10000 pieces per month |
brand: | double tree | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
model: | TB6600 4A | port: | God body |
product name: | TB6600 Stepper Motor Driver | Warranty: | 3 months - 1 year |
Product Description

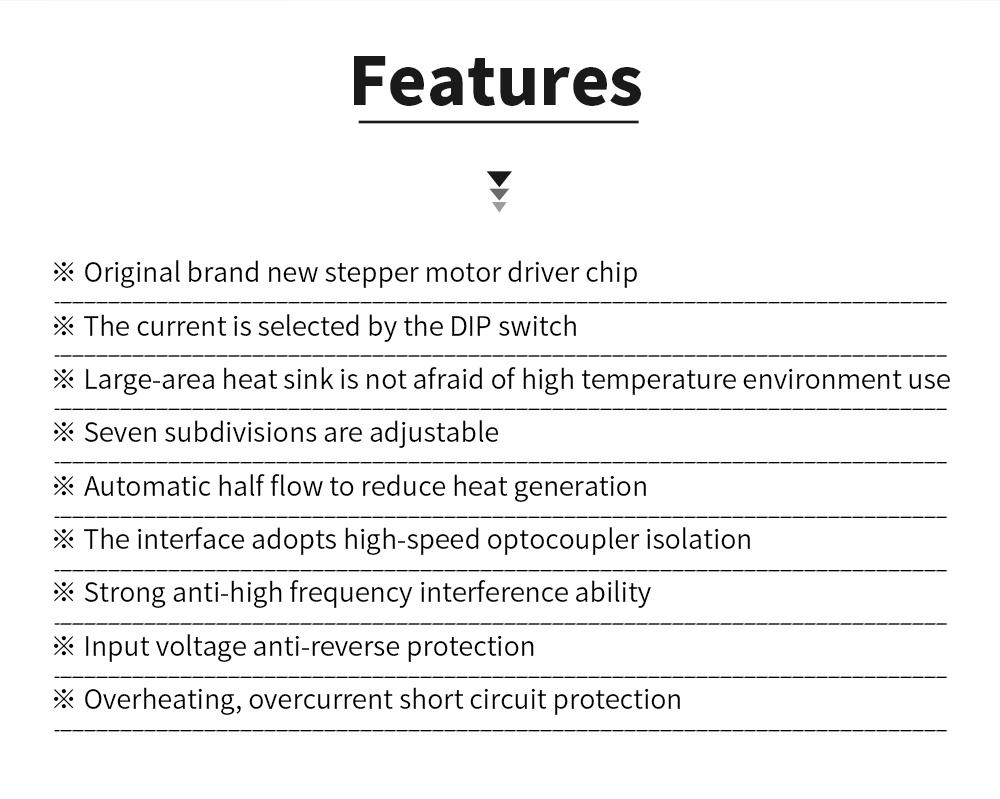

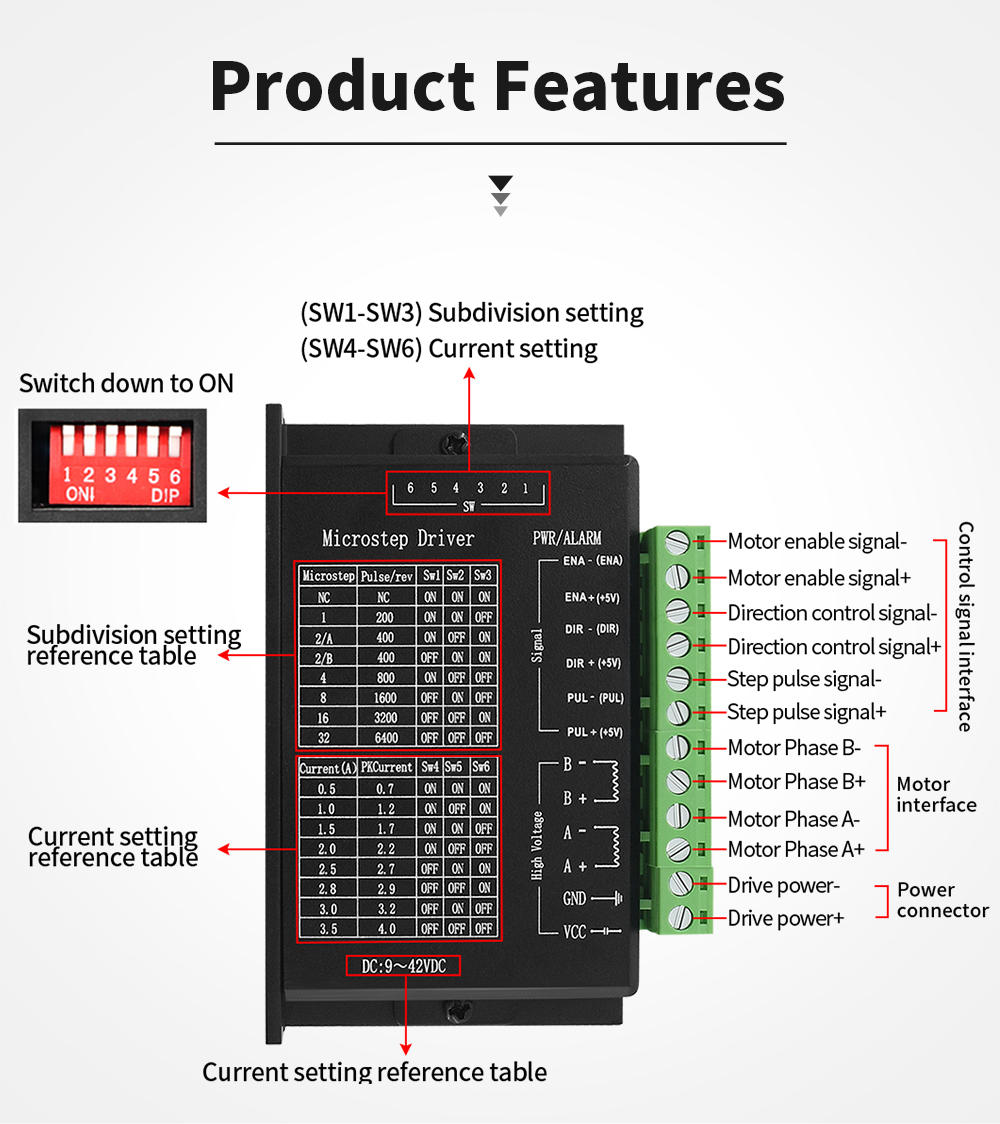

Features: | ||

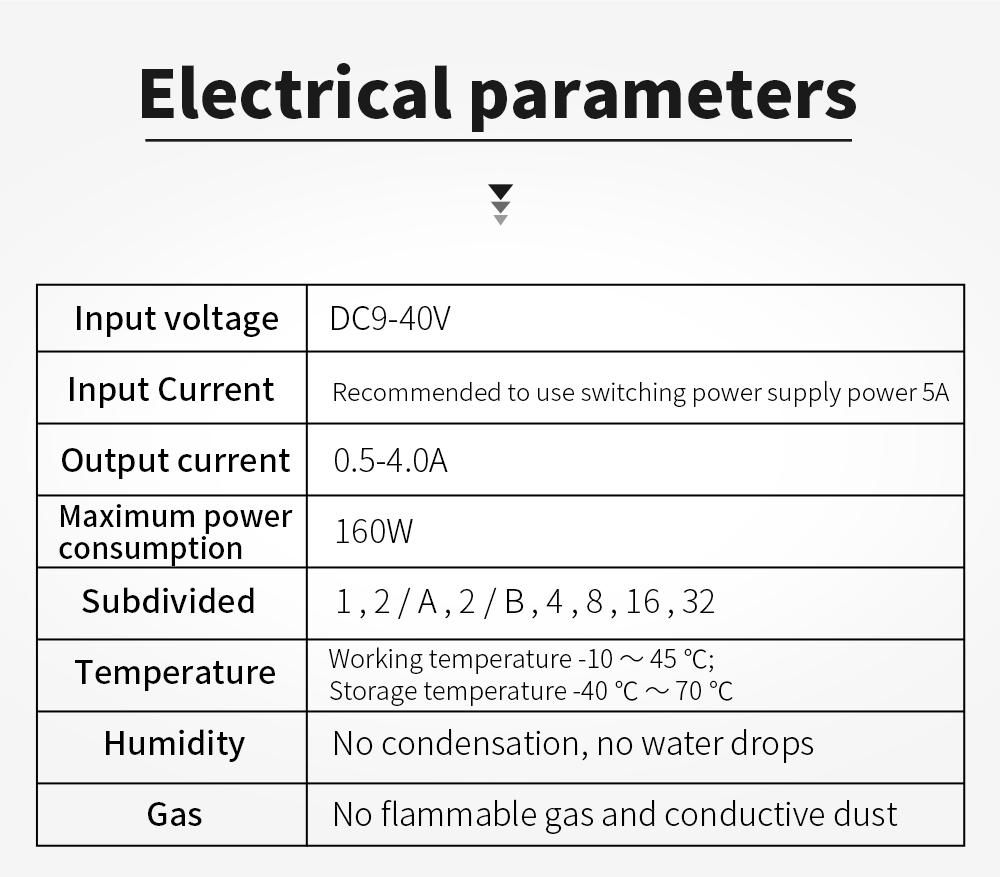

DC 9-42V power supply, 12-30V power supply is best | ||

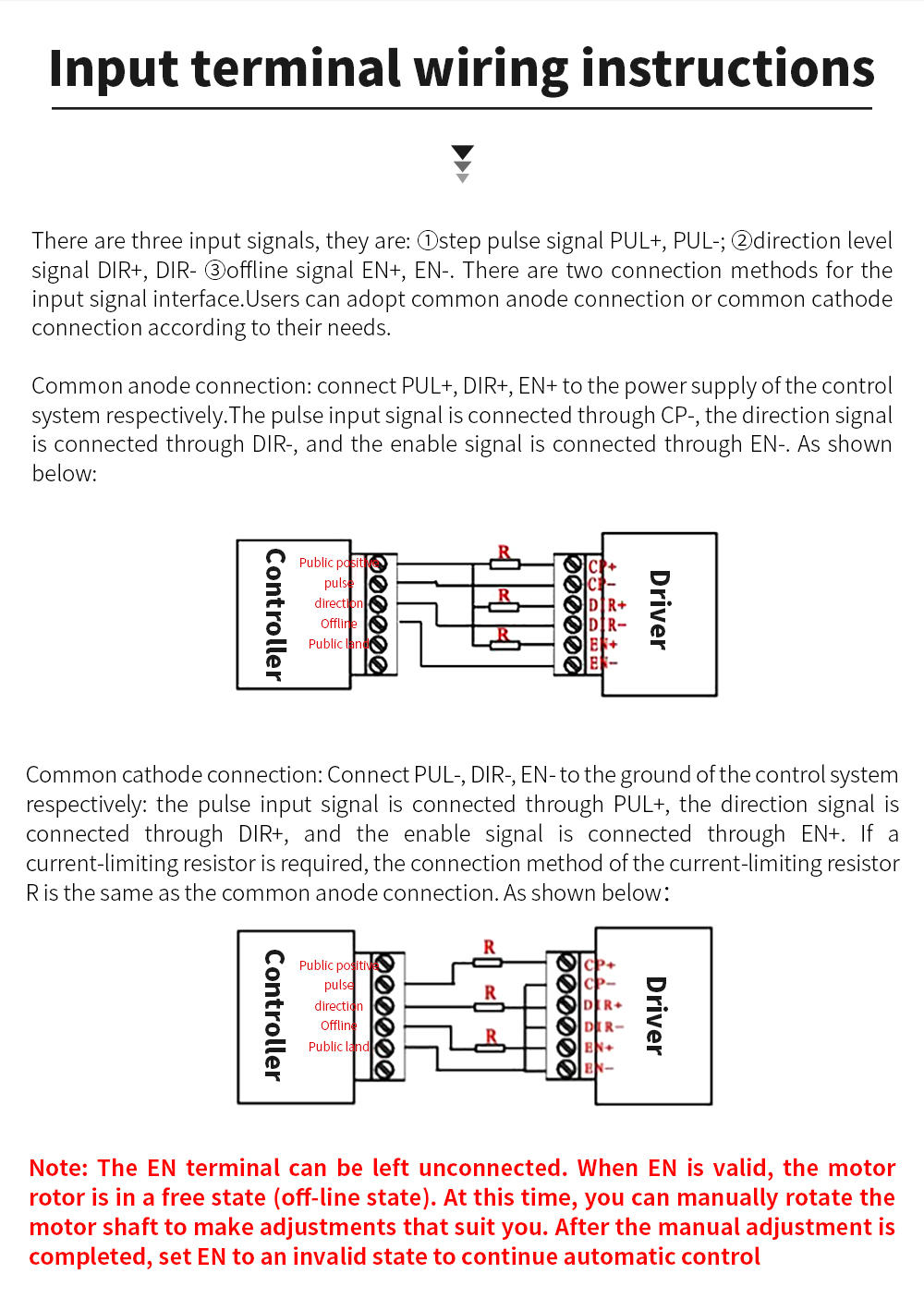

The control signal input voltage is 3.3-24V universal (no need for series resistance) | ||

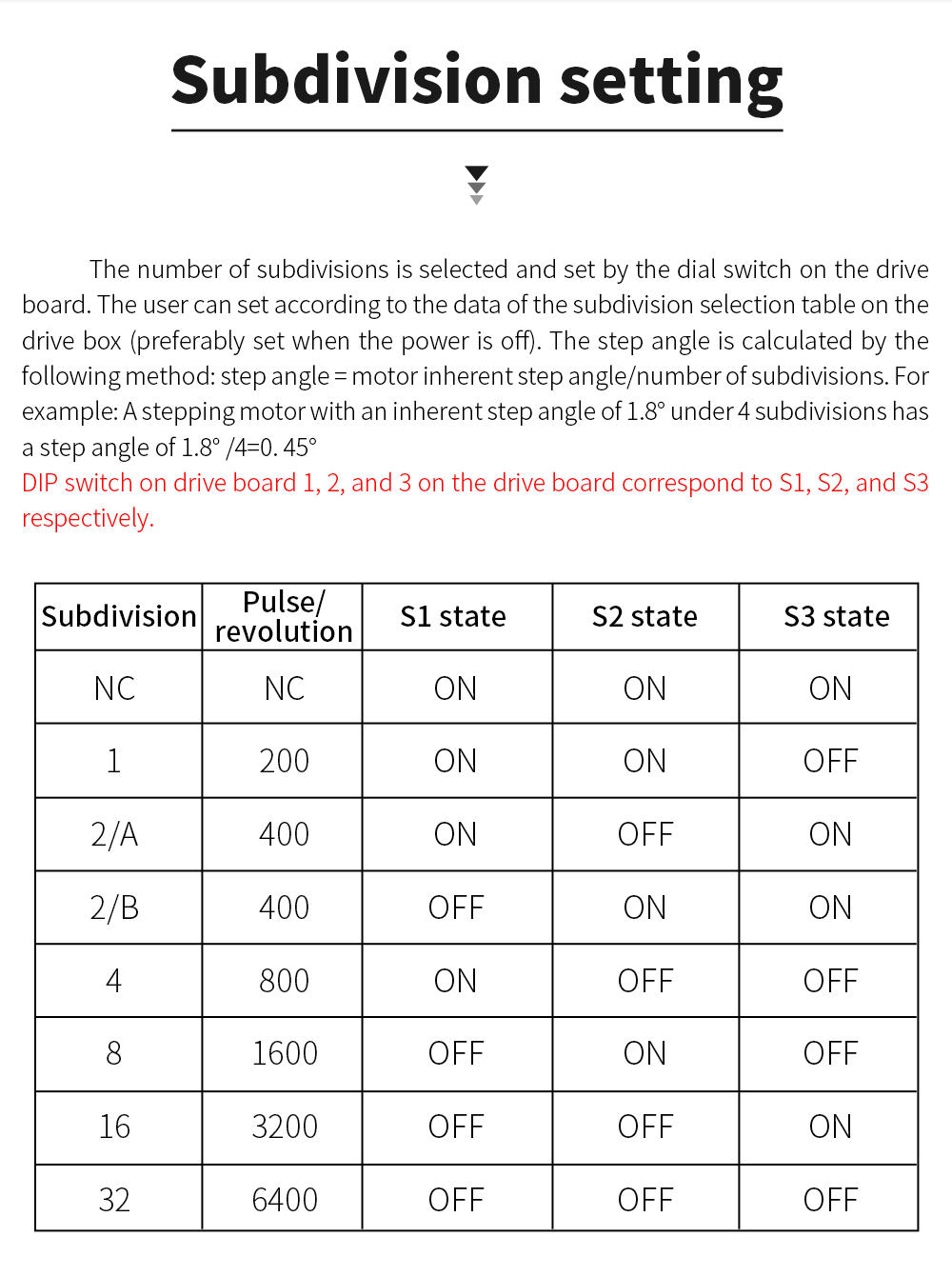

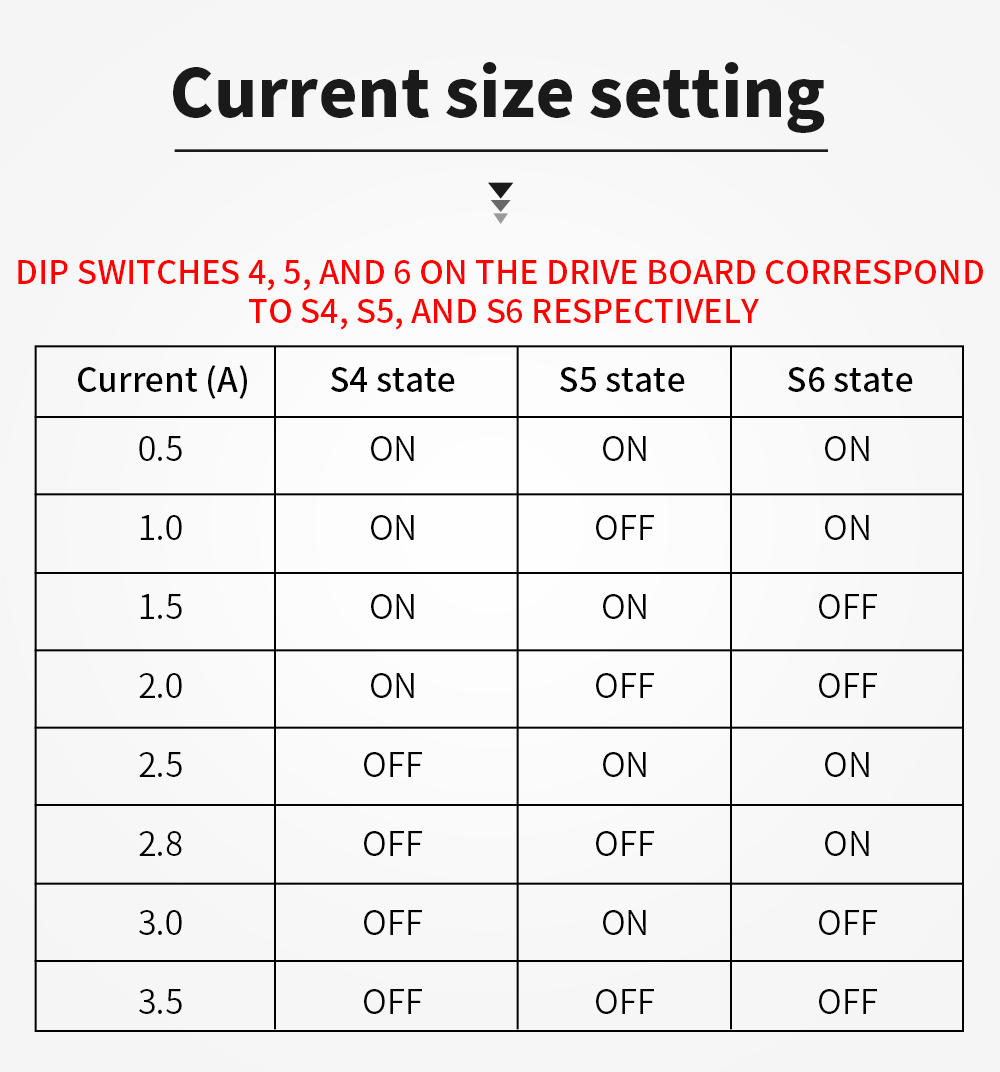

Subdivision precision 1-32 subdivision optional Output peak current 4.0A | ||
H-bridge bipolar constant current drive Input signal high-speed optocoupler isolation | ||
Built-in temperature protection and overcurrent protection | ||
Automatic half flow to reduce heat generation Motor noise optimization function Small size and space saving | ||
