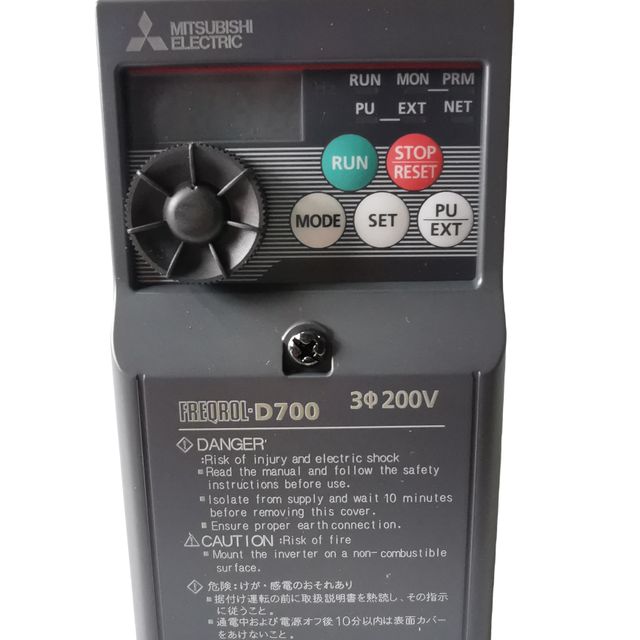

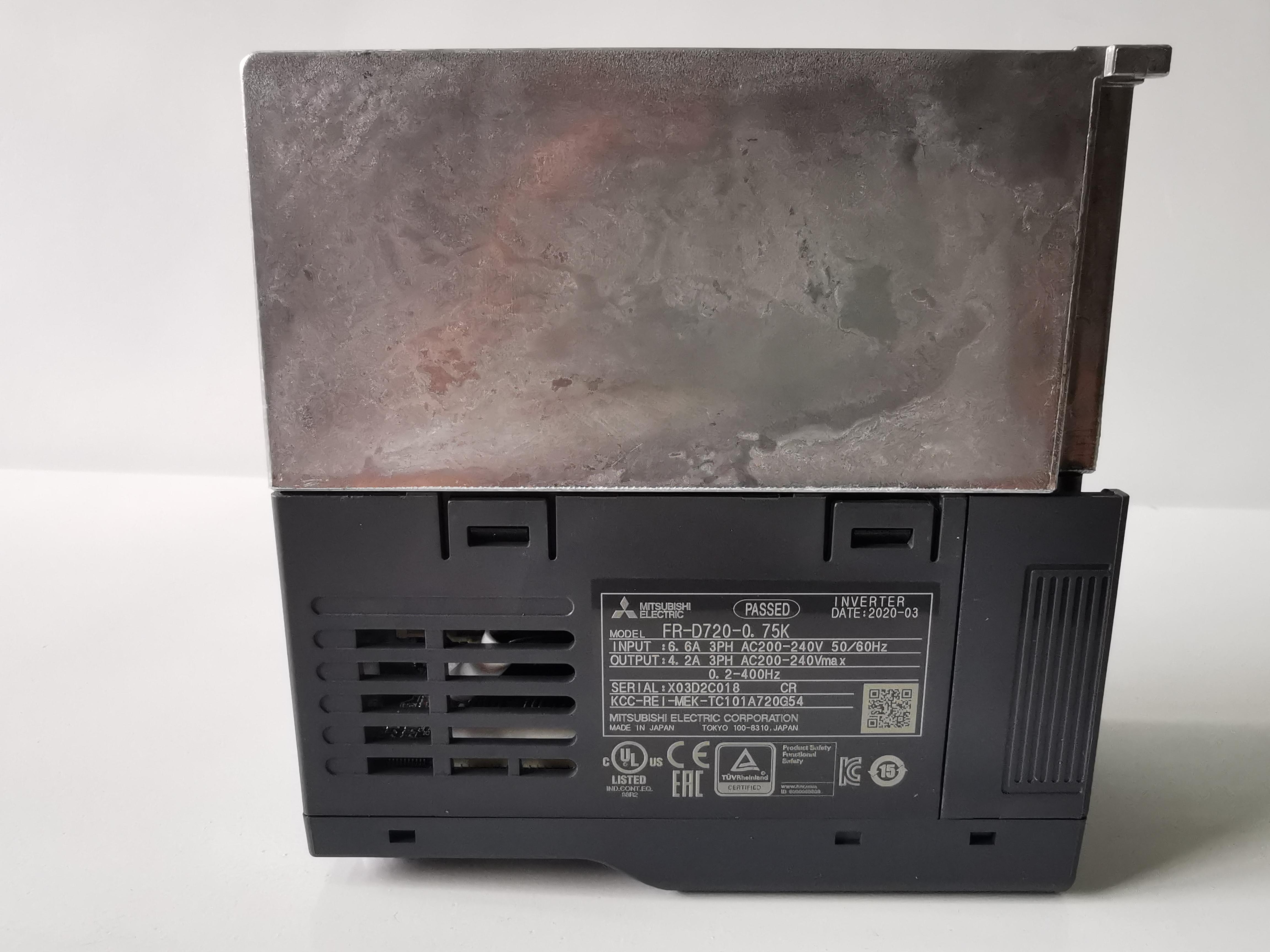

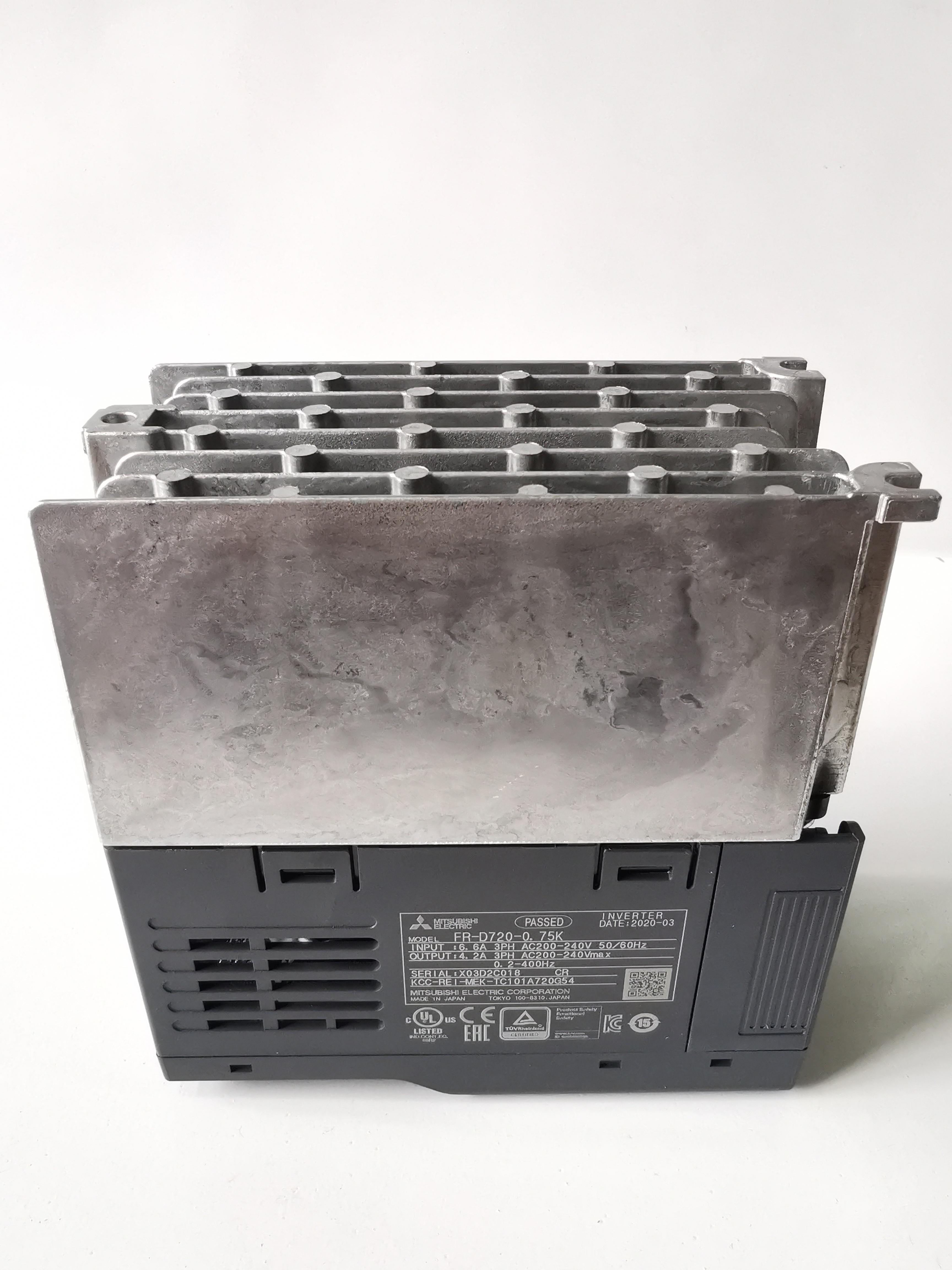

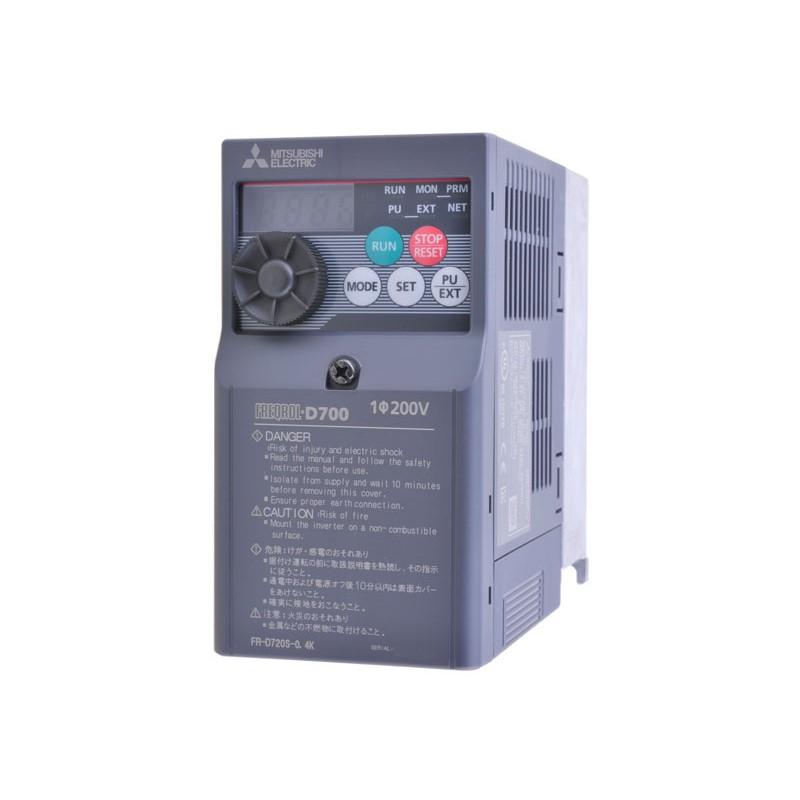

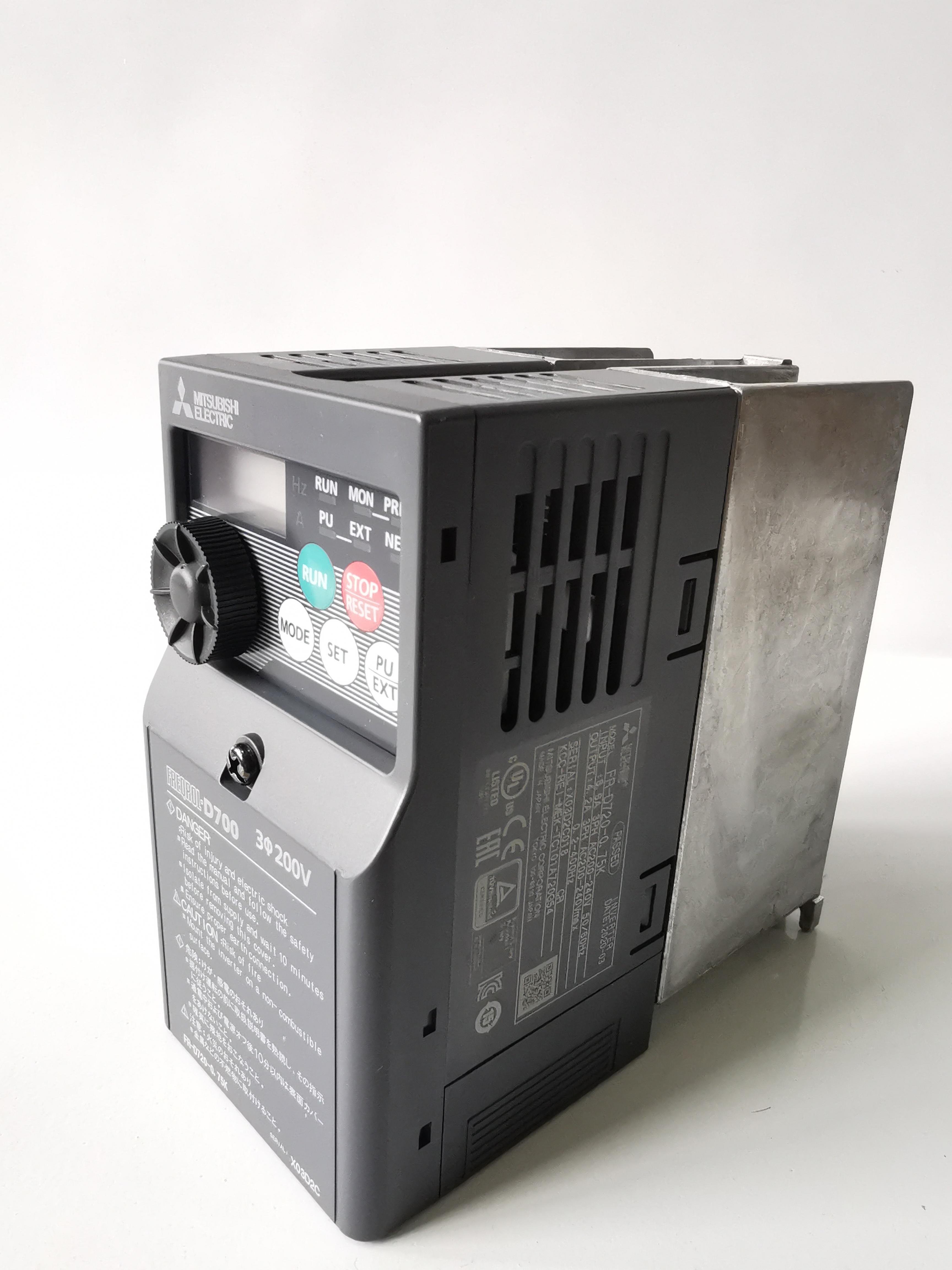

Servo Motor Driver FR-D720-1.5K Factory Supply AC Driver Good Quality High Torque Competitive Servo Motor
- $166.82 /piece
- 1 piece
- Shanghai Kuang Jiu Electromechanical Technology Co., Ltd.
- Shanghai, China
- Ms Qiong Li
PRODUCT DETAIL
| product name: | servo motor | Packaging Preview: | |

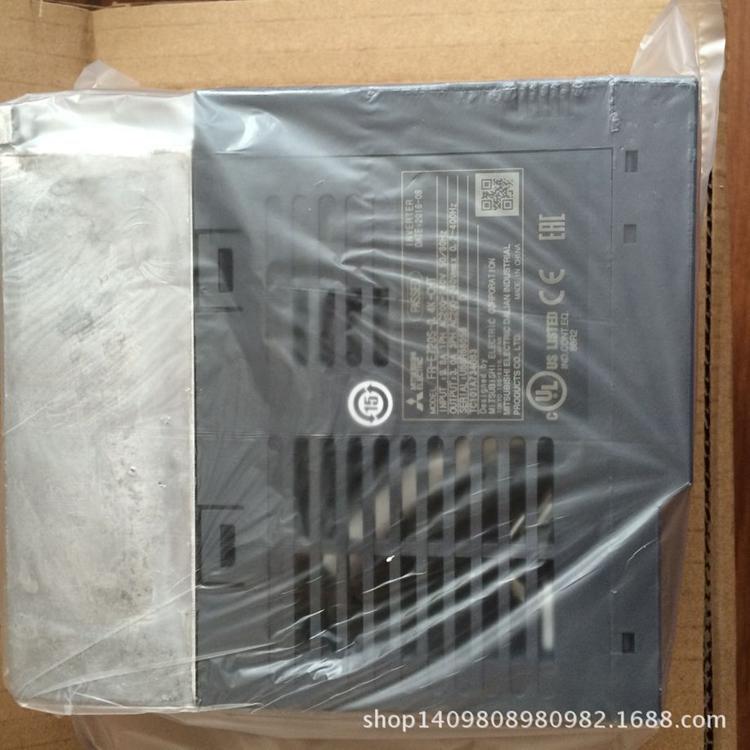

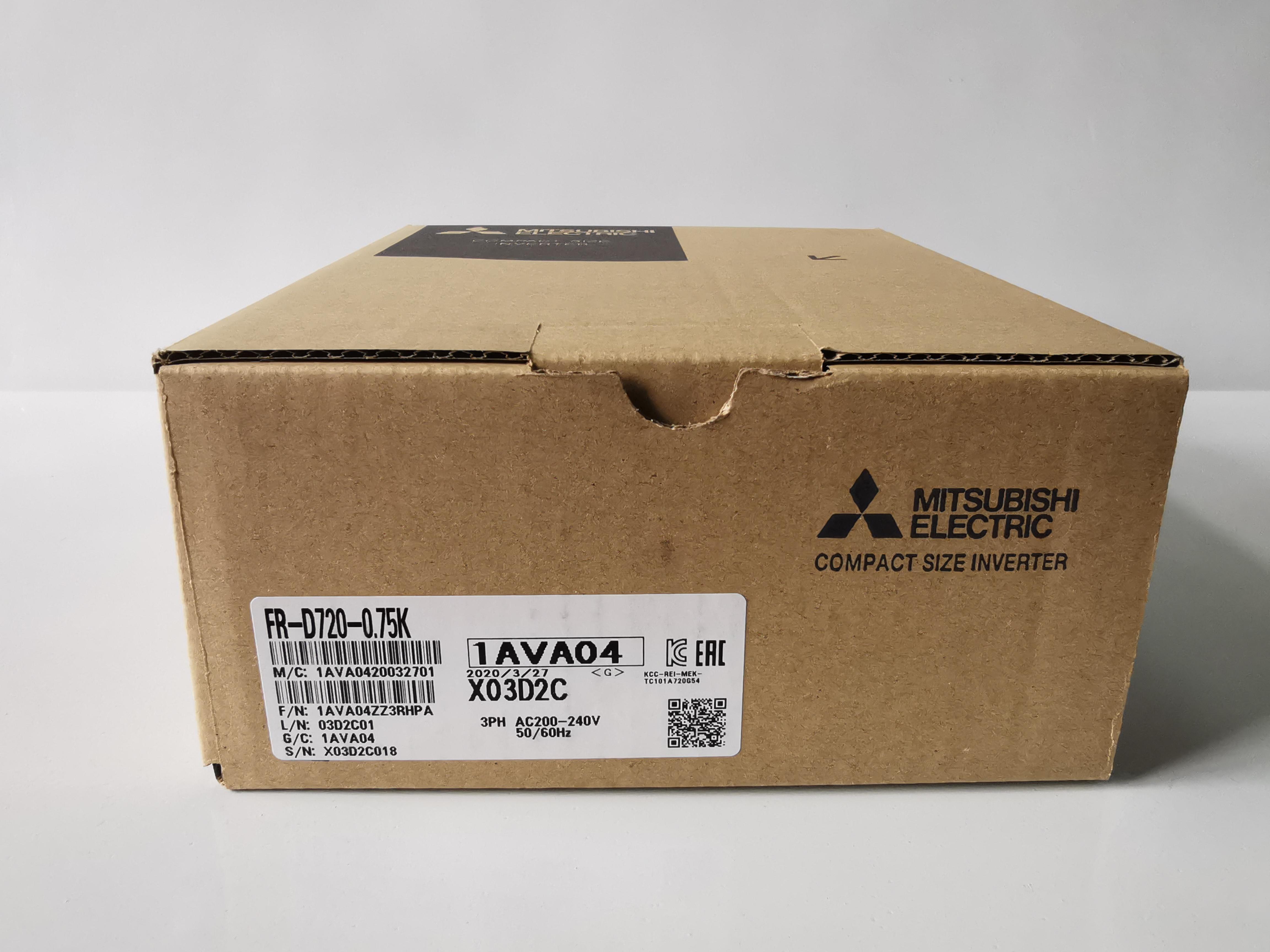

| Warranty: | 3 months - 1 year | Packaging Details: | original packaging |
| Allowed frequency variation: | ± 5% | place of origin; place of origin: | China Shanghai |
| port: | Shanghai Port | Certification: | Chief Executive |
| brand: | mitsubishi | payment terms: | D/P, T/T |
| Applicable motor capacity (kW): | 1.5 | Rated voltage: | Three-phase AC 170V |

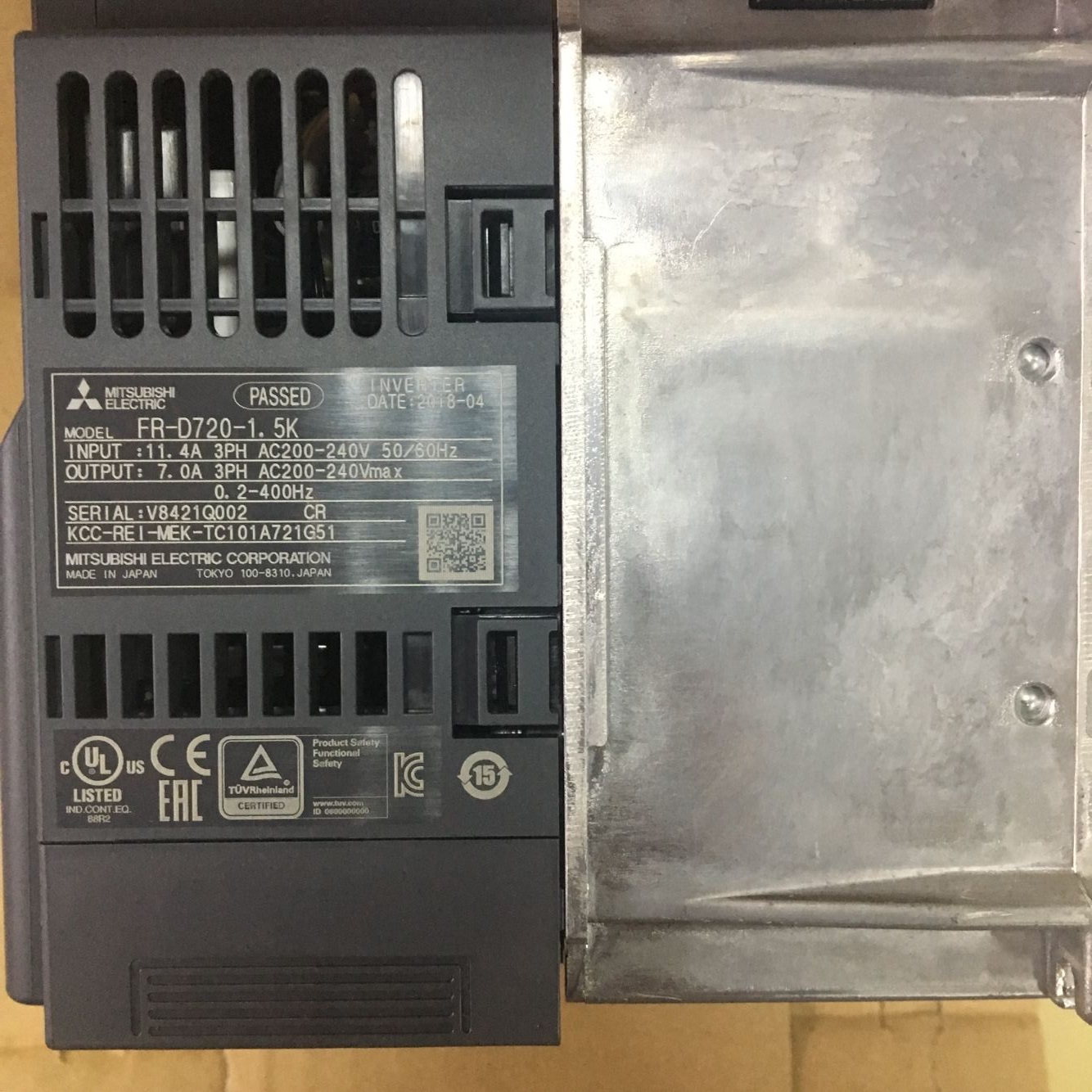

| model: | FR-D720-1.5K |
Product Description
product name | Frequency converter/inverter |
Phase | three phase |
voltage | [ac200v, AC220V, AC240V] |
Power (kW) | 1.5 |
【Control circuit power input】Power frequency: single-phase ac200v - 240V, 50 Hz / 60 Hz Rated current[a]: 0.2 Allowable voltage variation: single-phase ac170v ~ 264v Allowable frequency variation: ±5% Power consumption: 30W Inrush current[a]: 20 ~ 30
[Interface battery] Power frequency: DC24 V ± 10% Power capacity [a]: 0.5 (including CN8 connector signal)
[control method] Sine wave PWM control current control method[dynamic braking] built-in [Communication function] USB: Connect with PC (corresponds to Mr configurator 2) RS-422: Expected support
[Position control method] Maximum input pulse frequency: 4mpps (differential input), 200kpps (open collector input) Positioning feedback pulse: encoder resolution (resolution of one revolution of servo motor): 22bit Command pulse rate: electronic gear A/b times, a= 1 ~ 6777216, B = 1 ~ 6777216, 1 / 10 < A / b < 4000 Positioning pulse width setting: 0pulse ~ 165535pulse (command pulse unit) Large error: ±3 revolutions Torque limit: by parameter setting or external analog input ( dc0v ~ +10V / max torque)
Our company has more models, welcome to consult.
Model | Model |
FR-D720-0.1K | FR-D720-3.7K |
FR-D720-0.2K | FR-D720-5.5K |
FR-D720-0.4K | FR-D720-7.5K |
FR-D720-0.75K | |
FR-D720-1.5K | |
FR-D720-2.2K |
