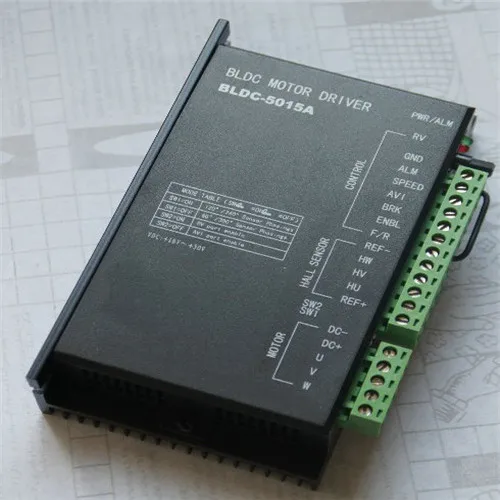

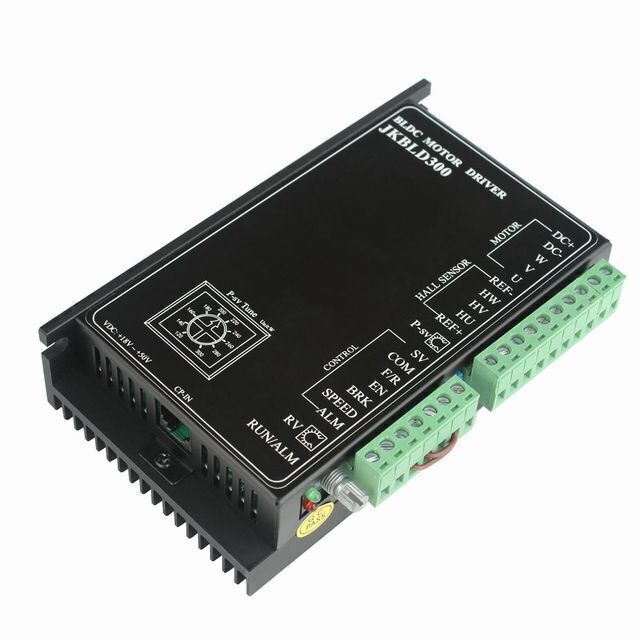

Brushless DC Motor Driver BLDC-5015A, BLDC DRIVER

  • $28.00 / 10 - 99 pieces
    $26.00 / 100 - 999 pieces
    $23.00 / >=1000 pieces
  • 10 pieces
  • Changzhou Jkongmotor Co., Ltd.
  • Jiangsu, China
  • Ms Annie Fan
PRODUCT DETAIL
Packaging Detail:EXPORT CARTON;Package Preview:;
Brand Name:JK,JK;Certification:CE,ROHS ,ISO9001,ce,rohs;
color:black;Place of Origin:Changzhou, China,Jiangsu China;
Delivery Time:3~25days;Packaging Details:EXPORT CARTON;
phone:+8613912315503;Supply Ability:10000pcs/month;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,PAYPAL;Port:SHANGHAI;
Warranty:3months-1year;Payment Terms:T/T,L/C, PAYPAL, Western union;
Minimum Order Quantity:1PCS~5PCS;Model Number:BLDC-5015A;
Supply Ability:10000 Piece/Pieces per Month;

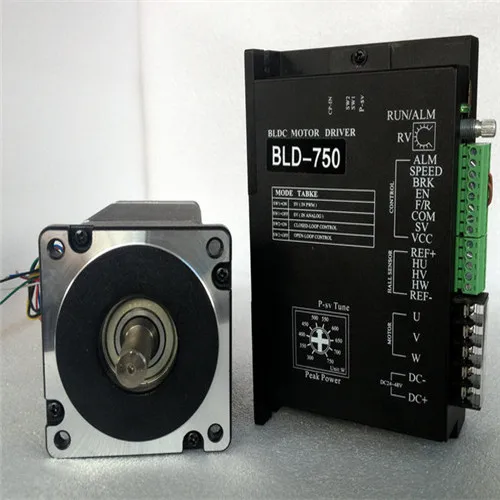

Brushless DC Motor Driver BLDC-5015A, BLDC DRIVER, 86mm brushless driver, 57mm dc brushless driver



Product Description





Features

  SPWM,Speed/Current alike close loop technology, smooth rotation

   Smooth torque output within speed range (8000 rpm Max.)

   1:75 Max. speed regulation ratio

   60°/300°/120°/240°Electrical angle adjustable

   Speed regulation: potentiometer adjust / Analog input

   Run/Step,Quick Brake,CW/CCW rotation shift

   Speed output,Alarm output(O.C.)

   Over current,over voltage,stall,missing speed Alarm

Parameters

Electrical Parameters(Tj=25ºC)

Power

24~50VDC, Capacity:up to motors

Current output

Rated 15A,Peak 45A(≤3s)

Driving mode

SPWM

Insulation Res.

>500MΩ

Dielectric Strength

500V/Minute

Weight

About 300g

Ambient requirement

+

Cooling

Self cool

Environment

Keep away from oil, dust, and acid gas

Temperature

0ºC~+50ºC

Humidity

<80%RH

Vibration

5.7m/s2.Max.

Storage temp.

-20ºC~+125ºC

Function description

   Power Supply: DC+ ; DC-

Voltage: 24~50DC,normally Linear Power Supply applied(appendix),ripple voltage higher than 50V may damage driver. The output current of LPS shall be 60%more than that of driver. In case of switching power supply(strongly recommended)applied, please pay attention to the current shall meet motor’s current.

Attention: incorrect connection may cause driver damaged.

   Speed regulation choice(RV ; AVI)

1. Setup speed by potentiometer (RV).The dipswitch SW2 must be ON status to enable this function. CW rotate the potentiometer will increase speed. CCW- speed down.

2. Setup speed by analog input (AVI). The dipswitch SW2 must be OFF status to enable this function..AVI terminal accept 0~5V voltage or PWM signal from controller.AVI terminal with input resistance of 100K,current consumption≤5mA.

Reference table

SW2

Command to

Speed adjust

Comman

Current

ON

RV

CW—speed up,CCW—speed down

-

-

OFF

AVI

0~5V analog input

0~5V volage

≤5mA

OFF

AVI

PWM

1KHz duty cycle

-

  Only one of above two modes can be used to adjust speed (another mode shall be enabled). Once AVI terminal applied, (RV) potentiometer shall be CCW turned to Min. position.PWM signal are 5V TTL level.

   Run/Stop(ENBL)

ENBL terminal is applied to control motor Run/Stop,Common positive terminal is +5V.

Optical coupler short circuit make motor run, it open circuit make motor stop.

See below circuit



   CW/CCW Rotation(F/R)

F/R terminal is applied to shift motor rotate direction, common positive terminal is+5V.

Motor run in CCW when optical coupler is short circuit, motor run in CW when optical coupler is open circuit.

Attention:don’t change the connection sequence of phase wires of motor to shift rotate direction.

   Motor Brake Command(BRK)

BRK terminal applied to stop rotation quickly. Motor will stop normally within 50ms. But inertia of load can’t exceed 2 times of motor inertia, otherwise brake will cause driver alarm.

Time of acceleration and deceleration must be put into controller in case of too big load inertia,

And please don’t use brake function in such condition.

The optical coupler short circuit will brake motor,optical coupler open circuit release motor to run.

   Setup different electrical angle

Dipswitch SW1 can be setup to fit motors with different electrical angel

SW1



ON

120°or 240°hall signal,they are in opposite rotation direction

OFF

60°or 300°hall signal, they are in opposite rotation direction

   Motor rotation speed output(SPEED)

Pulse generated by driver are proportioned with motor speed,(isolated O.C. output) it can be increased to be a random level. 6 multiple frequency processed output.

Motor speed=60×SPEED(pulse freq.)/pulses per rev. of motor;p.p.r=motor pole pairs×6

   Alarm output(ALM)

Driver will enter protection mode and stop motor running in case of OVER CURRENT, OVER VOLTAGE, SHORT CIUCUIT, MOTOR STALL arise,LED on driver will be light, and ALM signal will be available. Please cut off

driver’s power supply,check wiring and voltage. High voltage is not permitted for big inertia motor, as it

may cause run/stop frequently and over voltage alarm.  Circuit of this function refer to pic. 2.







   Terminals description

+

Terminal mark

Description

DC+;DC-

Voltage supply to driver

U;V;W

To motor leads. Make sure correct connection to motor leads.

REF+;REF-;HU;HV;HW

Hall sensor connection,REF+;REF- are for hall power supply. Make sure correct connection to halls.

AVI;ENBL;F/R;BRK;Vcc

Controls input,see below picture

SPEED;ALM

Signal output,(O.C.)

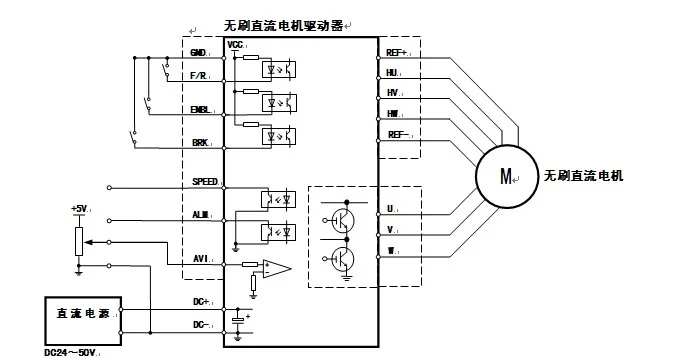

 Wiring Diagram:

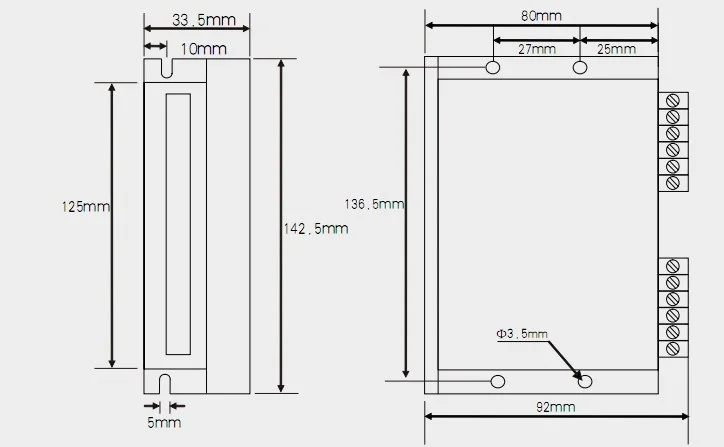

Dimension:











Packaging & Shipping







About Our Packing:

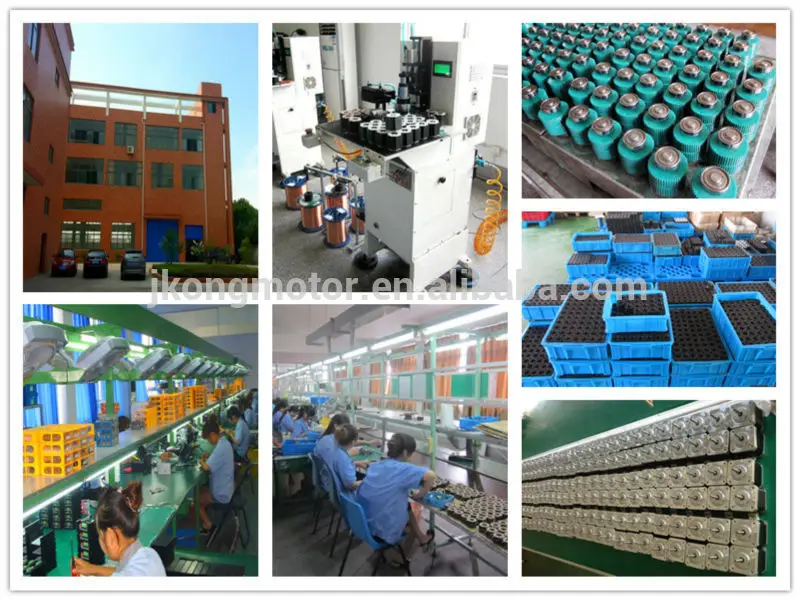

Company Information

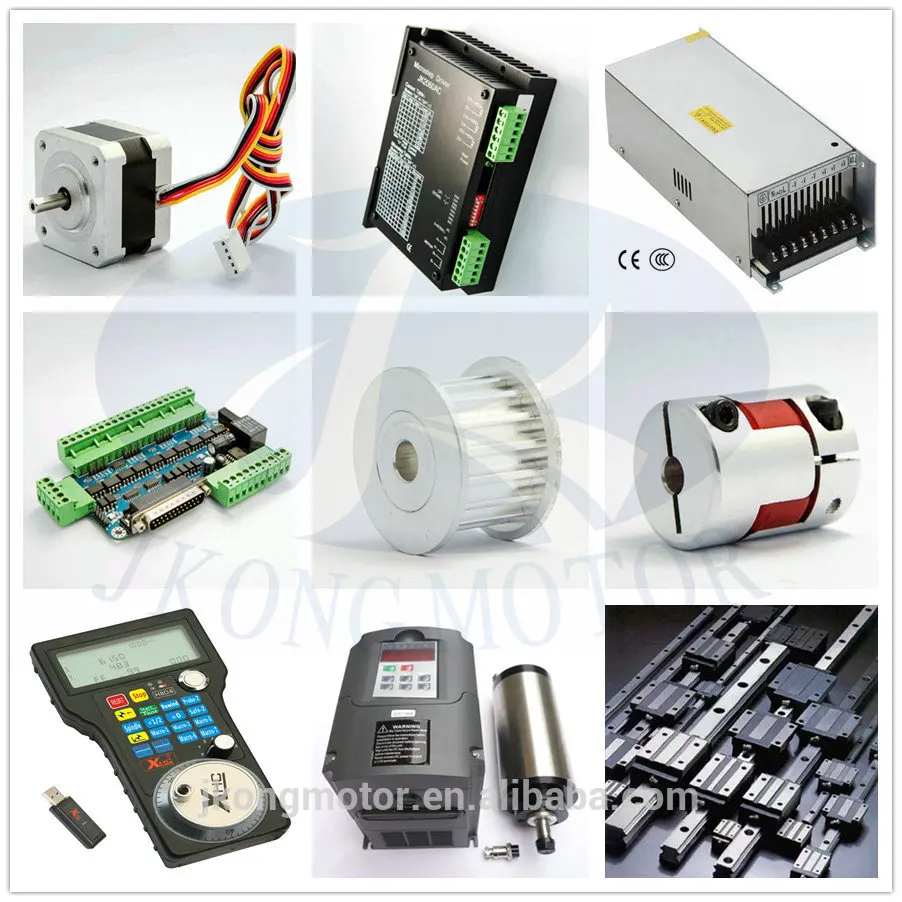

Company Show:We can also supply 2 phase and 3 phase stepper motors, drivers, BLS Dc coupling, breakout board, power supply and so on.
