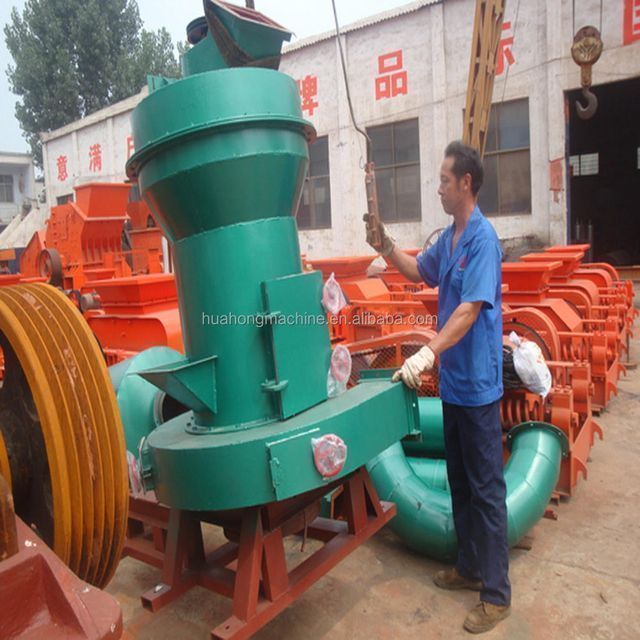

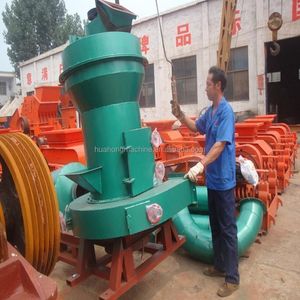

3R2115 High Performance Powder Processing Raymond Mill/Pulverizer
- $1000.00 /set
- 1 set
- Zhengzhou Huahong Machinery Equipment Co., Ltd.
- Henan, China
- Ms Lily Li
| strength: | 72.5 | Supply capacity: | 50 sets per month |
| Operating costs: | low | Administration of Quality Supervision: | ISO 9001:2008 |
| maintain: | convenient | Packaging Details: | The balance is paid within 15 days of the account being paid. |
| Delivery Details: | 5-10 days | Install: | Engineer's Guide |
| weight: | according to your request | After-sales service provided: | Engineers can repair machinery overseas |
| main market: | worldwide | type: | raymond mill |
| payment terms: | L/C,T/T,Western Union,Cash | Certification: | standard |
| Dimensions (L*W*H): | 7700x 7200x 8800 | Operating status: | stable |
| port: | Qingdao, Shanghai, Tianjin, Guangzhou, etc. | Wear resistance: | OK |
| Health status: | new | Capacity (tons/hour): | 1.0-5.2 |
| brand: | Hua Hong | place of origin; place of origin: | Henan, China |
| model: | 4R3216 | Roller height (mm): | Different kinds |
| Abrasive material: | Ore, Stone, Coal... | Warranty: | 1 year |
| Motor Type: | AC motor | color: | optional |
Specification
raymond mill
1. Advanced milling technology
2. Small footprint
3. The pass rate reaches 99%
4. High degree of automation

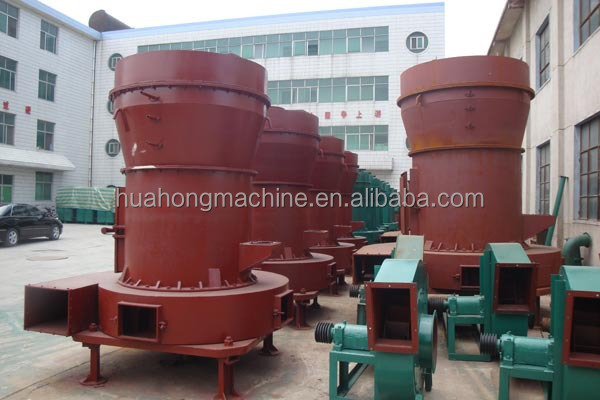

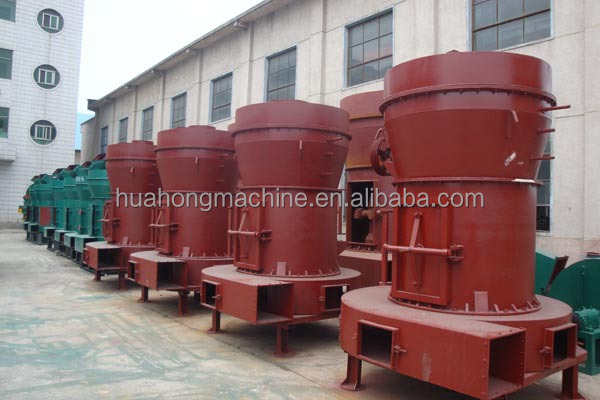

Raymond MillIt is a new type of medium-speed stone powder making machine developed on the basis of RP. It is increasingly perfect with the characteristics of low consumption, low investment, environmental protection, small footprint and higher efficiency than traditional mills. |
application
R Raymond Mill, After years of practice and continuous improvement, its structure is becoming more and more perfect, with high efficiency, low energy consumption, small footprint, less investment, and less environmental pollution. Therefore, it is widely used in metallurgy, building materials, chemical industry, mining and other mineral abrasive processing fields, suitable for processing various flammable and explosive minerals with Mohs hardness below 7 and humidity below 6%, such as gypsum, talc, calcite, limestone, marble , potassium feldspar, barite, dolomite, granite, kaolin, bentonite, medical stone, bauxite, red iron oxide, iron ore, etc., the product fineness is 440 microns to 613 microns (0.613 mm to 0.613 mm) , Through the analysis of the fan combination, it can meet the requirements of different users
The working principle of raymond mill
General: crushing--grinding--selecting--collecting
Detailed explanation: The material first enters the jaw crusher to be crushed into smaller sizes. They were then taken to the storage room by elevator. The vibrating feeder evenly feeds the material into the grinding chamber.

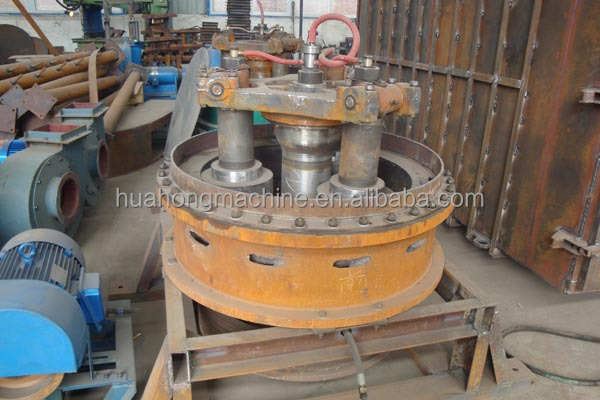

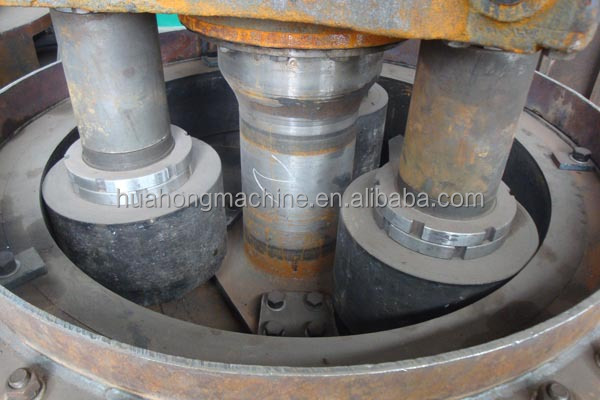

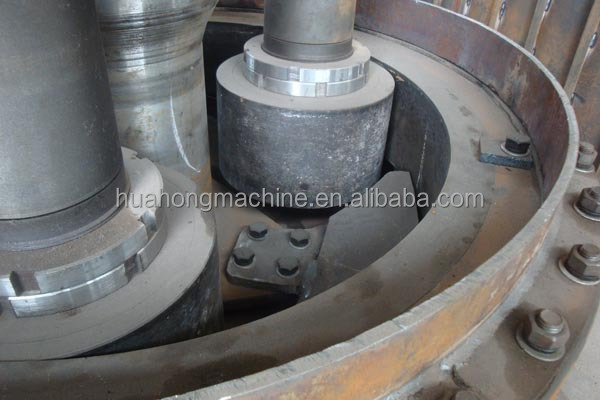

When the material enters the grinding chamber of the main machine, due to the centrifugal force generated by the rotation of the main shaft, the grinding roller swings outward and presses tightly on the grinding ring. The bucket transports the material between the grinding roller and the grinding ring, and as the grinding roller rolls, the material is ground.
The qualified powder after grinding is selected by the separator through the circulating air of the blower, and the coarse powder will be returned to the grinding chamber for regrinding. Qualified powder is brought into the powder collector by the airflow. The powder comes out as the final product.
Main specifications of pulverizer and Raymond pulverizer
Model | grinding roller | grinding ring | feeding size (mm) | output (mm) | capacity (tons/hour) | motor strength (kilowatt) | comprehensive aspect (mm) | |||
number (pieces) | diameter (mm) | high (mm) | external diameter (mm) | high (mm) | ||||||
3R2115 | 3 | 210 | 150 | 726 | 150 | <15 | 0.613-0.044 | 0.28-1.8 | 28.2 | 4480× 3100× 3970 |
3R2615 | 3 | 260 | 150 | 865 | 150 | <15 | 0.613-0.044 | 0.35-2.8 | 35.7 | 5000× 4100× 4850 |
3R2715 | 3 | 270 | 150 | 884 | 150 | <15 | 0.613-0.044 | 0.40-3.4 | 42.7 | 5050× 4150× 4900 |
3R3015 | 3 | 300 | 150 | 965 | 150 | <15 | 0.613-0.044 | 0.45-3.7 | 55 | 5200× 4200× 4950 |
4R3016 | 4 | 300 | 160 | 990 | 160 | <20 | 0.613-0.044 | 0.6-4.5 | 55 | 5250× 5000× 5500 |
4R3216 | 4 | 320 | 160 | 1073 | 160 | <25 | 0.613-0.044 | 1.0-5.2 | 72.5 | 7700× 7200× 8800 |
