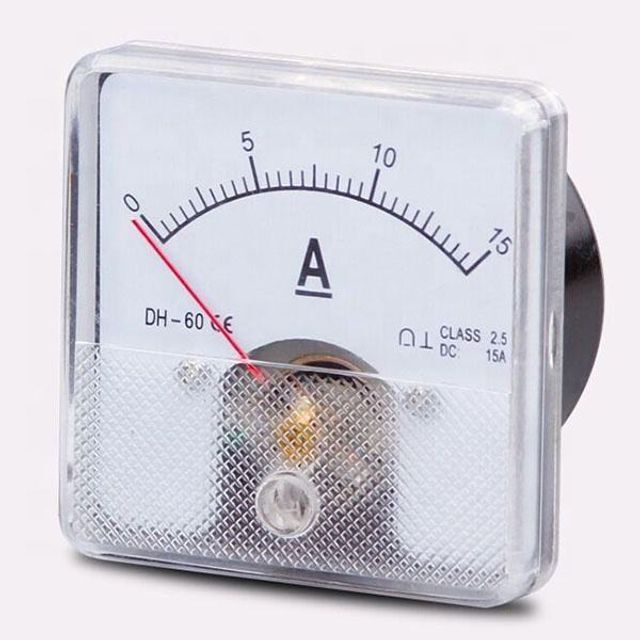

60x60mm Analog Ammeter Panel Volt Meter DC0-15A

PRODUCT DETAIL

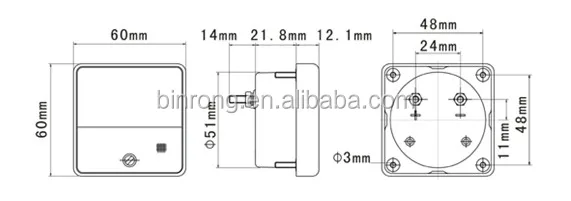

Mounting hole:48x48mm;Selling Units:Multiple of 100;
Packaging Detail:box;Gross weight per batch:7.000 KG;
Color:Black+white;Dimensions:60x60mm;
Package size per batch:34X34X23 cm;Operating Temperature:10~+65;
Accuracy Class:2.5;Pack:1pcc/box;
Weight:Approx 65g;Brand Name:Binrong;
Display Type:Analog Only;Size:60x60mm;
Model Number:DH-60 BP-60 SF-60 AT-60;Supply Voltage:AC220V;
Place of Origin:Zhejiang, China;Measuring Range:0-15A;

60x60mm Analog Ammeter Panel Volt Meter DC0-15A



Name

precision

normal specification

remark

AC ammeter

A

1.5

0.5-50A

can be directly connected

A

1.5

10/5A-800/5A

secondary current passed by

current transformer





KA

1.5

1KA-10KA

secondary current passed by

current transformer





AC voltmeter

V

1.5

10V-600V

can be directly connected

KV

1.5

1KV-35KV

100V secondary voltage passed by voltage transformer

DC ammeter

µA mA

2.5

50μA-500μA 1mA-500mA

can be directly connected





A

1.5

1A-15A

can be directly connected

A

1.5

15A-750A

 outer attached shunt 75mV 60mV 50mV



KA

1.5

1KA-3KA

outer attached shunt 75mV 60mV 50mV



DC voltmeter

V

1.5

3V-600V

can be directly connected

KV

1.5

1KV-3KV

outer attached resistance value
