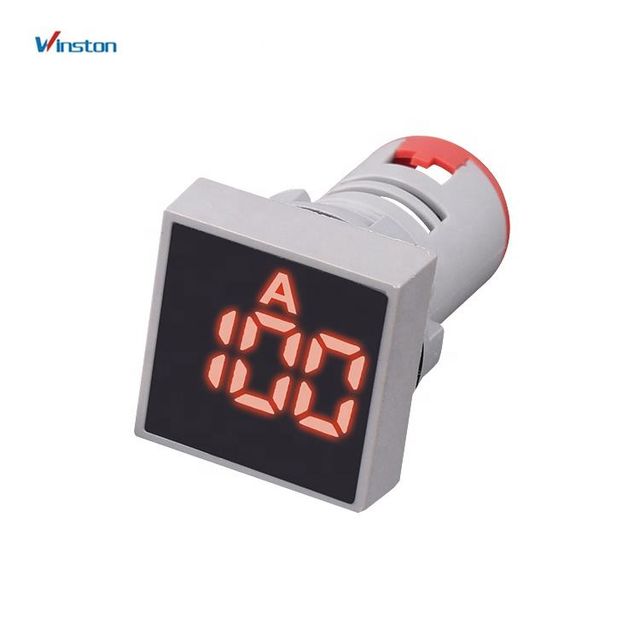

AD16-22AMS 22mm 0 - 100A AC 380V Red LED Light Light Mini Digital Ammeter Ammeter Indicator

PRODUCT DETAIL
Protection class:Head IP65. IP67 available on requestpayment terms:L/C, Western Union, T/T, MoneyGram, PAYPAL
aspect:miniport:Ningbo
Display type:numbers onlyOperating temperature:-25℃~+55℃
Application frequency:AC50-60Hzcolor:red white green yellow blue
place of origin; place of origin:Zhejiang, Chinamodel:AD16-22AMS
brand:WinstonInsulation resistance:≥2MΩ

AD16-22AMS 22mm 0 - 100A AC 380V Red LED Light Light Mini Digital Ammeter Ammeter Indicator

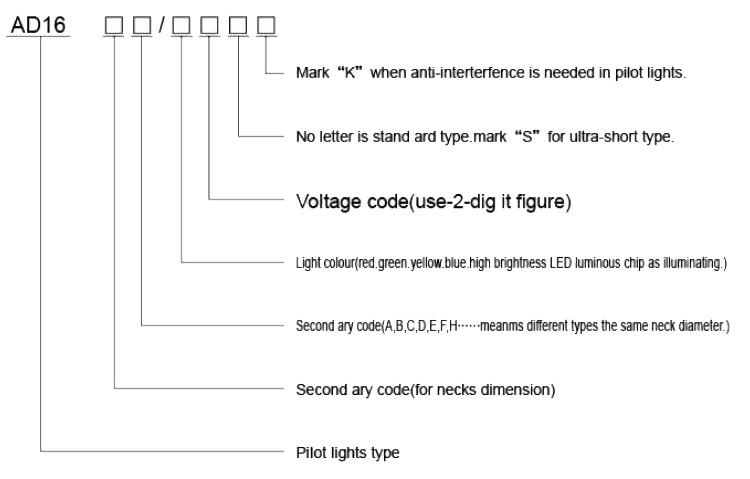

Model Description

working conditions

1. Ambient temperature: -25℃-+55℃,
2. Relative humidity: ≤98%,
3. The vibration frequency is 2-80Hz, and the acceleration is 0.7g.
4. The pollution level is level 3, and the installation group is level III
5. Those marked "TH" can work in hot and humid environment.



Technical data

1. Power frequency withstand voltage: 2.5kv/1min (AC RMS),
2. Insulation resistance: ≥22MΩ,
3. Allowable voltage fluctuation: ±20%,
4. Continuous working life: ≥30000H.
5. Brightness: ≥100cd/m2,
6. CTI≥600,
7. Head protection grade IP65, IP67 can be provided upon request,
8. Application frequency: AC50-60Hz.





Product Description
Name type color Lamp voltage
Indicating ammeter AD16-22AMS

Red

white

green

yellow

blue

0~100A

Max AC380
