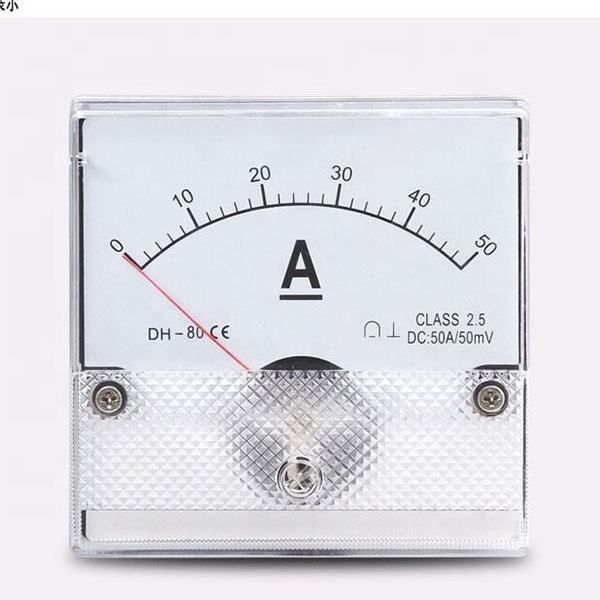

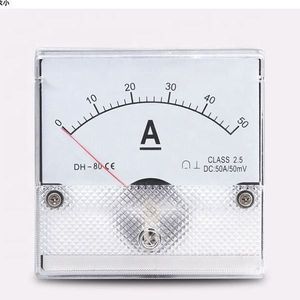

DH-80 analog current panel voltmeter DC0-50A
- $1.80 / 1 - 999 pieces
$1.70 / 1000 - 9999 pieces
$1.60 / >=10000 pieces - 1 piece
- Yueqing Binrong Electric Co., Ltd.
- Zhejiang, China
- Mr bob pan
| Display type: | Simulation only | Package size per batch: | 34X34X23 cm |
| size: | 80x80mm | voltage: | AC220V |
| weight: | about 75 grams | color: | black+white |
| Packaging Details: | Bag | Accuracy class: | 2.5 |
| Operating temperature: | 10~+65 | Measuring range: | 0-50A |
| place of origin; place of origin: | Zhejiang, China | Gross weight per batch: | 7.000 kg |
| brand: | Bin Rong | model: | DH-80 BP-80 SF-6\80 AT-80 CZ-80 |
| Sales unit: | Multiples of 100 | box: | 1/box |

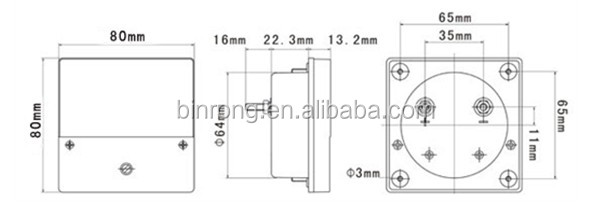

| Mounting holes: | 65x65mm | aspect: | 80x80mm |
DH-80 analog current panel voltmeter DC0-50A
|
Name |
accurate |
Normal specifications |
Comment |
|||
|
AC ammeter |
One |
1.5 |
0.5-50A |
can be connected directly |
||
|
One |
1.5 |
10/5A-800/5A |
|
|||
|
KA |
1.5 |
1KA-10KA |
|
|||
|
AC Voltmeter |
five |
1.5 |
10V-600V |
can be connected directly |
||
|
kV |
1.5 |
1KV-35KV |
Voltage transformer through 100V secondary voltage |
|||
|
DC ammeter |
µA mA |
2.5 |
50μA-500μA 1mA-500mA |
|
||
|
One |
1.5 |
1A-15A |
can be connected directly |
|||
|
One |
1.5 |
15A-750A |
External shunt 75mV 60mV 50mV
|
|||
|
KA |
1.5 |
1KA-3KA |
External shunt 75mV 60mV 50mV
|
|||
|
DC Voltmeter |
five |
1.5 |
3V-600V |
can be connected directly |
||
|
kV |
1.5 |
1KV-3KV |
External resistance value |
|||
