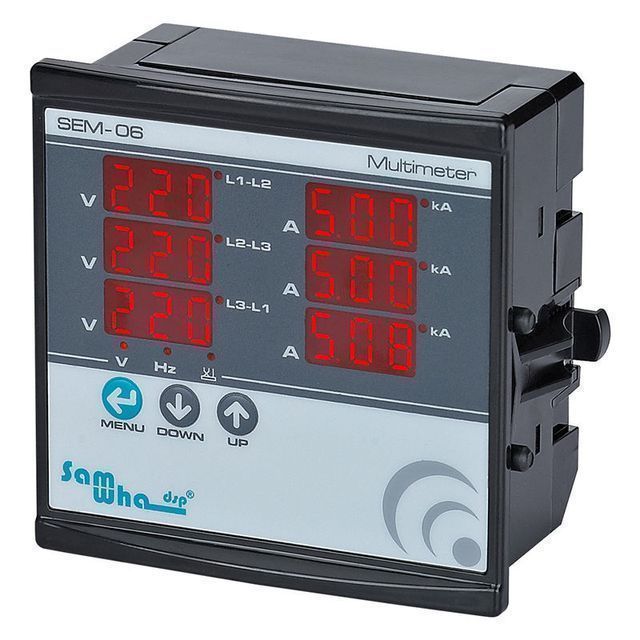

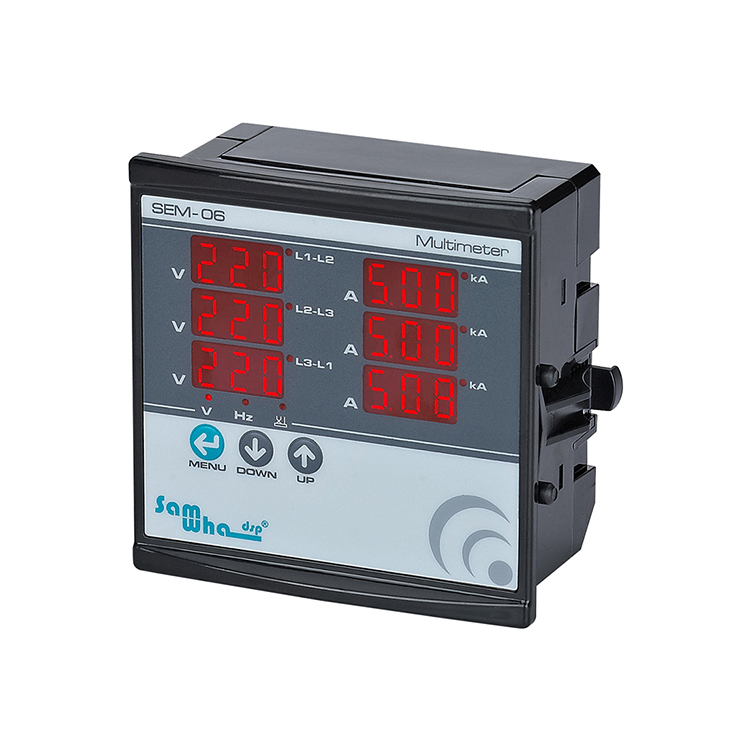

Samwha-dsp Sem-06 Multimeter Digital Panel Meter Mini Digital Measuring Device
- $12.00 / 2 - 49 pieces
$11.50 / >=50 pieces - 2 pieces
- Zhejiang Hannuo Electric Co., Ltd.
- Zhejiang, China
- Mr Vinson
PRODUCT DETAIL
| Panel hole size: | 91x91mm | measurement accuracy: | ±%1 |
| Origin: | Zhejiang, China | Measuring range: | 1V - 500V AC |
| working frequency: | 50/60 Hz | payment terms: | L/C, D/P, T/T |
| Operating power: | <6VA | Function: | Volt (LL) (LN), ampere, frequency, phase sequence display |
| Display type: | numbers only | Operating temperature: | -20°C - +55°C, -20...+50°C |
| exhibit: | (3 digits) 6x displays + 9 LEDs | brand: | Sanhe-dsp (OEM ODM) |
| Working voltage (Un): | 140V - 270V AC | Connection Type: | plug-in terminal |
| aspect: | 96*96 | model: | SEM-06 |
| product name: | multimeter |
Product Description
General
The SEM-06 multimeter is designed to display three-phase current, voltage and frequency.
Purpose and working principle

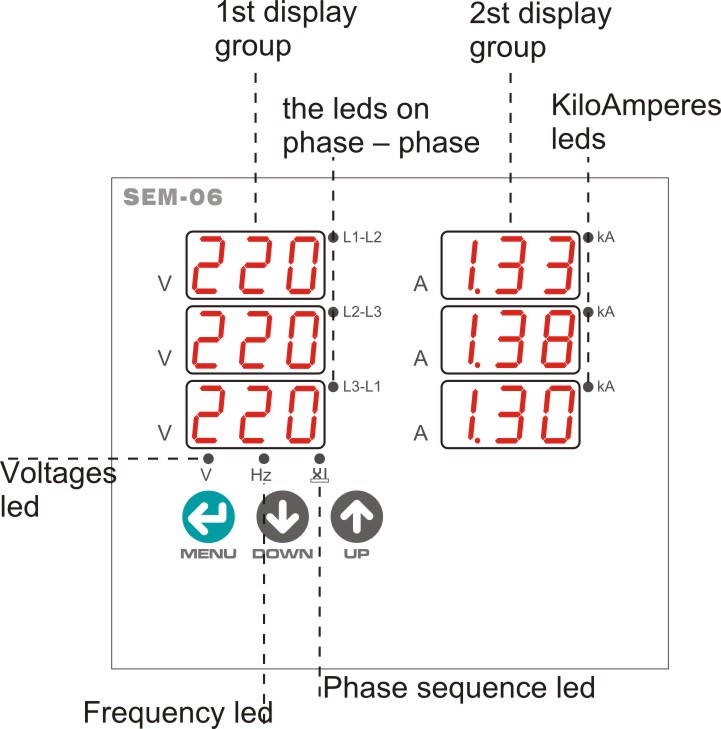

Connect according to the diagram. Connect the current transformers before connecting the charge to the system. The current transformer does not detect the previously connected voltage. Apply a maximum current input of 5 A. Once the device is powered, press the menu button. Press the Up-Down buttons to enter the current value you are using, to save it press the Menu button again. If the current transformer value is over 1000/5, make sure you can see the kA LED. Under normal working conditions, when the current value exceeds 1000A, the KA light belonging to this phase is on. You can observe the current values of the system through the second display group on the right side of the screen. You can see the phase-to-phase and phase-to-neutral frequencies in the first set of displays. The led lights up when the voltage value (V) is displayed. When the up button is pressed, the phase-phase range can be seen. You can see the LEDs on the phase-to-phase when the phase-to-phase value is displayed. When you press the up button, you can see the frequency value and the Hz indicator lights up. Phase sequence: If the phase sequence is reversed, you can see (x) led occurs in the first display group.
maintain
Turn off the device and disconnect it. Clean the trunk of the device with a cotton swab. Do not use any conductors or chemicals that may damage the device. Make sure the equipment is working properly after cleaning.warn
Please use the device according to the instruction manual. Do not use the device in a wet environment. Include a switch and circuit breaker in the assembly. Place switches and circuit breakers near the equipment where operators can easily reach them. Mark the switch and circuit breaker as the device release connection.Specification | ||
Working voltage (Un) | 140V - 270V AC | |
working frequency | 50/60 Hz | |
Working power | <6VA | |
Operating temperature | -20°C......+55°C | |
Voltage measurement range | 1V - 500V AC | |
Measuring range | 5/5A - 9995/5A (100mA-5A) | |
measurement accuracy | ±%1 | |
exhibit | (3 digits) 6x displays + 9 LEDs | |
Connection Type | plug-in terminal | |
Cable diameter | 1.5 square millimeters | |
weight | maximum. 325 grams. | |

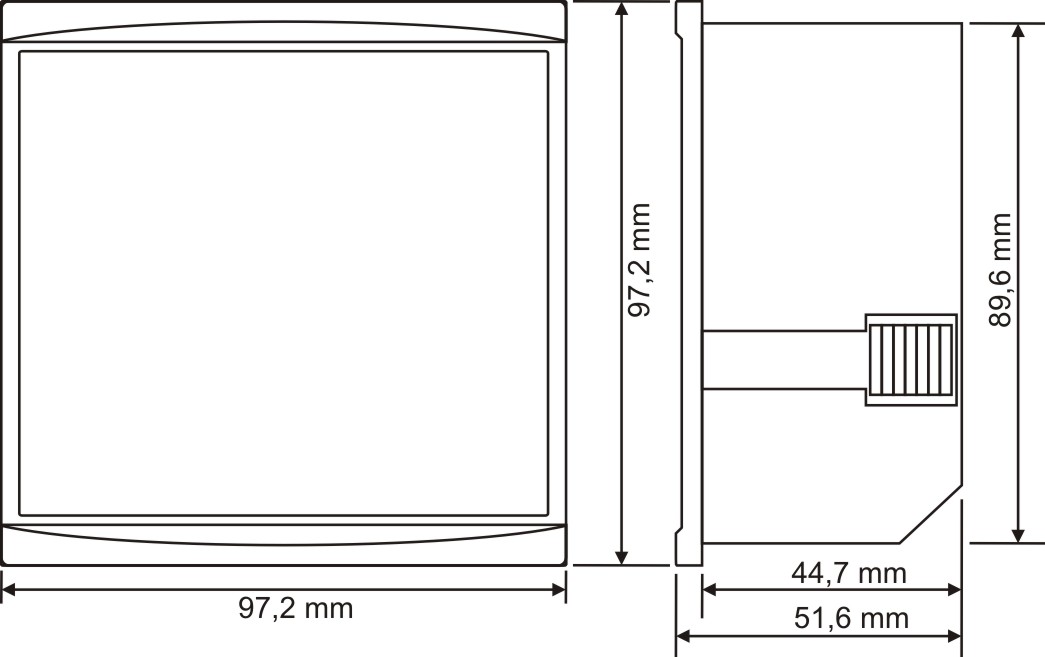

Panel hole size | 91x91mm | |
Install | front panel | |
working altitude | <2000 meters | |
aspect
put up

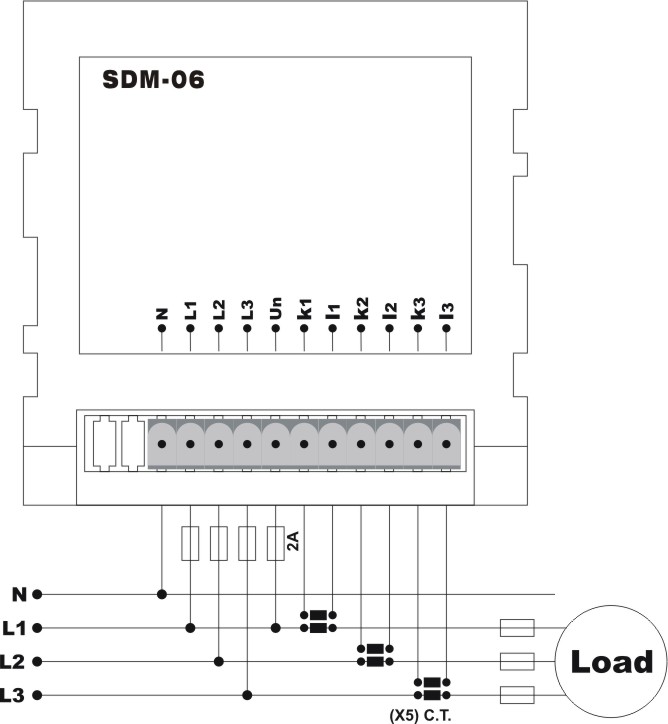

Connection Diagram
