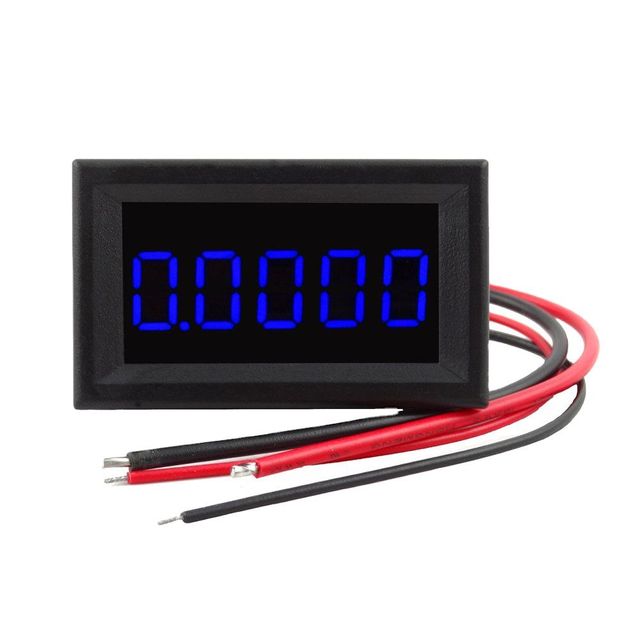

RD 0.36" DC 0-3.0000A Mini Four Wire 5 Digit DC Ampere Panel Meter DC Wholesale Voltmeter Ammeter
- $7.25 / 10 - 49 pieces
$7.24 / 50 - 99 pieces
$7.23 / >=100 pieces - 10 pieces
- Hangzhou Ruideng Technology Co., Ltd.
- Zhejiang, China
- Mr
| place of origin; place of origin: | Zhejiang, China | Accuracy class: | Do not |
| DIY Supplies: | electric | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| Measuring range: | DC0.0000-3.0000A | brand: | research and development |
| Size of the opening: | 45 x 26 mm (L*W) | Display type: | numbers only, numbers only |
| port: | Shanghai, Hangzhou | aspect: | 48 x 29 x 26 mm (L*W*H) |
| Update rate: | >3 seconds/time | Packaging Details: | Protect the product with foam and multiple layers of cardboard. |
| Display Mode: | Five 0.36 LED digital tubes | voltage: | 3.5-30V |
| model: | 5-digit four-wire ammeter blue | weight: | 20 grams |
| measurement accuracy: | ± (0.05%+ 2 digits) | Operating temperature: | -10℃~65℃ |
| Supply capacity: | 300 units per day | color: | blue |
| DC 0.0000-3.0000A | |

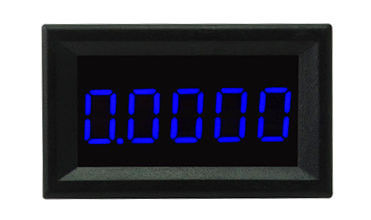

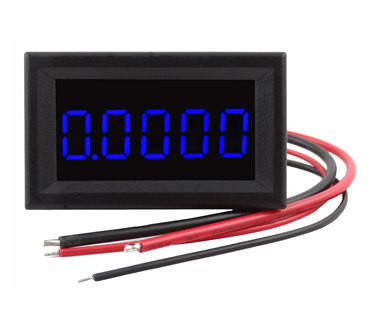

Product Details
0.36" 5 bits 4 lines
DC: 0.0000-3.0000A
Four wires (lead length): 14cm
Measurement accuracy: ±(0.05%+2 words) {indicates that the maximum error is below 1.7mA in the worst case, and the normal error is below 0.5mA}
| display color | display color | display color | display color |
| Red | green | blue | yellow |
notes:
1. The power supply terminal of the ammeter and the measurement ground are designed as a whole, that is, the power supply ground wire and the test ground wire are mutually connected, so only the test terminal of the ammeter string after the electrical appliance (both are the measurement cathode and the cathode power of the device under test) are connected. between)
2. It is recommended to use an isolated power supply for the head power supply alone.

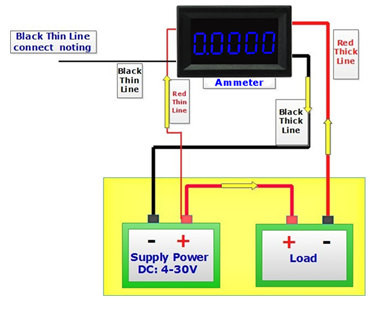

Wiring Instructions

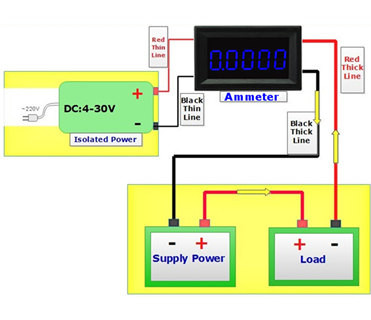

Ammeter with isolated power supply

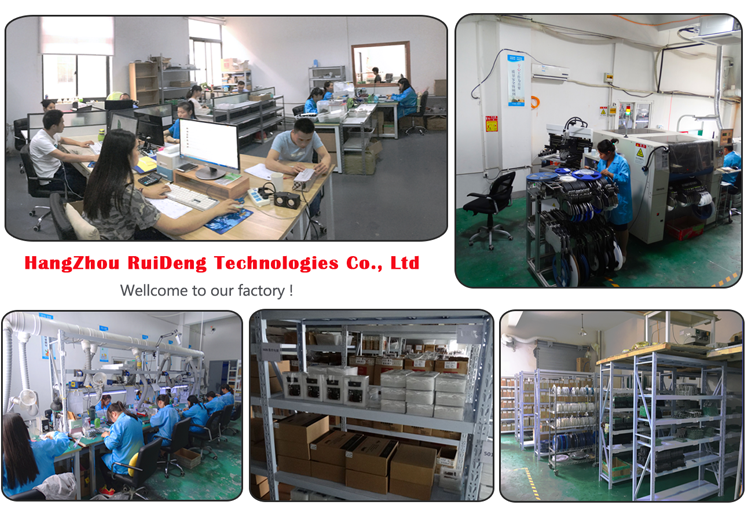

Hangzhou Ruideng Technology Co., Ltd. Is a professional manufacturer of various types of power supply, independent research and development, production and sales.
Our company has a strong professional R & D team. All our products are designed and produced by ourselves.
So you can trust that our service, quality and price will satisfy you. Our products are sold all over the world, such as America, Malaysia, Russia, Italy, Ukraine, Brazil, etc. We warmly welcome new and old customers from all walks of life to contact us to establish future business relationships!
Look forward to working with you!
Q1. What about delivery time?
A: It takes 3-5 days for samples, and 1-2 weeks for mass production if the order quantity is above.

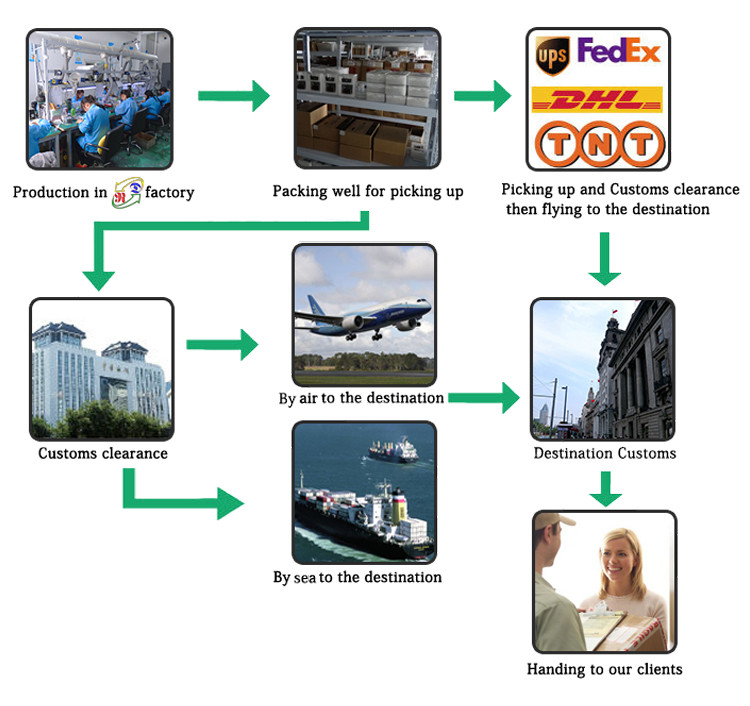

Q2. How do you ship your goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Air and sea shipping are also optional.
Q3: Do you provide guarantee for the product?
A: Yes, we provide 2-5 years warranty for our products.
Q4: How to deal with the failure?
A: First of all, our products are produced in strict quality control system, the defective rate will be less
less than 0.2%.
Secondly, during the warranty period, we will send new lights in small batch new orders. for
Defective batch, we will repair it and resend it to you, or we can discuss a solution
Including re-calling according to the actual situation.
