CNC laser quenching machine/robot laser quenching machine
- $9999.00 /set
- 1 set
- Sunrise Mechatronic Technology Co.,Ltd
- Jiangsu, China
- Ms Sherry Qiao
PRODUCT DETAIL
| payment terms: | wire transfer; | Marketing Type: | New Products 2021; |
| Showroom location: | Turkey, Vietnam, India; | Mechanical test report: | if; |
| Laser source brand: | Raycut/Max/IPG; | Applicable industries: | Building material stores, manufacturing plants, machinery repair shops, construction works, other, hand tools; |
| Main selling point: | automatic; | Core Components Warranty: | 1 year; |
| Core components: | PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump; | Health status: | new; |
| Warranty: | 1 year; | place of origin; place of origin: | Jiangsu, China; |
| Applicable materials: | Metal; | Weight (kg): | 30,000 kg; |
| Video external inspection: | if; | cooling method: | water cooling; |
| application: | laser heat treatment; | Laser source: | 10-2000W; |
| Laser Type: | fiber-optic laser; |

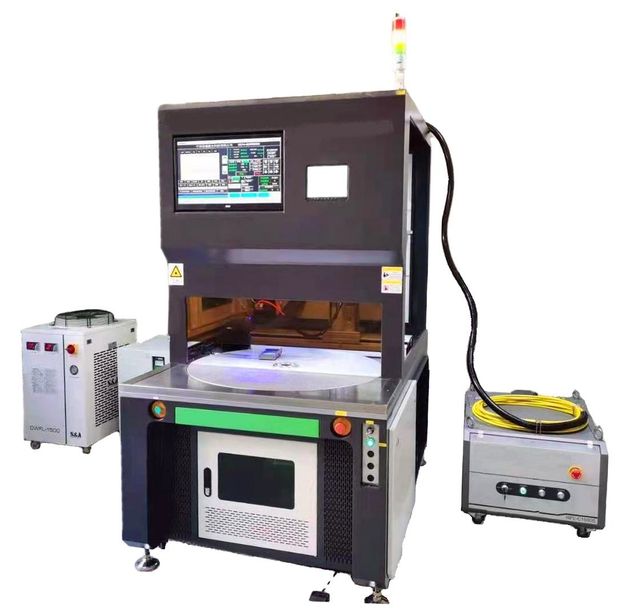

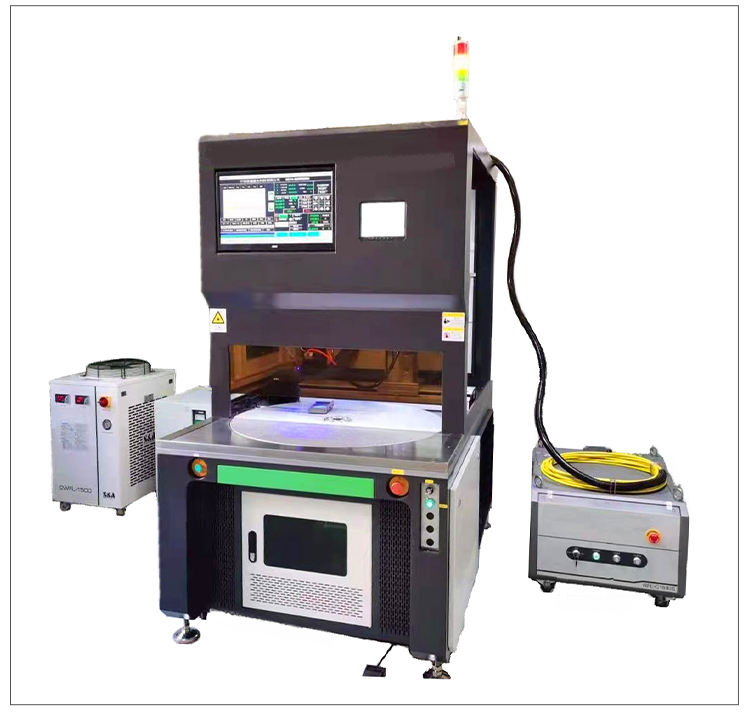

Product display
Machine Features:
1. Automatic 4-axis system4-axis automatic machine, which can realize automatic and high-precision laser spot positioning
2. Intelligent integrated control systemAll system functions can be realized, such as motion system, laser system, cooling system work monitoring, etc.
3. Process data storageProduction data can be saved, and quenching parameters can be recalled according to different workpieces
4. High precision turntableThere are turntables with clamps for quick loading and unloading of workpieces.
5.monitoring system
The machine is equipped with a laser quenching monitoring system, and the operator can easily check the quenching status.
6. Dust-free designThere is an air purification system to avoid laser hardening fumes.
7. Compact and beautiful design cover.4-axis automatic machine, which can realize automatic and high-precision laser spot positioning
thing | describe |
laser source | Laser power: 10~2000W continuously adjustable. |
fiber optic system | Core diameter 600um, length 15m |
Laser alignment head | Collimation focal length: 100mm, focusing focal length: 300mm |
Laser Focusing Module | Ensuring speckle effect and heat treatment consistency |
chiller | Dual temperature control provides cooling water for laser and external optical path |
Multi-station four-axis system | Professional laser numerical control system, equipped with industrial computer, realize XYZ movement, stroke X: 500mm, Y: 400mm, Z: 300mm (the specific stroke depends on the workpiece); Positioning accuracy: W±0.035mm Repeated positioning accuracy: Width ±0.01mm. A-axis and XYZ form a four-axis linkage |
Smoke purification system | Smoking and dust removal in the work area (to prevent pollution) |
Refrigeration dryer | 10HP, 1.5M3 filter and dry compressed air |
Fixture | custom made |

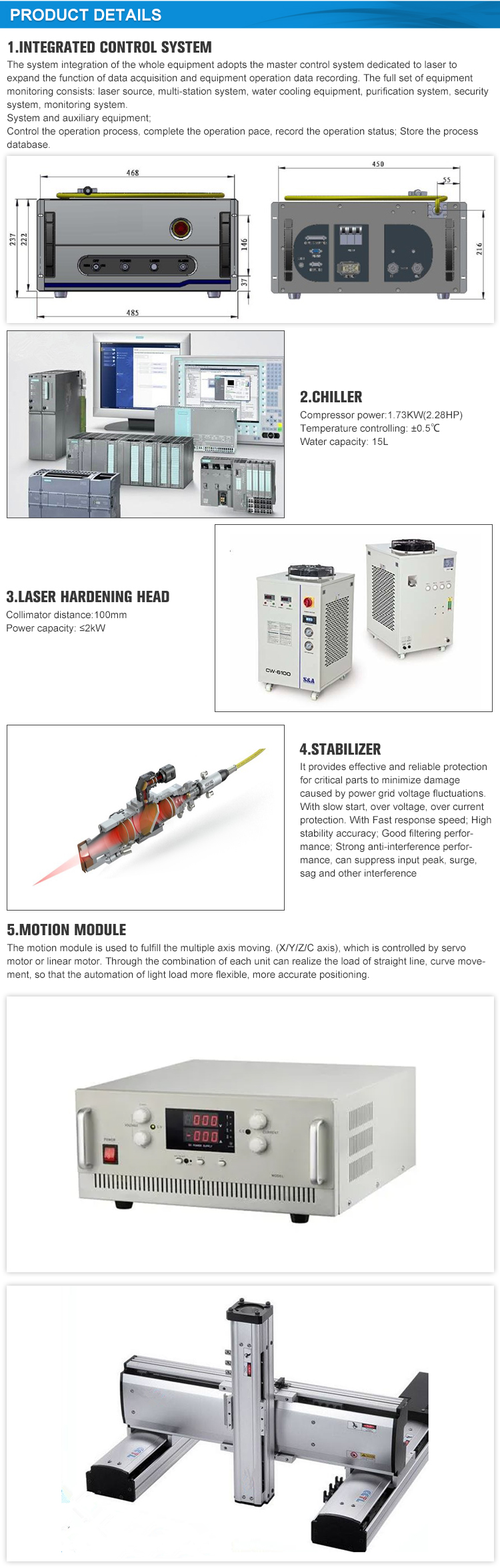

detailed picture

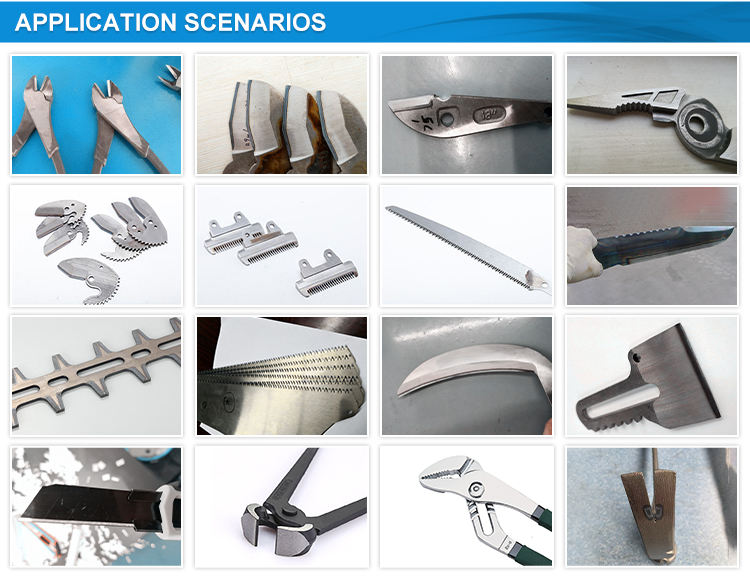

application
Combination pliers, long nose pliers, diagonal pliers, pliers, Bot knives, garden knives, saw blades, etc.
