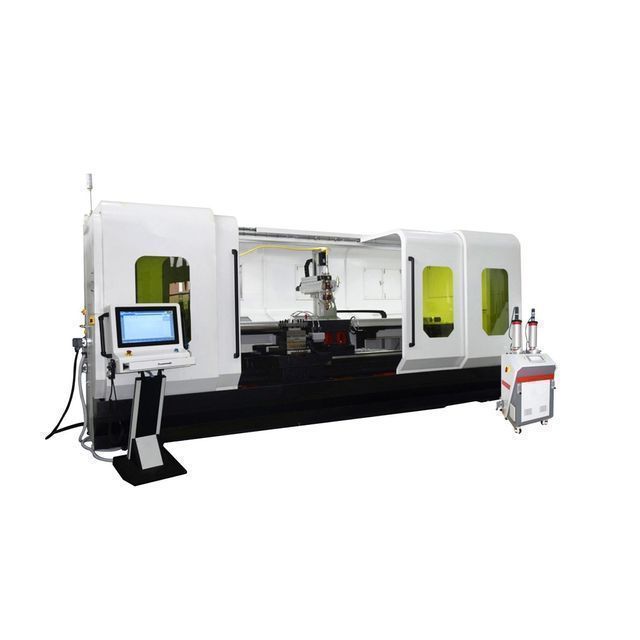

Professional Factory Manufacturing Fiber Laser CNC Laser Cladding Machine Robot Laser Cladding Machine

PRODUCT DETAIL
CNC or not:YesCore Components Warranty:1 year
Weight (kg):3000kgplace of origin; place of origin:Jiangsu, China
Mechanical test report:ifType of machine:CNC Laser
Laser source brand:Raycut/Max/IPGMain selling point:high accuracy
Health status:newApplicable materials:Metal
Marketing Type:Hot Products of 2021Showroom location:Turkey, Germany, Vietnam, India
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumppayment terms:wire transfer
Laser Type:fiber-optic laserWarranty:1 year
Video external inspection:ifApplicable industries:Building Materials Stores, Manufacturing Plants, Mechanical Repair Shops, Construction Engineering, Energy & Mining
Product display
content
parameter
laser
0.5-20kW, optical fiber, semiconductor, disc, etc.
robot
Weight 16-150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser processing head
0.8-50mm round, square spot, size can be customized, coaxial, on-axis powder feeder
Powder feeder
Airborne, gravity conveying, powder feeding accuracy ≤ soil 2%, powder feeding amount 10-150g/min, single group, double group
chiller
Single temperature, dual temperature, and cooling capacity are selected according to the laser
Optional accessories
Inner hole cladding head, temperature closed loop, online detection, distance detection, offline programming, molten pool monitoring, etc.
Input voltage
360-480V three-phase five-wire system@50 60Hz
The main components
Laser, cooling device, powder feeding mechanism, processing table, etc.
Laser selection
CO2 lasers, solid-state lasers, fiber lasers, semiconductor lasers
