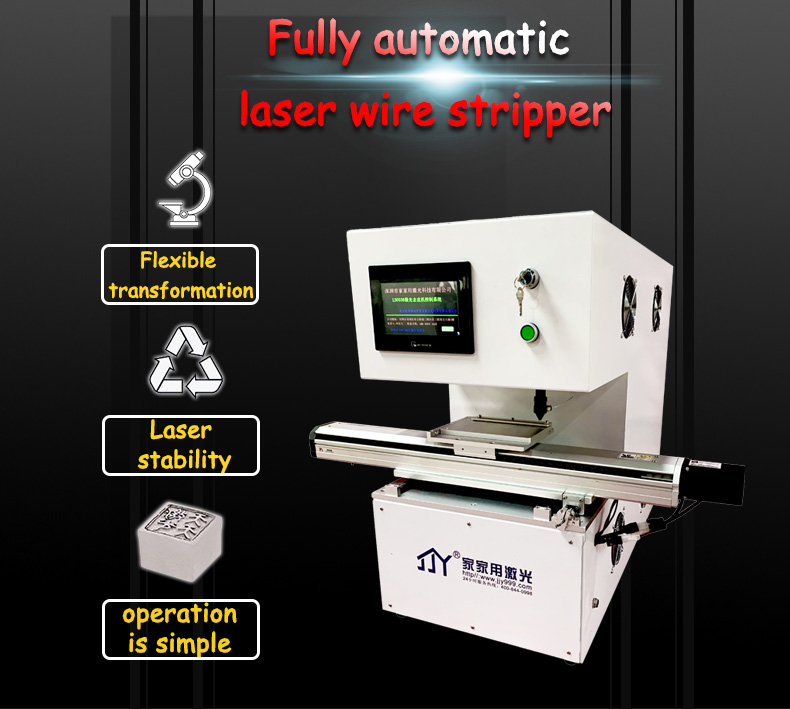

Wire Stripping Pliers Laser Wire Stripper Automatic Laser Wire Stripper

PRODUCT DETAIL
Packaging Details:Foam crash protection - wooden box fixed - wooden bagVideo shipment inspection:if
Engine power:<1200WStripping line speed:0-50m/min
Warranty:1 yearCutting speed:0-48m/min
Applicable materials:plastic, wood, paper, plastic, woodLaser type:carbon dioxide
Operating Voltage:AC220V±10% 50HZ(60HZ)Laser head brand:Jin Jiayuan
Core component warranty:3 yearsApplicable industries:Building material stores, manufacturing plants, machinery repair shops, construction projects
Weight (kg):60 kgLaser source:carbon dioxide
cooling method:Automatic constant temperature refrigeration/air coolingLaser source brand:Raycus
Control system brand:sepuchproduct name:Laser wire stripper
CNC or not:Yesbrand:Jiajiayong Laser
Mechanical test report:ifHealth status:new
Working humidity:5% 95%payment terms:D/P, T/T
Showroom location:not anyPackage preview:
Marketing Type:New Products 2021Repeatability:± 0.05 mm
Origin:Guangdong, ChinaCore components:motor, laser
Main selling points:Multifunctional/long life/high precision/high productivity
Product Description



Application industry

Laser wire stripping machine is a new application of laser in material processing.



The laser wire stripping machine is suitable for stripping small data lines and thin wires below 5mm, and can process flat wires, flat wires, coaxial wires, single wires, double-glued wires, multi-layer wires, etc.



Multipurpose stripping jackets, quilts and other non-metallic materials including vinyl polymers, fiberglass, polyester, mylar, fluoride, nylon, polyethylene, silicone, aluminum

um foil, polytetrafluoroethylene and other different hardness or high temperature insulation materials.

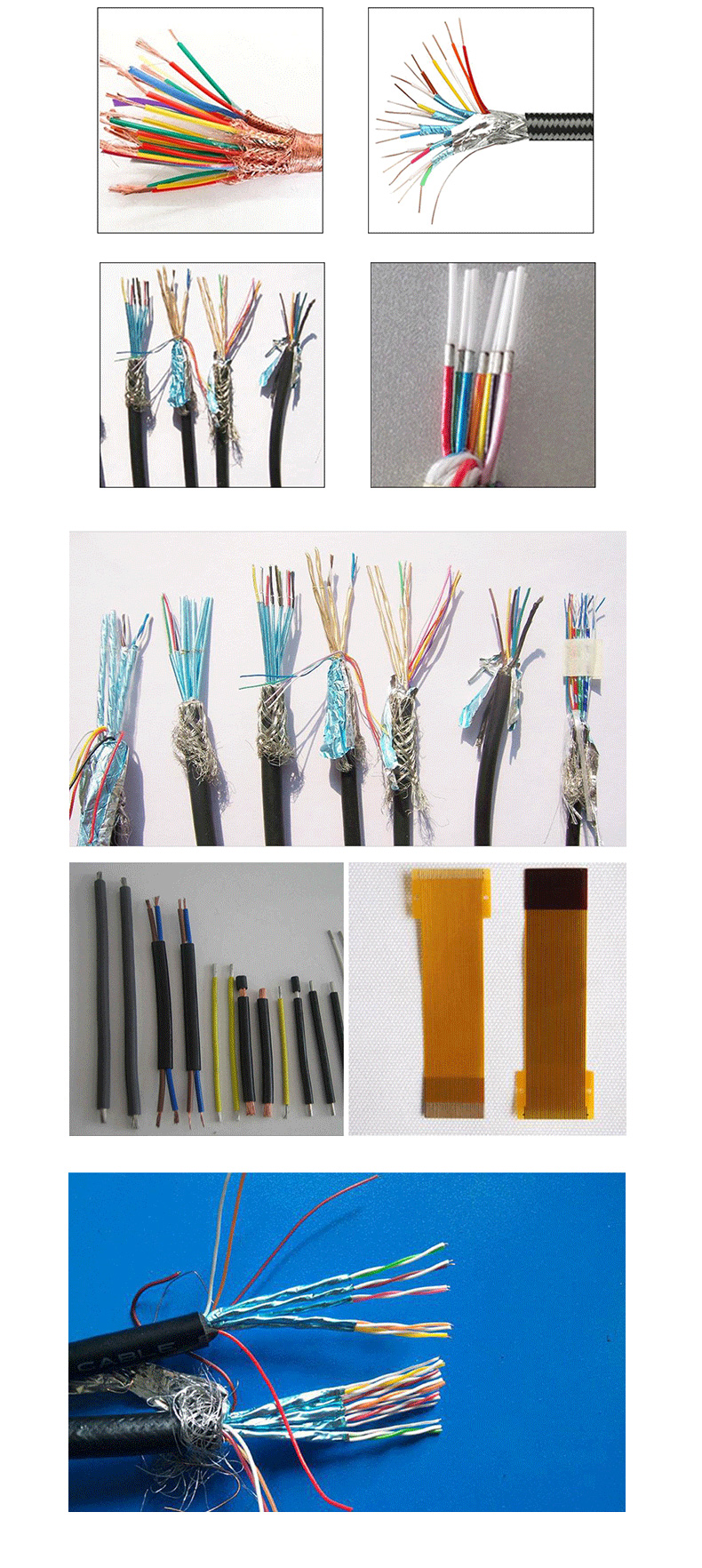

Part of the sample display

The picture is for reference only, and the effect of special materials is different. For specific materials, please consult customer service or call the company for complete models. Products produced by special equipment and multi-functional equipment can guarantee the effect.

Parameter advantage

 Device parameters:

laser power

80/100/120/130W/150W

machine type

DG-6040

working width

600X400MM

Dimensions

2180X800X1400MM

weight

170 kg

workbench

Honeycomb panel/grid panel/blade panel/flat panel

motor system

Servo motor control system/translation stage

controlling software

Offline, U disk, USB, color screen, Deguang laser multilingual professional software

supported format

CDR BMP PLT GPEP DXF DST file format

Engraving speed

0-50m/min

cutting speed

0-48m/min

cutting speed

±0.05MM

cooling method

Automatic constant temperature refrigeration/air cooling

Operating temperature

0° -45°

Working humidity

5% 95%

Operating Voltage

AC220V±10% 50HZ(60HZ)

engine power

<1200W



Traditional process and laser automation

Equipment

fervent pliers

Laser wire stripper

operator

1 person

1 person

process



The processing is in contact with the wire, the processing is stressed, and the inner core is easily broken. b. Product quality will be affected by factors such as worker skills and emotions.

No contact with the wire, no processing stress, no breaking of the inner core, laser processing of the insulating layer, no damage to the metal layer, no influence on product performance

Strip only the end of the cable harness

Segmentable stripping

Passing rate

The pass rate is about 85%

The pass rate is about 99%

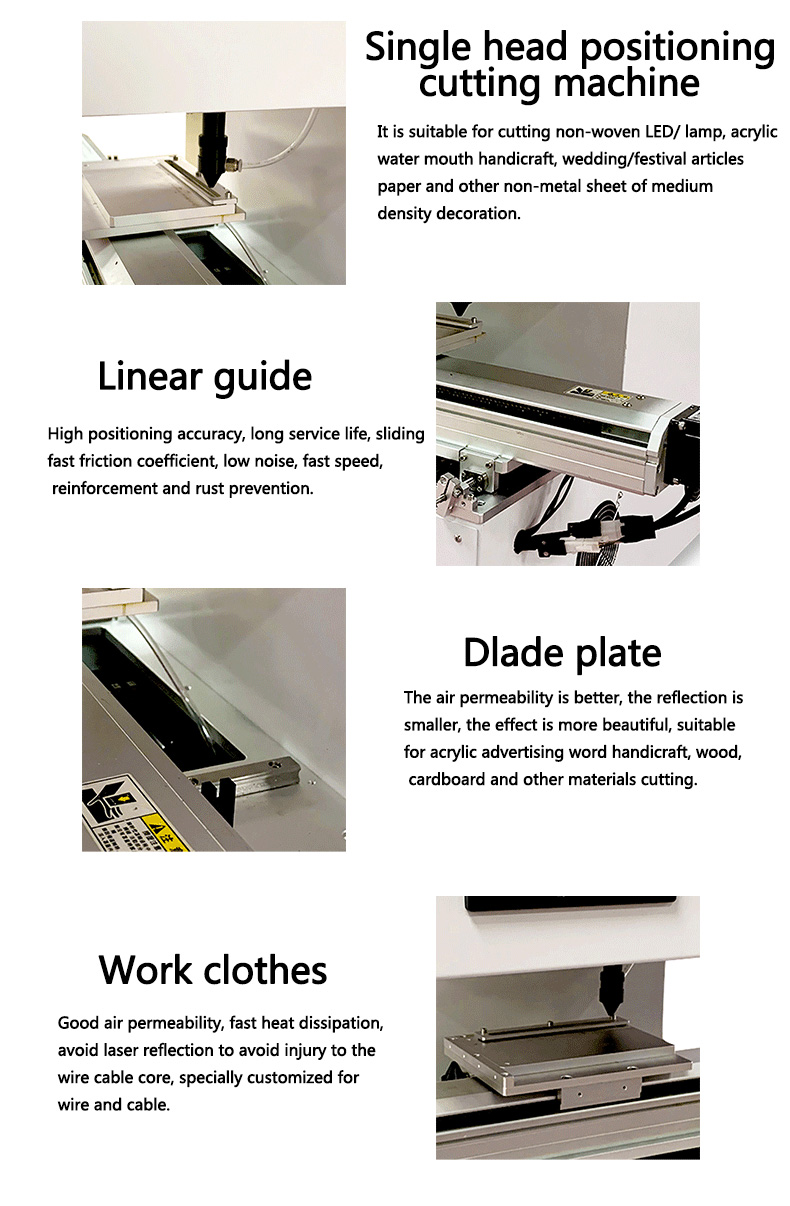

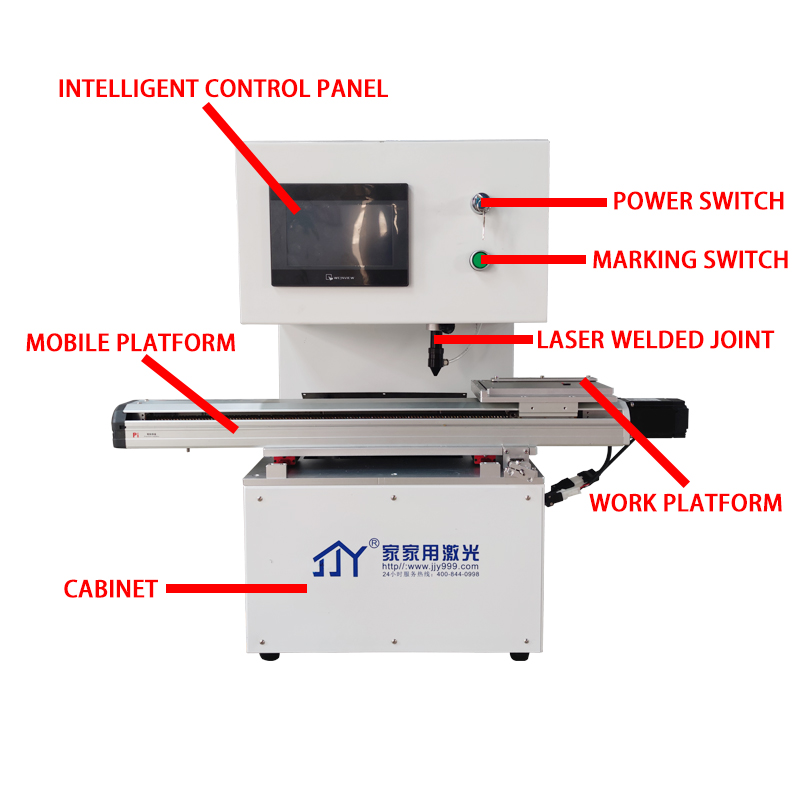

Equipment structure elements and characteristics:
Packaging and Shipping

We are three-layer, and the inner machine is wrapped with waterproof shrink film. The outer layer is a solid fumigation-free wooden box. Between these two layers, we will fill EPE foam, bubble bag, cardboard, etc. to avoid the machine from being damaged due to shaking.
