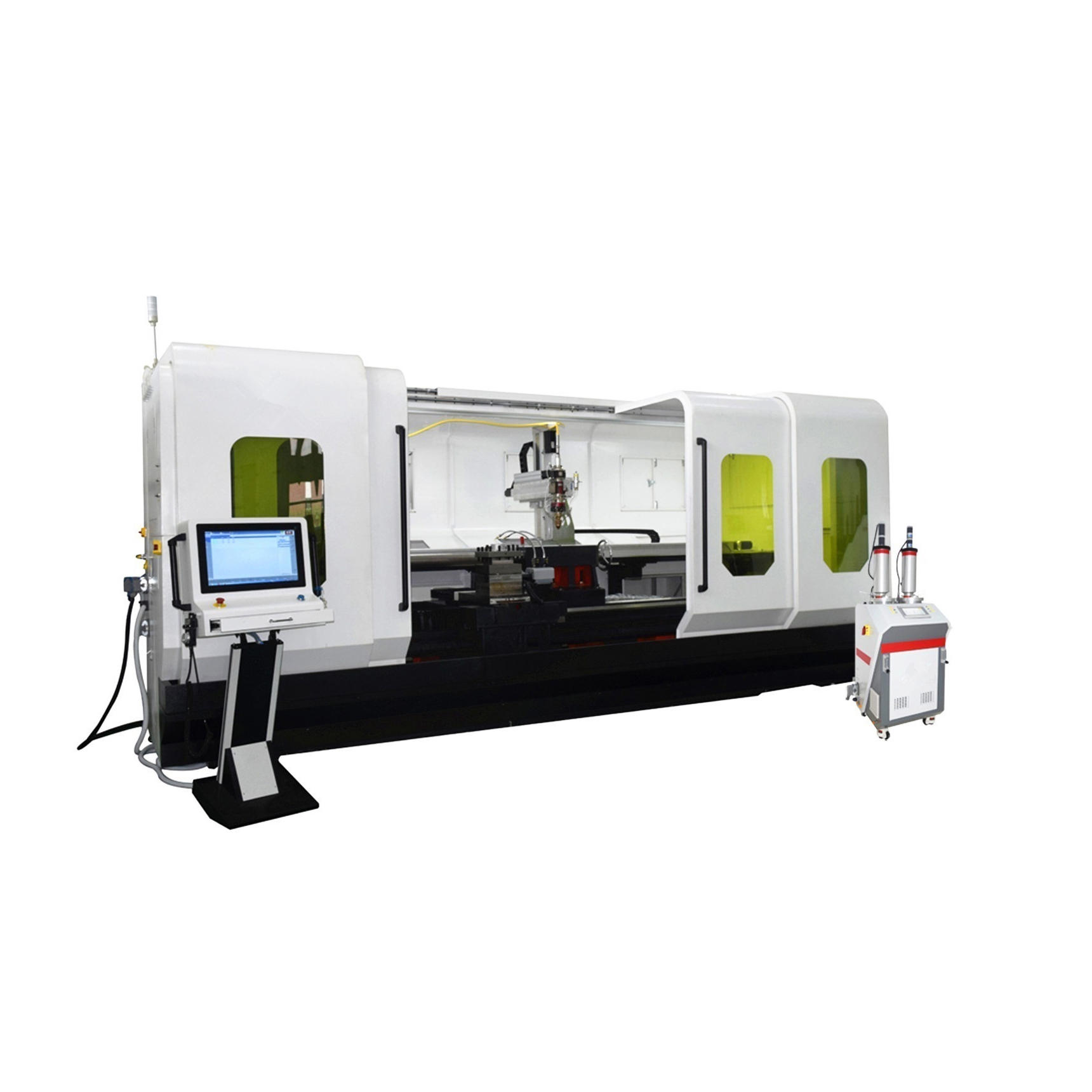

Laser heat treatment cladding machine metal mold bearing steel gear rail saw blade laser quenching machine

PRODUCT DETAIL
Showroom location:Türkiye, Germany, Vietnam, IndiaCore components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump
Laser type:fiber-optic laserName:Laser cladding machine
Laser source brand:Raycut/Maximum/IPGport:Hongkong
Marketing Type:Hot Products of 2021After-sales service provided:Overseas Service Machinery
brand:sunriseSupply capacity:30 sets per month
Mechanical test report:ifMain selling points:high accuracy
application:laser heat treatmentOrigin:Jiangsu, China
Core component warranty:1 yearVideo shipment inspection:if
CNC or not:YesApplicable industries:Building materials stores, manufacturing plants, machinery repair shops, construction, energy and mining
payment terms:wire transferApplied Materials:steel
Health status:newWeight (kg):3000 kg
Type of machine:CNC laserbrand:sunrise
product name:Laser hardening machine for metal surface hardnessWarranty:1 year, 1 year
After warranty service:1 yearApplicable materials:Metal
Laser source:Fiber Laser SourcePackaging Details:Plywood boxes
product display
content
parameter
laser
0.5-20kW, optical fiber, semiconductor, disc, etc.
robot
Weight 16-150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser processing head
0.8-50mm circular, square spot, size can be customized, coaxial, parallel axis powder feeder
powder feeder
Airborne gravity conveying powder feeding accuracy ≤ soil 2%, powder feeding volume 10-150g/min, single machine, double machine
Cooling water machine
Single temperature, double temperature, and cooling capacity are selected according to the laser
optional accessories
Inner hole cladding head, temperature closed loop, online detection, distance detection, offline programming, molten pool monitoring, etc.
Input voltage
360-480V three-phase five-wire system @50 60Hz
The main components
Laser, cooling device, powder feeding mechanism, processing table, etc.
laser selection
CO2 lasers, solid-state lasers, fiber lasers, semiconductor lasers
