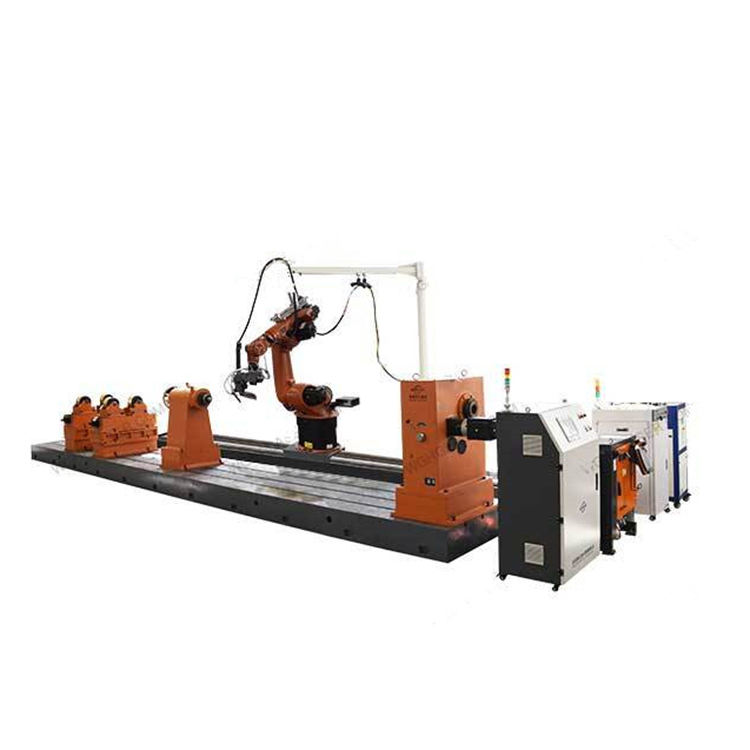

Multi-axis linkage flexible CNC high-energy laser cladding machine

PRODUCT DETAIL
Core component warranty:1 yearpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Mechanical test report:ifVideo outbound inspection:if
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpWarranty:1 year
Laser type:fiber-optic laserMain selling points:Multi-axis linkage flexibility
Voltage:360-480VWeight (kg):6500 kg
cooling method:water coolingLaser source brand:Raycus
Input voltage:360-480V three-phase five-wire system @50-60HzMarketing Type:New Products for 2022
Applicable industries:Building material stores, manufacturing plants, machinery repair shops, construction projectsapplication:laser heat treatment
Showroom location:IndiaOrigin:Jiangsu, China
laser:0.5-20kW, optical fiber, semiconductor, disc, etc.Applicable material:Metal
Health status:new
product display
Advanced laser, six-axis robot and control system, and multi-axis linkage flexible processing system meet the requirements of advanced manufacturing processes such as laser quenching, laser alloying, laser cladding/remanufacturing (ultra-high-speed laser cladding, conventional laser cladding, wide-spot laser cladding, inner hole laser cladding), laser additive manufacturing (laser 3D printing) and other advanced manufacturing technology requirements. General equipment for laser surface strengthening and remanufacturing of parts such as metallurgy, automobile molds, mining machinery, coal machinery, petrochemical machinery, and generator sets.
application:
Metallurgy, mould, machinery manufacturing, petrochemical, light industry, energy, transportation, automobile, hardware tools, military industry and other industries.
Machine Features:
1. Using high-energy laser 2. Stable and reliable 3. Flexible multi-axis linkage 4. Good function openness
Advanced laser, six-axis robot and control system, and multi-axis linkage flexible processing system meet the requirements of advanced manufacturing processes such as laser quenching, laser alloying, laser cladding/remanufacturing (ultra-high-speed laser cladding, conventional laser cladding, wide-spot laser cladding, inner hole laser cladding), laser additive manufacturing (laser 3D printing) and other advanced manufacturing technology requirements. General equipment for laser surface strengthening and remanufacturing of parts such as metallurgy, automobile molds, mining machinery, coal machinery, petrochemical machinery, and generator sets.
Product parameters
content
parameter
laser
0.5-20kW, optical fiber, semiconductor, disc, etc.
robot
Clamping weight 16-150kg, wingspan 1600-3700mm, KUKA, ABB, FANUC, YASKAWA, etc.
Laser processing head
0.8-50mm circular, square spot, size can be customized, coaxial, coaxial powder feeder
powder feeder
Airborne, gravity conveying, powder feeding accuracy ≤ ± 2%, powder feeding volume 10-150 g/min, single machine, double machine
Cooling water machine
Single temperature, double temperature, cooling capacity is selected according to the laser
optional accessories
Inner hole cladding head, temperature closed loop, online detection, distance detection, offline programming, molten pool
Monitoring, etc.
Input voltage
360-480V three-phase five-wire system @50-60Hz
