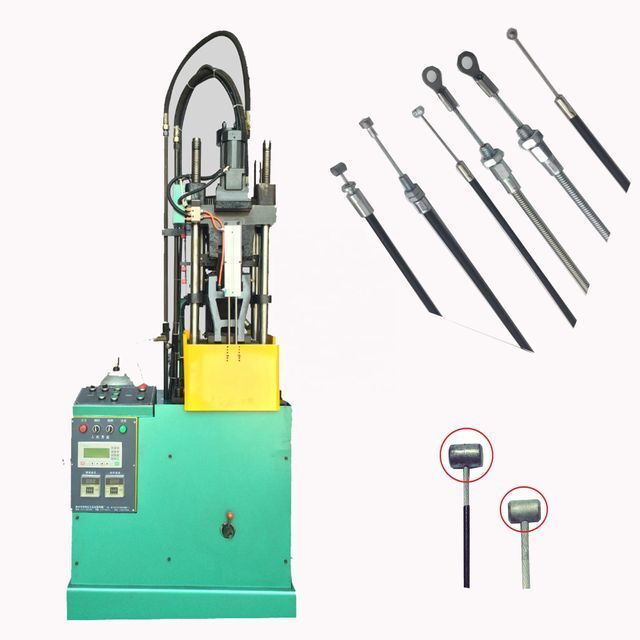

HDL1200 control cable ends making machine die casting machine
- $12000.00 /set
- 1 set
- JIAXING DAJIAN EQUIPMENT FACTORY
- Zhejiang, China
- Ms fiona wu
| usage 2: | control cable ends; | Ejection Stroke(mm): | 72 mm; |
| Injection Stroke(mm): | 100mm; | melting method: | electric heating pipe; |
| Injection Force: | 14KN; | Place of Origin: | Zhejiang, China; |
| Showroom Location: | None; | Machine Type: | Hot Chamber Die Casting Machine; |
| Supply Ability: | 50 Sets per Month; | Marketing Type: | Ordinary Product; |
| Certification: | CE; | Power(W): | 11.75kw; |
| Local Service Location: | None; | Min.Thickness of Die Block (mm): | 110 mm; |
| auto mode: | automatic; | usage 1: | control cable ends; |
| Port: | Ningbo & Shanghai; | Voltage: | as customer required; |
| Packaging Detail: | iron case or as required; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
| Dimension(L*W*H): | 120*120*210cm; | power supply: | 50/60 Hz 3 phases; |
| Product name: | DIE CASTING MACHINE; | Injection Force(kN): | 14kN; |
| Core Components: | PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump; | Weight (KG): | 1300; |
| Video outgoing-inspection: | Provided; | Die-locking Force (kN): | 120kN; |
| Key Selling Points: | High Productivity; | Applicable Industries: | Energy & Mining,Home Use,Printing Shops,Food & Beverage Shops,Hotels,Food & Beverage Factory,Retail,Farms,Construction works ,Other,Garment Shops,Restaurant,Building Material Shops,Food Shop,Advertising Company,Machinery Repair Shops,Manufacturing Plant; |
| Max.Thickness of Die Block (mm): | 190 mm; | Inner Space Between the Bars (Vertical)(mm): | 190mm; |
| After Warranty Service: | Video technical support,Online support,Spare parts; | Inner Space Between the Bars (Horizontal)(mm): | 220mm; |
| Warranty of core components: | 1 Year; | Package Preview: | ; |
| After-sales Service Provided: | Free spare parts,Video technical support,Online support; | Warranty: | 1 Year; |
| Ejection Force(kN): | 14 kN; | Machinery Test Report: | Provided; |
| Condition: | New; | control type: | PLC; |
Product Application
This hot chamber die casting machine has improved on the basis of other similar type machines, we adopts worldwide famous brands of electrical appliance and hydraulic component, high reliability, high efficiency of production, high automation. The zinc alloy, lead alloy and tin alloy which is manufactured by the machine has the best surface quality, and can be polishing, electroplating, and spray lacquer, and it is widely used in manufacturing toy, lockset, fishing gear, hardware decorating parts, electrical and electronic casting, automobile part, watchcase, clothing metal accessory and so on.
Machine Technical Parameters | ||||||
Locking Force | 120 KN | Motor Power | 3.75 KW | |||
Draw Bar Inner Space | 190×220mm | Bladder accumulator Capacity | 6.3 L | |||
Moving Clamping Plate | 100mm | Vane Pump Working Pressure | 8.0Mpa | |||
Profiling Thickness | 110 – 190mm | Electric Heating Tube Power | 8.0 KW | |||
Injection Pressure | 14KN | Heater Hand Power | 1KW | |||
Injection Stroke | 55 mm | Fuel Tank Capacity | 120L | |||
Dosage of Fluid Metal Per shot（Zn） | 130g | Machine Weight | 1300Kg | |||
Crucible Effective Capacity（Zn） | 110Kg | Machine Dimensions | 1200*1200*2100mm | |||
Vane Pump | 30L/min | |||||
Main Features
1.Auto-mould height adjustment: ensure fast adjusting, stable clamping and high durability;
2.Adopt integrated injection cylinder, which has high efficiency, stability and safety;
3.Mold closing protective system can protect operator’s security, and reduce mold damage probability.
4.Central automatic lubrication system: timing quantitative and have safety testing function, ensure the normal operation of lubrication system;
5.Control panel with easy operation and safe locking protection design.
6. Reliable and durable automatic sprayer assures fast and stable production.
7. The improved furnace adopts advanced design and material, more energy saving and durable;
8. Mold closing/opening adopts electronic fix detecting system, and its precision is higher;
9.The alarm information can be found conveniently and timely;
10. Injection operation, opening and locking mould design etc. can be set on the screen rapidly and accurately;
11. PLC control system with text interface configuration is convenient and flexible;
12.High-strength steel alloy tie bar with chromium plated for high wear resistance and long service life;
13.Thickened platen was made of excellent ductile cast iron with high rigidity, even stress and little distortion, which ensures the stability of die casting machine;
14.Diagonal five point toggle was made of ductile cast iron with high rigidity, high durability, and more stable mold opening and closing;
15.Hot set parts of injection system adopt high quality hot set steel.
Machine Features

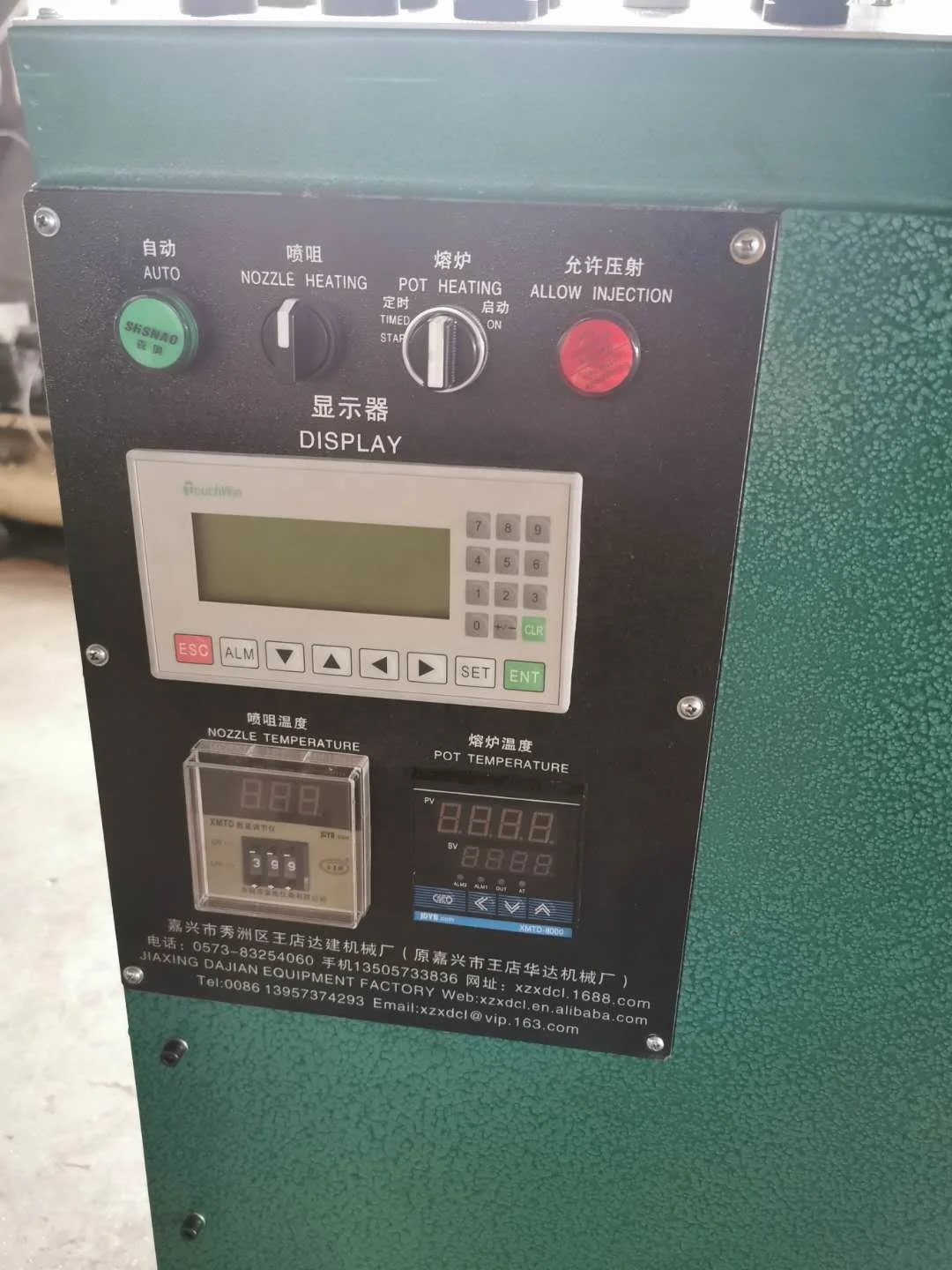

Name: Computer operation panel
Brand: HUADA
Original: China
Operation Panel with computer control system. All with English display, easy to operate.
Main Features
Name: AUTOMATIC MOULD ADJUSTMENT SYSTEM
Brand: HUADA
Original:China
automatic mould adjustment system ensure mould fast adjusting ,stable clamping and high durability.
Machine Features

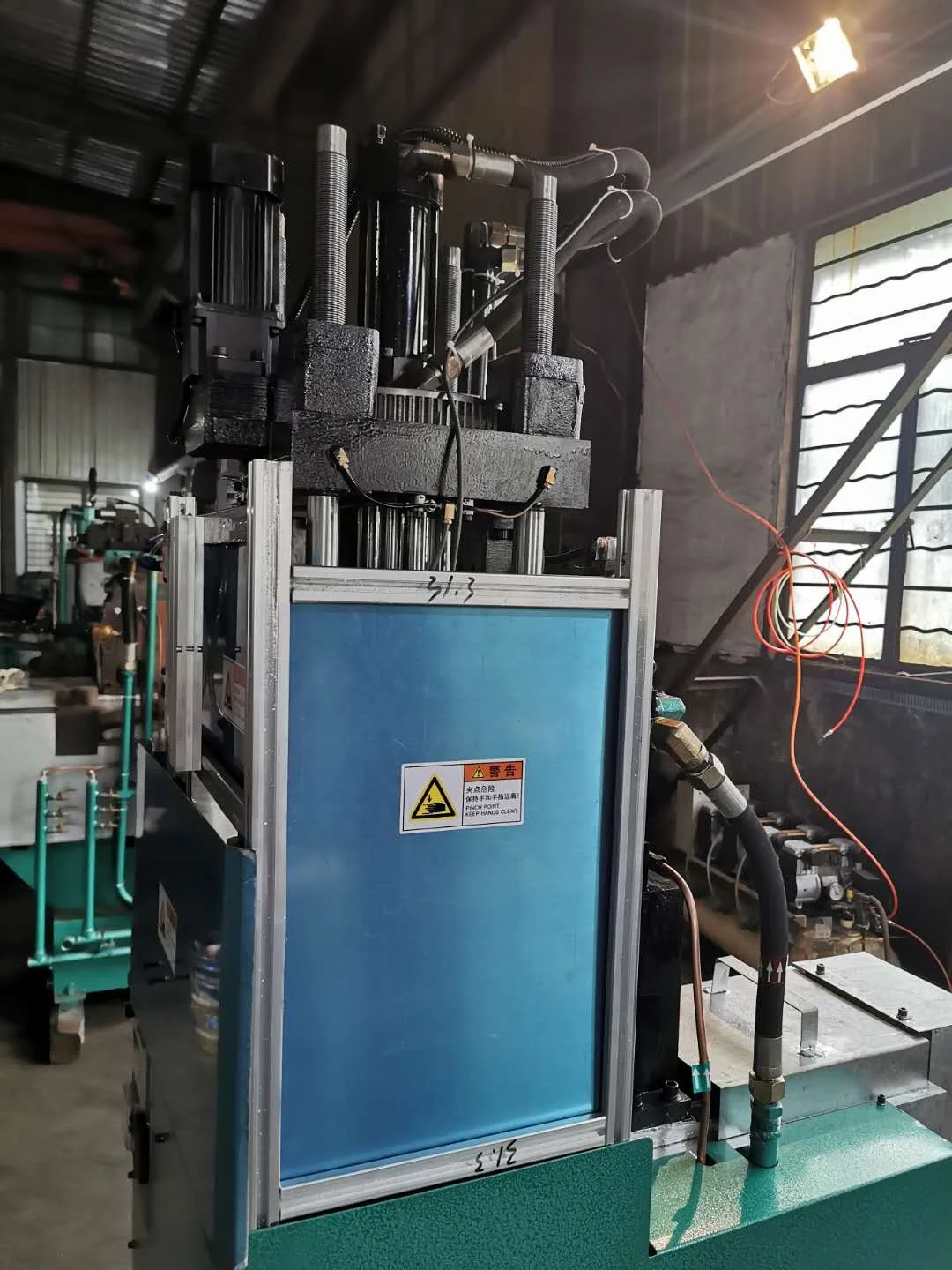

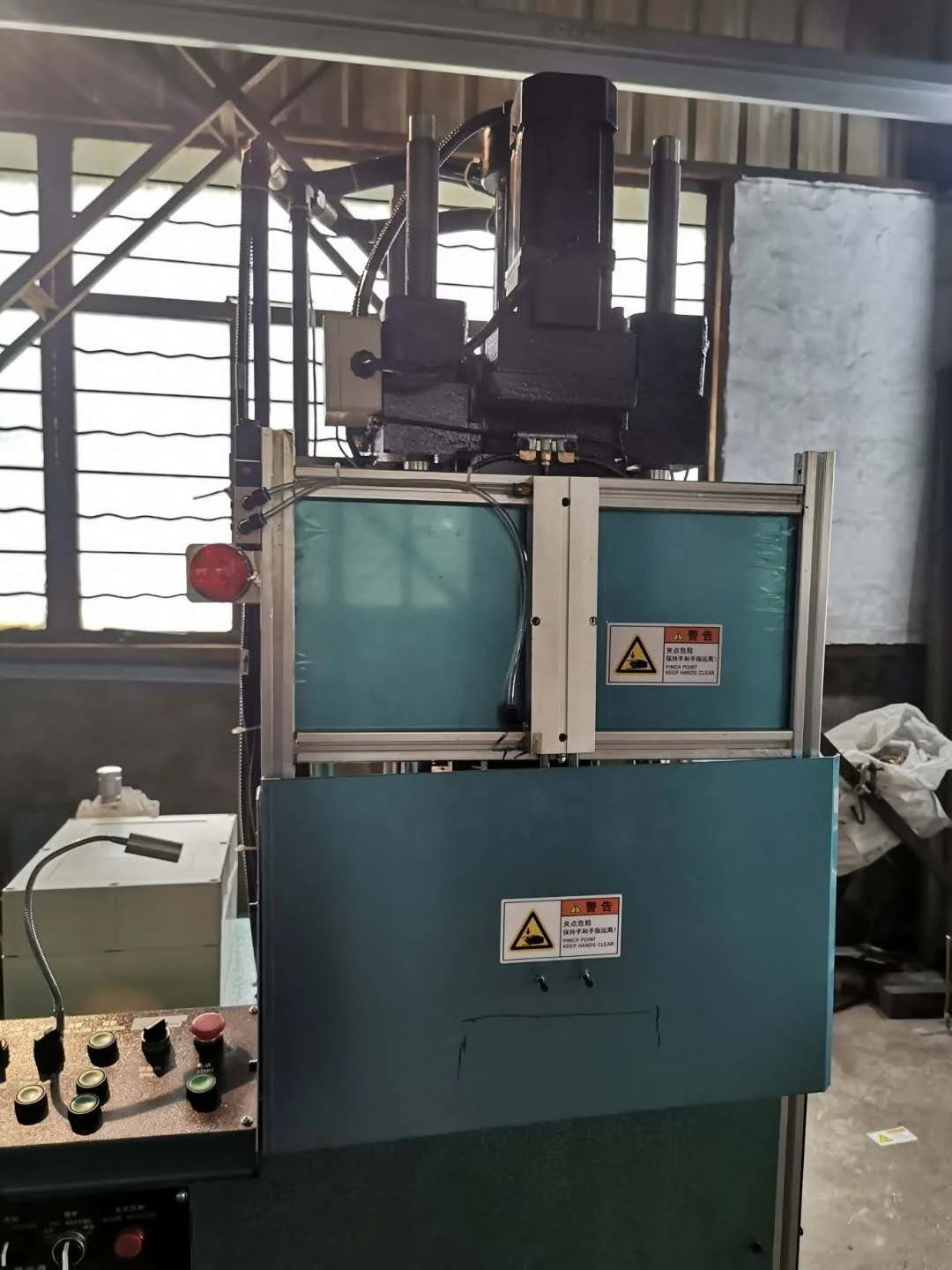

Name: safety door
Brand: HUADA
Original: China
ensure operators safety
Main Features
Name: Automatic lubrication system
Original: China
Automatic lubrication system
Pre-Sales Service
* Inquiry and consulting support.
* Timely Reply, we guarantee to reply within 24 hours.
* View our Factory.
After-Sales Service
* Free Training how to instal the machine, training how to use the machine in our place.
* Provide a full package of English machine operation and maintenance instructions, easy to use.
* Provided with English remarks Video: include instructions for use and solutions of common problems.
* Technical support: As in the process of using machine ,if u have any problems can contact us by e-mail, we ensure the advisory services reply will be given within 24 hours.
Packaging | ||
Size | 2.5M (L) * 1.0M (W) * 1.9M (D) Meter | |
Weight | 1.5 T | |
Packaging Details | The Outside packing is Iron case with steel frame fixed. The inner packing is stretch film. | |

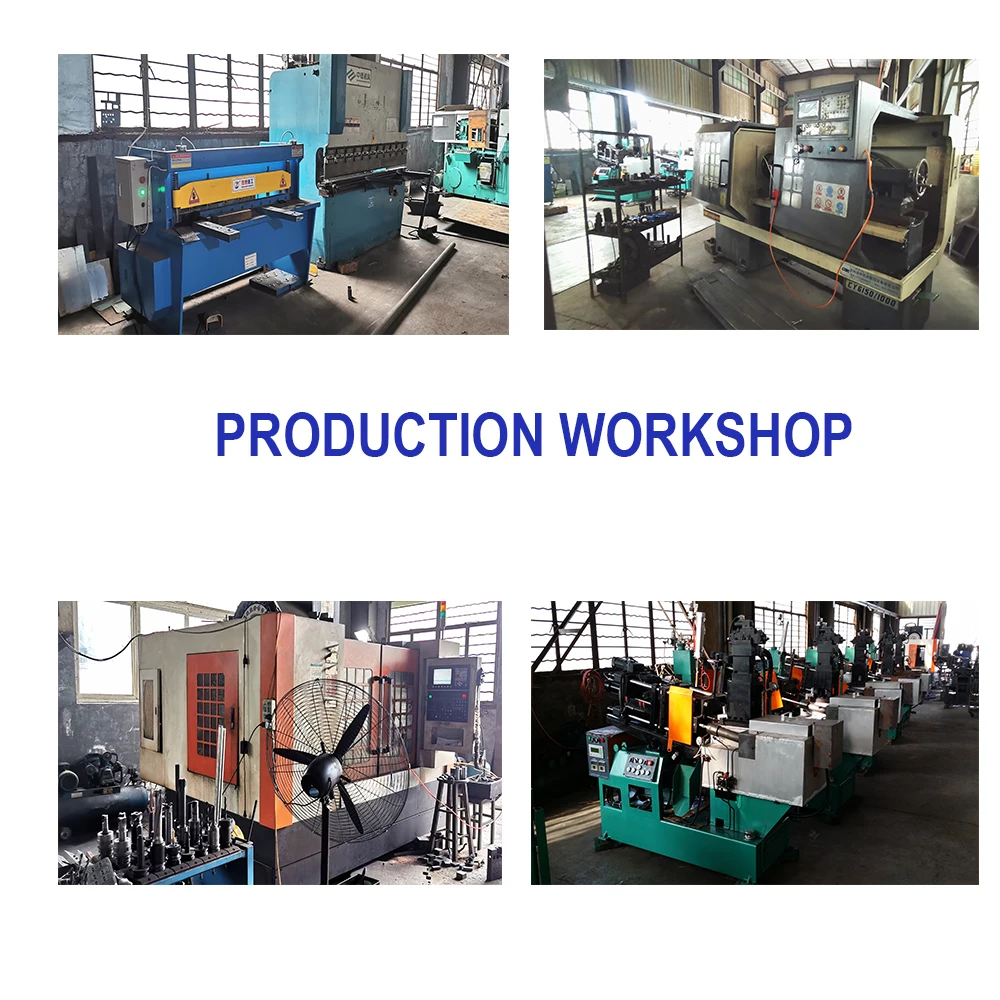

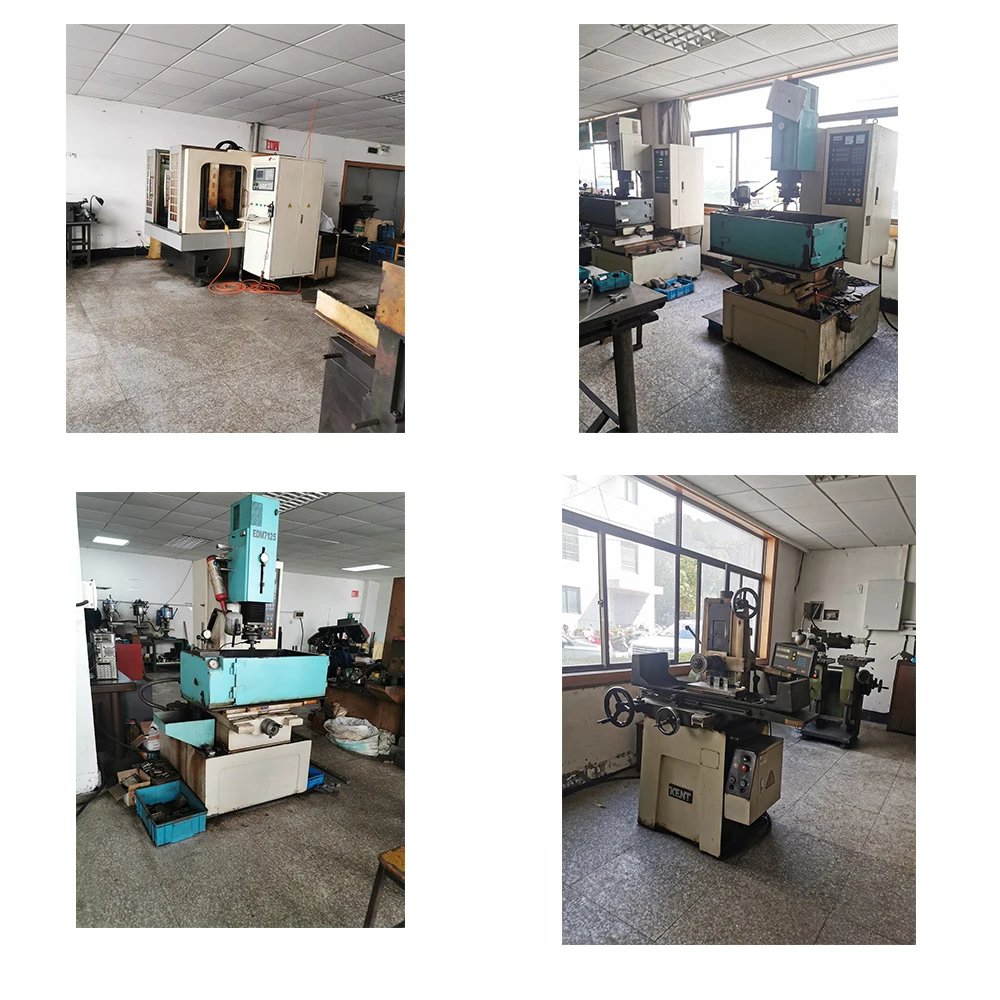

Our factory Jiaxing Xiuzhou District Wangdian Dajian equipment factory ( the former Jiaxing Wangdian Huada equipment factory) is a professional die-casting machine manufacturing enterprises, engage in die-casting machine’s technology development, production and marketing. We have more than twenty years operating history in die-casting machine manufacturing .
" Intention of manufacturing each product, intentions treat every customer " is factory’s business philosophy, which has been adhering so far. We have established long-term cooperation with more than one hundred companies, customers all over the country and some overseas regions. Our high-quality products and intentions service have won numerous customers’ trust and praise.
