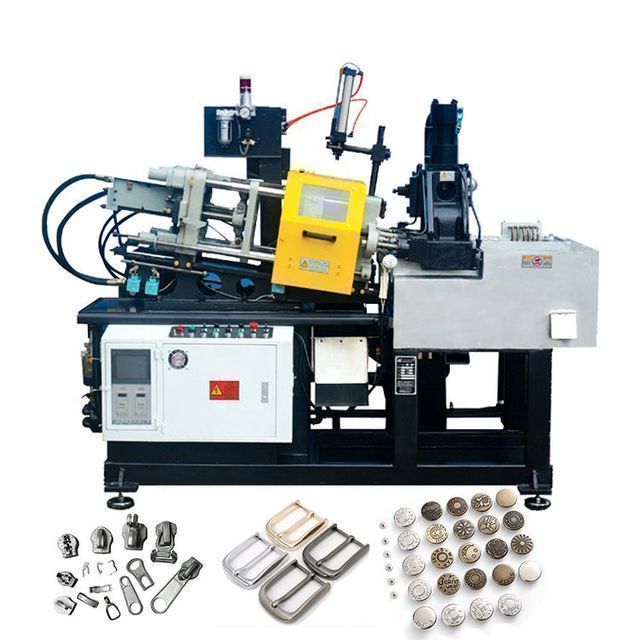

HTD Fully Automatic High Speed 18T Hot Chamber Zipper Slider Die Casting Machine Slider/Button
- $8750.00 / 1 - 9 sets
$8500.00 / 10 - 49 sets
$7916.00 / >=50 sets - 1 set
- Guangzhou HTD International Trading Co., Ltd.
- Guangdong, China
- Ms Rachel Leung
PRODUCT DETAIL
| Clamping force (kN): | 180kN | place of origin; place of origin: | Guangdong, China |
| port: | Guangzhou, Shenzhen, Hangzhou | Function: | Die-cast aluminum, zinc |
| Min. Thickness of Die Block (mm): | 120 mm | brand: | HTD |
| payment terms: | letter of credit, wire transfer | application: | Metal Castings for Sliders, Buttons and Hardware |
| Power (kW): | 5.5 | Packaging Details: | Packaging and transportation: 1. Standard packaging: the machine is wrapped in plastic film and packed in wooden boxes. 2, fumigated wooden box packaging. |
| Auto grade: | Fully automatic | Weight (kg): | 1500 |
| Advantage: | Energy efficient | Name: | Die Casting Machine |
| technology: | Die casting technology | Internal space between bars (vertical) (mm): | 220mm |
| Voltage: | 380V | Marketing Type: | Popular products |
| Ejection force (kN): | 19kN | Injection stroke (mm): | 70mm |
| Dimensions (L*W*H): | 2491x 1038x 1795mm | Applicable industries: | Mechanical repair shop, manufacturing plant, other |
| Packaging Preview: | Final product: | Brass aluminum zinc alloy products | |
| Ejector stroke (mm): | 25 mm | Health status: | new |
| Warranty: | 1 year | year: | 2021 |
| Maximum thickness of die base (mm): | 200 mm | Type of machine: | Hot Chamber Die Casting Machine |
| Showroom location: | not any | Supply capacity: | 1000 sets per year |
| Core Components Warranty: | 1 year | feature: | Precision casting |
| Video external inspection: | if | Shooting force (kN): | 19kN |
| Key words: | Zipper Slider Die Casting Machine | Main selling point: | high productivity |
| Internal space between bars (horizontal) (mm): | 205mm | conference hall: | Hot Chamber Die Casting Machine |
| Mechanical test report: | if | Core components: | PLC, motor |

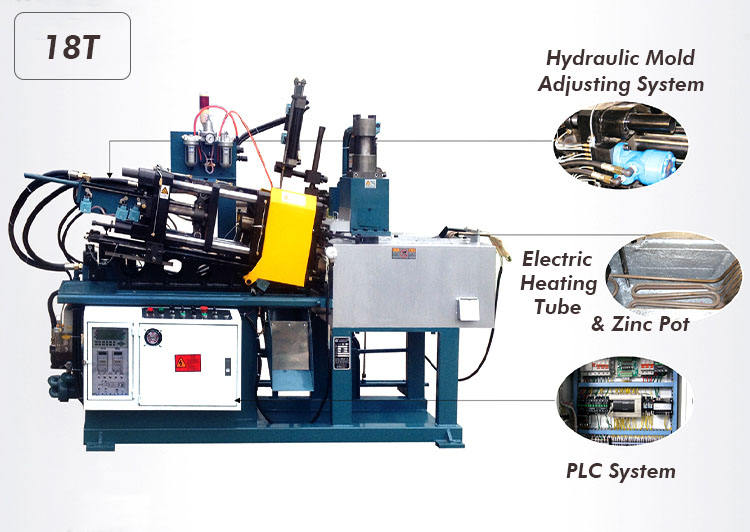

Product Specifications
Model Name: 18T automatic die casting machine
- High-speed automatic die casting
- Automatic mold adjustment
- Electric heating or oil heating
- With PLC control system
Model application:
- Suitable for complex shaped zipper pullers, buttons and various hardware accessories and accessories
Specification | |
Model | 18T |
clamping force | 180 kN |
Tie rod diameter | 40 mm |
Internal space between tie rods | 220*205mm |
Die thickness range | 120~200mm |
Material diameter | 32~38mm |
ejection force | 19 kN |
effective injection | 150~250mm |
hydraulic ejector | 19 kN |
Hydraulic ejection stroke | 25 mm |
Sweeping location | 200 mm |
Oil pump flux | 31 L/min |
Nozzle electric heating power | 1.2kW |
Melt electric heating power | 9kW |
melt fuel consumption | 1.5kg/hour |
Motor Power | 5.5kW |
Working oil pressure | 7~10MPa |
machine weight | 1.5 tons |
Machine size | 2491x 1038x 1795mm |
