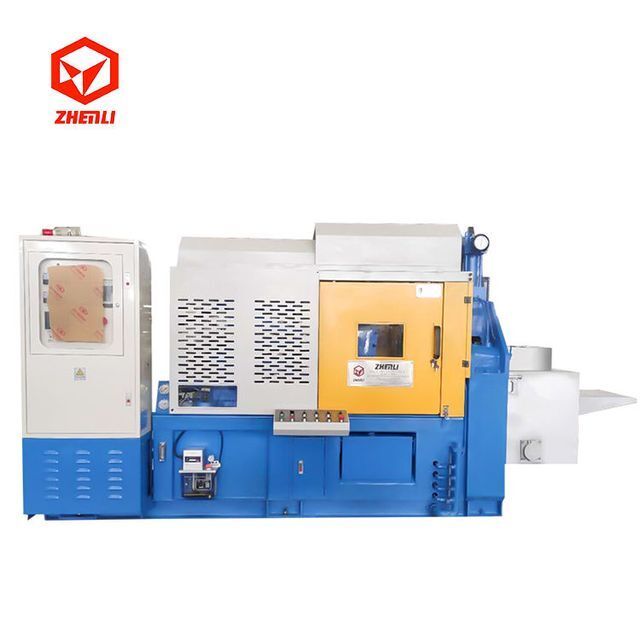

hot chamber die casting machine zamak moulding injection machine
- $23850.00 /set
- 1 set
- Jiangmen Zhenli Machinery Co., Ltd.
- Guangdong, China
- Mr YongXiang Li
PRODUCT DETAIL
| Condition: | New; | Max.Thickness of Die Block (mm): | 305 mm; |
| machine color: | as per your prefer to,the standard is yellow door,white computer; | company type: | die casting machine manufacturer; |
| After-sales Service Provided: | Engineers available to service machinery overseas; | Payment Terms: | L/C,D/P,D/A,T/T; |
| Warranty: | 1 Year; | Packaging Detail: | wooden pallet,package size:3400*1600*1800mm,need 1*20'GP container; |
| Place of Origin: | Guangdong, China; | Supply Ability: | 50 Sets per Month; |
| Brand Name: | ZHENLI; | Injection Stroke(mm): | 120mm; |
| Machine Type: | Hot Chamber Die Casting Machine; | Ejection Stroke(mm): | 55 mm; |
| Power (kW): | 7.5; | Dimension(L*W*H): | 3320*1400*1800mm; |
| Showroom Location: | Egypt,Canada,Turkey,Brazil,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Argentina,Colombia,Algeria,Bangladesh,Ukraine,Uzbekistan,Japan,Malaysia; | Port: | SHENZHEN PORT / GUANGZHOU PORT / GAOSHAN PORT; |
| machine valve: | import from yuken,japan; | Key Selling Points: | Remote Control; |
| Weight (KG): | 2600; | Machinery Test Report: | Provided; |
| Inner Space Between the Bars (Vertical)(mm): | 275mm; | Video outgoing-inspection: | Provided; |
| Die-locking Force (kN): | 300kN; | Core Components: | PLC,Motor,Pump; |
| Applicable Industries: | Manufacturing Plant; | machine usage: | produce zinc alloy die castings; |
| Warranty of core components: | 1 Year; | Injection Force(kN): | 42kN; |
| Ejection Force(kN): | 35 kN; | Inner Space Between the Bars (Horizontal)(mm): | 275mm; |
| machine electric parts: | import from schneider; | Voltage: | As per your industrial voltage; |
| Marketing Type: | New Product 2020; | Min.Thickness of Die Block (mm): | 100 mm; |
hot chamber die casting machine zamak moulding injection machine
Details Images
Products Description
ITEM | Unit | ZL-30T | ||||
Locking Force | KN | 300 | ||||
Die Stroke | mm | 190 | ||||
Ejection Force | KN | 35 | ||||
Ejection Stroke(Max) | mm | 55 | ||||
Die Thickness(Min-Max | mm | 100-305 | ||||
Tie Bar Diameter | mm | 45 | ||||
Space Between Tie Bars(W×H) | mm | 275×275 | ||||
Shot Position | mm | 0 ,-40 | ||||
Plunger Stoke | mm | 120 | ||||
Traverse Stoke | mm | 180 | ||||
Injection Force(Max) | KN | 42 | ||||
Diameter Of Plunger | mm | 36 | 40 | |||
Max..Shot Weight(Zn) | Kg | 0.58 | 0.68 | |||
Hydraulic Pressure | Mpa | 12.5 | ||||
Motor Power | KW | 7.5 | ||||
Crucible Capacity(Zn) | Kg | 260 | ||||
Capacity Of Accumulator | L | 12.5 | ||||
| Furnace Energy Consumption | Diesel | KG/L | 3.5 | |||
Electric | KW | 25 | ||||
Capacity Of Oil Tank | L | 190 | ||||
Machine Size(L×W×H) | mm | 3320×1400×1800 | ||||
Weight of Machine | kg | 2600 | ||||

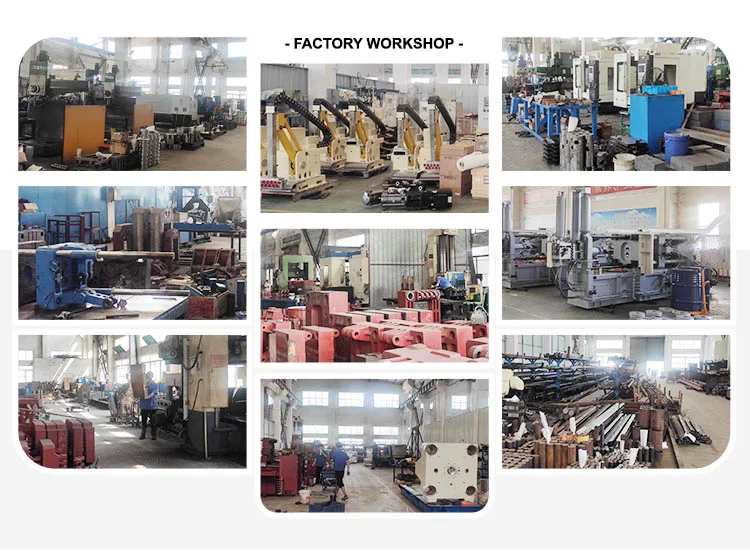

Company Profile
Certificate
Sales and Service
Transport & Payment
FAQ
Q: Is your company a trading corporation or manufacturer?
A: Our company is a die casting machine manufacturer with more than 25-year experience.
Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.
Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.
Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.
Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
A: Our company is a die casting machine manufacturer with more than 25-year experience.
Q: How's your products?
A: We use YUKEN machine valves imported from Japan. Imported components are used for hydraulic units including REXROTH from Germany and Eaton VICKERS (America).The SiemensS-7200 control system with LCD monitor(Germany) can accurately control the movement of machine.
Q: How can I choose the suitable machine?
A: Our machines have many types. Different type depends on your product size. The bigger product you make, the bigger machine you need.
Q: How’s your price?
A: We do our best to keep our price as low as possible without sacrificing quality.Considering the quality of the machine offered, the price is very competitive.
Q: How’s your after-sales?
A: One year after sales warranty.We can also send our engineer to your factory to install and commissioning the machine, and train your staff.
