2019 hot selling quarry manpower hand split wedge, wedge and spacer set
- $2.00 /piece
- 1 piece
- Beijing Pro Drill Equipment Co., Ltd.
- Beijing, China
- Mr Simon Hu
brand: | professional drill | Applicable industries: | Construction Engineering, Energy and Mining |
Supply capacity: | 10000 pieces per month | Material: | High manganese steel |
Type of engine: | hand | Packaging Details: | Carton. |
Warranty: | 1 year | Certification: | ISO SGS |
Motor Type: | Do not | port: | Xiamen, China |
Hole size: | 14-40mm | thing: | Spacers and wedges |
Packaging Preview: | place of origin; place of origin: | Beijing China | |
application: | stone/rock split | type: | stone crusher, manual stone crusher |
diameter: | 14-40mm | Health status: | new |
length: | 125-600mm | After-sales service provided: | Free spare parts, online support, video technical support, no overseas service |
payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram | Dimensions (L*W*H): | diameter. 14/16/20/24/32/38MM |
For more products, please click our homepage
General introduction: |

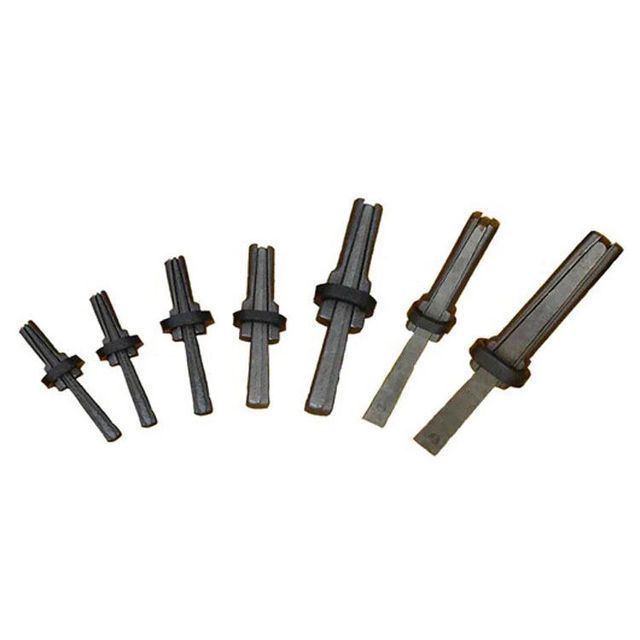

Wedge and spacer, it is also known as hand separator, plug and feather, feather pair and wedge. We can design length and hole size and shape according to customer's requirements.
The role of wedges and spacers A wedge is a hand tool that splits the stone by striking a metal wedge into a hole in the stone using human power. Mainly used for the splitting of cracks and arches, it can be divided into smaller or standard pieces using wedges. Wedges can also trim relatively large and irregular stones.
Characteristics of wedges and spacers
1.) Mainly rely on manpower, labor-intensive and difficult working conditions.
2.) It is suitable for exposed ore, fracture growth and weathered ore belt, especially suitable for naturally formed multi-faceted ores, and archstones connected with original rock on one or two sides. Therefore, wedges are a very effective and labor-saving tool, especially for mines where small-sized quarry blocks are applied.
3.) It is suitable for mines lacking electricity and water.
4.) It is suitable for mining horizontal or gently inclined layered ore with a layer depth of about 1.5m.
5.) It is possible to dissociate and separate large stones mined by other methods.
6.) Easy to handle and retain its value in mines with better rock fracturing
performance and low mechanical levels. However, leveling the stones is a lot of work and affects the completion rate.
Spacers and wedges (feather pairs and wedges) | ||
Aperture(mm) | Length(mm) | Net weight (mm) |
14 | 125 | 0.17 |
16 | 125 | 0.19 |
20 | 190 | 0.5 |
twenty four | 190 | 0.6 |
32 | 280 | 1.5 |
34 | 290 | 1.8 |
38 | 320 | 2.1 |
picture |
