Efficient Demolition Tool Handheld Rock Hydraulic Rock Splitter
- $1850.00 /set
- 1 set
- Xiamen Bestlink Factory Co., Ltd.
- Fujian, China
- Mr Richard Chen
| Health status: | new, new | brand: | Bailian |
| Weight (kg): | 250 | Video shipment inspection: | if |
| Supply capacity: | 300 sets per month | Warranty: | 1 year |
| place of origin; place of origin: | Fujian China | Applicable industries: | Construction Engineering, Energy and Mining |
| port: | Xiamen | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| usage: | for stone quarrying | Core component warranty: | 1 year |
| Packaging Details: | Wooden case or according to your specific requirements | Local service location: | not any |
| Marketing Type: | 2019 Hot Products | Showroom location: | not any |
| Core components: | Bearings, gears | Mechanical test report: | if |
| type: | stone crusher |
Efficient Demolition Tool Handheld Rock Hydraulic Rock Splitter
Rock and Concrete Separators
It is a new quarrying and civil construction product developed by our company, which is mainly suitable for secondary crushing of large rocks, square crushing of large stones, and square crushing of blocks. Drive motor: electric/diesel/gasoline/pneumatic.
BS36/38/40 adopts iron cylinder, BS42/45 has iron cylinder and aluminum alloy cylinder. Aluminum alloy cylinders are lighter and stronger. In addition, we have successfully copied the same type of cylinder from Darda in Germany, the model is . It is C12(N), which has the same shape, parts and performance as the original car.
feature:
1) Huge splitting force up to 410 tons
2) Dust-free and nearly silent operation
3) No vibration
4) Light weight
5) Precision work
6) Always in control
7) For close and inaccessible places.
8) Easy handling
Specification:
1. Hydraulic pump set
| A) Electric motor drive type | |||||||
| Power model | Dimensions (mm) | Weight (kg) | Oil pump station reserves (L) | engine power | Working pressure (MPa) | Flux (l/m) | Splitter can be towed quantity (pc) |
| electric motor | twenty three | 5 | 0.75KW (220V/380V) | 55-60 | 0.7 | 1 | |
| 384*280*620 | 75 | 30 | 3KW(380V) | 55-60 | 2 | 1-3 | |
| 7.5KW (380V) | 55-60 | 13 | 1-10 | ||||
| B) Gasoline engine drive model | |||||||
| Power model | Dimensions (mm) | Weight (kg) | Oil pump station reserves (L) | engine power | Working pressure (MPa) | Flux (L/m) | Splitter can be towed quantity (pc) |
| Gasoline | 1200*1170*800 | 100 | 40 | 7.5 hp | 55-60 | 2-13 | 1-10 |

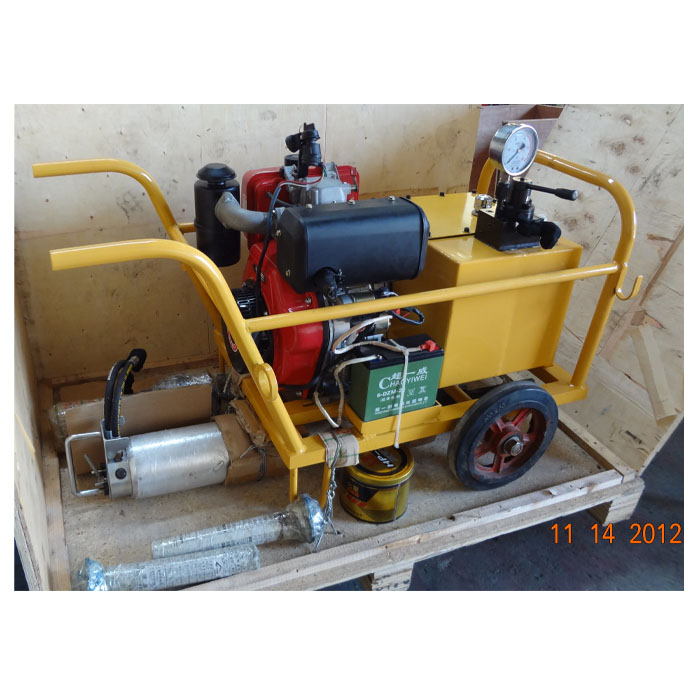

| C) Diesel drive model | |||||||
| Power model | Dimensions (mm) | Weight (kg) | Oil pump station reserves (L) | engine power | Working pressure (MPa) | Flux (L/m) | Splitter can be towed quantity (pc) |
| Diesel engines | 1150*1180*940 | 260 | 40 | 5.15KW | 55-60 | 2-13 | 1-10 |
| D) Pneumatic drive type | |||||||
| Power model | Dimensions (mm) | Weight (kg) | Oil pump station reserves (L) | Rated power (kw) | Working pressure (MPa) | Oil flux (L/m) | Splitter can be towed quantity (pc) |
| air motor | 384*280*620 | 70 | 30 | 4.10 | 55-60 | 2-13 | 1-10 |
2. Hydraulic cylinder:
| required aperture | Drilling depth requirement in minutes | split distance | split time | theoretical division force | Actual split power | cylinder weight |
| Φ32-35mm | ≥300mm | 10-30mm | 5-12s | 380 tons | 220 tons | 20 kg |
| Φ35-38mm | ≥400mm | 10-35mm | 5-12s | 560 tons | 310-320 tons | 25 kg |
| Φ38-42mm | ≥500mm | 10-40mm | 5-12s | 680 tons | 410-120 tons | 32 kg |

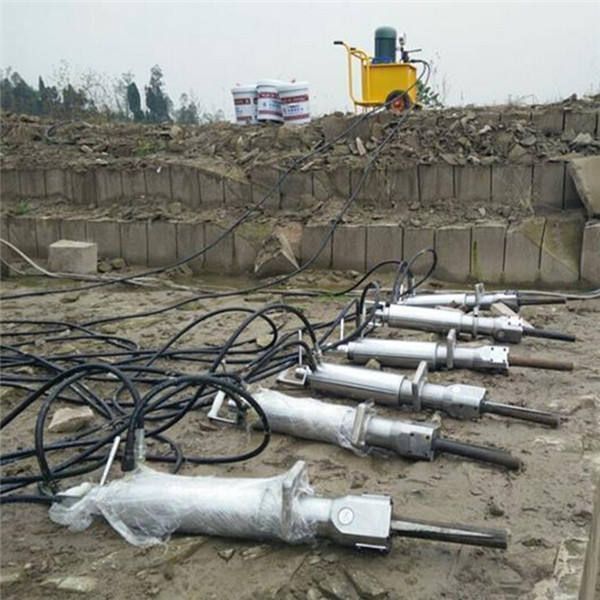

Stone splitter photos:

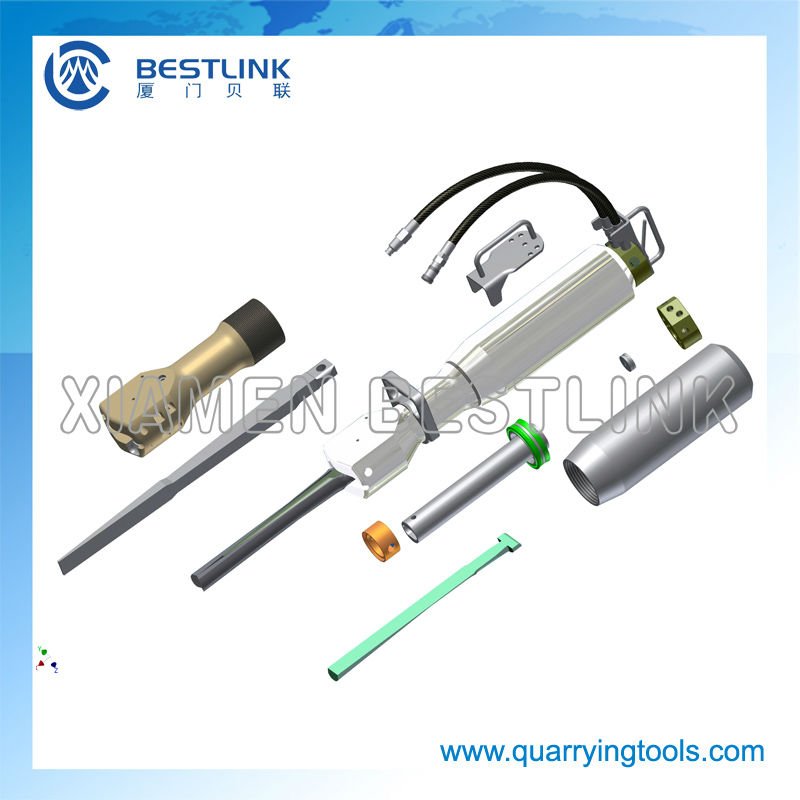

Cylinder and wedge photo 01:

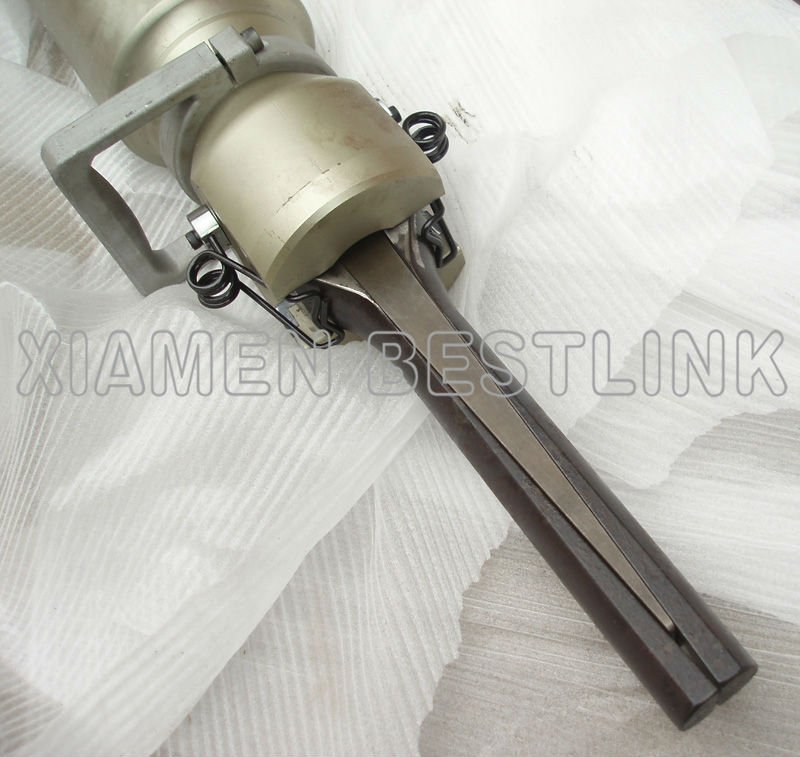

Cylinder and wedge photo 02:

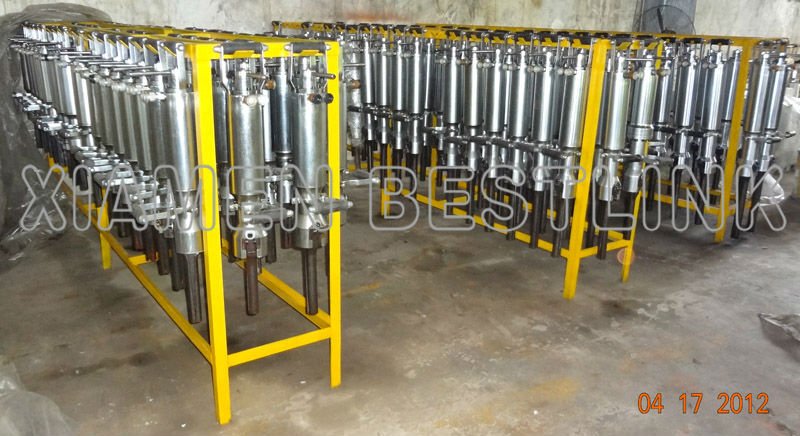

Cylinder photo:

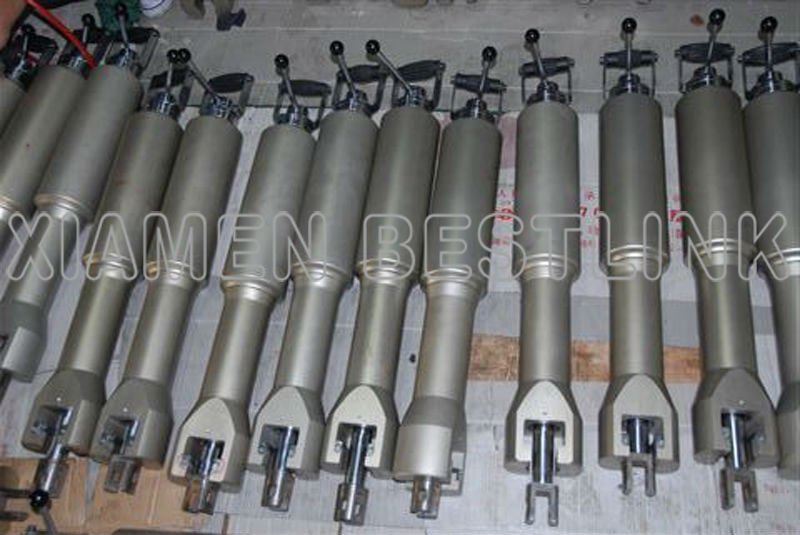

Cylinder photo 02:

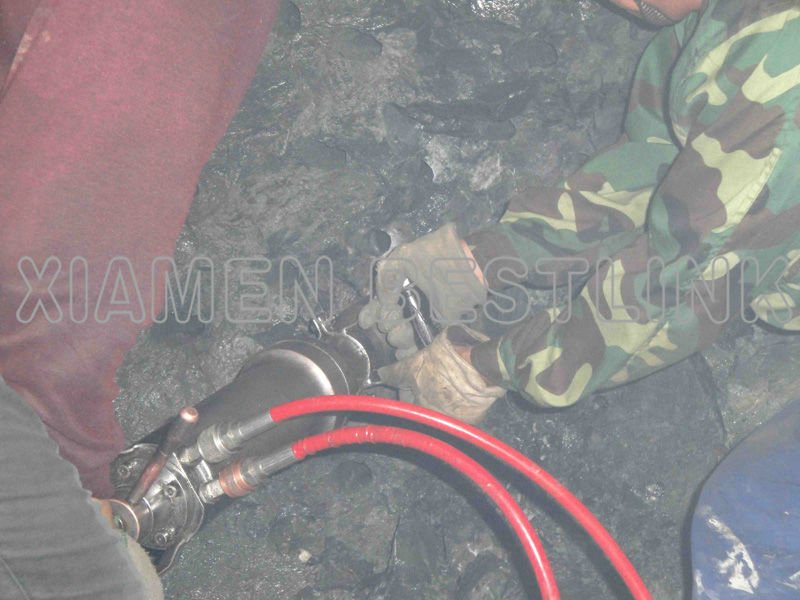

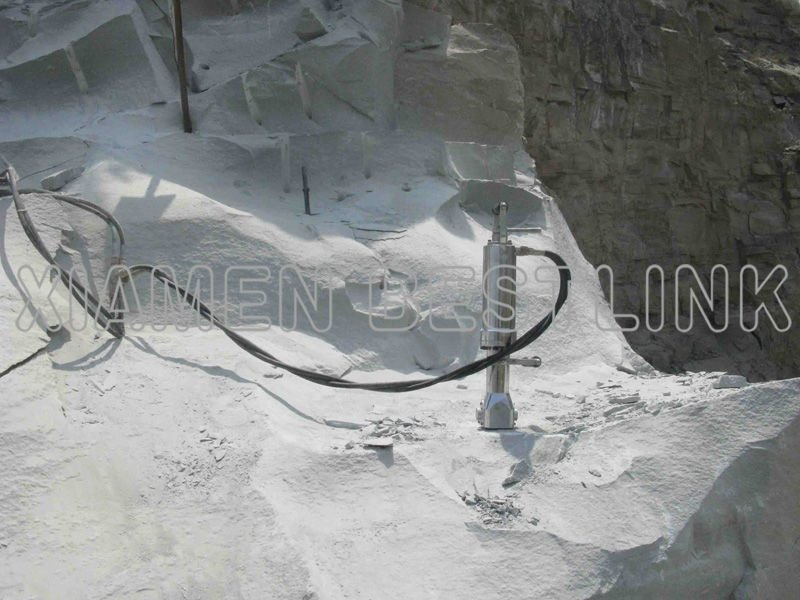

Project View for Rock Splitter 01:

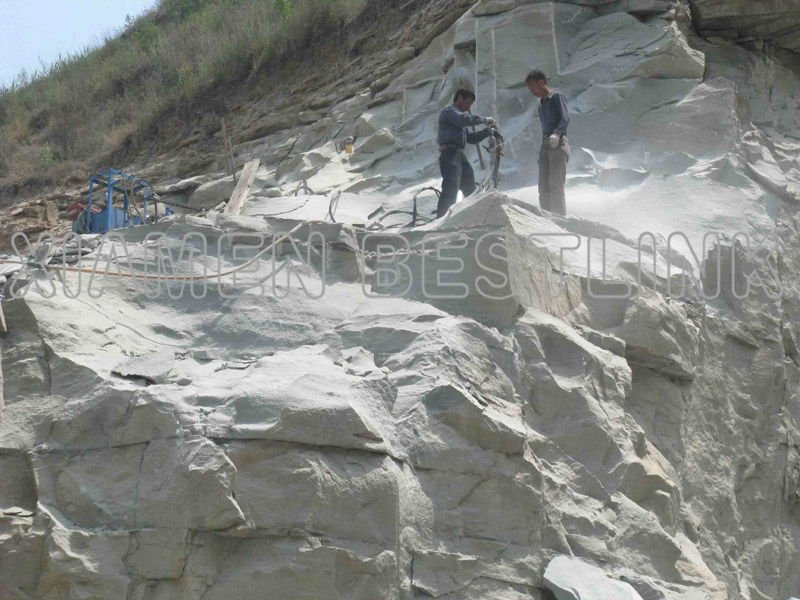

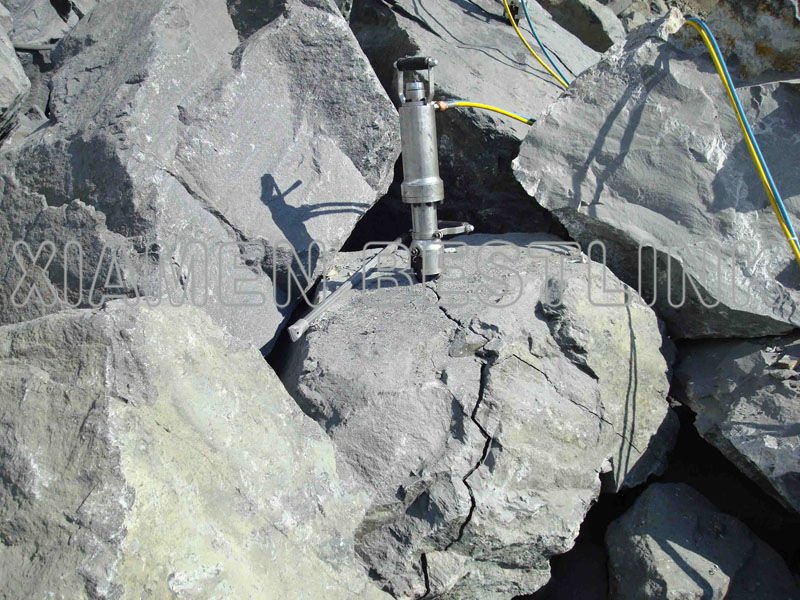

Project Comment 02:

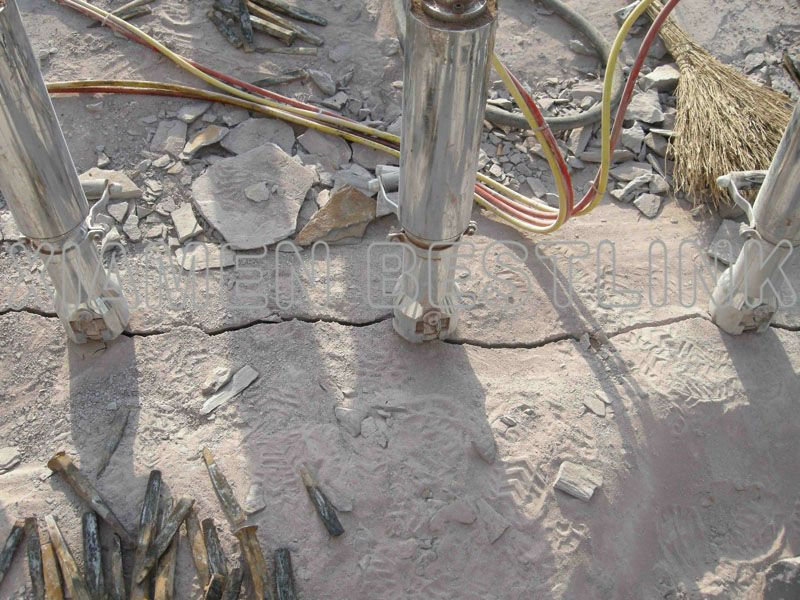

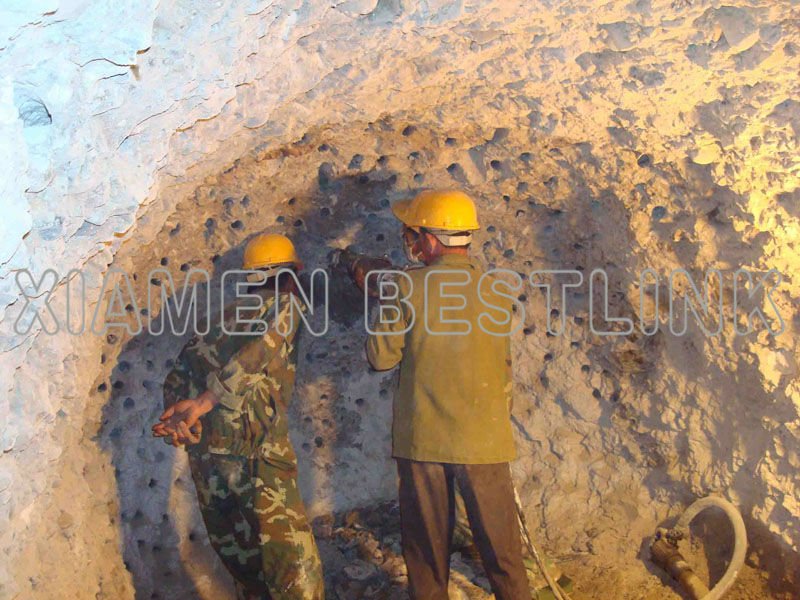

Project Comment 03:

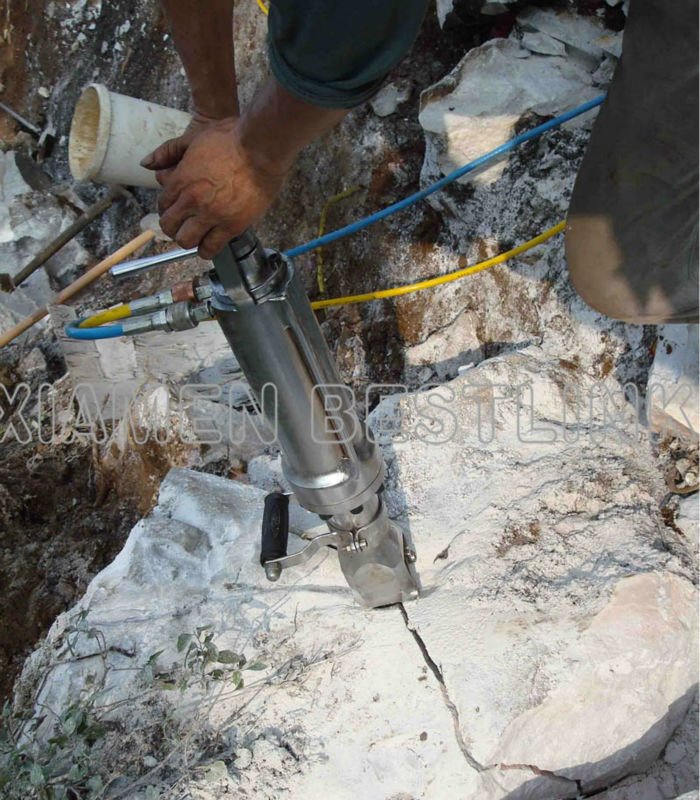

Project Comment 04:

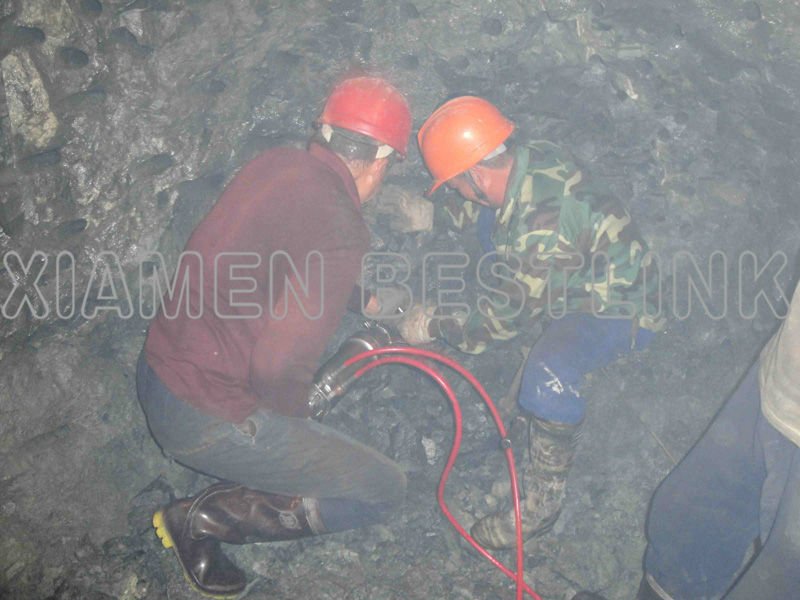

Project Comment 05:

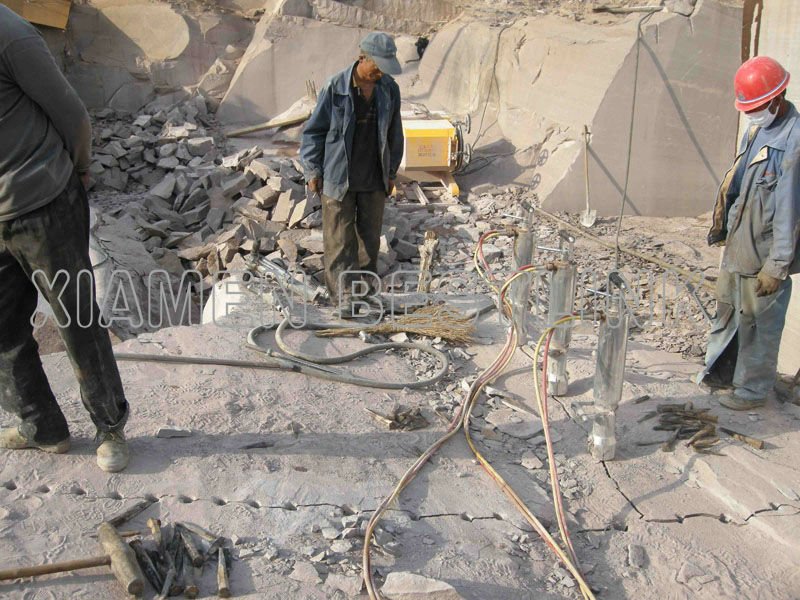

Project Comment 06:

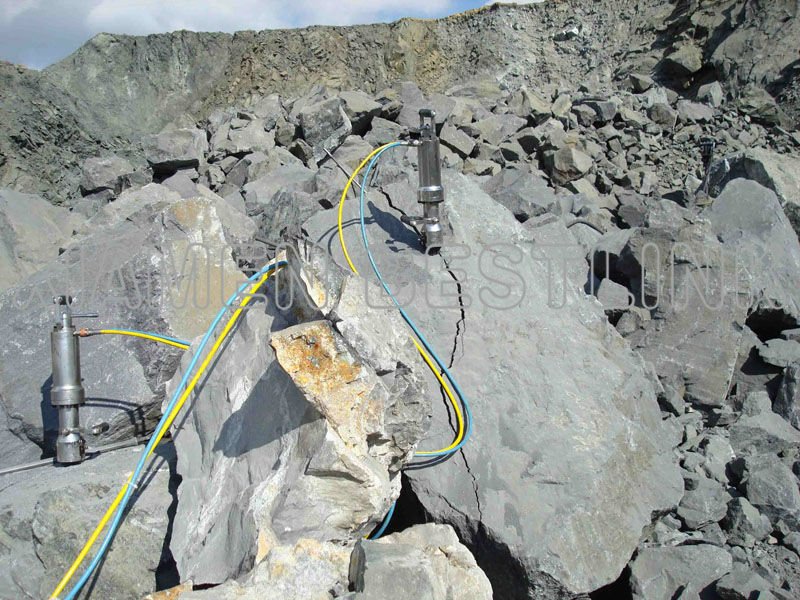

Project Comment 07:
Project Comment 08:
Project Comment 09:
Project View 10:
