hydraulic rock splitter stone crusher in sri lanka
- $740.00 / 1 - 4 sets
$679.00 / >=5 sets - 1 set
- Henan Yugong Machinery Co., Ltd.
- Henan, China
- Ms Laxmi Xu
| Marketing Type: | 2019 Hot Products | Split time: | 10-15 seconds |
| brand: | Yu Gong | Mechanical test report: | if |
| Types of: | stone crusher | usage: | rock separate |
| port: | Qingdao/Tianjin/Lianyungang | Crack Width: | 10-20mm |
| Engine set type: | electric or diesel | Core component warranty: | 1 year |
| Applicable industries: | Construction Engineering, Energy and Mining | Wedge length: | 250-450mm |
| Supply capacity: | 1000 sets per month | Certification: | International Organization for Standardization |
| Video shipment inspection: | if | Motor type: | AC motor |
| Drilling diameter: | 42mm | Showroom location: | not any |
| application: | hydraulic rock splitter | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Warranty: | 1 year | Drilling depth (mm): | 500mm |
| Packaging Details: | A set of rock splitter sea shipping wooden box | Pump type: | diesel hydraulic pump |
| Dimensions (L*W*H): | 1200*1170*800MM | State of health: | new |
| product name: | stone crusher | Local service location: | not any |
| place of origin; place of origin: | Henan, China | Core components: | engine |
| Key words: | hydraulic rock splitter |
hydraulic rock splitter stone crusher in sri lanka

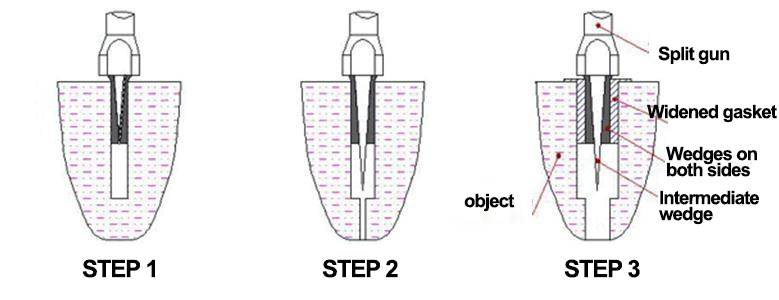

The splitting machine uses high-pressure oil as the energy source, cleverly uses the principle of the inclined wedge, so that the splitting force can reach hundreds of tons, or even thousands of tons, and it can easily split thousands of tons of boulders in a few seconds, so that the hard and huge ore can be removed from the mountain. separated out.
Technical Parameters:
|
Model |
YG-250 |
YG-350 |
YG-450 |
|
strength |
diesel power pack |
||
|
diesel power pack |
Changchai 6hp or 8hp |
||
|
hydraulic power unit |
Pressure adjustable 10-60Mpa |
||
|
Shunt Length(mm) |
1000 |
1100 |
1200 |
|
Wedge Length(mm) |
250 |
350 |
450 |
|
Wedge weight(kg) |
30 |
36 |
43 |
|
Piston stroke(mm) |
90/220 |
90/220 |
90/220 |
|
Drilling depth (mm) |
>500 |
>700 |
>900 |
|
Drilling diameter (mm) |
42 |
50 |
55 |
|
Crack width(mm) |
10-20 |
10-20 |
10-20 |
|
Split time (seconds) |
10-15 |
10-15 |
10-15 |
|
Splitting force (T) |
800 |
900 |
1000 |
Features:
1. Safety. Static demolition, no noise, no danger to workers.
2. Environment. The cracking speed is slow and the power is high, and there is no pollution to the environment.
3. Economy. Cost-effective and efficient, it can continue to work without maintenance.
4. Precise. Diverters can be placed into pre-drilled holes and divert flow according to precise orientation, shape and size.
5. Convenience. Specially designed device, pulley with wheels, wedge with handle, easy and convenient for workers to operate.

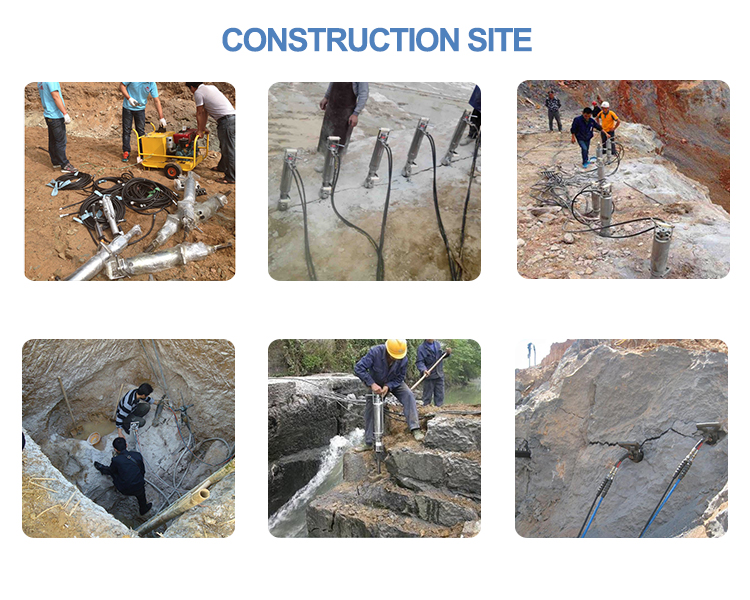

construction site:
