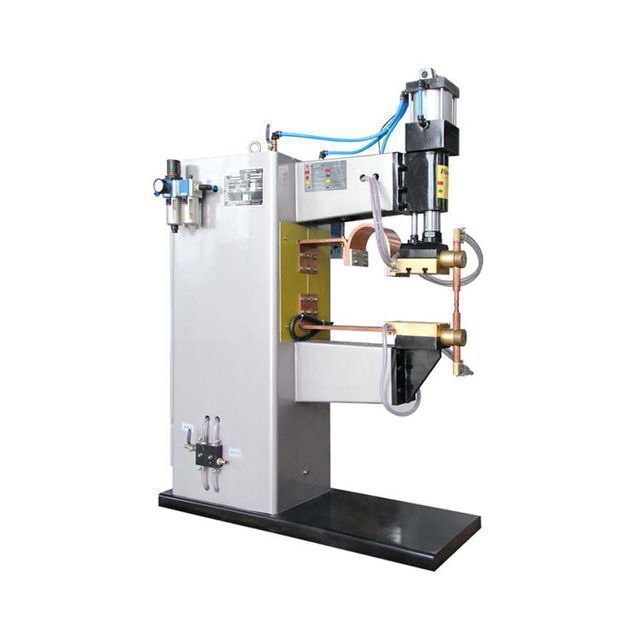

AC high-efficiency intermediate frequency inverter DC spot welding machine/pedal resistance spot welding machine
- $4400.00 / 1 - 99 sets
$1500.00 / >=100 sets - 1 set
- Shanghai Trintfar Intelligent Equipment Co., Ltd.
- Shanghai, China
- Mr Trintfar trintfar
PRODUCT DETAIL
| Supply capacity: | 2000 sets per month | Marketing Type: | New Products 2021 |
| Weight (kg): | 400 kg | Warranty: | 3 years |
| Package preview: | weight: | 270Kg-700Kg | |
| Showroom location: | not any | Maximum welding input: | 450KVA |
| Mechanical test report: | if | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Nominal Duty Cycle: | 50% | Core components: | pressure vessel |
| Maximum compression: | 12000N | Packaging Details: | wooden box |
| Electrode travel: | 100mm | Applicable industries: | Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food & Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Shops, Construction, Energy & Mining, Food & Beverage Stores, Other, Advertising company |
| brand: | Tring Law | Core component warranty: | 3 years |
| Main selling points: | easy to operate | place of origin; place of origin: | China Shanghai |
| aspect: | adjustable | Rated Capacity: | 25KVA-400KVA |
| Power (watts): | adjustable | color: | Customized according to your requirements |
| After warranty service: | Video Technical Support | Cooling water consumption: | 12 l/min |
| Video shipment inspection: | if | usage: | spot welding |
| port: | Shanghai | product name: | Long arm AC resistance spot welding machine spot welding machine price |
| State of health: | new |
Product Description
This type of AC spot welder utilizes general mains electricity to reduce voltage and increase current. This low voltage high current is transmitted from the electrode to the junction of the two workpieces. On the connecting rod, due to the resistance of the workpiece, a high temperature will be generated, so the metal will generate high heat, and the workpiece will be in a molten state. So as to achieve the purpose of welding two workpieces.
feature:
* The one-piece tube cylinder is specially designed to ensure welding stability and speed
* Multi-channel water cooling system ensures the reliability of long-term work.
* Spot and projection welding functions.
* Regulated voltage and current computer control system, multiple discharge (MTD), to meet various work requirements
easy.
* Can weld iron, copper, aluminum
* Multi-channel water cooling system ensures the reliability of long-term work.
* Spot and projection welding functions.
* Regulated voltage and current computer control system, multiple discharge (MTD), to meet various work requirements
easy.
* Can weld iron, copper, aluminum
thing Model | DN-25 | DN-35 | DN-50 | DN-75 | DN-100 | DN-150 | DN-200 |
Rated capacity KVA | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
Rated primary voltage V | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
rated frequency hertz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
welding input kVA | 38 | 54 | 70 | 146 | 216 | 340 | 450 |
Rated duty cycle % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Arm length mm | 340 | 380 | 380 | 380 | 380 | 450 | 450 |
maximum compression no | 2500 | 4700 | 4700 | 7300 | 7300 | 12000 | 12000 |
Electrode travel mm | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
Welding ability Low-carbon steel mm | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
