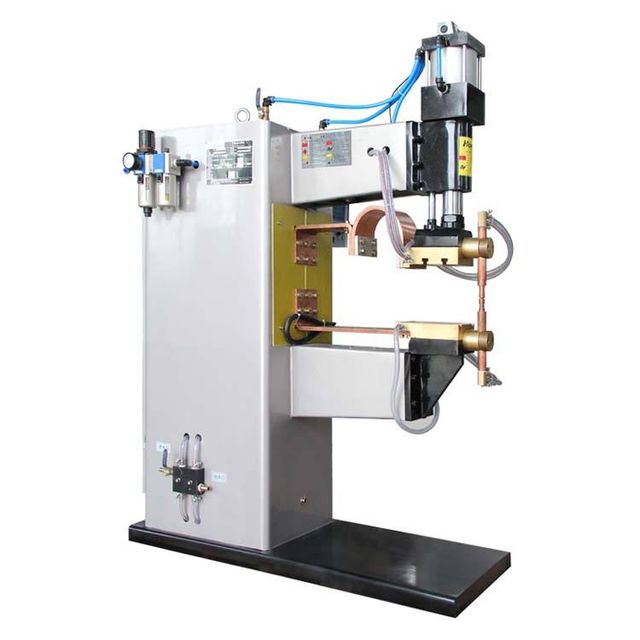

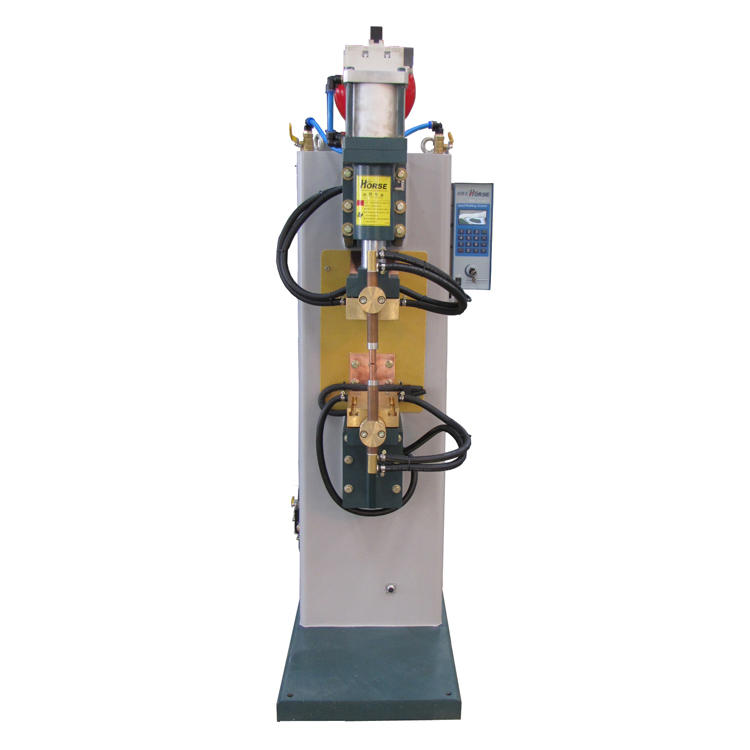

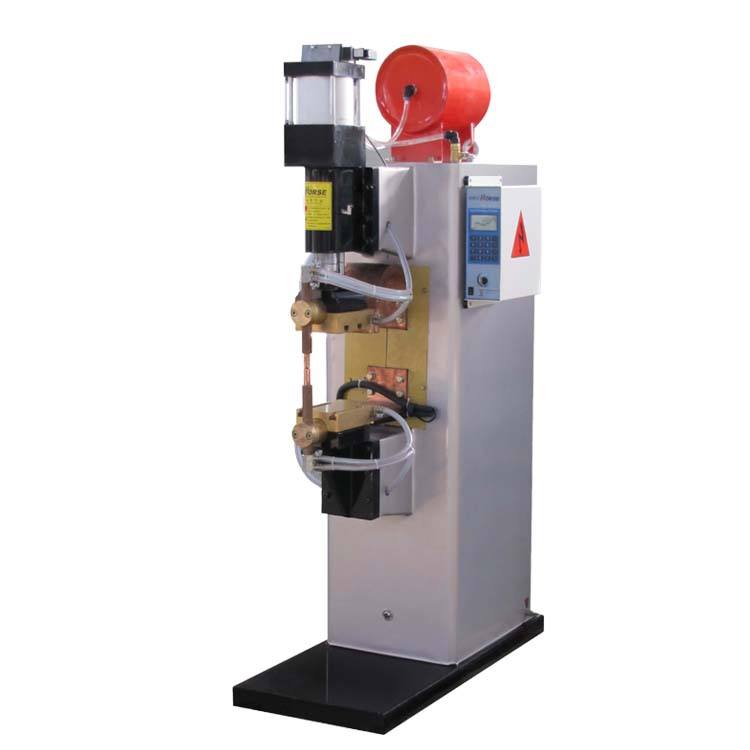

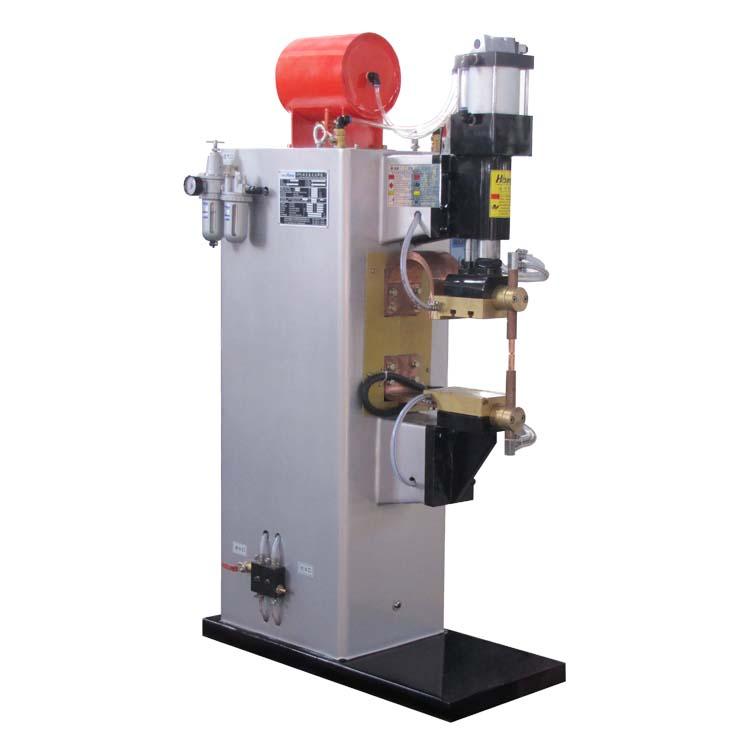

AC resistance spot welder price long arm spot welder
- $4400.00 / 1 - 99 sets
$1500.00 / >=100 sets - 1 set
- Shanghai Trintfar Intelligent Equipment Co., Ltd.
- Shanghai, China
- Mr Trintfar trintfar
PRODUCT DETAIL
| Electrode stroke: | 100mm | Supply capacity: | 50 sets per month |
| Marketing Type: | New Products 2021 | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, home use, construction works |
| Video external inspection: | if | Maximum welding input: | 450KVA |
| Rated Capacity: | 25KVA-400KVA | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Power (W): | adjustable | Mechanical test report: | if |
| brand: | Trinfar | Warranty: | 1 year |
| Main selling point: | easy to operate | After-sales service provided: | Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support, video technical support |
| Local service location: | not any | Maximum compression: | 12000N |
| Cooling water consumption: | 12L/min | Core components: | pressure vessel |
| Packaging Details: | wooden box | Packaging Preview: | |
| aspect: | adjustable | Rated Duty Cycle: | 50% |
| weight: | 270Kg-700Kg | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram |
| place of origin; place of origin: | China Shanghai | usage: | spot welding |
| product name: | long arm ac resistance spot welder spot welder price | Weight (kg): | 400kg |
| Core Components Warranty: | 1 year | color: | Customized according to your requirements |
| Health status: | new | Showroom location: | not any |
| port: | Shanghai |
Product Description
This type of AC spot welder utilizes a universal power source to reduce voltage and increase current. This low voltage high current is passed from the electrode to the junction of the two workpieces. On the connecting rod, due to the resistance of the workpiece, high temperature will be generated, so the metal will generate high heat, making the workpiece in a molten state. So as to achieve the purpose of welding two workpieces.
feature:
* The special design of the one-piece tube ensures the stability and speed of welding
* Multi-channel water cooling system to ensure long-term reliability.
* Spot welding and projection welding capabilities.
* Computer control system, constant voltage and constant current, multiple discharge (MTD), to meet various work requirements
easy.
* Weldable iron, copper, aluminum
* Multi-channel water cooling system to ensure long-term reliability.
* Spot welding and projection welding capabilities.
* Computer control system, constant voltage and constant current, multiple discharge (MTD), to meet various work requirements
easy.
* Weldable iron, copper, aluminum
thing Model | DN-25 | DN-35 | DN-50 | DN-75 | DN-100 | DN-150 | DN-200 |
Rated capacity KVA | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
Rated primary voltage five | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Rated frequency hertz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Maximum welding input kVA | 38 | 54 | 70 | 146 | 216 | 340 | 450 |
Rated duty cycle % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Arm length mm | 340 | 380 | 380 | 380 | 380 | 450 | 450 |
maximum compression n | 2500 | 4700 | 4700 | 7300 | 7300 | 12000 | 12000 |
Electrode stroke mm | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
Welding ability Low-carbon steel mm | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
