Marine Insulation Nail Welder Capacitor Discharge Welder Carbon Steel Inverter Welder
- $850.60 / 1 - 4 sets
$808.50 / 5 - 9 sets
$768.13 / >=10 sets - 1 set
- Jiangsu Langcui Welding Technology Co., Ltd.
- Jiangsu, China
- Mr Langcui Pan
PRODUCT DETAIL
| Primary voltage: | 220V | Package: | wooden box |
| Core components: | transformer | Welding type: | Resistance DC welding |
| Welding speed: | 10-15 pieces/minute | application: | steel, carbon steel, alloy |
| Video shipment inspection: | if | Warranty: | 1 year |
| Health status: | new | aspect: | different |
| Nominal Duty Cycle: | 80%, 80% | brand: | Essence |
| thing: | CD welding machine | Mechanical test report: | if |
| payment terms: | L/C, Western Union, T/T, MoneyGram, Alipay | product name: | SW-2500 stud welding machine |
| Applicable industries: | Building material stores, machinery repair shops, manufacturing plants, retail, construction, energy and mining, advertising agencies | usage: | Stud welding, insulation welding, bolt welding |
| Marketing Type: | New Products 2020 | Packaging Details: | Plywood boxes |
| Main selling points: | high productivity | Rated Capacity: | custom made |
| power supply: | 220V | Showroom location: | not any |
| Package preview: | Name: | Capacitor discharge welding machine | |
| Core component warranty: | 1 year | Origin: | Jiangsu, China |
| Supply capacity: | 1000 sets per month | port: | Shanghai |
| Weight (kg): | 29 kg | OEM and ODM: | supply |

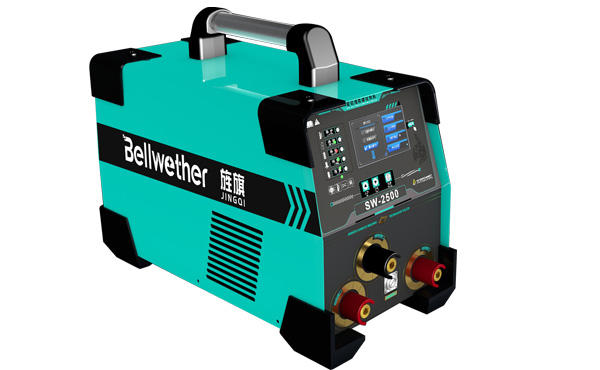

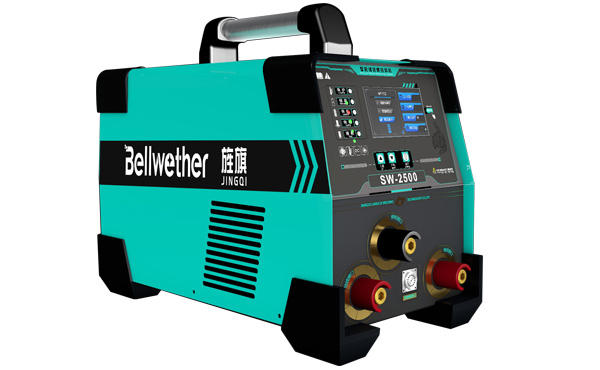

Product overview

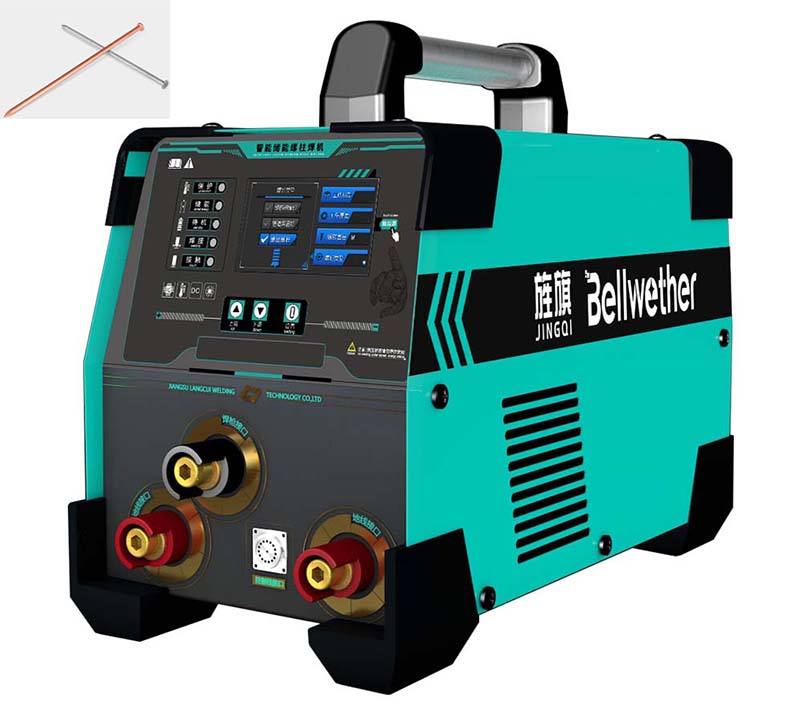

Marine insulation capacitor discharge stud welding machine
oceanInsulated capacitor discharge welding machine for studs
List of functions
Features of CD insulation welding machine
easy to use
fast charging
mini easy to hold
Capacitor discharge welding machine

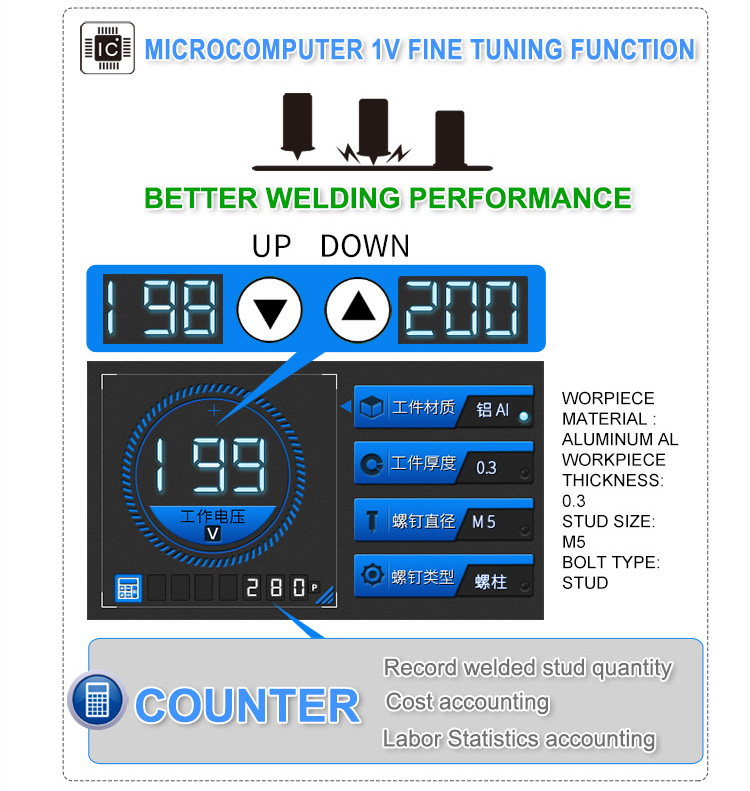

Digital CPU, output precision

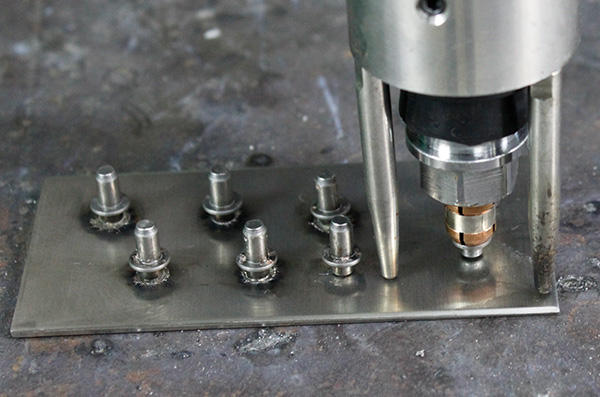

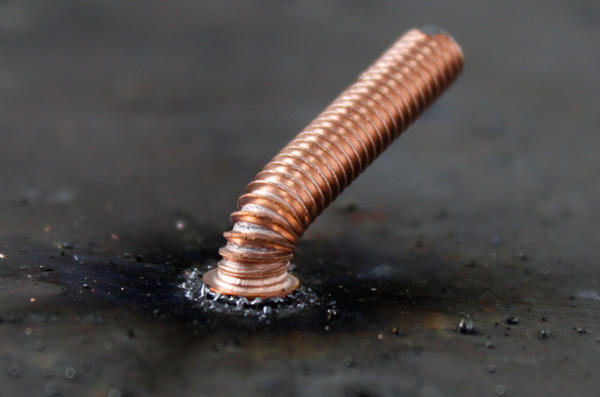

The workpiece remains unchanged after welding
Suitable for a variety of materials
Intelligent current easy control

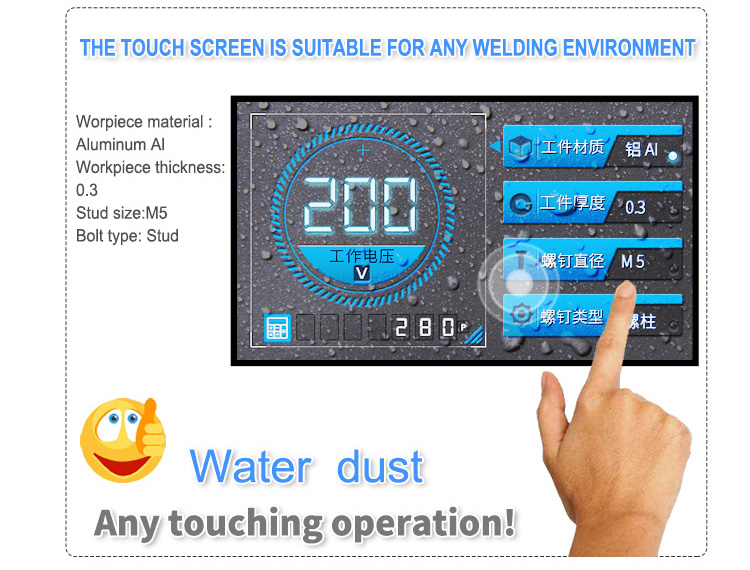

LCD screen

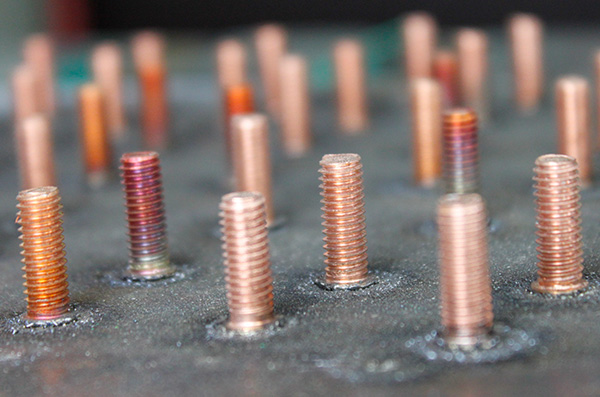

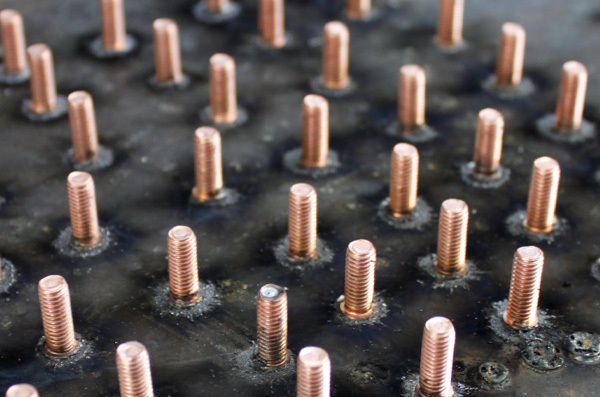

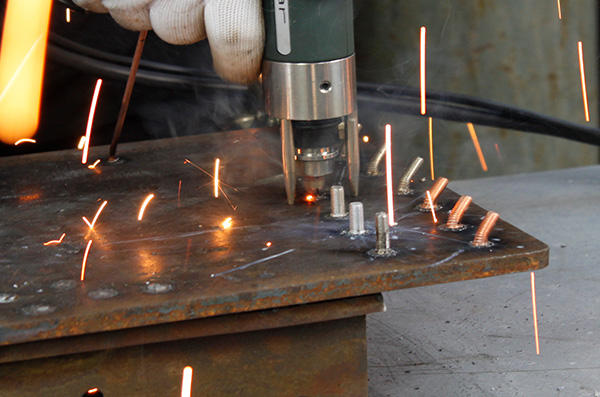

Marine insulation nails
Supply OEM and ODM
easy to take
Has a patent

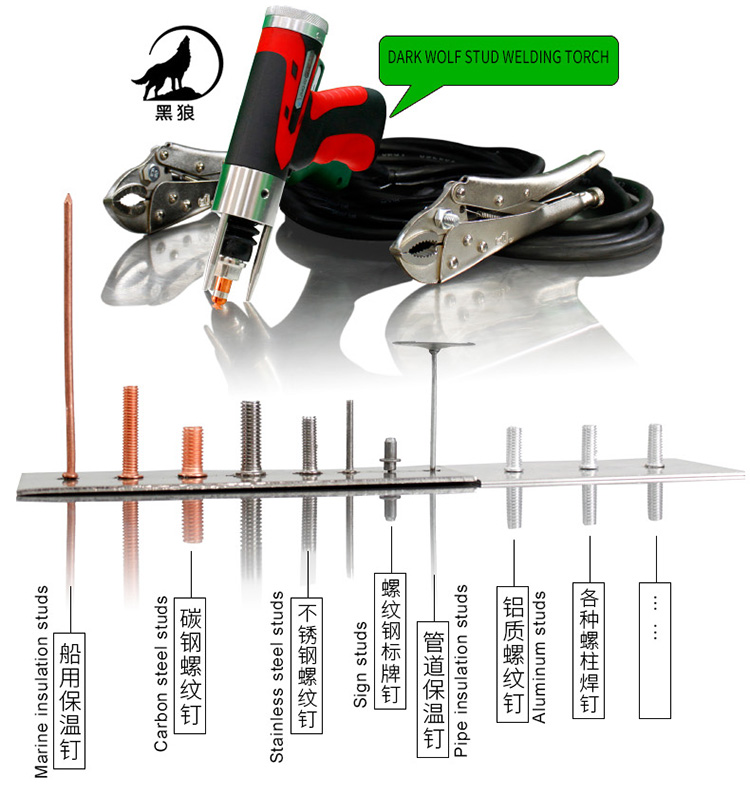

Stainless steel, mild steel, iron, almg3, ss304, ss316
right level
left elevation

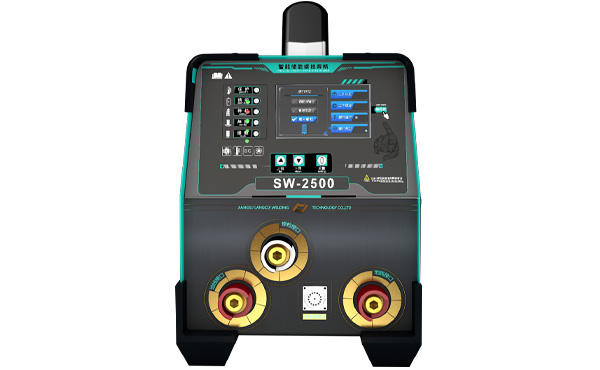

Front view
product specification
Model | SW-1600 | SW-2500 | SW-3500 | SW-5000 | |||
Input voltage (V) | AC220±15% | AC220±15% | AC220±15% | AC220±15% | |||
Hertz (HZ) | 50/60 | 50/60 | 50/60 | 50/60 | |||
Input power (W) | 430W | 530W | 530W | 800W | |||
Stud diameter (mm) | 3-4 | 3-6 | 3-8 | 3-10 | |||
Stud Length(mm) | M3-M6: ≤45mm; M8-M10: ≤20mm (other lengths need to be customized) | ||||||
Welding plate thickness (mm) | 0.2-5 (thickness > 5mm, please contact our technical staff) | ||||||
Capacitance (uF) | 60000 | 88000 | 124000 | 124000 | |||
Productivity (pcs/min) | ≤20 pieces (the number of welding studs depends on the output voltage and stud diameter) | ||||||
Charging voltage (V) | 40-200 | 40-200 | 40-200 | 40-200 | |||
Welding materials | Stainless steel, carbon steel, iron, galvanized sheet, brass, aluminum | ||||||
power supply | discharge capacitor | ||||||
degree of protection | IP21S | IP21S | IP21S | IP21S | |||
Dimensions (mm) | 500*240*360 | 500*240*360 | 500*240*360 | 500*240*360 | |||
Weight (KG) | twenty three | 26 | 29 | 32 | |||
Can help save time and cost

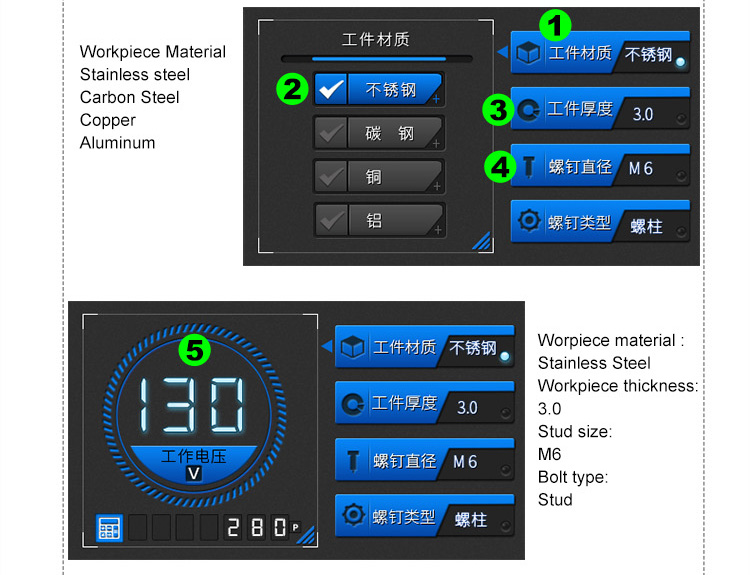

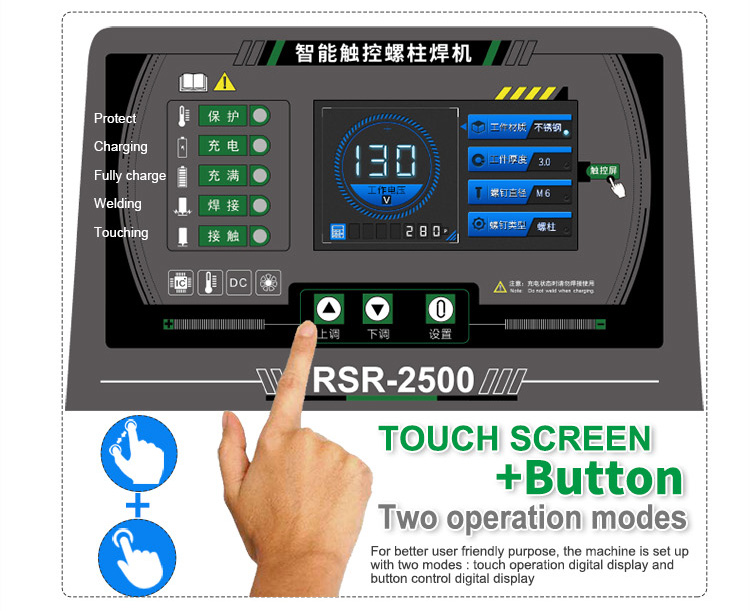

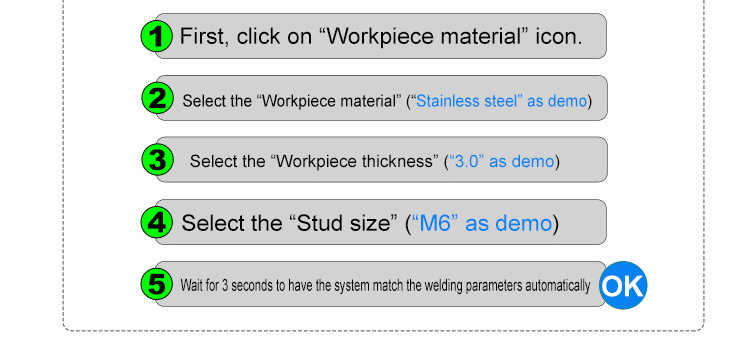

1. First click on the "workpiece material" icon
2. Select "workpiece material" (stainless steel, low carbon steel, copper and aluminum are optional)
3. Select the "workpiece" thickness (eg: 3mm)
4. Select "Stud Size" (eg: "M6")
5. Wait for 3 seconds, the system automatically matches the welding parameters.
Customer display
Thailand project
Indian project
Russian project
Sales and Service Network
24-hour hotline service
Our R&D Principal Engineer
Our R&D Principal Engineer
1. About our service: 24-hour hotline or you can email us, call us or contact us via app. 2. All R&D team members have rich experience
With more than 20 years of experience in the field of welding machines, they are always on the road of innovation and supply with the support of our company
Providing advanced solutions to our customers makes our products more and more popular and our customers more and more recognized.
With more than 20 years of experience in the field of welding machines, they are always on the road of innovation and supply with the support of our company
Providing advanced solutions to our customers makes our products more and more popular and our customers more and more recognized.
Mr. Chen - chief engineer, has worked in the company for more than 15 years, specializing in welding machine technology update and
Design and provide advanced solutions for our customers.
Design and provide advanced solutions for our customers.
MR.Zhang-Sales engineer, professionally communicate with customers, understand customers, and solve problems for customers
In the process of using and purchasing the welding machine, he also updated the product with Mr. Chen.
In the process of using and purchasing the welding machine, he also updated the product with Mr. Chen.
gentlemen. Xu - Purchasing engineer, according to customer requirements, he purchases raw materials for welding machines. He and MR.Chen and
MR. Zhang together to update products and provide solutions for customers.
MR. Zhang together to update products and provide solutions for customers.
Company Profile
We are located in Jiangsu, China, since 2011, selling to domestic market (60.00%), South America (3.00%), Eastern
Europe (3.00%), Oceania (3.00%), South Asia (8.00%), North America (2.00%), Southeast Asia (7.00%), Africa (2.00%), Middle East (2.00%), East
Asia (2.00%), Western Europe (2.00%), Central America (2.00%), Northern Europe (2.00%), Southern Europe (2.00%). There are about 1000
Our company square meters. We mainly supply CD welding machine, capacity discharge welding machine, air duct insulation nail welding machine, marine insulation nail
Welder, Portable Stud Welder, CD Stud Welder, Arc Stud Welder, Pedal Spot Welder, Spot Welder
Welding machine, AC spot welding machine, single point welding machine, foot spot welding machine, metal welding machine, mesh welding machine
, metal welding machine. stainless steel welding machine, wire mesh stainless steel welding machine, arc stud welding machine, arc
Stud Welding Equipment, Short Cycle Stud Welders, Long Cycle Stud Welders, Heavy Duty Welders, Construction
Welding machine, nut welding machine, industrial welding machine, drawn arc stud welding machine, inverter stud welding
systems, industrial welding equipment, DA stud welders, welding torches, welding torches, collets and other welding machine accessories
, copper plates, fasteners, etc.
We have our own R&D team, patents, design, OEM, ODM, we are always on the road of innovation, providing advanced solutions for our products
Customers make our products more and more popular and our customers more and more recognized.
Europe (3.00%), Oceania (3.00%), South Asia (8.00%), North America (2.00%), Southeast Asia (7.00%), Africa (2.00%), Middle East (2.00%), East
Asia (2.00%), Western Europe (2.00%), Central America (2.00%), Northern Europe (2.00%), Southern Europe (2.00%). There are about 1000
Our company square meters. We mainly supply CD welding machine, capacity discharge welding machine, air duct insulation nail welding machine, marine insulation nail
Welder, Portable Stud Welder, CD Stud Welder, Arc Stud Welder, Pedal Spot Welder, Spot Welder
Welding machine, AC spot welding machine, single point welding machine, foot spot welding machine, metal welding machine, mesh welding machine
, metal welding machine. stainless steel welding machine, wire mesh stainless steel welding machine, arc stud welding machine, arc
Stud Welding Equipment, Short Cycle Stud Welders, Long Cycle Stud Welders, Heavy Duty Welders, Construction
Welding machine, nut welding machine, industrial welding machine, drawn arc stud welding machine, inverter stud welding
systems, industrial welding equipment, DA stud welders, welding torches, welding torches, collets and other welding machine accessories
, copper plates, fasteners, etc.
We have our own R&D team, patents, design, OEM, ODM, we are always on the road of innovation, providing advanced solutions for our products
Customers make our products more and more popular and our customers more and more recognized.

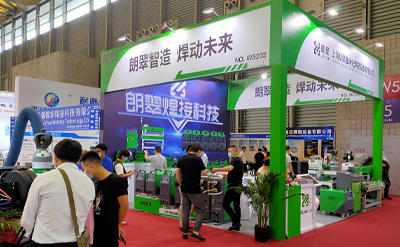

Every year we will participate in related welding exhibitions, and every exhibition of our products will attract many customers, most of them have been cooperating with us.
Our products are not only suitable for the mainland, but also for customers from all over the world. We also import our products.
The exhibition is a way to learn from our customers and the market, then we will update our products according to the market and customers.
pack
Professional export plywood box, safe and sturdy.
mode of transport
Due to the heavy weight, it is usually shipped by sea if possible.
