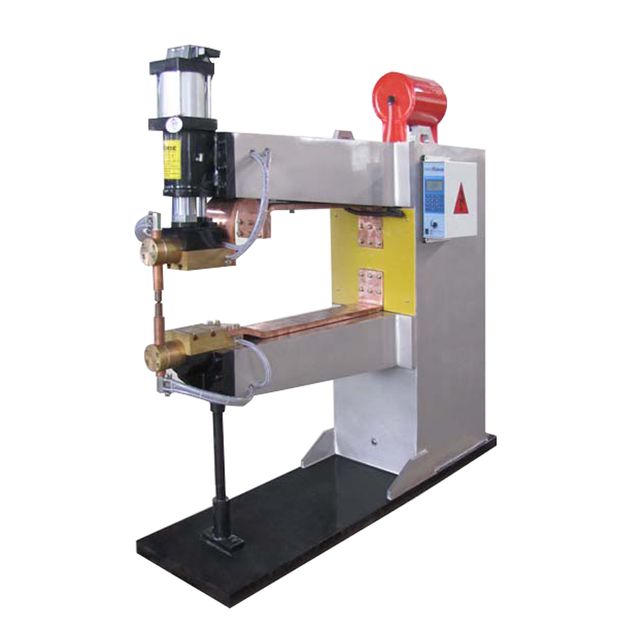

Steel Plate Pneumatic Long Arm Spot Welder Resistance Custom Arm Long Rocker Arm Spot Welder
- $4400.00 / 1 - 99 sets
$1500.00 / >=100 sets - 1 set
- Shanghai Trintfar Intelligent Equipment Co., Ltd.
- Shanghai, China
- Mr Trintfar trintfar
PRODUCT DETAIL
| Maximum welding input: | 450KVA | place of origin; place of origin: | China Shanghai |
| Local service location: | not any | Rated Capacity: | 25KVA-400KVA |
| aspect: | adjustable | usage: | spot welding |
| Health status: | new | Warranty: | 3 years |
| Rated Duty Cycle: | 50% | brand: | Trinfar |
| Main selling point: | easy to operate | After Warranty Service: | Video technical support, online support, spare parts, on-site maintenance and repair services |
| Core Components Warranty: | 3 years | Packaging Details: | wooden box |
| Supply capacity: | 500 sets per month | Applicable industries: | Building material stores, mechanical repair shops, manufacturing plants, home use, construction works |
| color: | Customized according to your requirements | product name: | long arm ac resistance spot welder spot welder price |
| Packaging Preview: | payment terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram | |
| Showroom location: | not any | Electrode stroke: | 100mm |
| Weight (kg): | 400kg | After-sales service provided: | Free spare parts, on-site installation and commissioning training, on-site maintenance and repair services, online support, video technical support |
| Video external inspection: | if | Mechanical test report: | if |
| Maximum compression: | 12000N | Marketing Type: | New Products 2021 |
| weight: | 270Kg-700Kg | Core components: | pressure vessel |
| Power (W): | adjustable | Cooling water consumption: | 12L/min |
| port: | Shanghai |
Product Description
This type of AC spot welder utilizes a universal power source to reduce voltage and increase current. This low voltage but high current is passed from the electrode to the junction of the two workpieces. On the connecting rod, due to the resistance of the workpiece, high temperature will be generated, so the metal will generate high heat, making the workpiece in a molten state. So as to achieve the purpose of welding two workpieces.
feature:
* The special design of the one-piece tube ensures the stability and speed of welding
* Multi-channel water cooling system to ensure long-term reliability.
* Spot welding and projection welding capabilities.
* Computer control system, constant voltage and constant current, multiple discharge (MTD), to meet various work requirements
easy.
* Weldable iron, copper, aluminum
* Multi-channel water cooling system to ensure long-term reliability.
* Spot welding and projection welding capabilities.
* Computer control system, constant voltage and constant current, multiple discharge (MTD), to meet various work requirements
easy.
* Weldable iron, copper, aluminum
thing Model | DN-25 | DN-35 | DN-50 | DN-75 | DN-100 | DN-150 | DN-200 |
Rated capacity KVA | 25 | 35 | 50 | 75 | 100 | 150 | 200 |
Rated primary voltage five | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Rated frequency hertz | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
Maximum welding input kVA | 38 | 54 | 70 | 146 | 216 | 340 | 450 |
Rated duty cycle % | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
Arm length mm | 340 | 380 | 380 | 380 | 380 | 450 | 450 |
maximum compression n | 2500 | 4700 | 4700 | 7300 | 7300 | 12000 | 12000 |
Electrode stroke mm | 60 | 80 | 80 | 80 | 80 | 100 | 100 |
Welding ability Low-carbon steel mm | 2.0+2.0 | 2.5+2.5 | 3.0+3.0 | 4.0+4.0 | 4.5+4.5 | 5.0+5.0 | 6.0+6.0 |
