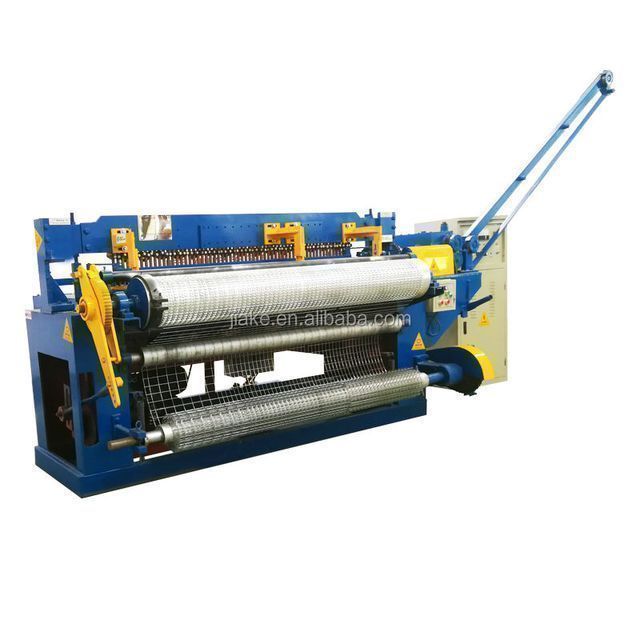

Fully automatic welded mesh machine with all necessary equipment for building meshes in rolls

PRODUCT DETAIL
Local service location:Egypt, Turkey, Vietnam, Peru, Pakistan, Mexico, Russia, Thailand, Malaysia, Argentina, South Korea, Colombia, Sri Lanka, Romania, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Nigeria, Tajikistanport:Xingang, China
Showroom location:not anyPrimary voltage:380V
Warranty:2 yearsusage:Welded Construction Mesh
Packaging Details:20ft container loadingApplicable industries:Building materials stores, machinery repair shops, manufacturing plants, construction, energy and mining
Rated Capacity:40KVA*4brand:Jaco
weight:2T, 2.5T, 3T, 3.5TAperture/Spacing:25, 50, 75, 100mm
Origin:Hebei chinaPower (kW):2.2
Weight (kg):2200 kgpayment terms:L/C, D/A, D/P, T/T, Western Union, MoneyGram
Main selling points:easy to operateAfter warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services
After-sales service provided:Free spare parts, on-site installation, commissioning and training, on-site maintenance and repair services, online support, video technical supportWelding speed:Max.75-180 lines/min
Supply capacity:30 automatic welding mesh machines per monthHealth status:new
Nominal Duty Cycle:10aspect:3050*1800*1400mm
Wire diameter:0.65mm-1.8mmengine:2.2kw
Grid width:Maximum 1.2m, 1.5m, 2m, 2.5m

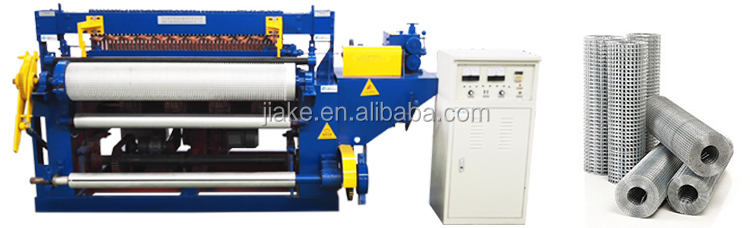

Welded mesh machine

Product Description
Product Description



The welded mesh machine is used to roll welded mesh. Widely used in industry, mining, agriculture, construction, transportation, such as animal fences, window guardrails, passage fences and decorations.

Our welded mesh machines can be customized according to different specifications required by customers.

Technical Parameters
Technical Parameters
ModelDP-DNW-1DP-DNW-2DP-DNW-3
Wire diameter0.4-0.65mm0.65-1.8/0.8-2/0.65-2mm1.0-2.2/1.2-2.5mm
Aperture/pitch6.25,12.5mm12.5, 25, 50mm25, 50, 75, 100mm
Mesh widthMaximum 1m or 1.2mMax.1.2m, 1.5m, 2mMaximum 1.2m, 1.5m, 2m, 2.5m
engine2.2kw2.2kw, 4kw4kw, 5kw, 7.5kw
welding speedup to 75 lines/minMax.120-180 lines/minMax.80-120 lines/min
transformer50kva*360kva*4/5/770kva/80kva*5/6/7/8
weight1.5T2T, 2.5T2T, 2.5T, 3T, 3.5T

Common specifications of welded mesh are as follows:
Net width: 1m, 1.2m, 1.5m, 2m, 2.5m
Minimum mesh size: 12.5mm, 25mm, 50mm

Warm reminder: We can design the machine according to your wire diameter, mesh size and mesh width.

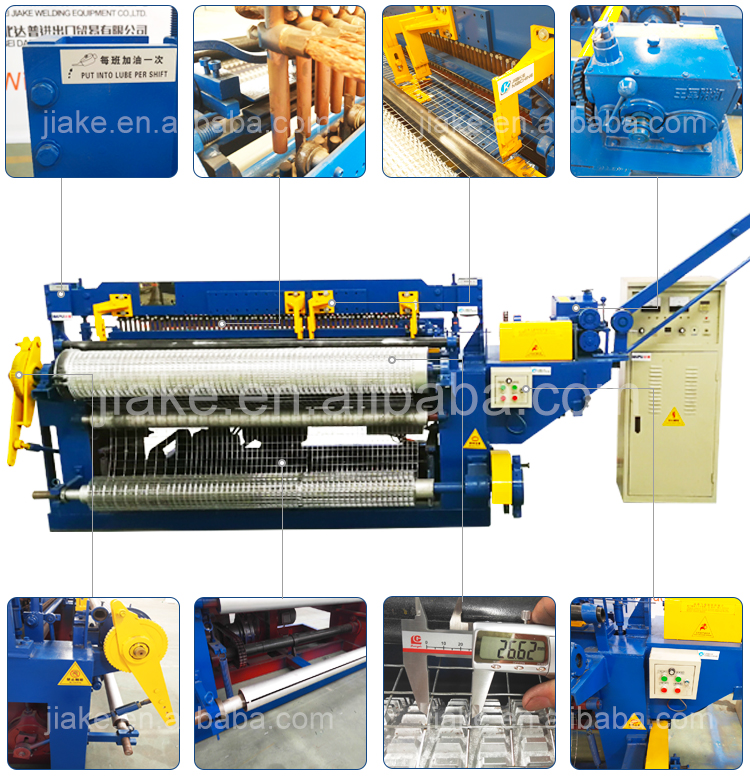

machine details
machine details

1. The raw material is suitable for low carbon steel wire (black wire) and galvanized wire.

2. Both longitudinal and horizontal wires are automatically fed by coils.

3. The middle knife and side knife can be adjusted arbitrarily, and two net rolls can be made at the same time.

4. The length of the net roll can be set by the counting switch on the control panel.

5. The welding time and welding current can be adjusted on the control panel to adjust the welding degree.

6. This welded wire mesh machine adopts the highest quality main motor and reducer, equipped with frequency converter and world-renowned brand electronic components.

7. The row-line spacing and horizontal-line spacing are adjustable.

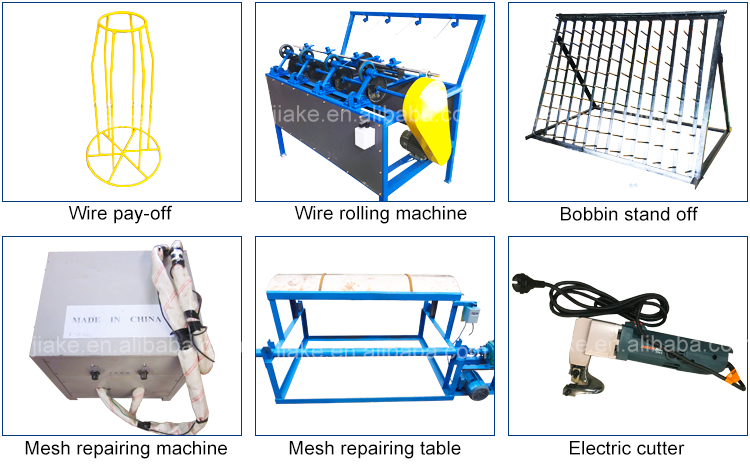

Auxiliary equipment
Auxiliary equipment

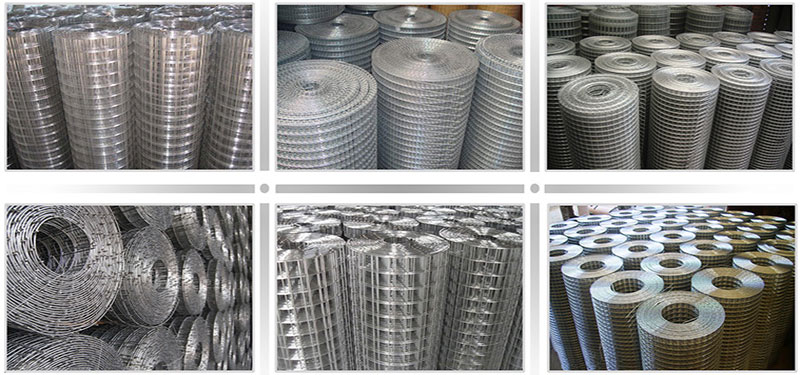

finished product
finished product

Welded mesh machine is also called electric welded mesh roll machine, electric welded mesh machine, electric welded mesh welding line. It is used to make building nets, wall nets, animal cages, mines, etc.

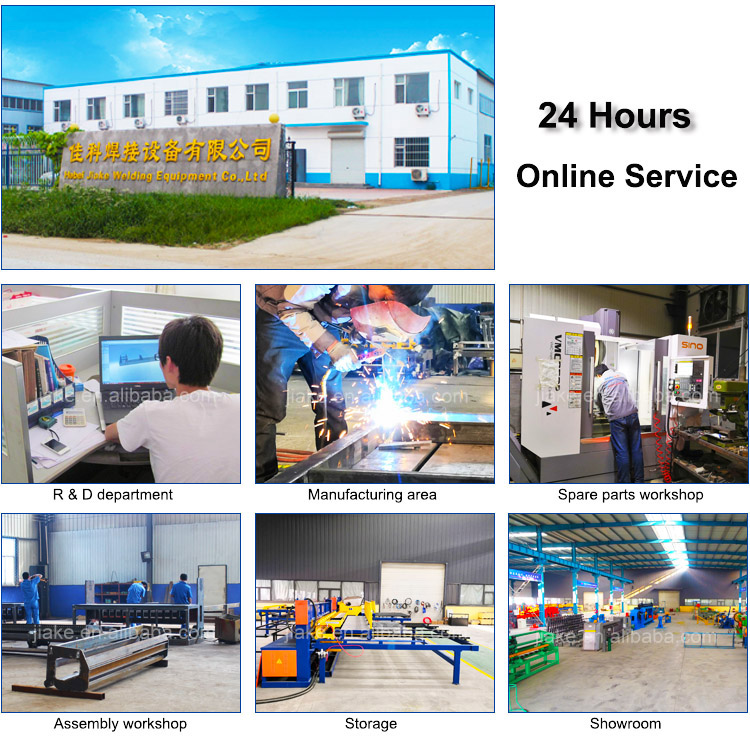

about Us
about Us

Hebei Jiake Welding Equipment Co., Ltd. is a leading wire mesh machine manufacturer in China, and we always provide advanced wire mesh technology.
