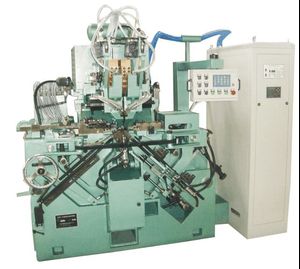

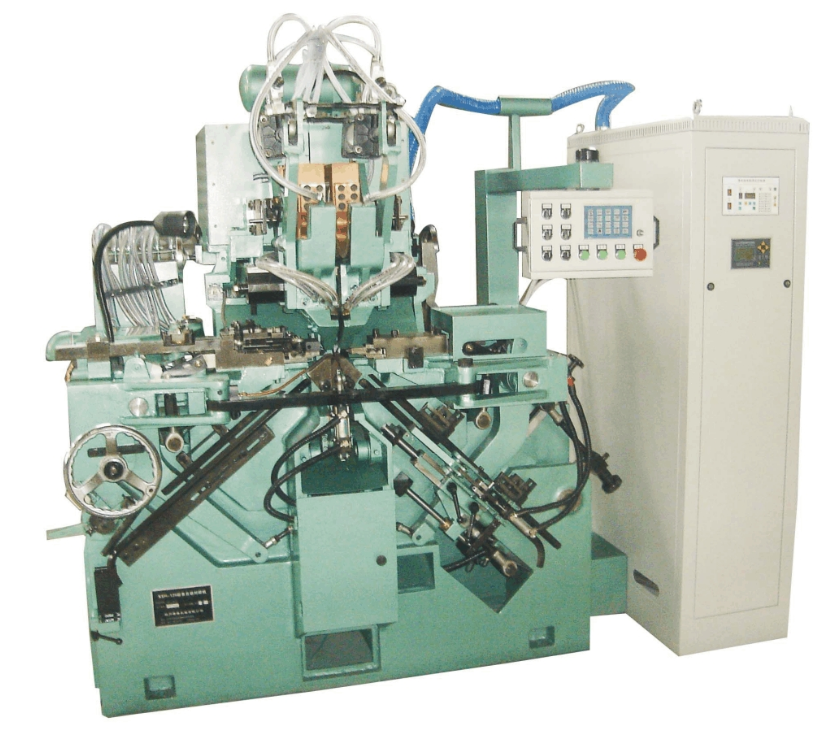

XJK-LP2 automatic chain welding machine control system

PRODUCT DETAIL
Local service location:not anyAfter Warranty Service:Online support
Showroom location:not anyWarranty:1 year
Weight (kg):60kgVideo external inspection:if
place of origin; place of origin:Zhejiang, ChinaHealth status:new
payment terms:letter of credit, wire transferCore Components Warranty:1 year
usage:chainApplicable industries:Mechanical Repair Shops, Manufacturing Plants, Energy & Mining
Core components:programmable logic controllerMechanical test report:Not available
Supply capacity:20 sets per monthMarketing Type:New Products 2020
After-sales service provided:Online supportbrand:Xijian

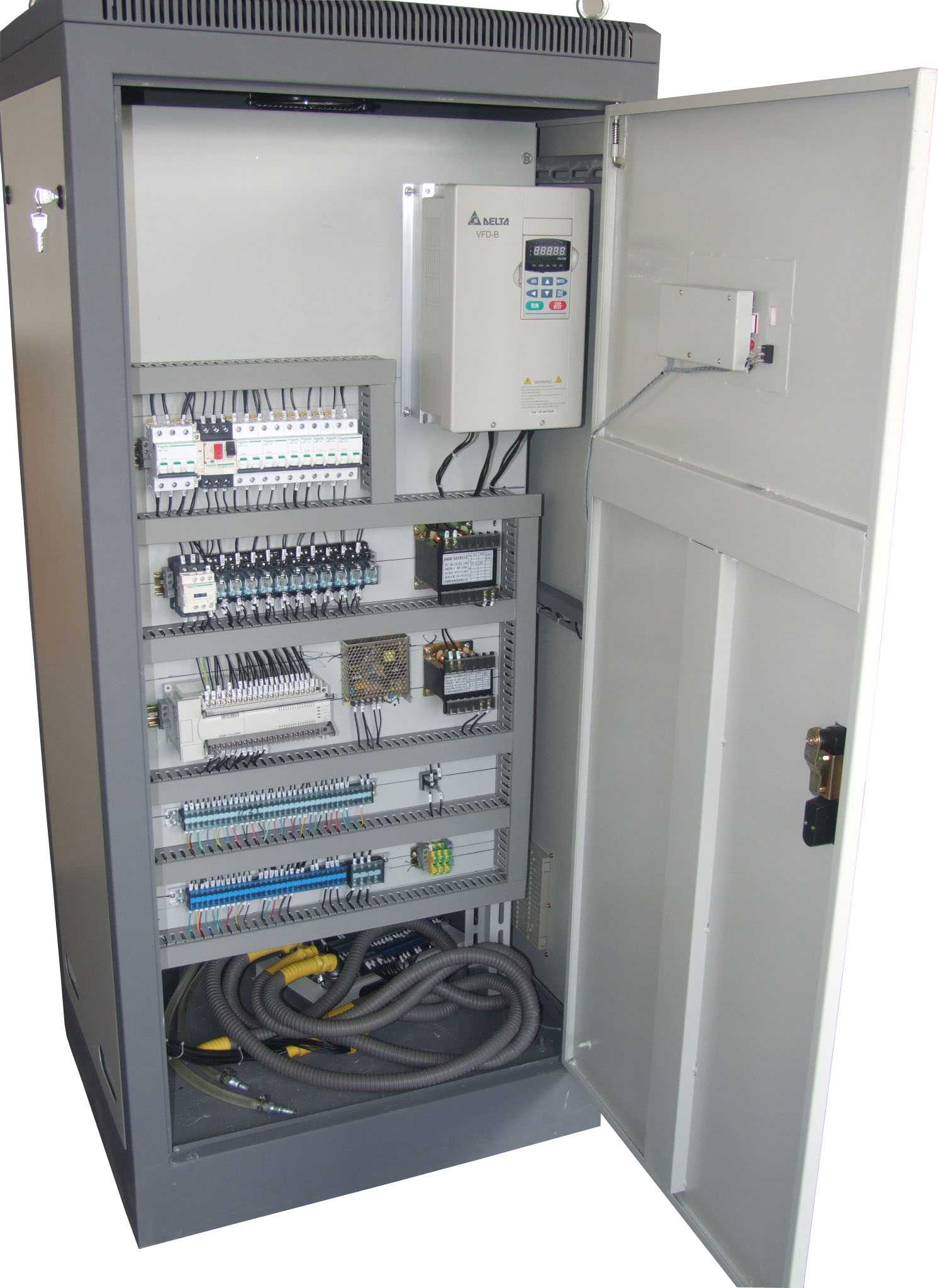

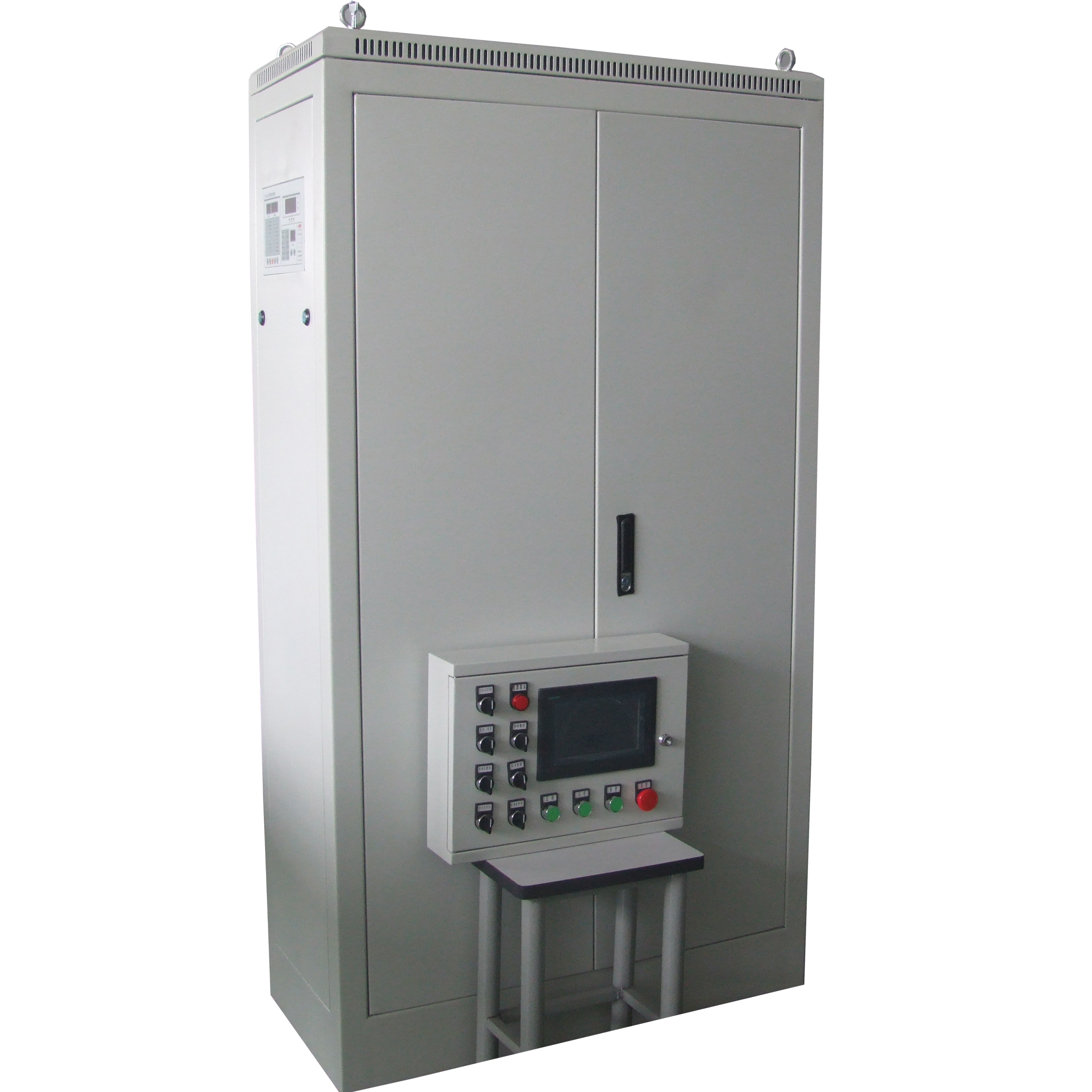

It is a special control system for the chain making machine, which can double the work efficiency. It also contains a resistance welding controller so the quality of the chain can be improved.



Machine Details:





Model

LP2-75

LP2-125

work character

wire diameter

4mm-6mm

6mm-10mm

size

11mm-30mm

18mm-50mm

Electrical technical characteristics

rated power

3Φ380

3Φ380

Welding current power

75KVA/20%FS

125KVA/20%FS

Motor Power

3KW

4KW

speed

27-55 rounds/sec

27-55 rounds/sec

Lubrication system



Oil pool automatic lubrication

Pneumatic system

supply pressure

> 0.7Mpa

> 0.7Mpa

work pressure

0.65Mpa

0.65Mpa

Air consumption

<5L/wheel

<8L/wheel

cooling system

Water Consumption

<20 l/min

<20 l/min

Cooling water temperature

15°C

15°C

Way of working



Manual/semi-automatic/automatic











































We can also provide other control systems for chain making programs. Such as knitting control system.







About the company

Hangzhou Xinjian Electronics Co., Ltd. is an ISO9001 certified manufacturer and a high-tech company. Professional design and production of industrial control systems since 1997. All products are designed and manufactured for the global market, and we provide OEM/ODM services for world-class brands. We have been highly recognized not only for our excellent quality and excellent after-sales service in domestic and international markets.
