Wedge Wire Mesh|Grilled Mesh|Strainer|Johnson Tube|Screen Welding Machine

PRODUCT DETAIL
Primary voltage:380V adjustableAfter warranty service:no signal
Socket size tolerance:+/-0.05 mmLine number:#4-14#
Nominal Duty Cycle:80%Rod Size:2-5mm
Video shipment inspection:ifWarranty:1 year
Rated Capacity:120KVAweight:10-13 tons
Diameter:100-1200mmPackaging Details:Wooden pallet and plastic packing in container or according to customer's requirement.
Applicable industries:Farms, Energy and MiningMarketing Type:normal product
Spindle maximum speed:20 rpmfactory:Anping, Hebei, China
Core components:PLC, engine, water pumpMain selling points:Famous PLC
payment terms:L/C, T/TMechanical test report:if
Origin:Hebei chinaSupply capacity:10 sets per year
Showroom location:Turkey, India, Russia, Morocco, Kenya, Kazakhstan, Kyrgyzstan, UzbekistanWeight (kg):10000 kg
Local service location:Italy, Philippines, India, Kenya, Chile, Kazakhstan, UkraineTube length:4m, 6m
Health status:newV wire diameter:2-5mm
brand:ouraCore component warranty:2 years
Material:Stainless steel wire, low carbon steel wireport:Tianjin
aspect:16000*1800*3500mm

Product Description

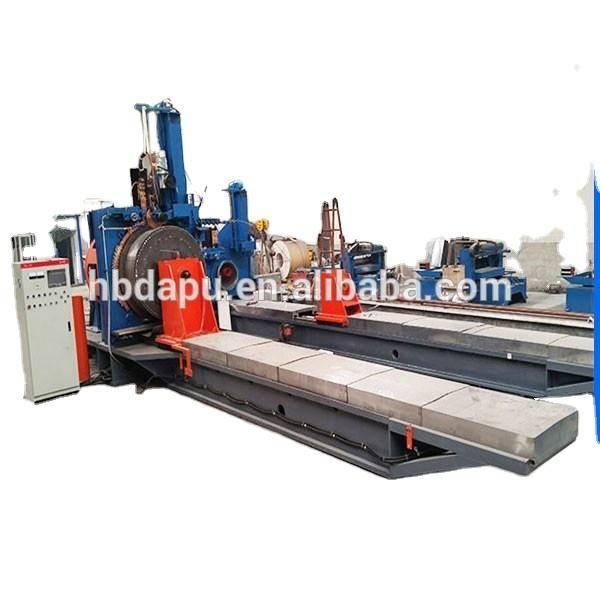

This machine is used to make wedge-shaped screens, mining crushing screens, water inlet screens, curved screen cones, screen baskets and filters. This machine adopts a number of advanced technologies to ensure the good performance of the machine.

International brand PLC, touch screen, electrical components, etc.

♦ Ball screw unit: (Korea)

Linear slider bearings: (Korea)

   Two servo motors control ball screw and linear slider bearings with high precision

   Notch size can be adjusted by CNC control

   Cooling system

Technical Parameters
Model DP-WS-1 DP-WS-2 DP-WS-3 DP-WS-4
Screen diameter 50-200mm 50-340mm 100-500mm 400-1200mm
slot size Minimum 0.1mm Minimum 0.1mm Minimum 0.2mm Minimum 0.2mm
screen length Maximum 2000mm Maximum 6000mm Maximum 6000mm Maximum 4000mm
wire S304, S201, SAE1006, etc.
Voltage Three-phase, 380V/220V/440V/415V/600V, 50/60Hz
welding speed 6-30r/min is suitable for different screen diameters
welding transformer 100 kW
Welding precision The wire tolerance is within 0.01mm, and the welding accuracy is within ±0.04mm
aspect 6*1.5*3.3m 13*1.5*3.3m 13*1.5*3.3m 11*2.1*3.8m
weight 8000 kg 11000 kg 13000 kg 15600 kg

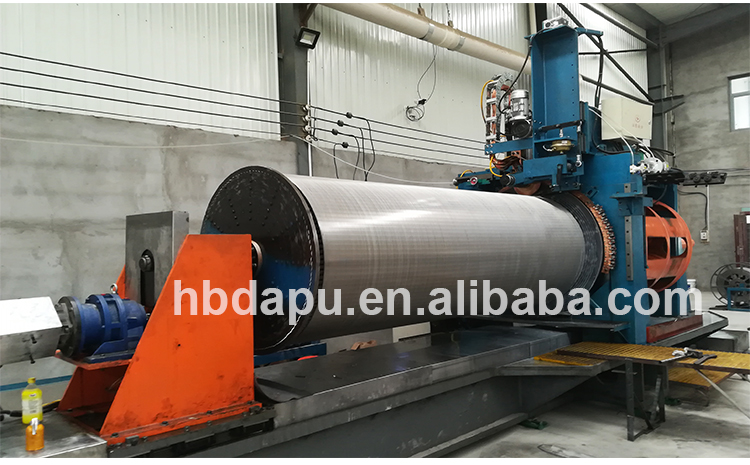

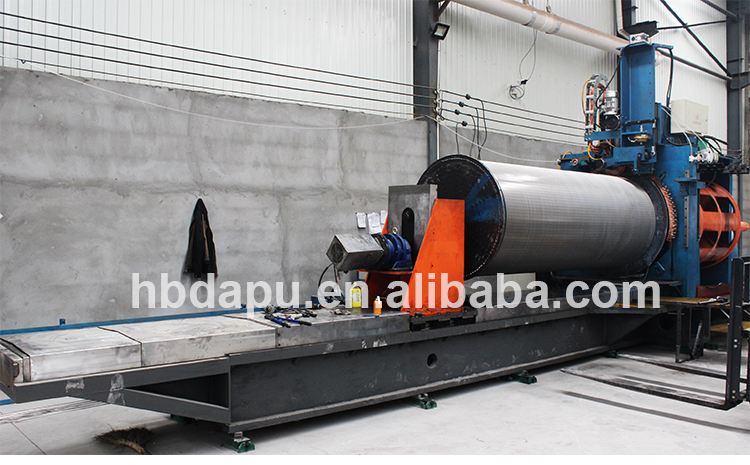

product display

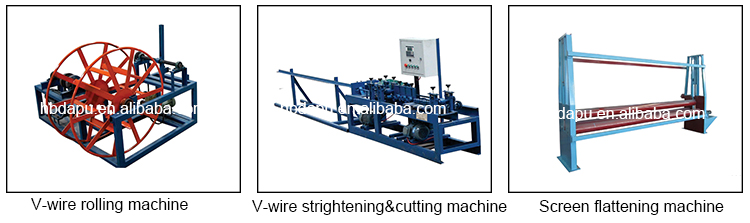

Auxiliary equipment

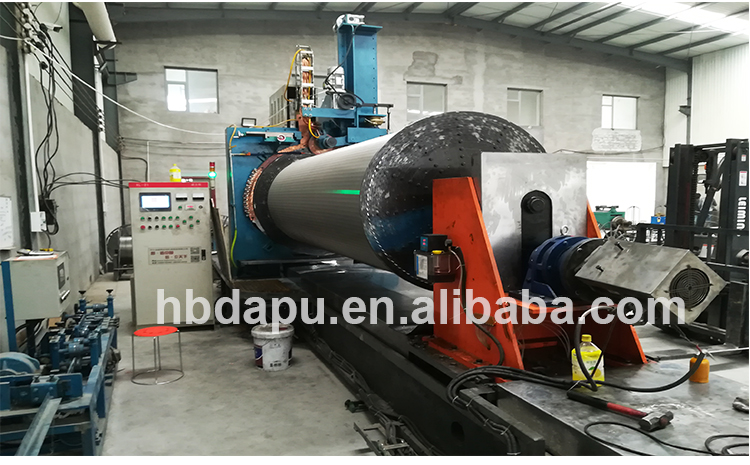

manufactures

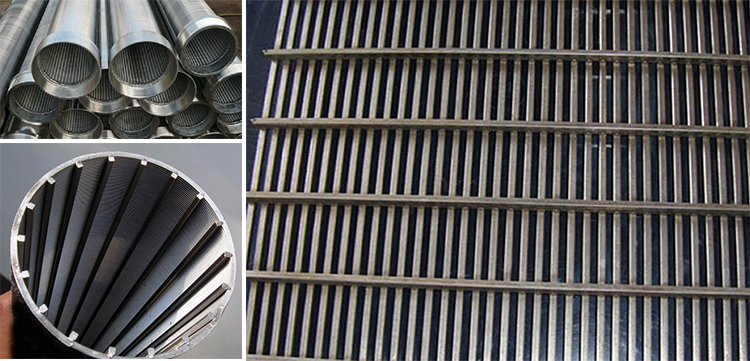

Wedge wire mesh welding machine is used to make wedge wire wrapped screens, mineral filter screens, coal washing screens, water filter screens, water well screens, etc.
