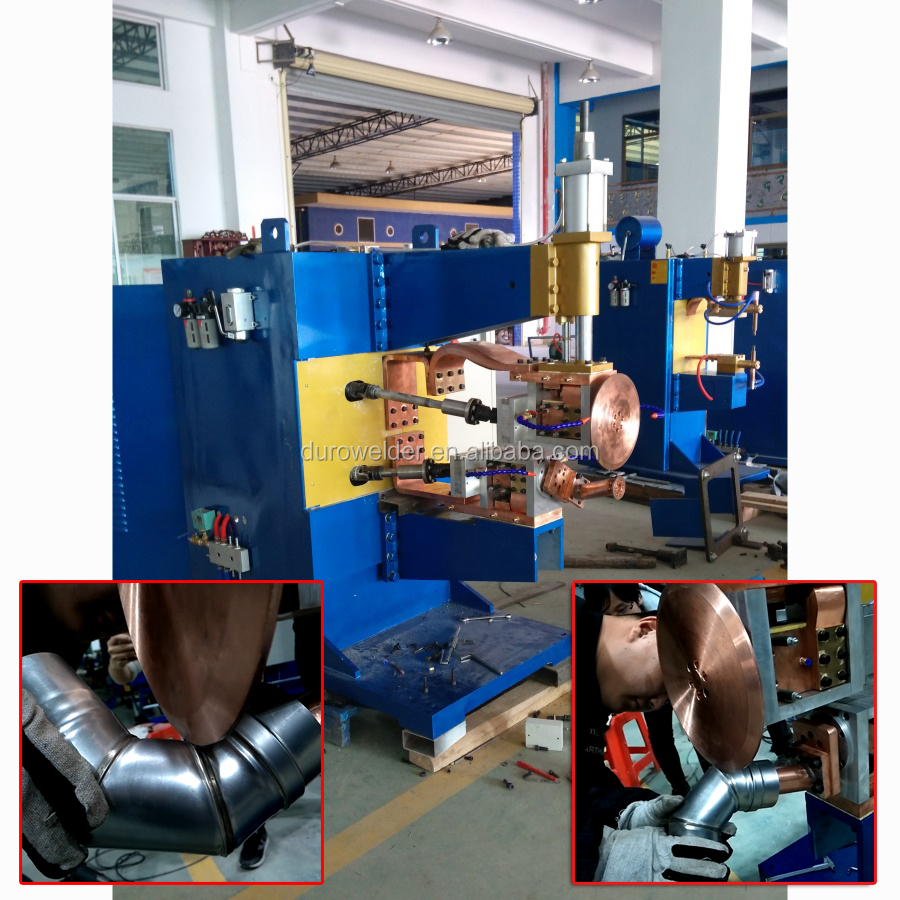

Automatic Resistance Roll Seam Welders for Chimney Welding, Stainless Steel and Carbon Chimney Welders
- $3000.00 /set
- 1 set
- Guangzhou DuroWelder Limited
- Guangdong, China
- Ms Kalen Lee
| Supply capacity: | 50 sets per month | model: | FN series |
| Shipping Details: | 2-3 weeks | brand: | Duro welder |
| payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Cash | port: | Guangzhou |
| Welding current: | AC or optional DC | Welding speed: | 1-8000mm/min |
| Origin: | Guangdong, China | Packaging Details: | steel+wood |
| Primary voltage: | 380V/220V/415V/440V 50Hz | cooling system: | internal cooling |

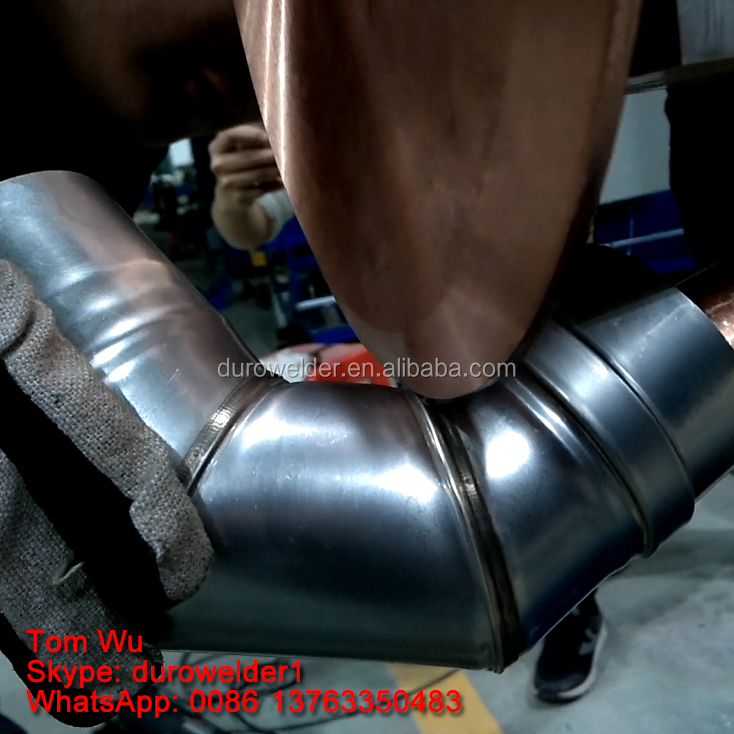

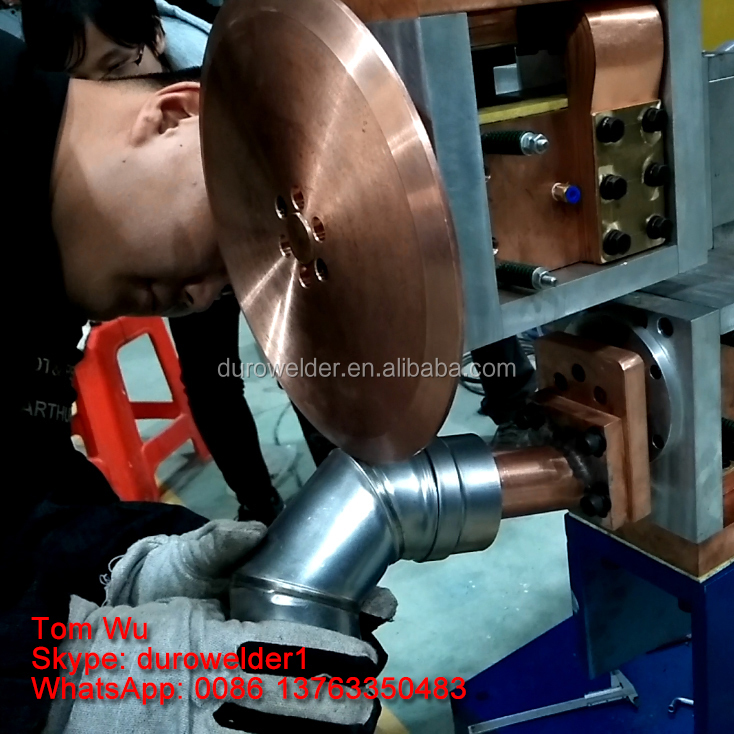

| usage: | Welded curved stainless steel or carbon chimneys | stroke: | 450mm |
| Nominal Duty Cycle: | 50% | After-sales service provided: | Engineers available to service machinery overseas |
| Weld diameter: | 80-1000mm | color: | blue or customized |
| Rated Capacity: | 75KVA | aspect: | 1600*1200*1500mm |
application:
Widely used in hardware, electrical appliances, automobiles, pot making, can making and other hardware manufacturing and processing industries.
For example,
tank product: Watertight tanks, airtight tanks, fuel tanks, water storage tanks, tank longitudinal seam welding, circumferential seam welding, cross seam welding, etc.
sink products: Built-in sinks, countertop sinks, handmade sinks, etc.
mesh products: Fine mesh lap welding, fine mesh filter seam welding, stainless steel mesh filter, wire mesh welding, etc.
steel plate: Welding sheet metal, stainless steel plate welding, galvanized plate seam welding, etc.
Welding materials: low carbon steel, stainless steel, galvanized steel, etc.
Welding thickness range: 0.1-2.0mm (single metal plate)
Machine Features:
1. There are two standard models: transverse welded model and longitudinal welded model.
2. One machine can also be used for multiple purposes. For transverse seam welding and longitudinal seam welding, only need to change the direction of the upper seam head, and replace the lower welding head and welding arm.
3. Drive one head and release the other. Both sewing wheels have the same tangential speed.
The main technical parameters:
thing
Model |
Rated Capacity |
rated primary voltage |
rated frequency |
short circuit current |
Electrode stroke |
welding speed |
Electrode pressure |
Motor Power Resources |
Motor Power |
cool down water flow |
weight | |
kVA | V | hertz | A | mm | m/min | KN | V | W | l/min | Kilogram | ||
FN-50 | 50 | 380 | 50/60 | 13000 | 50 | 0.6-4 | 2.5 | 3-380V | Post-90s | 30 | 500 | |
FN-75 | 75 | 380 | 50/60 | 16000 | 50 | 0.6-4 | 3.9 | 3-380V | 150 | 30 | 650 | |
FN-100 | 100 | 380 | 50/60 | l8000 | 50 | 0.6-4 | 4.7 | 3-380V | 150 | 30 | 880 | |
FN-150 | l50 | 380 | 50/60 | 23000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1050 | |
FN-200 | 200 | 380 | 50/60 | 26000 | 50 | 0.6-4 | 6.1 | 3-380V | 150 | 30 | 1250 |
